HUAFA Brand 40hp radiator diesel engine
- Category: >>>
- Supplier: Weifang Huayuan Diesel Engine Manufacture Co. Ltd.
Share on (60331217689):
Product Overview
Description
RADIATOR DIESEL ENGINE SPECIFICATION
Weifang Huayuan diesel engine can be widely used as the main power for generator set, fixed power, engineering machinery, agricultural machines and water pump set. All series engines are developed on the basis of original model by optimizing its fuel system, air intake and exhaust system, cooling system and transmitting system, to achieve high performance reliability and economical efficiency. The engines mainly have following features: lower oil consumption, higher reliability, bigger torque, easy starting & maintenance, and better adaptability.
Engine Model | HFK4100D |
Manufacturer | Weifang Huayuan Diesel Engine Manufacture Co., Ltd |
Brand | HUAFA |
Type | Four stroke, in line, water cooled |
Rating power(kw) | 30.1 |
Engine Speed(rpm) | 1500 |
Bore*stroke(mm) | 100*115 |
Number of cylinders | 4 |
Air input mode | Natural |
Compression ratio | 17:1 |
Fuel consumption | ≤232g/kw.h |
Oil consumption | ≤1.63g/kw.h |
Speed regulator | Mechanical |
Displacement | 4L |
Lub oil capacity | 12L |
Cooling capacity | 16L |
Starting method | Electric starting, 12V |
Cooling method | Forced water cooled |
Lubrication method | Pressure & splash lubricating |
Exhaust gas temperature | ≤600°C |
Net weight | 390kgs |
Application | Generator set or water pump set |
FACTORY SHOW
RADIATOR DIESEL ENGINE PRODUCTION LINE
CERTIFICATES

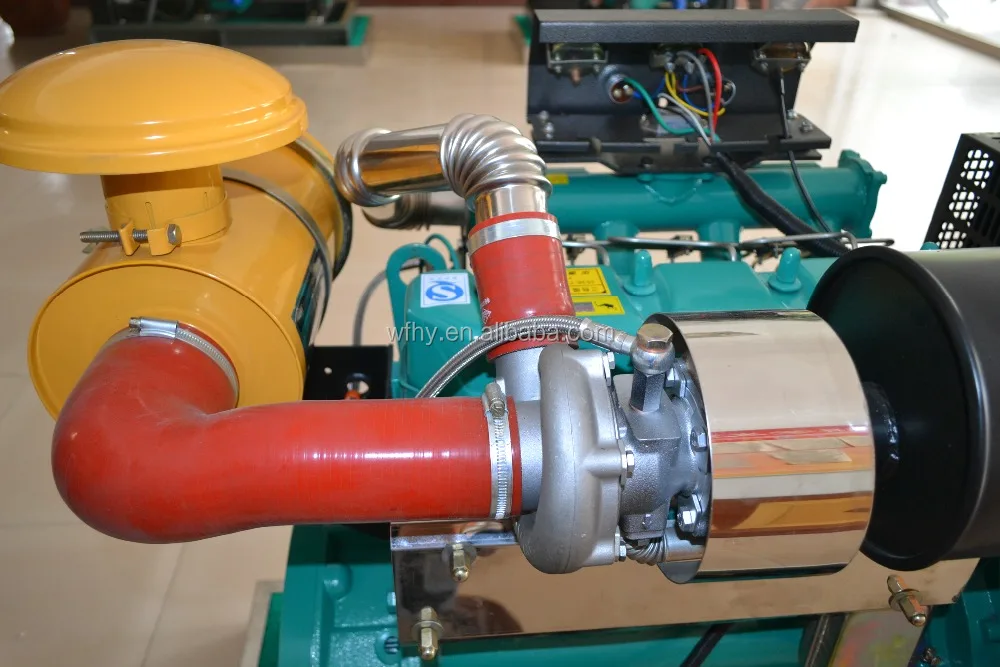

RADIATOR DIESEL ENGINE CONFIGRATION

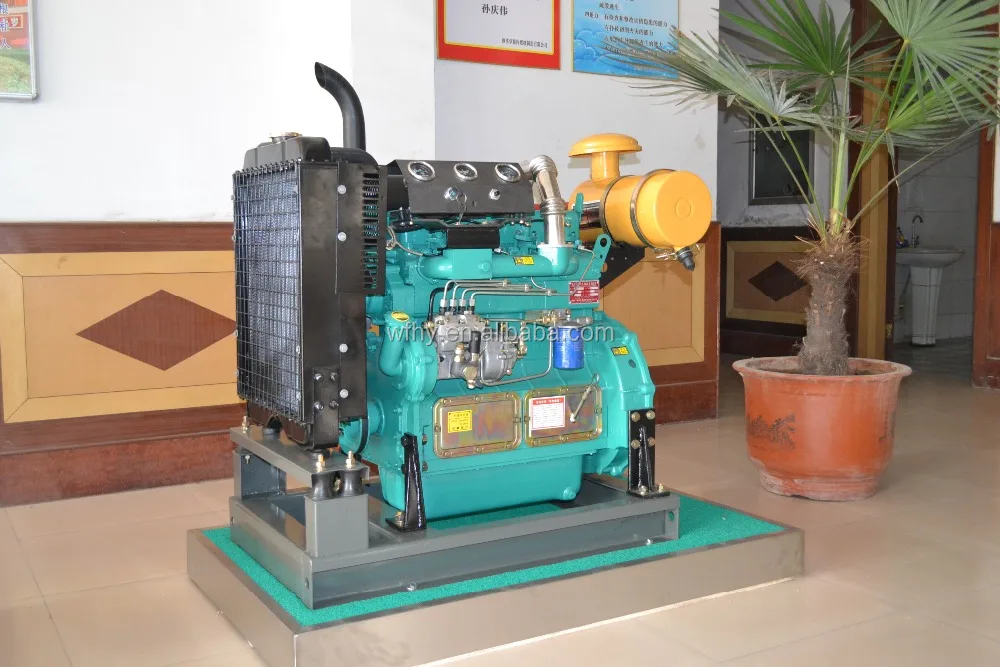

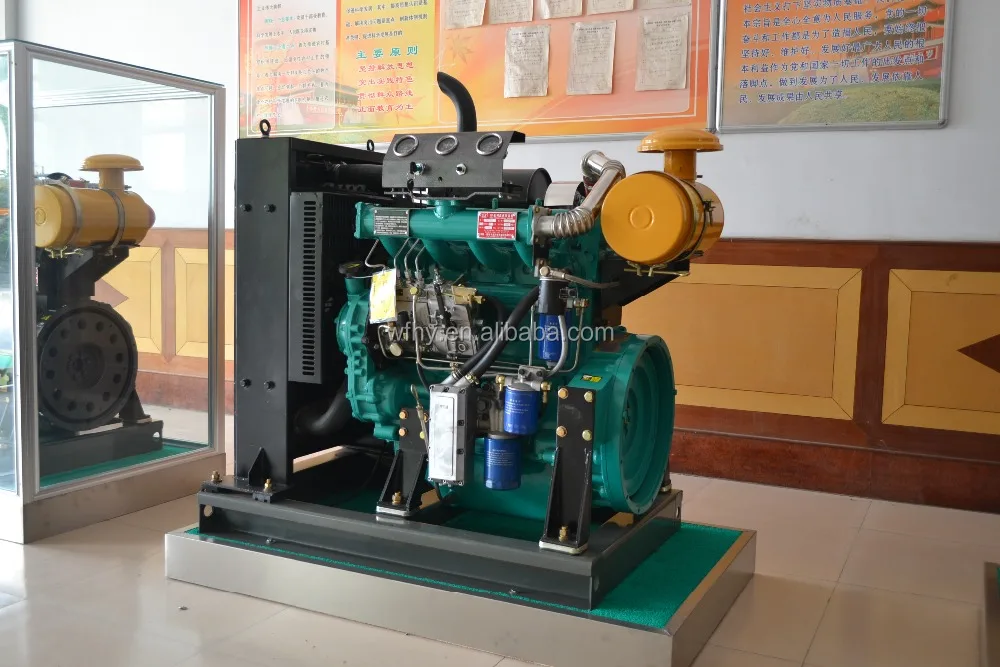

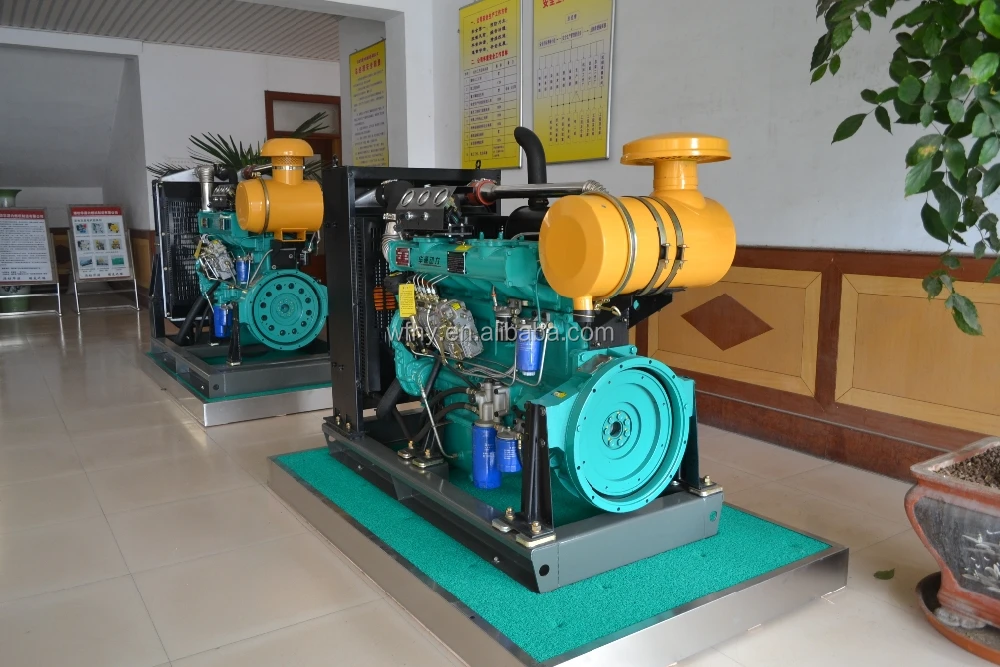

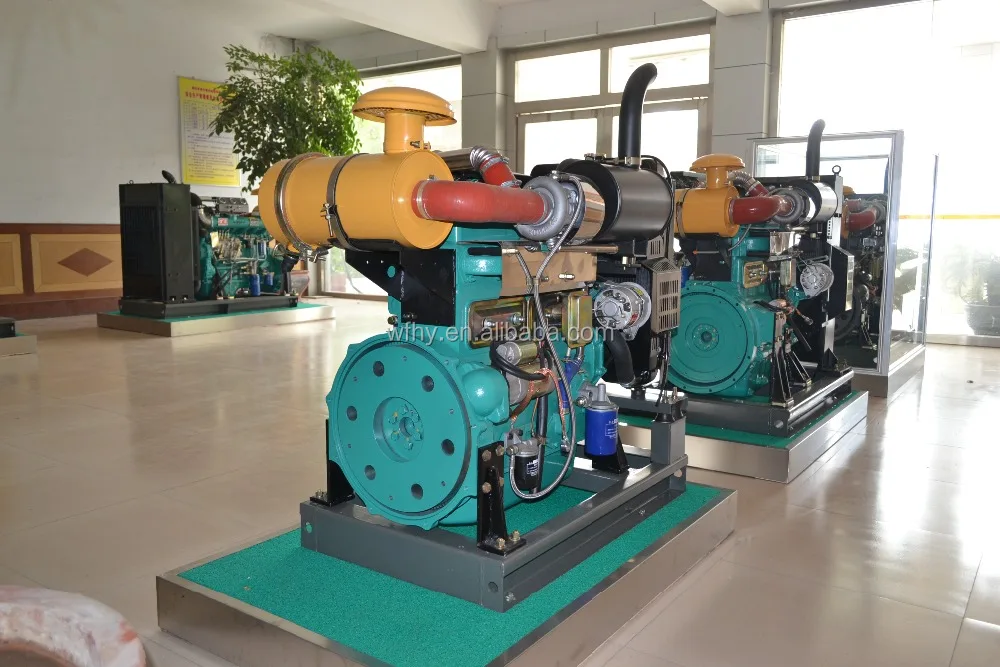

RADIATOR DIESEL ENGINE SHOW
Packaging & Shipping
Our Services
*Reply your enquiry in 24 working hours
*Offer customers the lowest price with highest quality
*Dliver the goods to our customer all over the world with speed and precision
*Supply one year guarantee for whole machine from daye of bill of loading or 1000 hours of running or 12 months from date of bill of loading.
