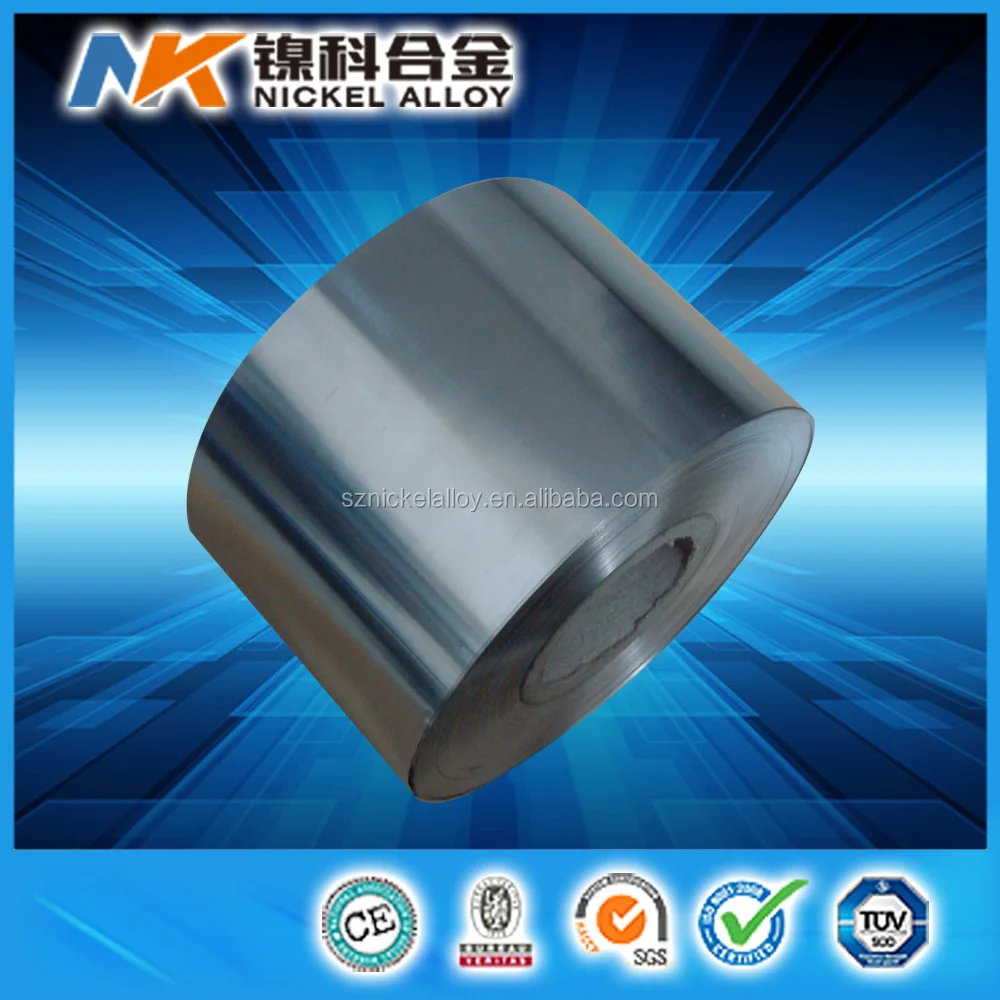

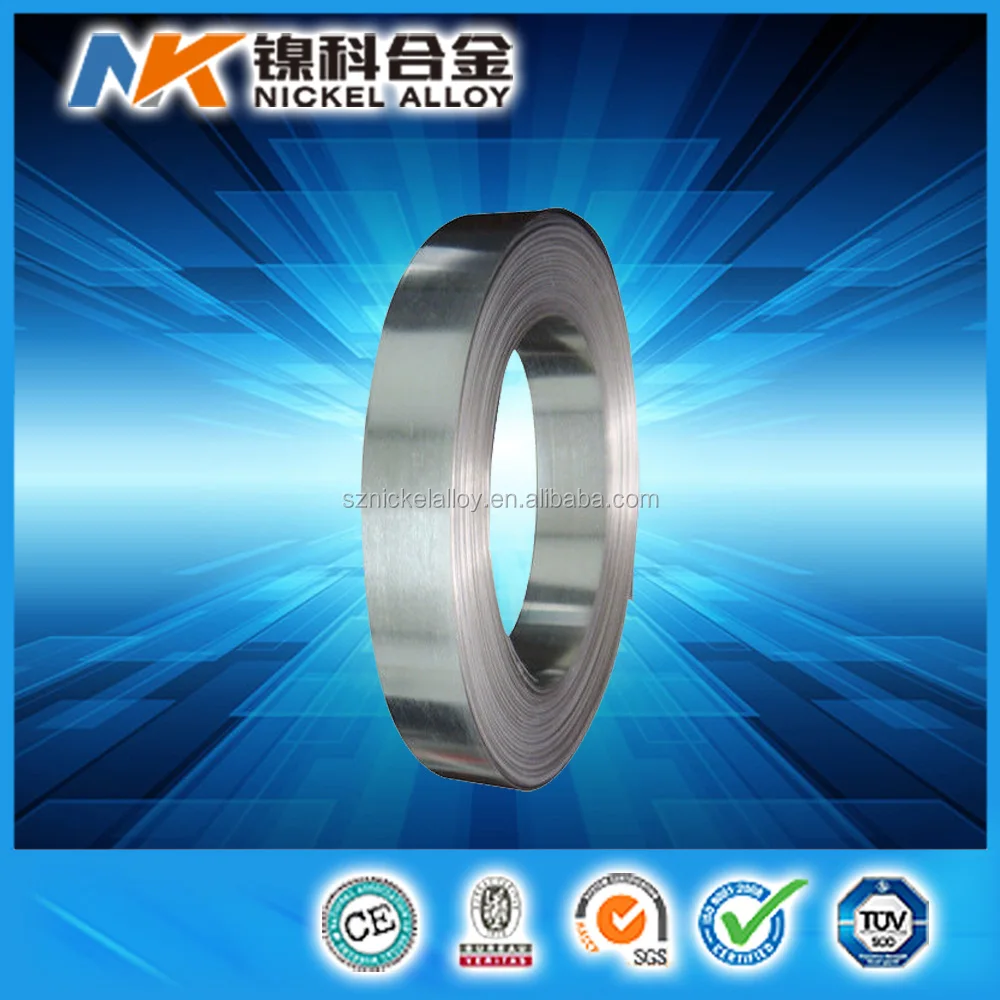

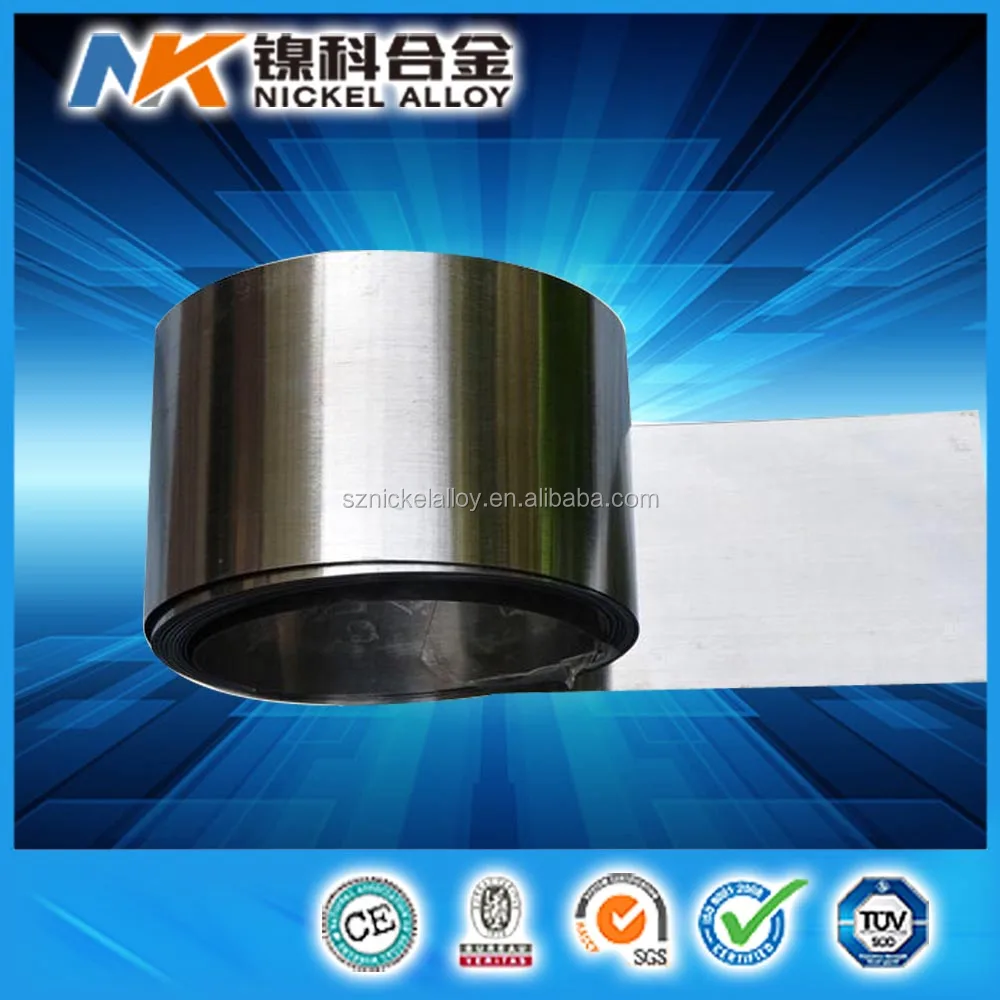

Soft magnetic shielding permalloy mumetal foil

Product Overview

Description

mumetal foil
Grade: 1j50, 1j79, 1j85, 1j86

Shape: wire, bar/rod, strip, sheet, tube
straight and solid spooling
long life service



                                    Soft magnetic shielding permalloy mumetal foil

  Suzhou Nickel Alloy (NK) Co., Ltd.







Permalloy

FeNi Soft Magnetic Alloy (GBn198-1988)



Grade & Composition



Sort

Grade

C≤

P≤

S≤

Mng.

Sil.

Nic.

Chr.

Cob.

Moly.

Cop.

Fe

High magnetic  conductivity

1J46

0.03

0.020

0.02

0.60~1.1

0.15~0.3

45.0~46.5

≤0.20

Balance

1J50

0.30~0.6

0.15~0.3

49.0~50.5

≤0.20

1J77

0.03

0.020

0.02

0.30~0.60

0.15~0.3

75.0~78

3.9~4.5

4.80~6

1J76

0.30~0.60

0.15~0.3

75.0~76.5

1.80~2.2

4.80~5.2

High initial  permeability  of soft magnetic  alloy

1J79

0.60~1.1

0.30~0.50

78.5~80.0

3.80~4.10

≤0.20

1J80

0.60~1.1

1.10~1.5

79.0~81.0

2.6~3.0

≤0.20

1J85

0.30~0.60

0.15~0.3

79.0~81.0

4.80~5.20

≤0.20

1J86

≤1.00

≤0.30

80.5~81.5

5.80~6.2





Mumetal is 80% nickel with additions of iron and molybdenum as main elements in turn this alloy offers an extremely high initial permeability. It is only moderately resistant to moisture and atmospheric corrosion, it used mainly in in transformer cores but is well known for its magnetic properties which are used for shielding electrical components from magnetic fields. "HYMU 80" has a minimum DC permeability of 80,000 at a flux density of 40 gauss when heat treated by the recommended procedure and test in accordance with ASTM 596



Physical Properties (Annealed Condition)



Specific Gravity - 8.7g/cm
Curie Temperature - 830°F (410°C)
Electrical Resistivity, 349 ohm circ mil/foot 0.55 ohm mm²m
Density lb/cu.in. - 316
Thermal Conductivity - 134 btu-inch/ft hour °F 0.32 W/cm °C
Coefficient of Thermal Expansion, in./in. °F x 10 (-******)
7.2in/in °F x 10-6 between 70 and 400F
13cm/cm/ °C 10-6 between 30 and 204 °C



Availability



Mumetal is available in Sheet, Strip, Bar, Tubes and Rod.



Product sizes are:

cold rolling strip:0.1mm-3.0mm×≤420mm
hot forged material:diameter5.5mm--250mm,square:40mm240mm×40mm240mm
cold drawing wire:0.1mm-18mm
hot rolling plate  3.0mm-60.0mm×1000mm*2000mm

Seamless tube:  φ6mm~φ219mm×0.5mm~18mm

Welded tube: φ1mm~φ120mm×0.1mm~10mm



PRODUCT APPLICATION

Permalloy



Permalloy is used in transformer laminations and magnetic recording head sensors,in its initial application,permalloy was wrapped around the insulated copper conductors of telecommunication cables,reducing signal distortion through improved inductive compensation of cable capacitive reactance.

High performance magnetic cores such as toroids and stacked laminations

Magnetic shielding to protect sensitive components from extraneous magnetic fields

Magnetic sensors

Current sensors

Any delicate application requiring high permeability magnetic material, with a low coercive field and low losses, in the range from low frequency up to 1MHz
