foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
- Category: >>>
- Supplier: Changzhou Weedmat Environment Technology Co. ltd
Share on (60332167651):
Product Overview
Description
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
Product Description
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
Material Structure: AL/ scrim/ Paper/ AL | ||
Paper Weight: 60gsm ( Standard, can be Customized) | ||
Roll Size: 1.2m*50m, 1.25*50m (can be customized) | ||
PROPERTIES | TEST DATA | UNIT |
Thickness | +-0.15 | mm |
Weight | +-110 | gsm |
Emissivity | 0.03-0.04 | COEF |
Thermal conductivity | 0.037 | w/m0 |
Bursting Strength | 90 | N/25mm |
Reflectivity | 96-97 | % |
Water Vapour Transmission | 1.15 | Ng/N.S |
Corrosion | doesn't generate | |
Tensile Strength(MD) | 144.4 | N/25mm |
Tensile Strength(TD) | 46.3 | N/25mm |
Construction
Facing Compositon | Desciption | Value |
Foil | Aluminum Foil | 7 Microns |
Reinforcing | Fiber glass | 8/100mm-MD |
12/100mm-XD | ||
Bonding | Polyethylene | -- |
Kraft | Natural | 50 gsm |
Coating | Polyethylene | 15 gsm |
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
Product Description
Advantage
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
- No odor and toxicity,environmentally-friendly
- Light,soft,dust free,fire resistant,easy to install
- Heat reflection,heat insulation,sound insulation,anti-radation,anti-vibration,and shielding
- Moisture barrier,sun-proof,water proof
- Good sealing property,heatnpreservation,energy saving
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
- As foil facing for glass wool,rockwool etc.
- Used under roof decking, attic rafters, in floors, walls
- For pipe wrap, air conditioning ductworks
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
Physical Property | Test Value | Test Method |
Basic Weight | 100 gsm | Scale |
Tensile Strength - MD | 155 N/25mm | ASTM D 828 |
Tensile Strength - XD | 55 N/25mm | ASTM D 828 |
Burst Strength | 55 N/25mm | ASTM D 774 |
Temperature Resistant | Remains Flexible No Delamination | ASTM C 1263 -29~66 ℃ |
Permeance | 5.75 ng/N.s | ASTM E96 |
Emissivity | 0.03 | ASTM E408 |

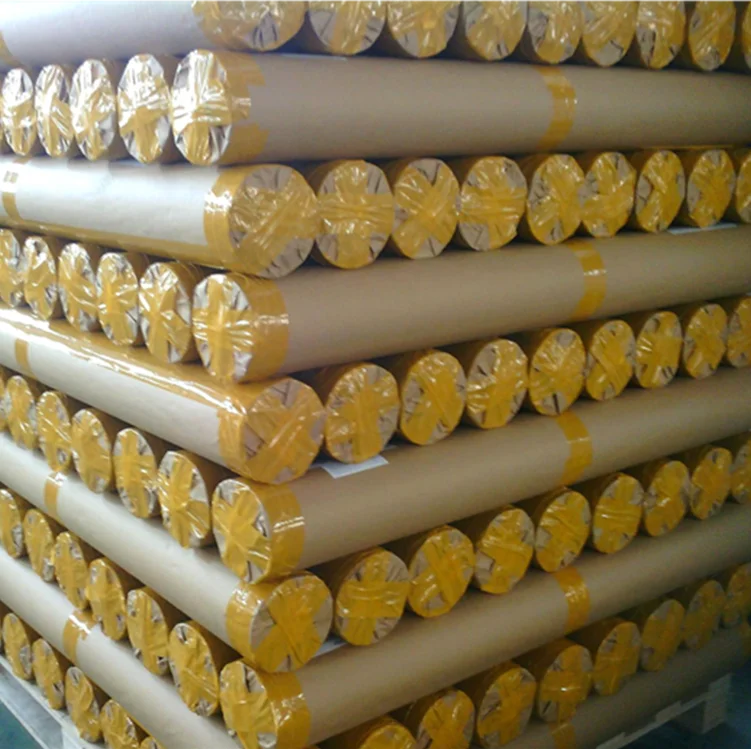

Packaging & Shipping
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
Certifications
foil scrim kraft/Paper foil Insulation/aluminum foil scrim kraft facing
