30V 3A High Quality Factory price Single Output laboratory linear power supply TP 1303C
- Category: >>>
- Supplier: Twintex Electronics Co. Ltd.
Share on (60332433008):
Product Overview
Description

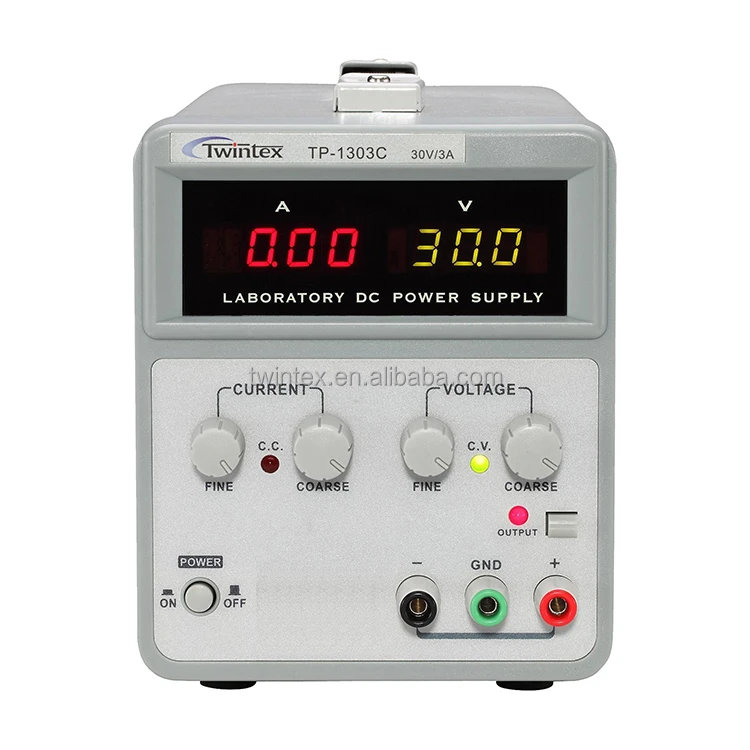

30V 3A High Quality Factory price Single Output laboratory linear power supply TP-1303C
Product Description
Features
One adjustable output 0-30V/0-3A
Constant voltage and constant current operations
Output ON/OFF control
High efficiency, light and compact design
High power density
Over load and reverse polarity protections
Dual-color two digital panel meters
Resolution 100mV/10mA
Selection guide

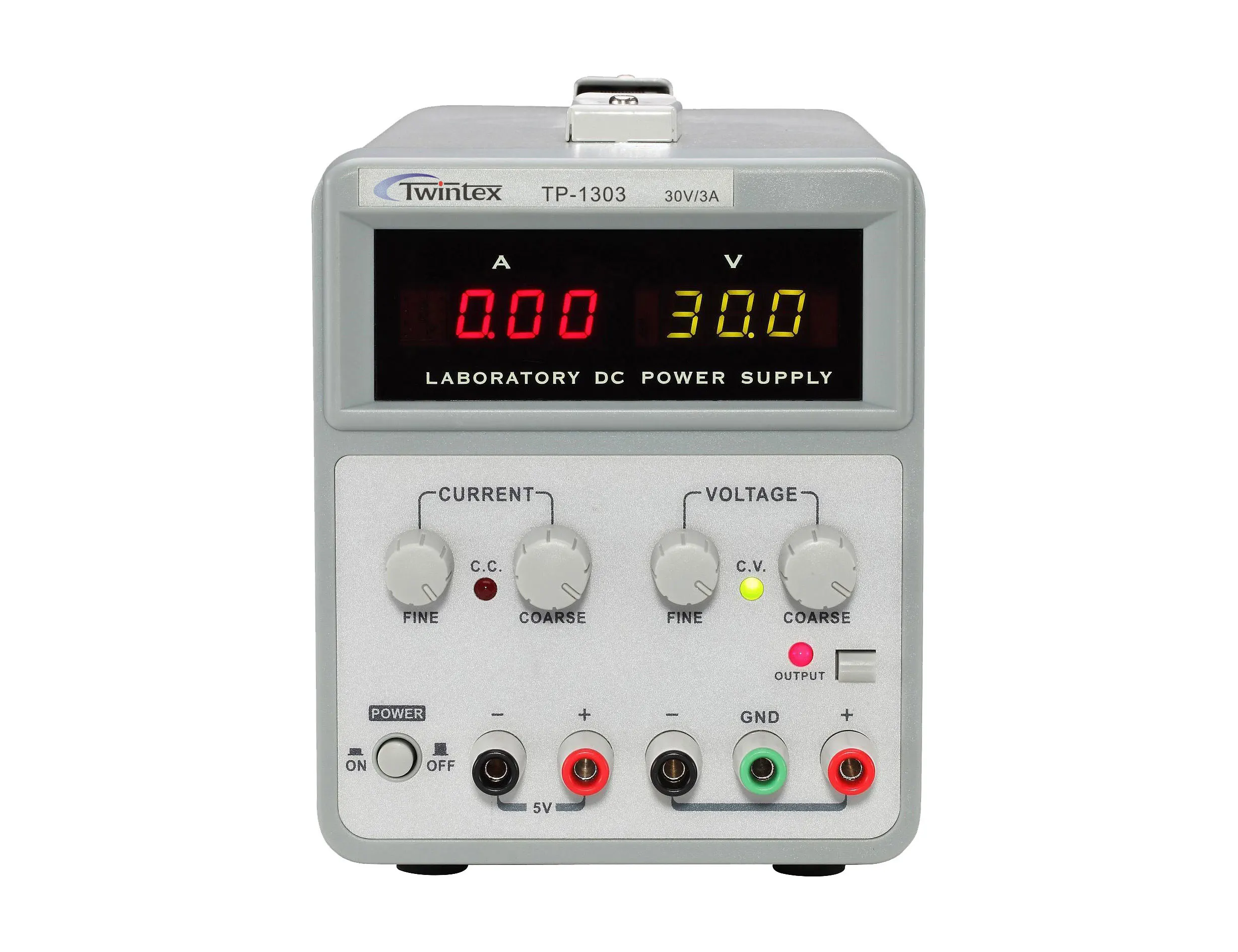

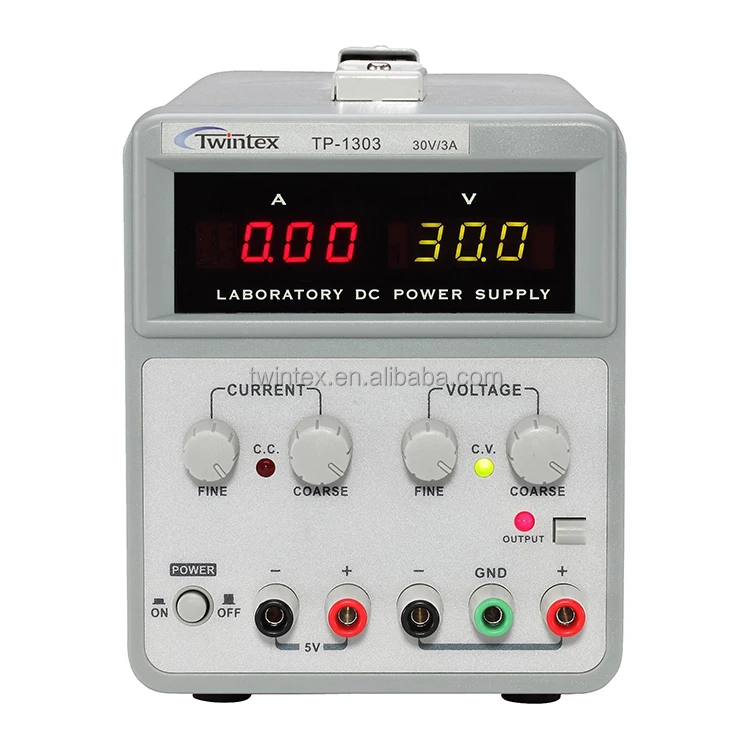

Model | TP-1303 | TP-1305 | TP-1603 | TP-1303C | TP-1305C | TP-1603C | TP-1303EC | TP-1305EC | TP-1603EC |
Output voltage | 0~30V | 0~30V | 0~60V | 0~30V | 0~30V | 0~60V | 0~30V | 0~30V | 0~60V |
Output current | 0~3A | 0~5A | 0~3A | 0~3A | 0~5A | 0~3A | 0~3A | 0~5A | 0~3A |
Fixed output | 5V/1A | 5V/1A | 5V/1A | ||||||
Preset V&I | |||||||||
Output ON/OFF | √ | √ | √ | √ | √ | √ | |||
Dimension (WxHxD) | 130x160x255mm | ||||||||
Weight | 5 kg | 6 kg | 6 kg | 5 kg | 6 kg | 6 kg | 4.5 kg | 5.5 kg | 5.5kg |
Specifications
Constant voltage operation
Line regulation ≤0.01%+3mV
Load regulation ≤0.01%+3mV
Constant current operation
Line regulation ≤0.2%+3mA
Load regulation ≤0.2%+3mA
Display
Voltmeter: 3 digits LED display
Ammeter: 3 digits LED display
Resolution: 100mV/10mA
Accuracy: ±(1% reading+2 digits)
General
Operating environment: 0℃~40℃, ≤80%RH
Storage environment: -10℃~70℃, ≤70%RH
Power source: AC110V/220V±10%, 50/60Hz
Accessories: Power cord x1, Operation manual x1

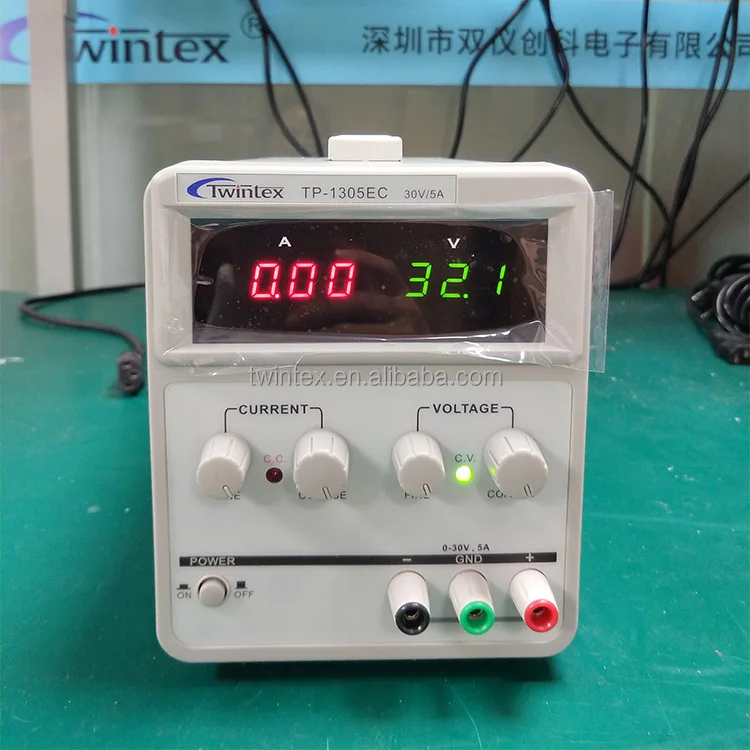

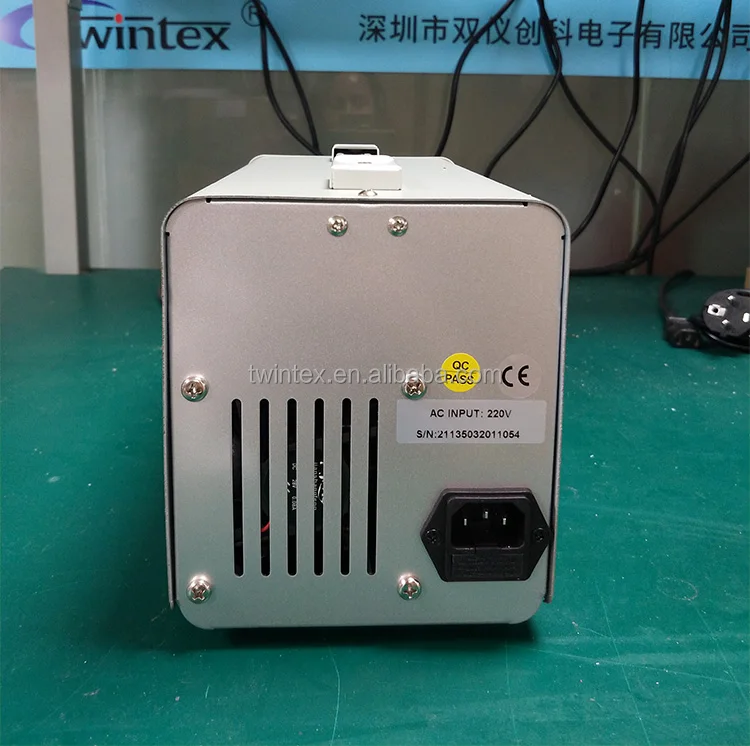

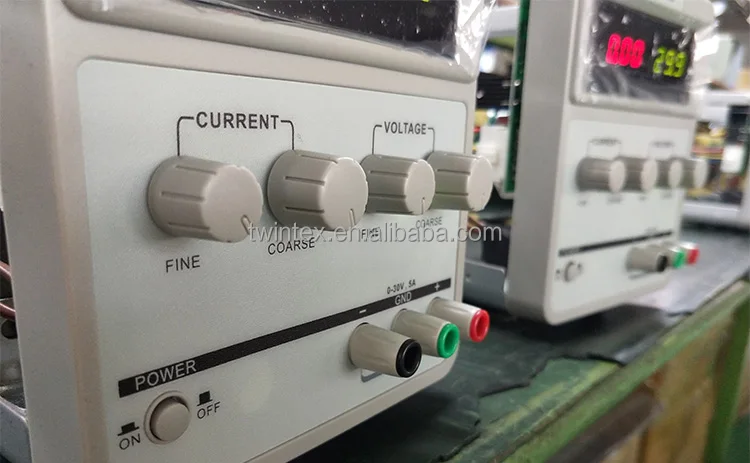

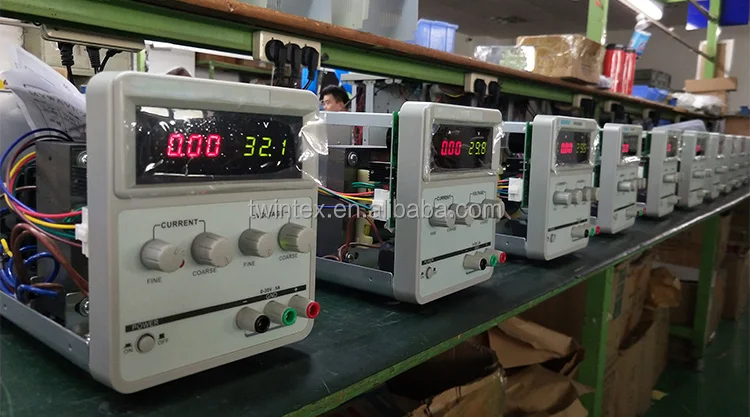

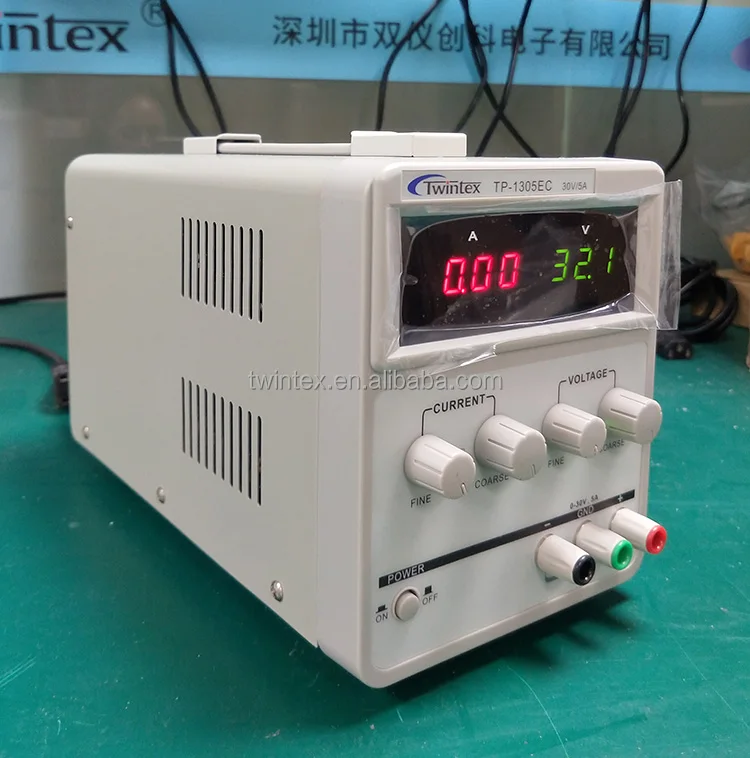

Detailed Images
Company Information
Warranty
All products by TWINTEX are tested and guaranteed to keep in good quality with one year warranty except wearing parts, such as test leads and power cords.
If quality problems happen during warranty period, we provide technical supports and spare parts. Our local distributor if any will help to solve your problems in time after receiving phone calls or emails.
Welcome to contact us at any time if any questions about using our products.
However, TWINTEX is free of responsibility to personal injuries or property damages caused by improper operation.
