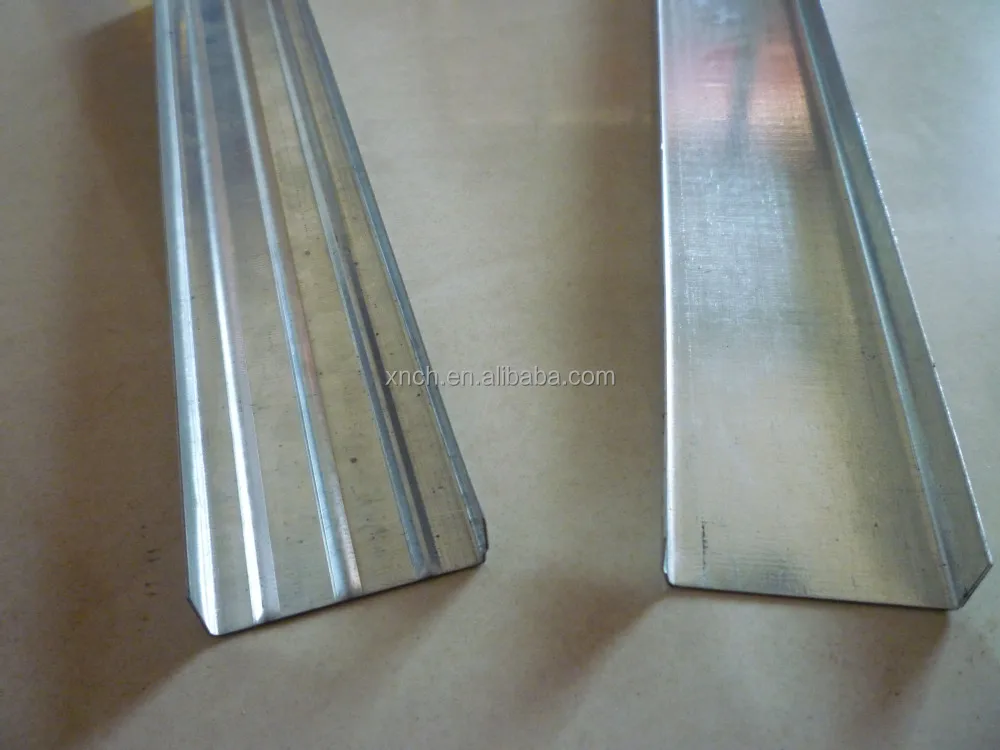

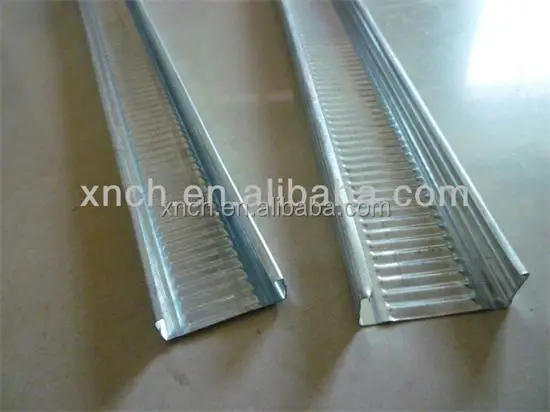

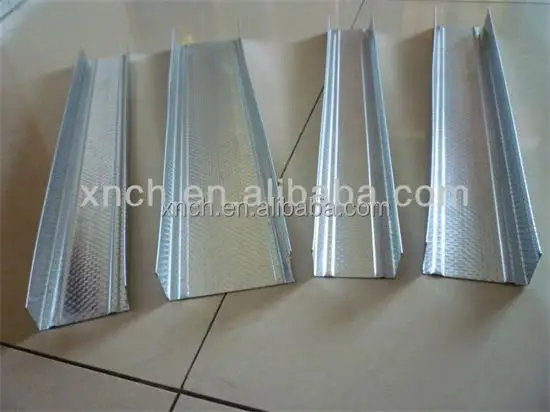

Primery U channel joist for ceiling system



PRODUCT DESCRIPTION

1. Raw materials: hot-dipped galvanized steel coil, Q195

2. Applicatiion: suspension ceiling system

3. Technology: surface with ribbed

4. Zinc content: 60-140g/sq.m

5. Size: 38*12mm, thickness: 0.35-1.2mm, length:customized

6. Standard: GB, JIS, ASTM



SPECIFICATION

commodityspec. (mm)thickness (mm)length (mm)package
main channel38*100.4-1.23000-750020pcs/bundle
38*120.4-1.23000-750020pcs/bundle



TM20130722142628

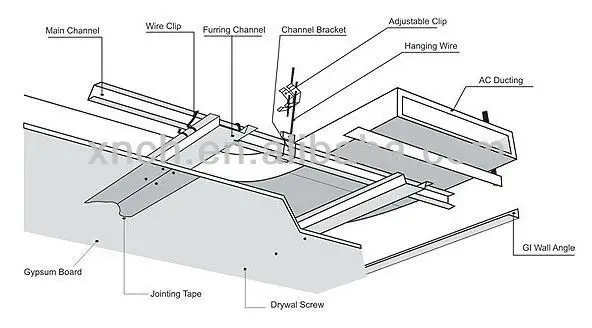

suspension ceilingceiling suspensionsuspension







FUNCTION AND ADVANTAGE

1.Light weight , high strong σs=195MPa

2.Size precision, easy installation, saving time

3.High zinc content, cauterization-resistance, fireproof, earthquake-resistance

4.Safe, beautiful appearance, unique joint design

5.No cracks occur during ceiling installation
