Good quality pv solar junction box with competitive prices
- Category: >>>
- Supplier: Dongguan Lude Photovoltaic Co. Ltd.
Share on (60332604785):
Product Overview
Description

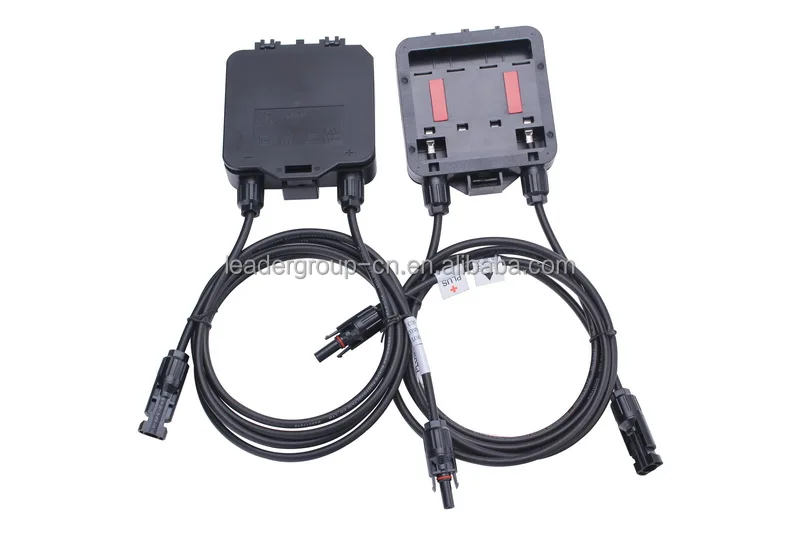

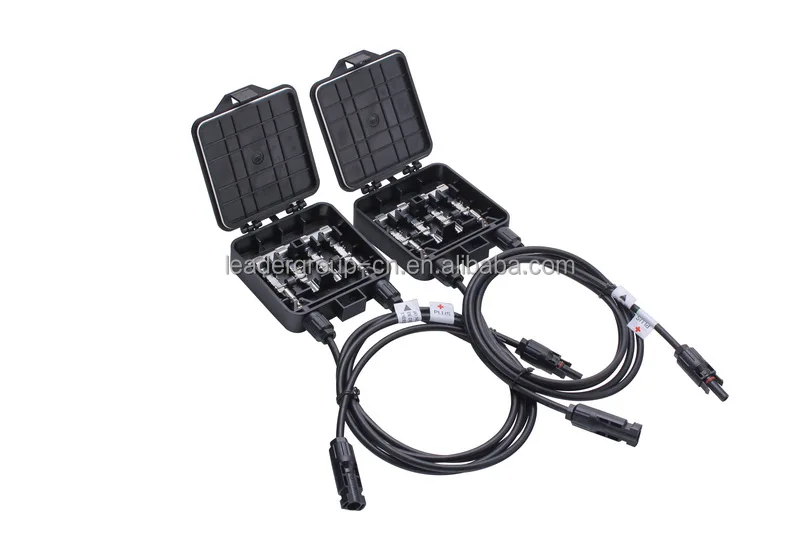

Good quality pv solar junction box with competitive prices
Product Description
Max Voltage:1000V
J Current:3-15A
Temperature Rane:-40℃~+85℃
Protection:ClassⅡ
Waterproof:IP65
Cable size: 4.0mm²
Function:
Box material:PPO
Joining of ribbon:Clamp
| Product No. | SM-JB4 |
| Amount of rails | 4 rail terminals |
| Rated Voltage | TUV 1000V DC |
| Rating current | 15A |
| Cable size | 4.0mm sq (90CM) |
| Pin OD: | 4.0mm |
| Proof voltage: | TUV 6000V AC(1Min) |
| Pollution degree: | 2 |
| Protection class: | Class II |
| Contact Material: | Copper, tin plated |
| Contact resistance: | ≤5mΩ |
| Protection degree: | IP 65 |
| Withdrawal Force: | ≥50N |
| Temperature Range: | -40℃~+85℃ |
