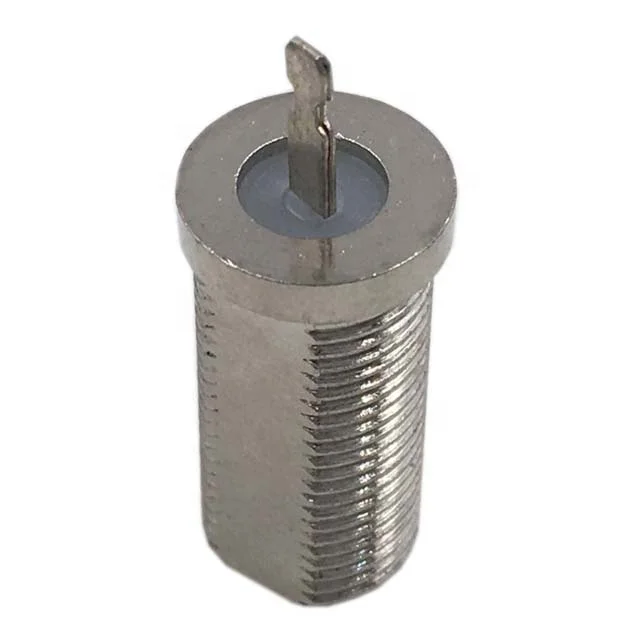

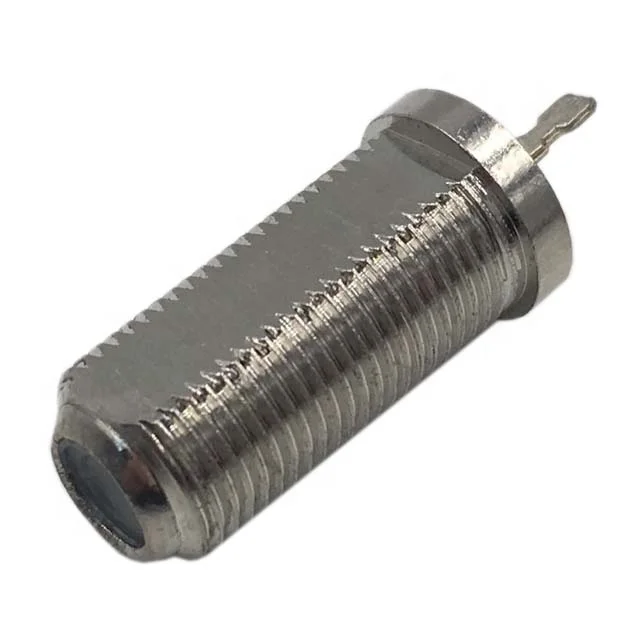

coaxial RF female soldering connector PCB F adapter connector

F RF connectors are the least expensive, general purpose connectors with non-constant impedance for use at 500 volts or less, and for use with low frequencies to 500Mhz. F type coaxial connectors are widely used in cable TV, MATV,CCTV and related consumer television products.

F connectors are available in a limited selection to fit various cable sizes.

TECHNICAL CHARACTERISTICS
Temp. range.................. ....-40~ +60 ℃
Impedance.................... ...75Ω
Frequency Range..............DC0~1GHz
Working Voltage............. ...170V max
Withstand Voltage......... .....500V rms

Contact resistance
Center Contact..............≤10mΩ
Outer Contact...............≤5mmΩ
Insulation resistance ......≥1000 mΩ
VSWR Straight...............≤1.20
Right angle?................≤1.30
Durability(mating)............500 (cycles)

MATERIAL & PLATING
Shell ..............Brass ................Nickel-plated
Contact pin ........brass.................gold -plated
Elastic contact.... beryllium ............gold or silver-plated
Insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated

 1. How about your lead time?
A: it depends on order quantity. Usually 15-30 days.

2.How can we get a sample.
A: Free sample, Freight collected by your side.

3.How to contact us?
A: Just send us enquiry online via Alibaba. Our worker will reply you in 24 hours.

ZHENJIANG XINHUAFENG ELECTRONICS CO., LTD was established in 1992. We are a reliable manufacturer and exporter of various coaxial connectors and many other electronic products.
