Factory Directly GLP 2B 1 Wet Ready Mix Cement Mortar Spraying Machine/Wall Plastering Machine With ISO certification

Product Overview

Description

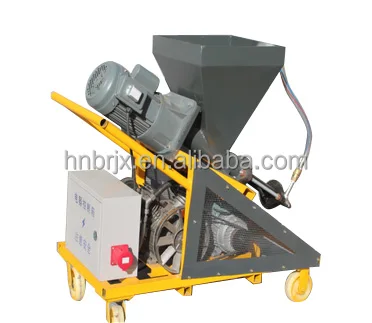

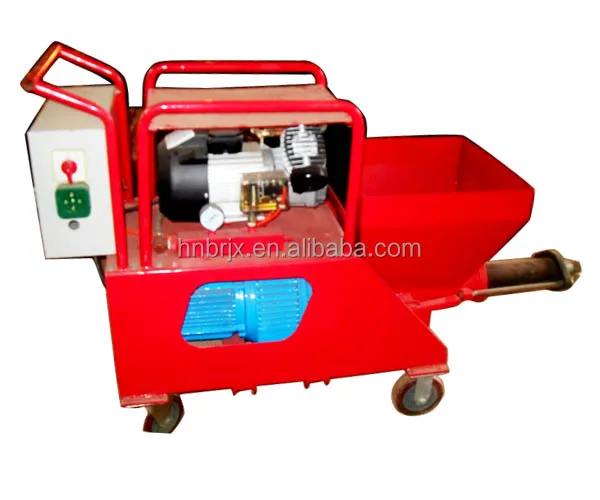

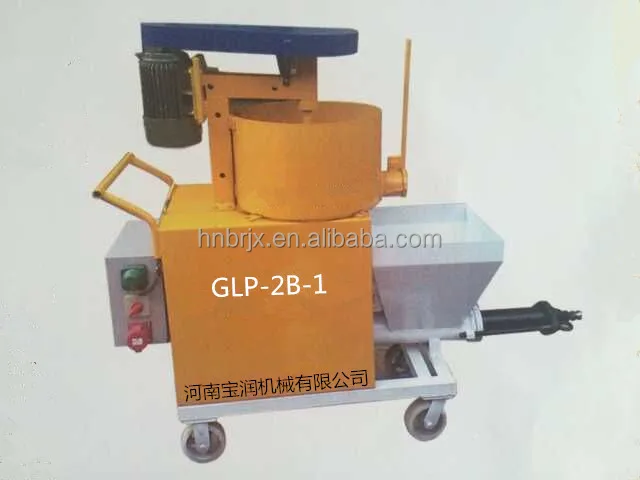

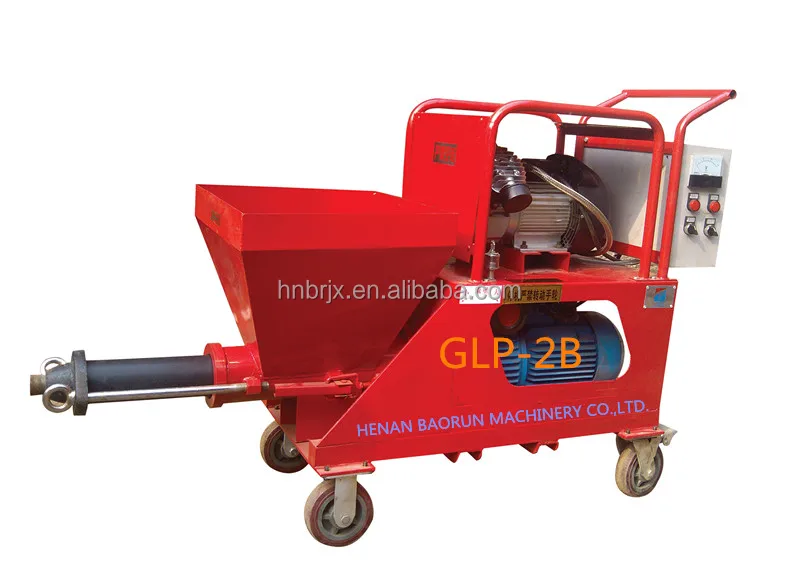

Factory Directly GLP-2B-1 Wet Ready Mix Cement Mortar Spraying Machine/Wall Plastering Machine With ISO certification





Product details:



GLP-2B -1 wall mortar spray machine, also called wall cement spray machine or wall spray plaster machine, is a new developed machine combined with mixer.







Features:

The product is the latest product: stepless speed reducer with extruder machine motor, compared to conventional spray has the following characteristics:
1, the volume of light this machine weighs 200 kg, and the host can be isolated hopper, move more convenient.
2, according to different materials coating materials (coating materials of different viscosity), can be adjusted to change the speed reducer amount sprayed size.
3, compared inverter is used, with dirt, non-perishable, easy to adjust, and other advantages.
4, increase the service life of wearing parts. When common mortar spraying machine wearing parts wear flow and pressure reduction can only be taken by way of replacement of wearing parts, the machine can be increased by increasing the service life of wearing parts speed.
5, This machine is stirred spraying machine, significant savings in labor, improve work efficiency.



  Technical parameters



Production capacity	2-4m³/hr	Pressure of work	3Mpa
Horizontal conveying distance	60m	Vertical conveying distance	30m
Main motor power	4kw, 380v(220v)	The screw rotation speed	200-600RRM
Tracheal diameter	8mm	The largest aggregate diameter	6mm
Conveying tube inner Dim	25/32mm	Air compressor (optional) emissions	400L/min, 8bar, 3kw
Bucket capacity	50L	Feeding height	800mm
Overall dimensions	1465**700*1150mm	weight	200kg
The stirring power	1.5kw







pls check photo















workshop show



packing show





Company Information:



Henan Baorun Machinery CO., LTD is a big joint stock enterprise which is specialized in developing and manufacturing engineering machinery, construction machinery,

profile cold processing machinery and prestress equipment.  The major products are spraying machine, grouting pump, cold

bending machine, upsetting machine, thread rolling machine, stretch

bending machine, flange machine and etc., and widely used in the field of coal, mine, railway, highway, water conservancy and hydropower projects, bridge-culvert engineering , metallurgy, chemical engineering ect.



Most products are exported to Russia, Pakistan, Arab, South Africa, Southeast Asia and so on.



For more information, you can visit our website:  www.hnbrjx.cn



Packaging:



Stable wooden package protects machine from strike and damage.



Wound plastic film keeps machine out of damp and corrosion.



Fumigation-free package helps the smooth customs clearance.



The big size machine will be fixed in container without package.



FAQ:



1. Q: What is the power supply of the machine?

  A:  The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.

2. Q: What information should the customer provide to get an accurate quotation from us?
  A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc

3. Q: What is the payment term        A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other  payment term,  like L/C, DA, D/P etc



4. Q: What is the delivery time?
  A: Normally the delivery time of the machine is 30 days after receive down payment.

5. Q: What is the warrantee period of the machine?
  A: The warrantee period is one year since the date of B/L.
