DF hydraulic hand pallet truck Hydraulic pump hand manual trans pallet

Product Overview

Description



Hydraulic pump hand manual trans pallet model SBA25/30 TUV GS CE









With overloading safety valve.



The first design of forging&casting integral pump, which prevents any loosening and leakage.



Fork frame"C"piece design ensure high capacity.



Chrome plate piston.







1.Galvanized pumps with three years warranty.

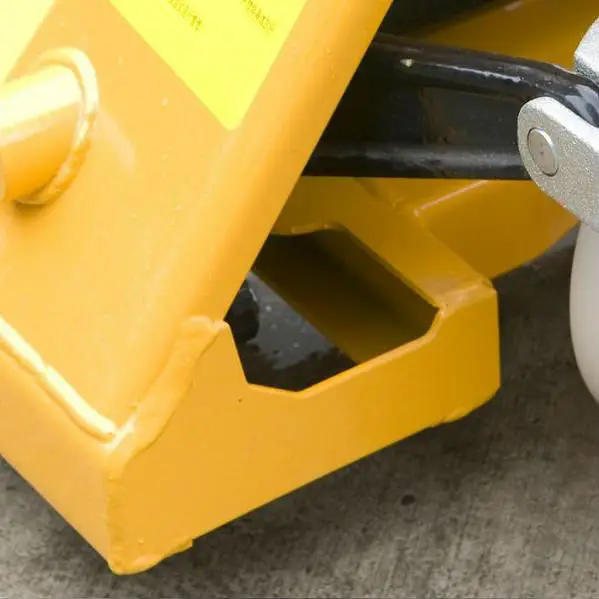

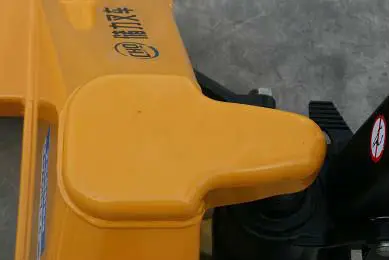

2. Frame

strenghthen part

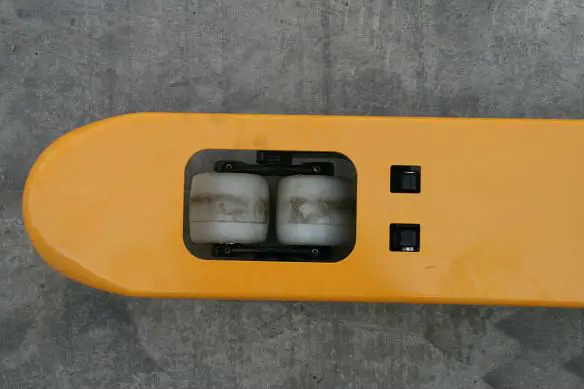

round tip



longer welding



4.Wheels can be in Nylon,Polyurethane and Rubber material



5. Main color can be as per customer's request













Model	SBA-E
Load capacity/rated load	Q(kg)	2500	3000
Load centre distance	c (mm)	500	500
Net weight	kg	70-80	70-80
Tyre size,front	mm	Φ180*50	Φ180*50
Tyre size rear	mm	Φ70*60	Φ70*60
Lifting height	h 3(mm)	190	190
Height of tiller in drive position min./max.	h 14(mm)	1234/1224	1234/1224
Lowered height	h 13(mm)	75	75
Overall length	l 1(mm)	1534/1604	1534/1604
Fork dimensions	s/e/l	54/150/1150	54/150/1150
Distance between fork-arms	b 5(mm)	520/550/685	520/550/685
Aisle width for pallets 1000x1200 crossways	Ast(mm)	1733/1803	1733/1803
Aisle width for pallets 800x1200 lengthways	Ast(mm)	1780/1800	1780/1800
Turning radius	Wa (mm)	1249/1319	1249/1319
