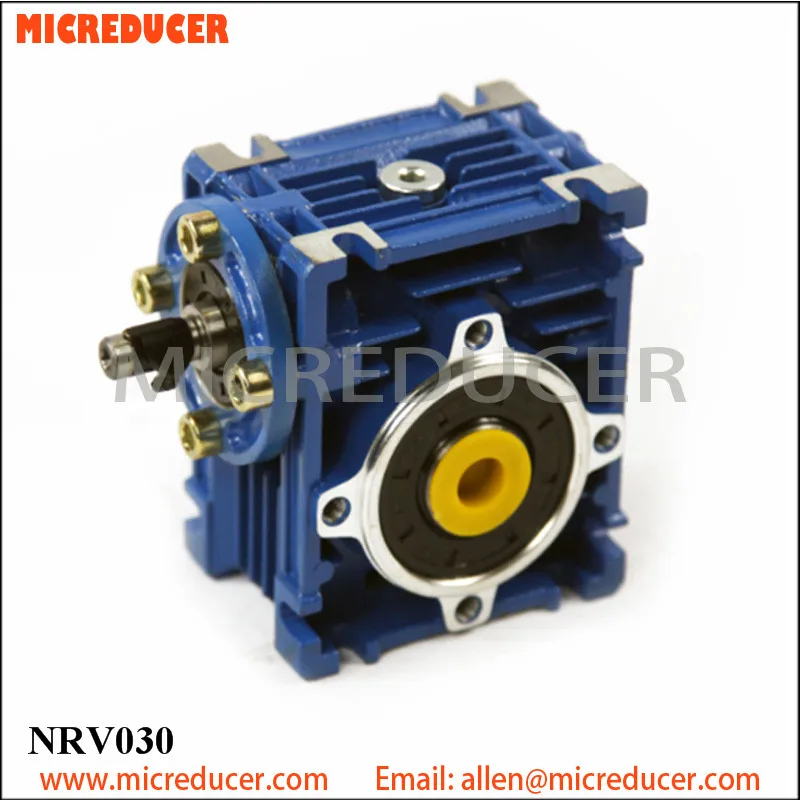

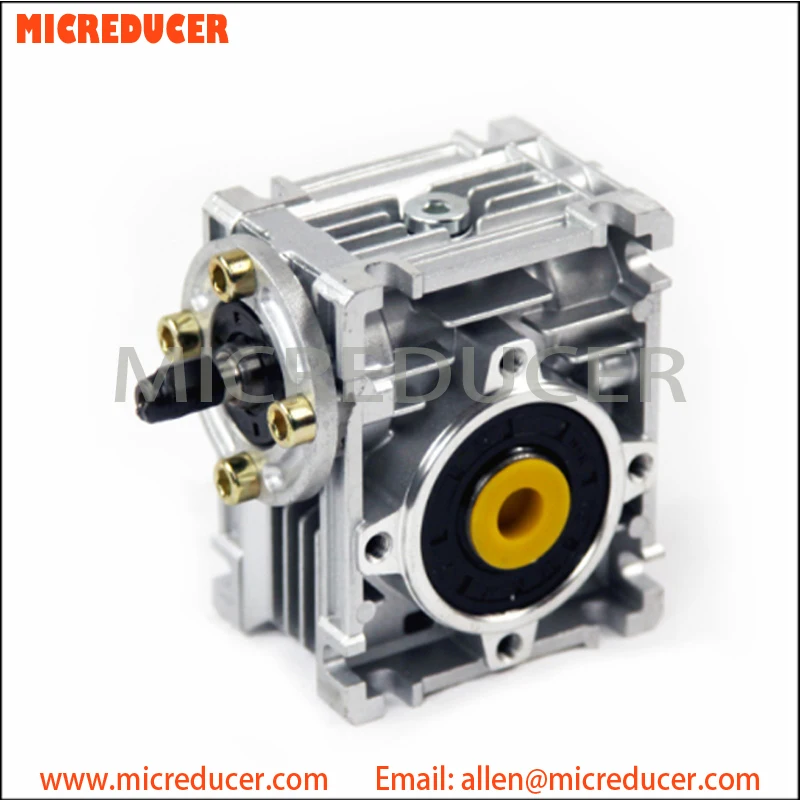

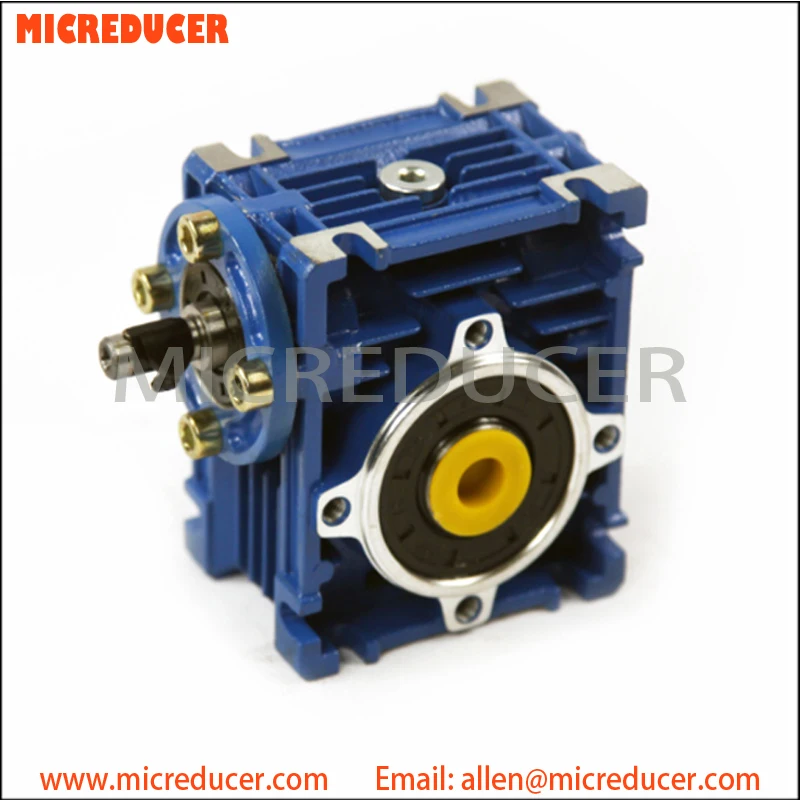

NRV 030 Industrial speed reducer
- Category: >>>
- Supplier: Hangzhou Mechanic Machinery Co. Ltd.
Share on (60333249121):
Product Overview
Description
Product Description
Motovario Like Reducers NMRV+NMRV25 to 150 Speed Reducer
Specifications
| Type: | Worm Gear Speed Reducer | ||||||||
| Model: | NRV030 | ||||||||
| Ratio: | 1:7.5,10,15,20,25,30,40,50,60,80,100 | ||||||||
| Color: | Blue/Silver Or On Customer Request | ||||||||
| Material: | Housing:Aluminum Alloy | ||||||||
| Worm Gear-Copper-9-4# | |||||||||
| Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |||||||||
| WheelBoss : Cast Iron | |||||||||
| Packing: | Carton and Wooden Case | ||||||||
| Bearing: | Input: C&U W&W Output: HGH or Upon Customer Request | ||||||||
| Seal: | SKF & NAK | ||||||||
| Warranty: | 1 Year | ||||||||
| Input Power: | 0.1KW,0.2KW,0.3KW,0.4KW | ||||||||
| Usages: | Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass... | ||||||||
| IEC Flange: |
| ||||||||
| Lubricant: |
Synthetic&Mineral | ||||||||

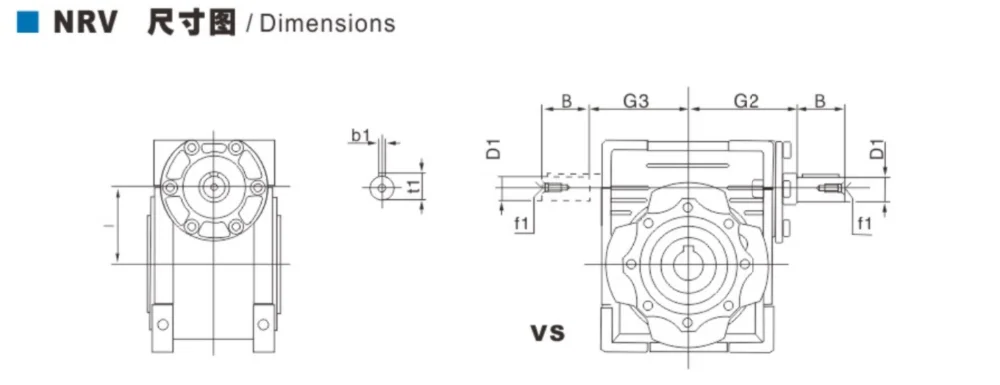

| NRV | B | D1 | G2 | G3 | I | b1 | f1 | t1 |
| 030 | 20 | 9j6/11j6 | 51 | 45 | 30 | 3 | - | 10.2 |
#House shape on request is available
| Model | Size | Weight(kg) |
| 30 | 17*13*16 | 1.5 |
Payment Terms:
- mountings....................................................................................MIC
Packaging & Shipping
How to delivery:
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - We arrange to delivery goods to some place in China appoint by buyers.
Production Line
Company Information
FAQ
Process Of An Order:
1.Please check product detailed information above:
A.Model/Size B.Transmission Ratio
C.Shaft Direction D.Order Quantity.
2.Our Export Service Team will contact you with a qultation file 3 hours after our team get your enquiry.
3.When you please an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.
4.Packing: Carton and Wooden Case.
