Mypin DA Sensor Indicator 4 20mA Analog Output Sensor Meter/Pressure Meter(DA8 INB)

Product Overview

Description

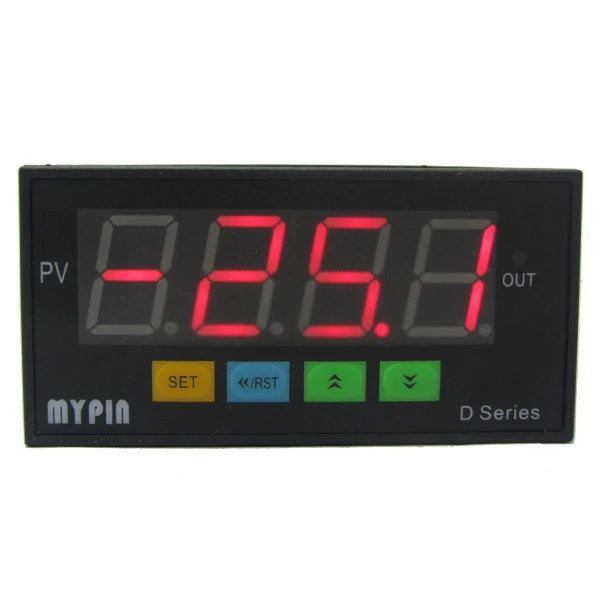

Mypin DA Sensor Indicator 4-20mA Analog Output  Sensor Meter/Pressure Meter(DA8-INB)



Specifications:

  Model no.: DA8-INB

  Dimension: 48*96*80mm size

  Input: TC/RTD

  Output: 4-20mA

  24V DC aux power

  90-260V AC/DC power supply







Features:



1) Input: mA, mV, V, Pt100. Ω. TC(R S T B J K E) etc.

2) Display: -1999--9999;setting freely.

3) Accuracy: 0.3%.

4) Output:  up to 3  relay alarms  one  4-20mA analog output..

5) 24/12VDC (30mA), or +/-12V (30mA) auxiliary sensor power.

6) RS232 or  RS485 Communication, Modbus RTU Protocol.

7) Power supply: 18--30V AC/DC or 80--265V AC/DC;110V/220V .C 50/60Hz

8) Size: DA4:48*48 DA8:96*48 DA7:72*72 DA9: 96*96 etc.

            case class:IP65..















1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.









Main product:Panel Meter

                     Counter

                     Weighing indicator

                     Temperature/Humidity Controller

                     Current/Voltage/Power meter,various sensor indicator

                     Frequency / Tacho / Batch / Length /Linespeed Meter

                     Flow / Level /Pressure Controller

                     Proximity/ Photoelectrical Switch

                     Timer,Timer Relay

                     Sensor Controller

                     Signal adjustor

  They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..



  Additonally,OEM service,Design service offer, Buyer laber offer.
