Easy operated Double Sides Grease Lubricator 150mm Oil Feeder

Product Overview

Description

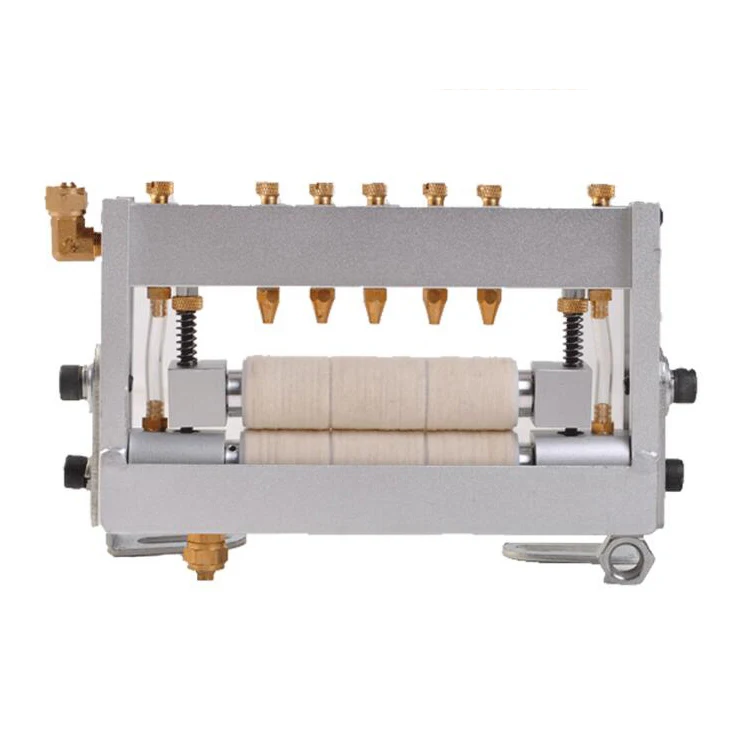

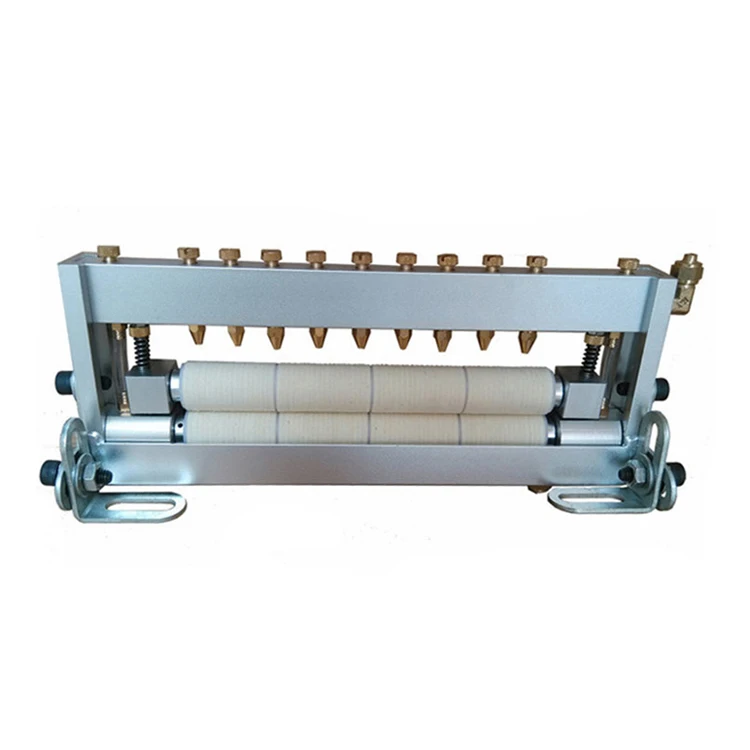

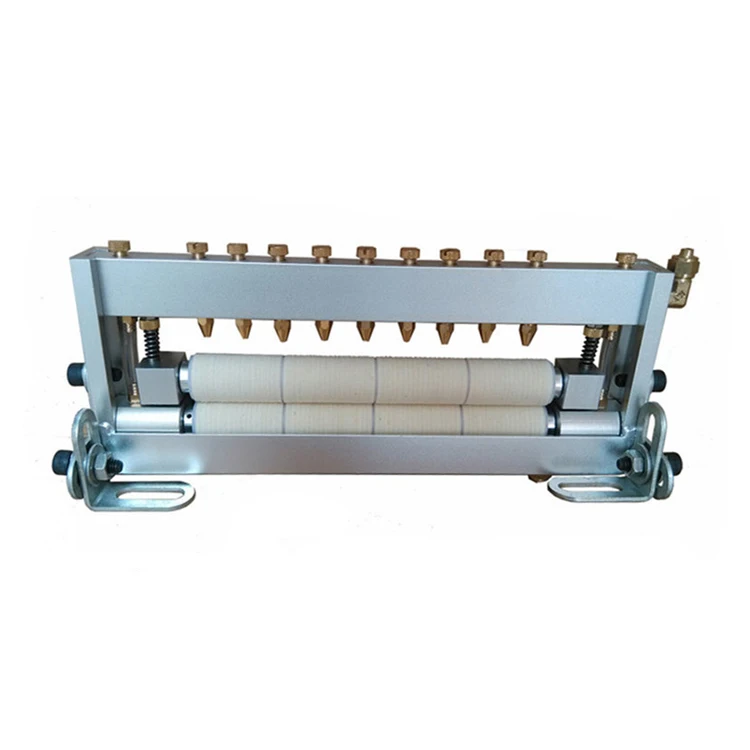

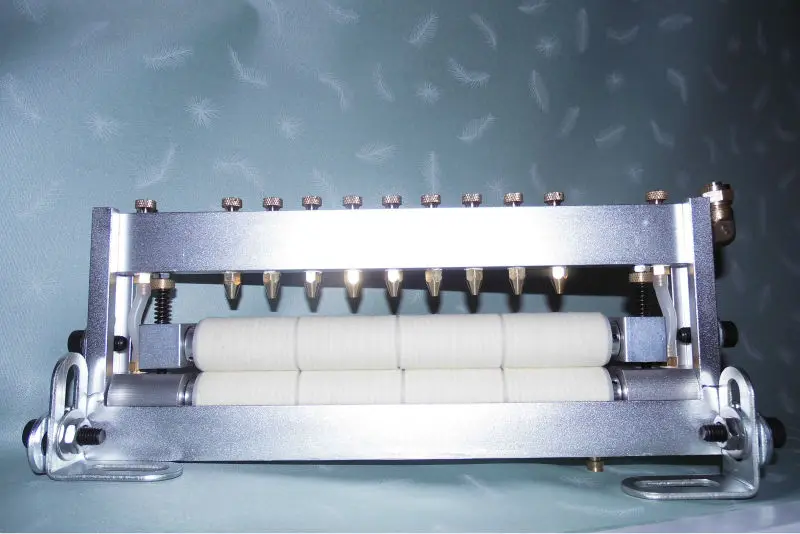

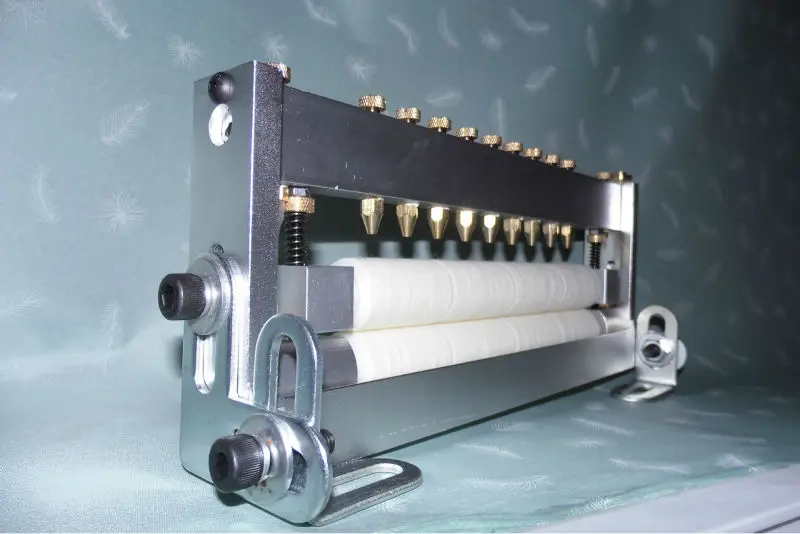

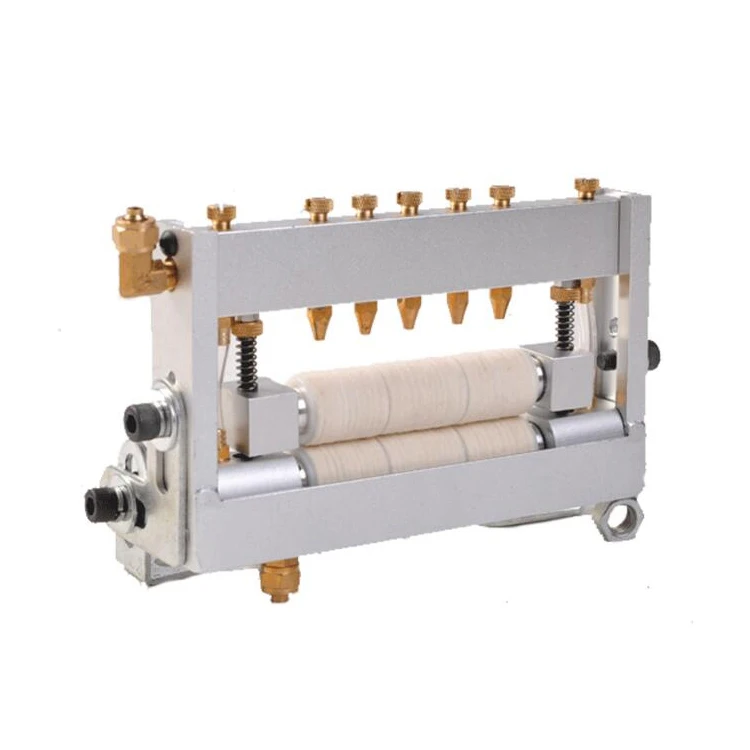

Easy-operated Double Sides Grease Lubricator 150mm Oil Feeder





 Description:

1.luminum alloy structure, and its surface is processed with anodic treatment, handy,compact,easy for installation and adjustment.

2.Special micro-adjusting oiling design ,the oil capacity can be controlled freely and positioning inforced oiling can be achieved to increase the convenience for woeking .

3.This lubricator adopts high-density wool cotton material feature in excellent antiwearing and powerful oil absorbing ,which is better than rubber and sponginess material.

4.he lubricator is suitsble for pressing material with double face oiling at same time to prolong greatly the serive life of pressing mold .

5.Filtering mesh is deviced inside the oil barrel ,So lubricate can be repeating used after cleaned.

 Cautions:
1.if need down-roller lubrication, please adjust screws A&B to control oil to pass through and volume adjust and the other individual screws adjust for up roller lubricating.
2.please hang the oil tank higher than lubricator 50cm, to insure oil flow smoothly by natural
3.when oil blockade, please loose the individual screw, and use air gun to clear
4.point C for oil intet tube, point F for oil recollecting tube, point H for adjusting the material thickness if need
 Specifications:

Model	Max Material width	Material thickness
CT-150	150mm	0.1-3.0mm
