Best Price Wood Chips or Pellets Biomass Burner for Fuel Coal Boiler and Dryer
- Category: >>>
- Supplier: Shandong Rotex Machinery Co. Ltd.
Share on (60333489387):
Product Overview
Description
Best Price Wood Chips or Pellets Biomass Burner for Fuel Coal Boiler and Dryer
>>Brief Introduction For ROTEX Biomass Burner
ROTEX Biomass burner use biomass pellets, wood chips ect as fule,in suspension,boiling,half gasification pyrolysis
combustion way,produce hot flame,through radiation,convection heat transfer send the high temperature to thermal

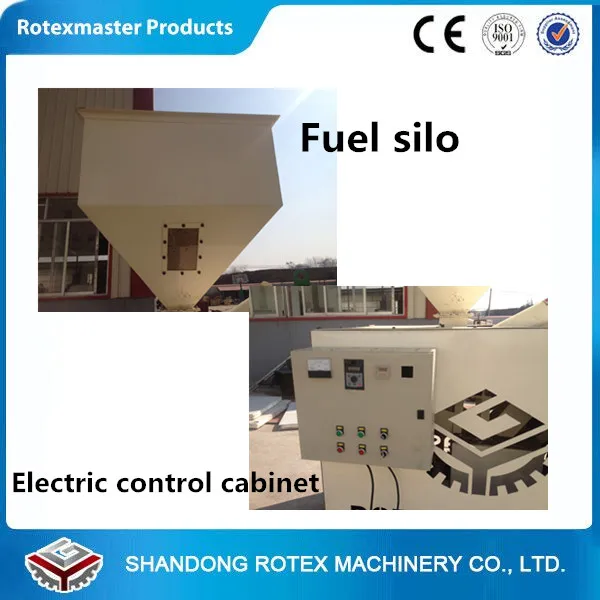

equipment.It’s a high efficiency and environmental equipment which mainly make up of automatic feeding system,
fan,blower,high,temperature pyrolysis half gasification burning room,bocca,ignition system ,provide brand new
rebuilt technical plan for fossil fuel equipment change to clean fuel,get customers’ favour,widely used in food
processing industry,coating industry,baking varnish,heating,bath ect industry.
>>ROTEX Biomass Burner Advantages
1. Lower fuel consumption.
2. Lower power consumption.
3. Lower heat losses.
4. Boilers are completely trimmed, packaged boilers. No additional fuel train items or electrical wiring is needed.
5. Located in the upper ring has large- capacity boiler steam room, pot and underwater soft drinks
separation measures,ensure the availability of high quality steam.
>>Technicals For ROTEX Biomass Burner
Model | Hot-power (kcal) | Power (kw) | Consumption (kg/h) | Size (LxDxH) | Weight (T) |
YGF-20-1(L/R) | 20 | 0.75 | 50 | 1900x910x1710 | 0.6 |
YGF-30-1(L/R) | 30 | 0.75 | 75 | 1920x925x1750 | 0.7 |
YGF-45-1(L/R) | 45 | 1.15 | 115 | 1830x1100x2130 | 1.0 |
YGF-60-1(L/R) | 60 | 1.9 | 150 | 2340x980x2180 | 1.6 |
YGF-60-1(L/R) | 60 | 1.9 | 150 | 2340x980x2180 | 1.6 |
YGF-90-1(L/R) | 90 | 3.1 | 225 | 2790x1190x2400 | 2.2 |
YGF-120-1(L/R) | 120 | 3.7 | 300 | 2900x1300x2420 | 3 |
YGF-180-1(L/R) | 180 | 5.25 | 450 | 3180x1490x2400 | 3.8 |
YGF-240-1(L/R) | 240 | 8.45 | 600 | 3250x1660x2520 | 4.8 |
YGF-300-1(L/R) | 300 | 10.45 | 750 | 3800x1950x3130 | 8 |
YGF-360-1(L/R) | 360 | 10.45 | 900 | 3950x2100x3270 | 9 |
YGF-420-1(L/R) | 420 | 10.8 | 1050 | 4050x2200x3370 | 10 |
YGF-480-1(L/R) | 480 | 10.8 | 1200 | 4200x2350x3490 | 11 |

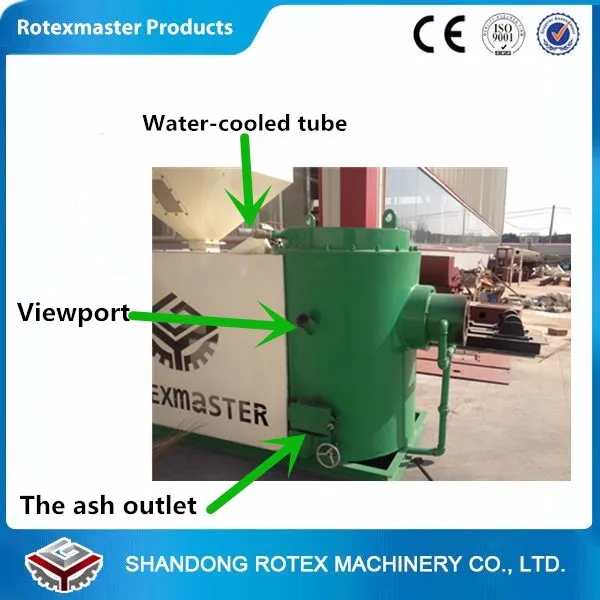

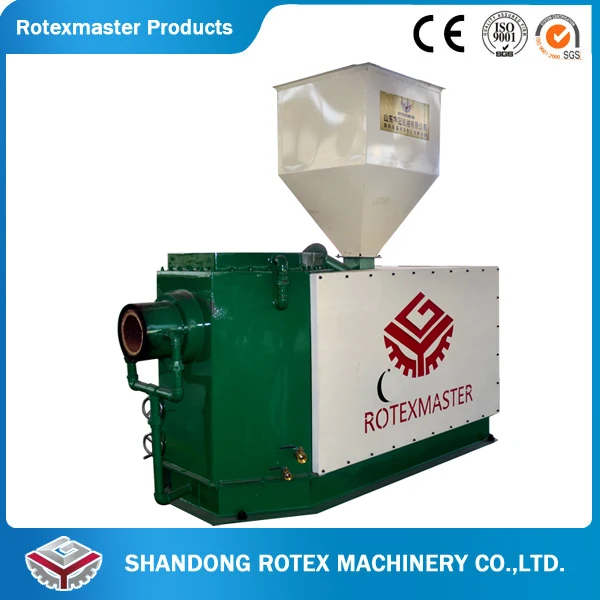

>>Picture Show For ROTEX Biomass Burner

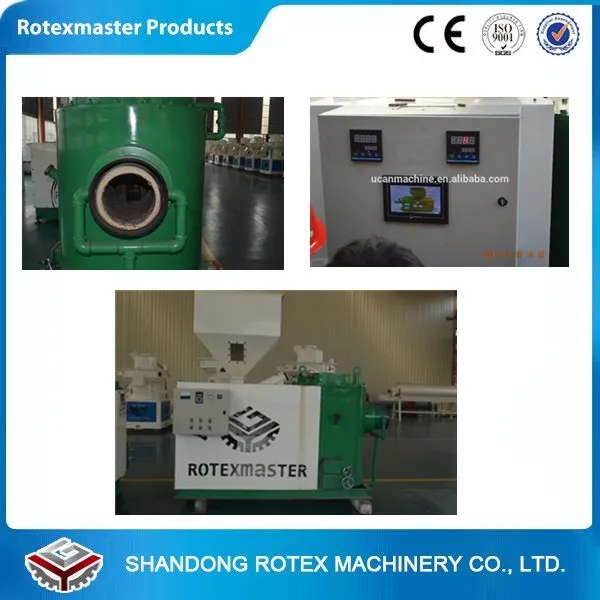

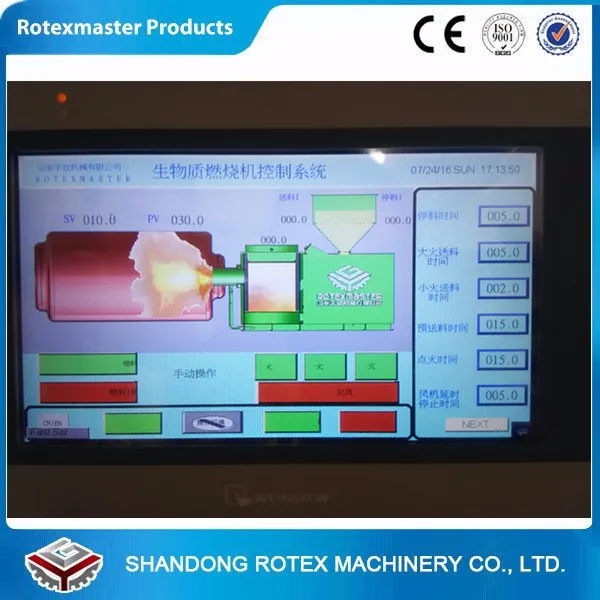

Biomass Burner with PLC Control System

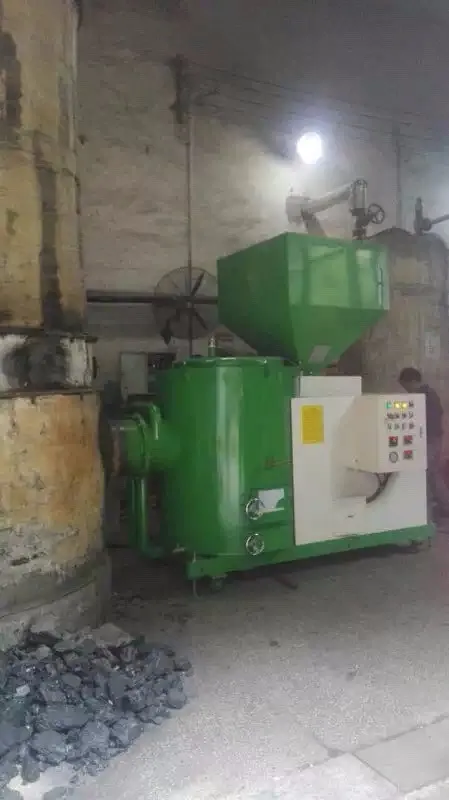

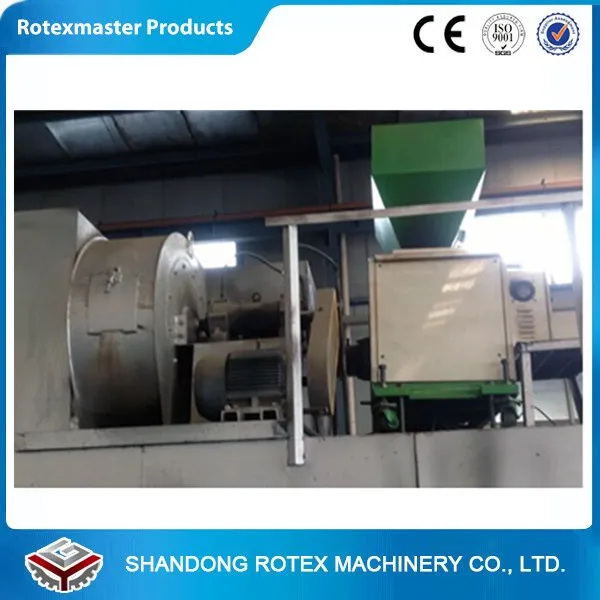

Biomass Burner Providing Heat for Dryer and Boiler

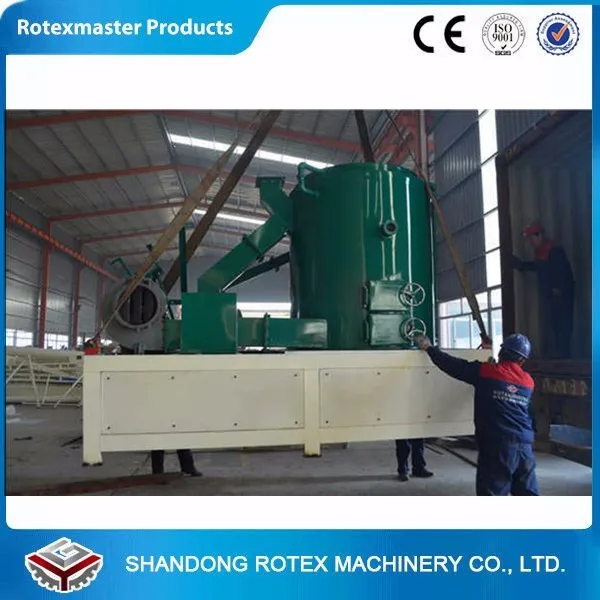

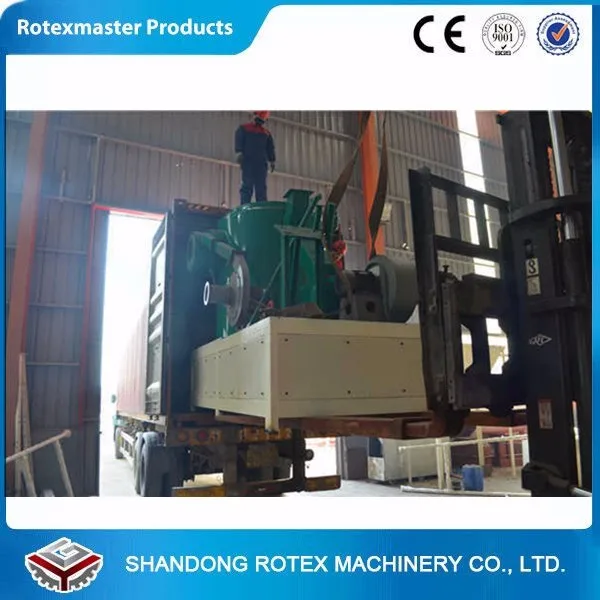

Biomass Burner Delivery Pictures
