*Available rating: PN100 to PN420, Class 600# to 2500#
*Flow Characteristics: Linear, Equal Percentage
*Leakage Level: ANSI B16.104 CL IV
*Rangeability: 50:1
*Temperature Range: -20~570 DegreeC
*Connection: Flange, Butt Weld
All Design for Most Critical Steam Working Conditions
Forged Full Machined Body Design
To suit the high pressure and temperature conditions, the LV963/663Y PRV uses forged material for body construction, compare with casting body, forged full body has better mechanical property and strength endurance, able to handle thermal fatigue critical for reliable service, ensure the safe, trouble-free performance during the continuous operation.
Pressure Seal Construction
Pressure seal construction is adopted for body-bonnet joints, seals performance improves as the internal pressure in the valve increases, maintains tightness regardless of thermal transients.
Pressure reducing valve
Pilot Plug Design
Pilot plug design, means in the closed position, the main plug within the valve is unbalanced with full steam pressure acting on top. Combined with the actuator thrust this creates an extremely high seat contact and ensures a very tight shut off.
Very Tight shut-off
The Seat surface is treated with hard stellite faced, the import sealing ring with motive seal purpose is adopted, ensure the a very tight shut off.
Radiator Structure Design
To suit the high pressure and temperature conditions, the LV963/663Y PRV uses forged material for body construction, compare with casting body, forged full body has better mechanical property and strength endurance, able to handle thermal fatigue critical for reliable service, ensure the safe, trouble-free performance during the continuous operation.
Multihole Cage Design
The Multihole cage guided trim is capable of managing large pressure drops and reduces the negative effects of erosion, cavitation, and noise. With the different working condition, the cage can be custom-designed with flow characteristic including of equal-percentage and linear to obtain the highest accuracy of desired steam pressure

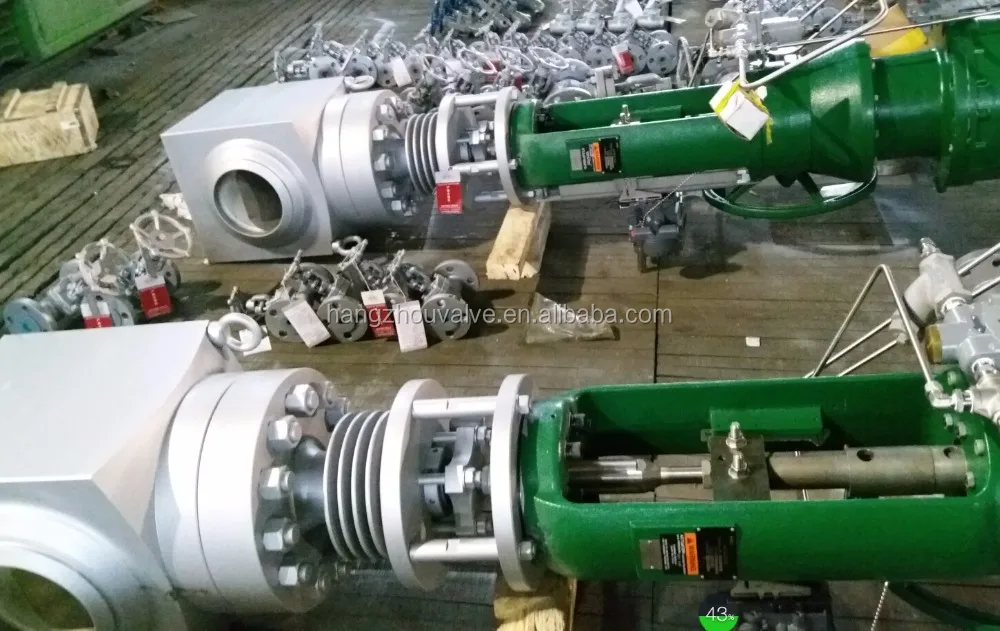

We carry out the strictly packing procedure to ensure the safety and trouble free delivery.
FAQ
Q: How is your company?
A: Our company was established in 1958, was National owned company background before. Since established, we keep as top leader in studying and manufacturing kinds of control valves which fit for critical working conditions. To the date, we are providing market-leading control valves, services and solutions, for the most challenging applications throughout oil and gas, power, mining, chemical, food and beverage and construction industries.
Q: How many empolyee your have and how many value for each year?
A: Company now has nearly 300 employees, more than 100 various professional and technical personnel, and 6 of them have senior title and over 40 with middle level title. Our annual output value reaches thirty million US dollars and 40% export all around world.
A: With different working condition from different customer's requested, we will offer custom design for each request whcih help our customer's operations running safely, minimize downtime and enhance lifecycle performance but also in minimal investment cost.
A: HZVALVE owned independent quality department with over 25 experienced inspectors. Our target is to cover all vital point including material, procession, assembling, testing and package for overall quality controlling and supervision. We keep the understanding that the high quality products create more value to customers.
A: As the leader valves manufacture, we owned with ISO9001, CE, API and many other else certificate, contact us now for review all certificate we have.
A: Besides control valves, we also provide with desuperheater system, safety valves, high pressure power plant valves, preheater valves and other general valves. Find us, we will offer overall support to our customer.
Throughout the years, HZVALVE has developed its Quality System which is an integral part of our manufacturing policy. Our primary goal is to provide products that meet and exceed market standards. In this sense, HZVALVE is an ISO-9001 Audited and Certified Company that has achieved major certifications worldwide. Our system consists of a rigorous quality control as well as the selection of raw materials from approved vendors. Control over our manufacturing process is vital. Serial numbers allow HZVALVE to monitor and trace fabrication processes along with the materials of components. HZVALVE owned independent quality department with over 25 experienced inspectors. Our target is to cover all vital point including material, procession, assembling, testing and package for overall quality controlling and supervision. We keep the understanding that the high quality products create more value to customers.
