The rack and pinion is an important part in the Ventilation & Shading system, it mainly plays a driving role in the system and is the main transmission part. The system uses electric drive to complete operations such as shading and opening windows.

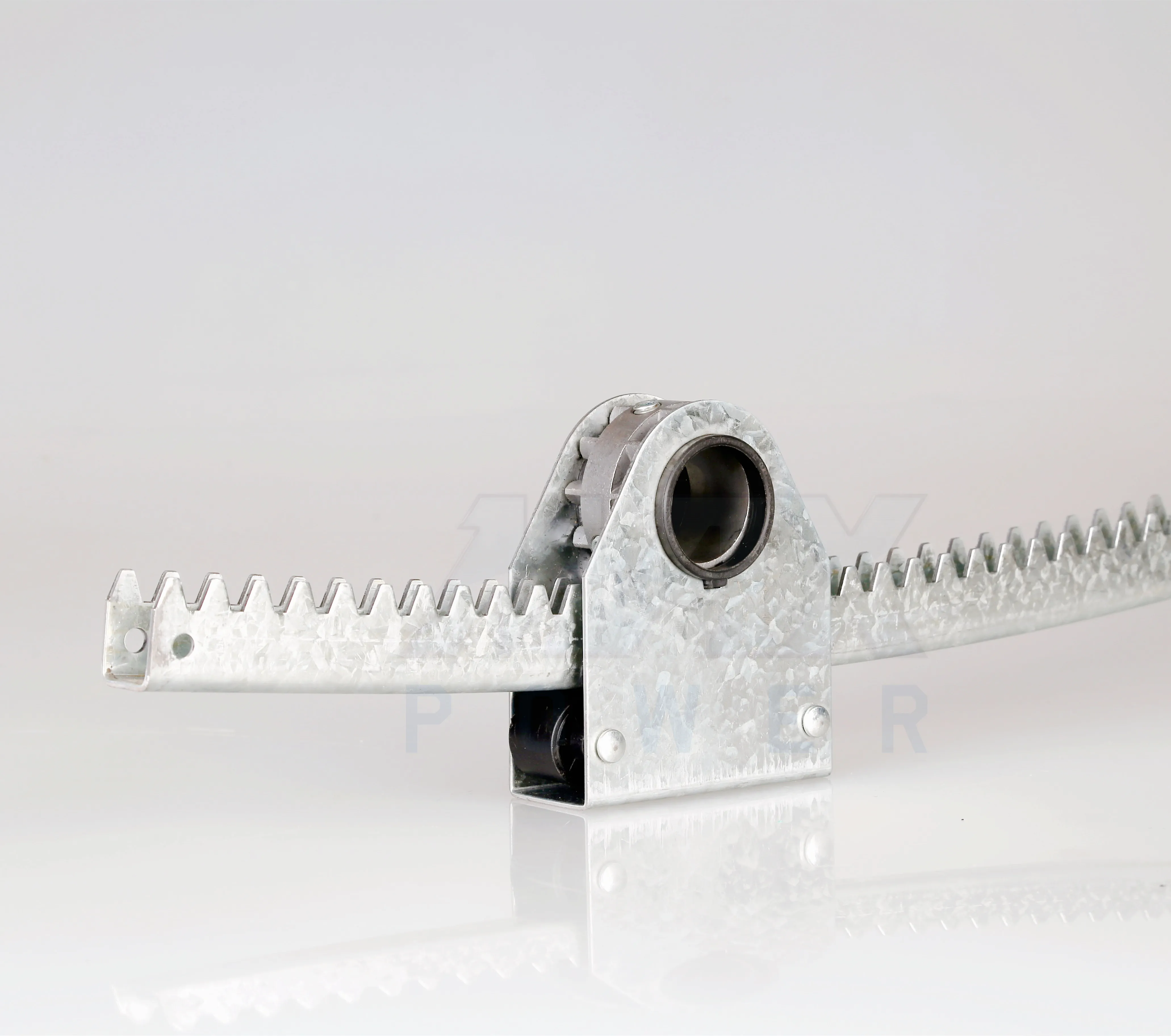

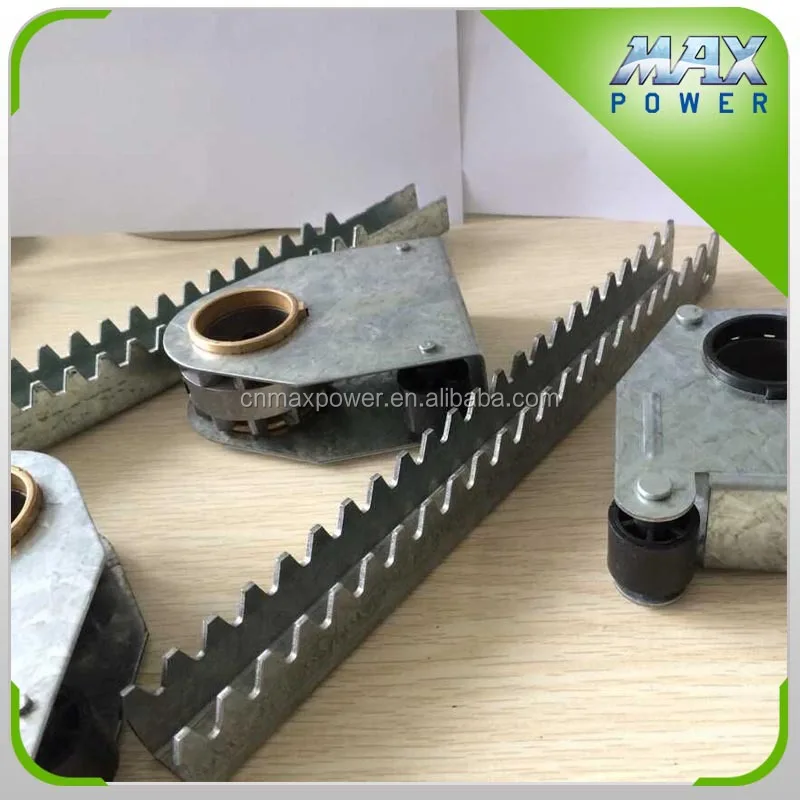

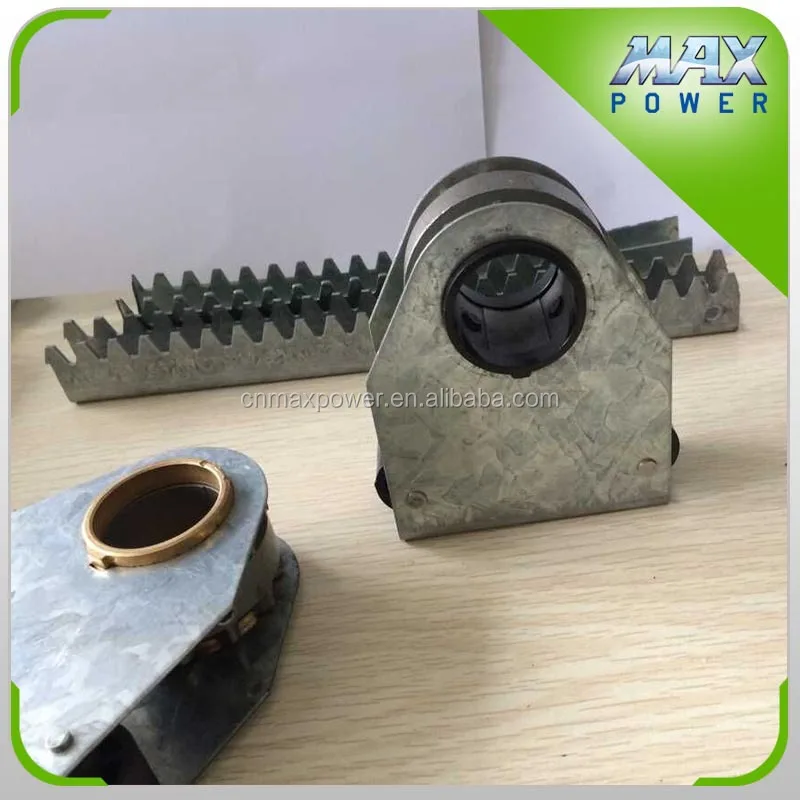

Rack & Pinion for Ventilation System

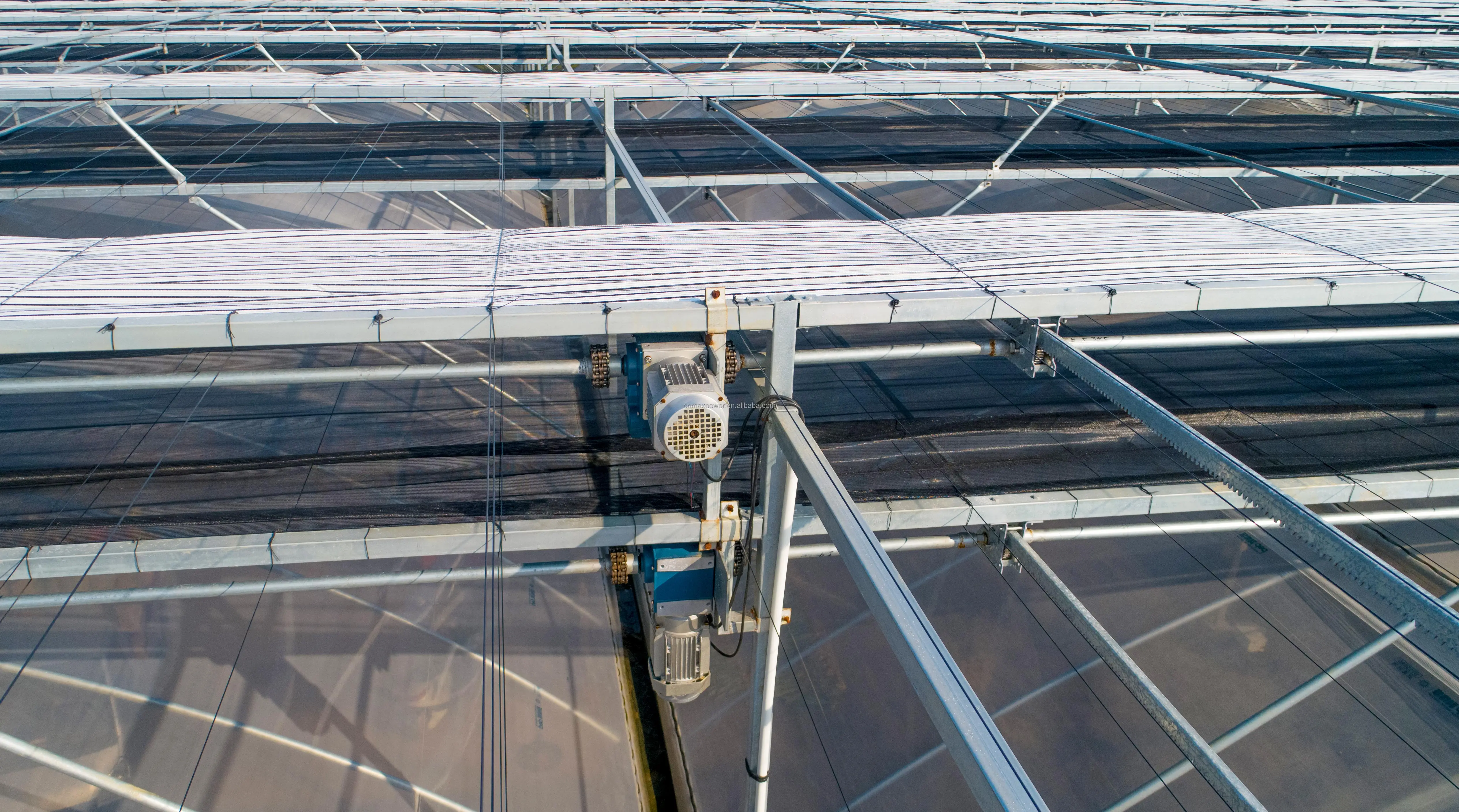

Ventilation system: The system consisit of reducer motor, drive pipe, shaft bearing, rack and pinion. The reducer motor drives the pinion by the drive pipe to move the rack back and forward to open or close the window.
Rack & Pinion for Shading System
Shading system: The reducer motor controls the movement of the shade net through the transmission of rack and pinion, which makes it easier to control the light acquisition of greenhouse or poultry house.

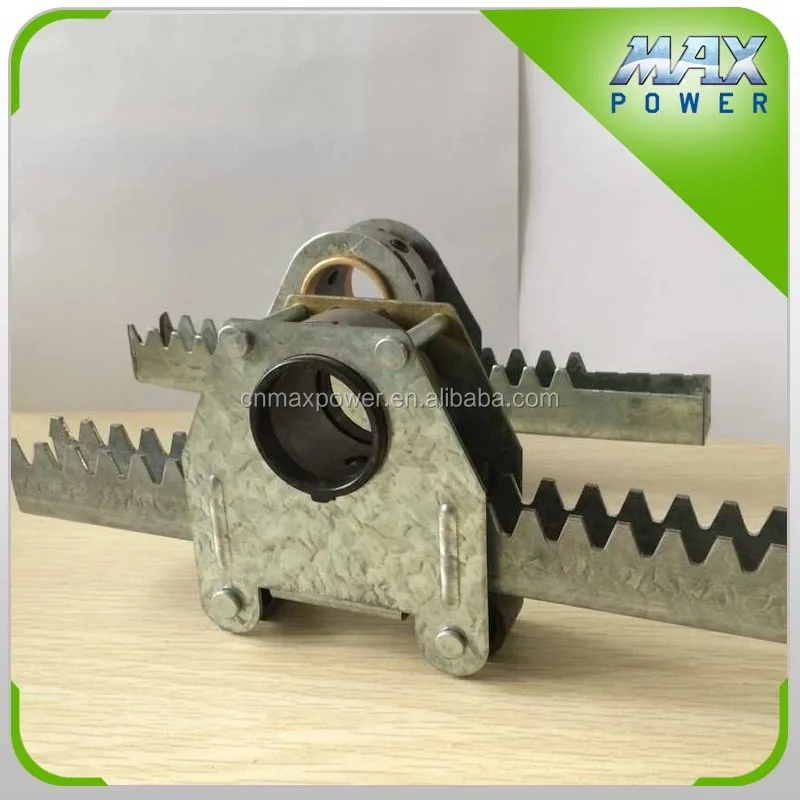

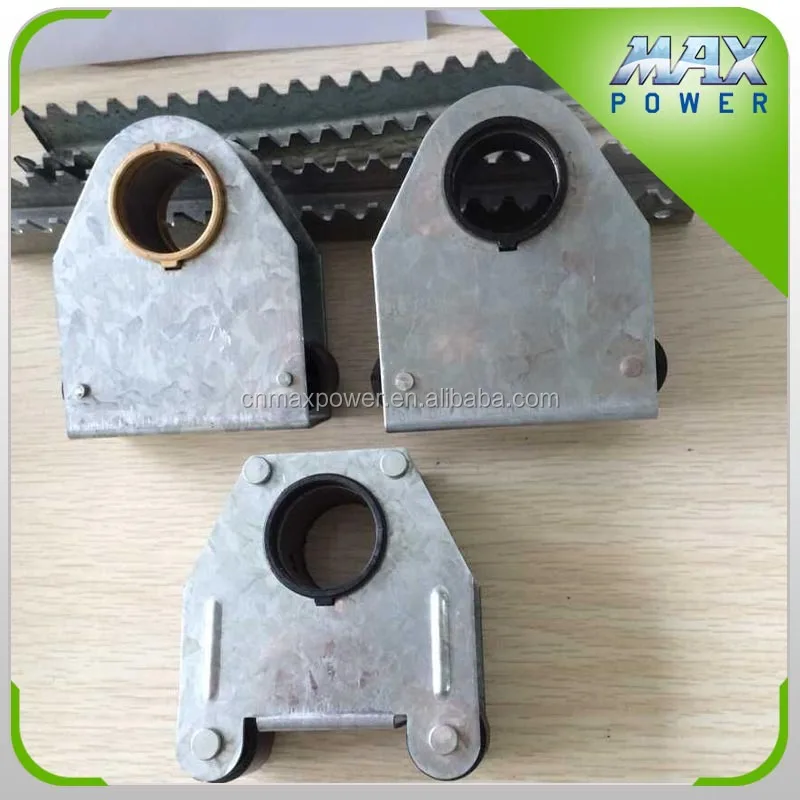

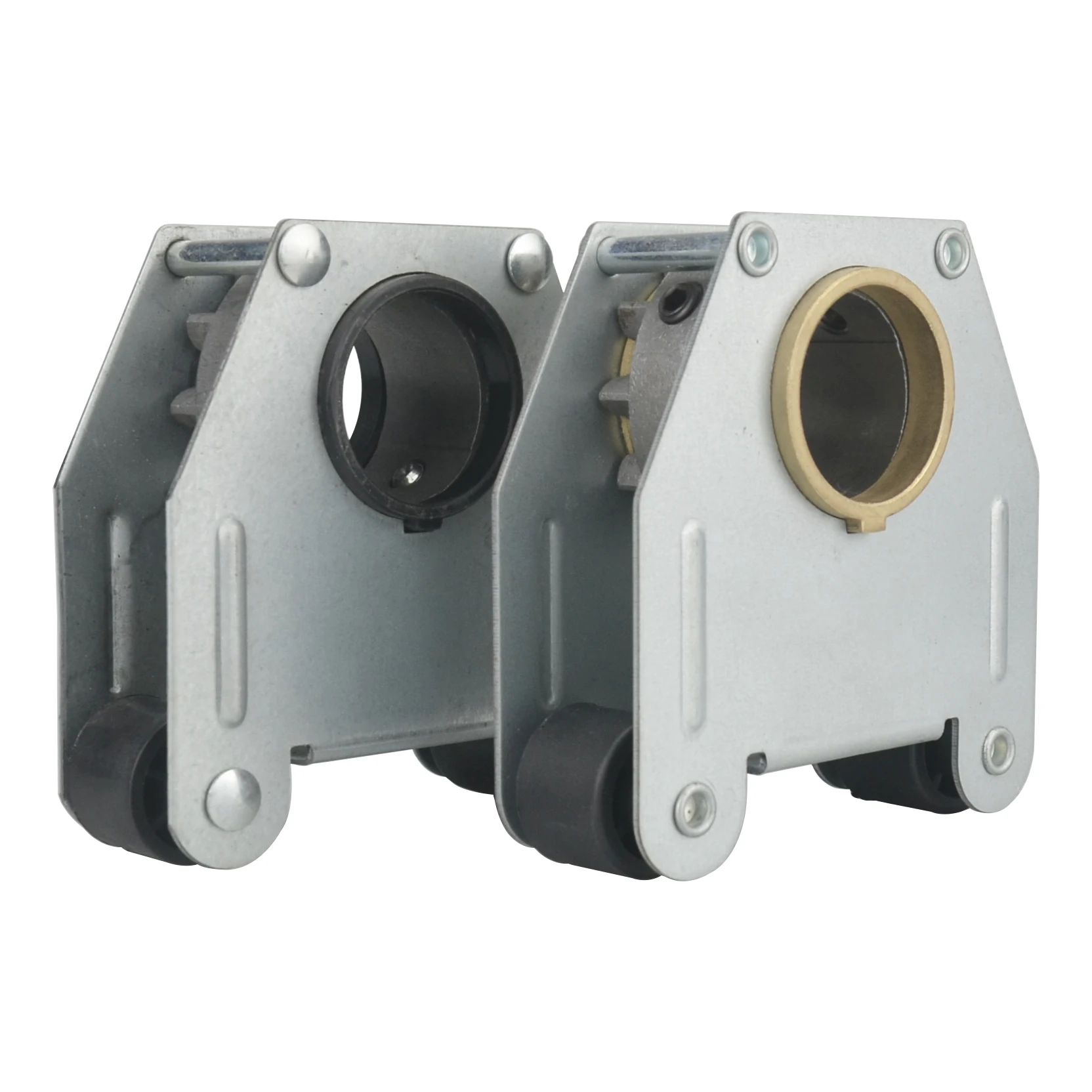

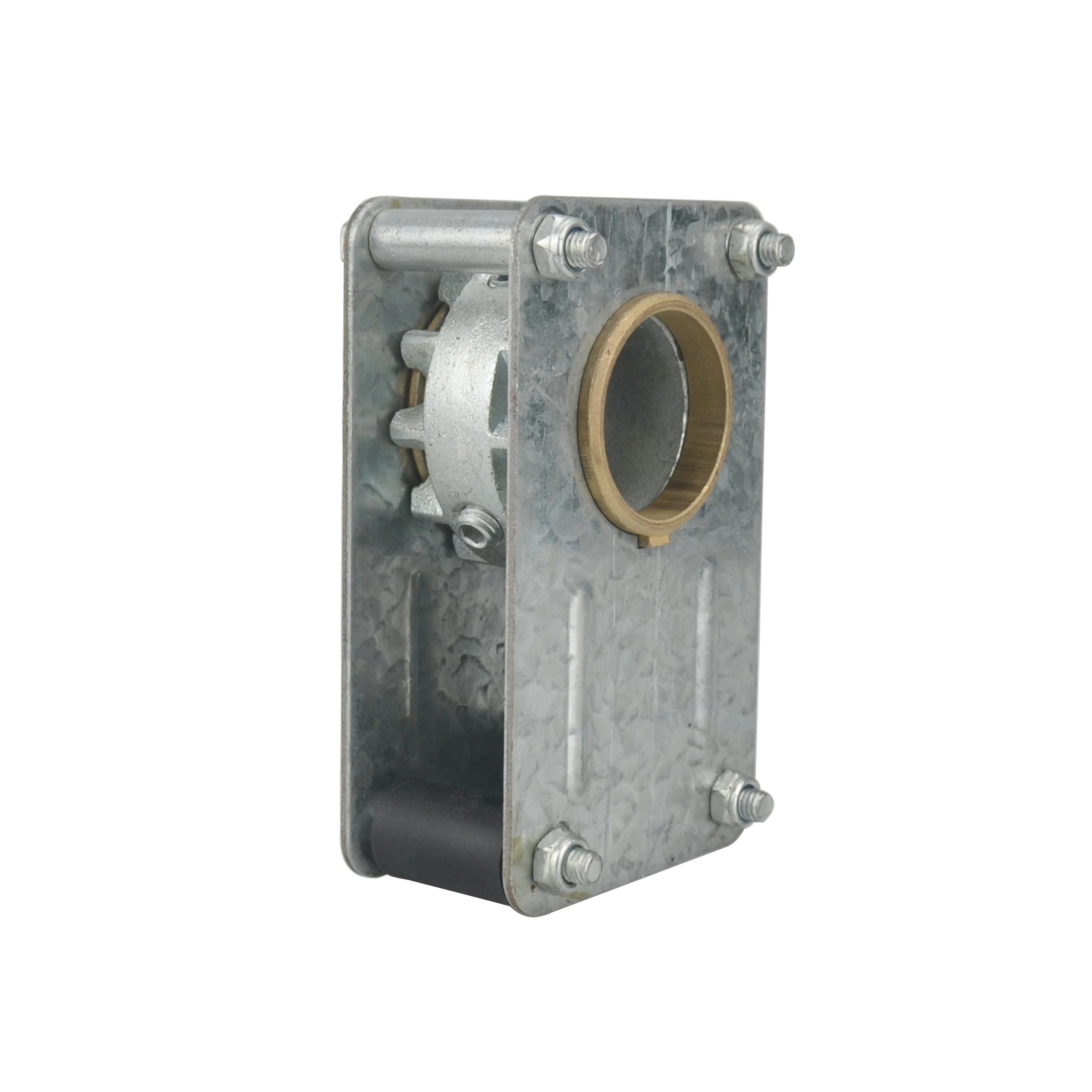

Pinion for ventilation system | ||

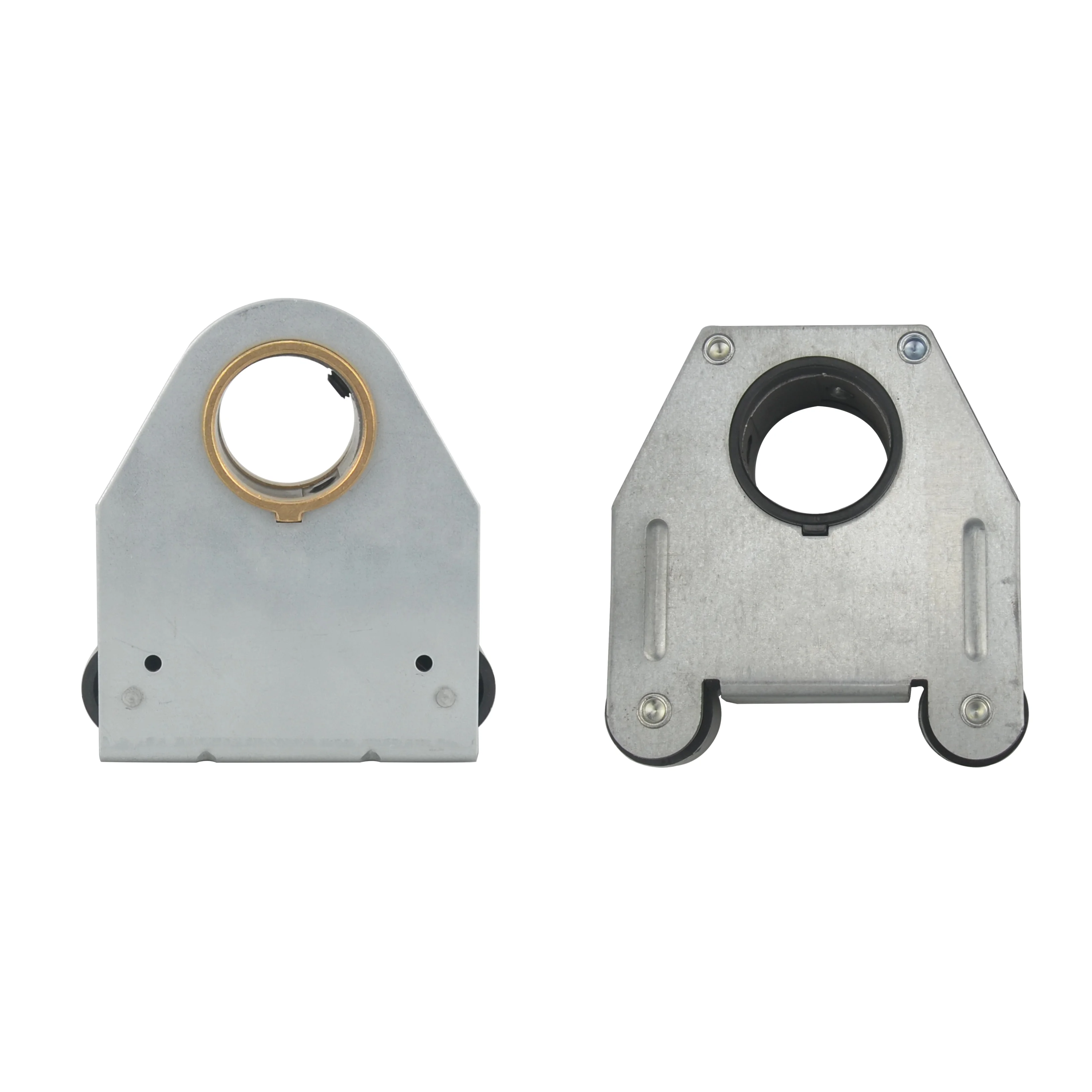

A type | B type | |
Material glavanized steel | Material galvanized steel | |
Sleeve Nylon/copper | Sleeve Nylon/copper | |
Thickness：1.5mm | Thickness：1.5mm | |
Two bolts | Four bolts | |

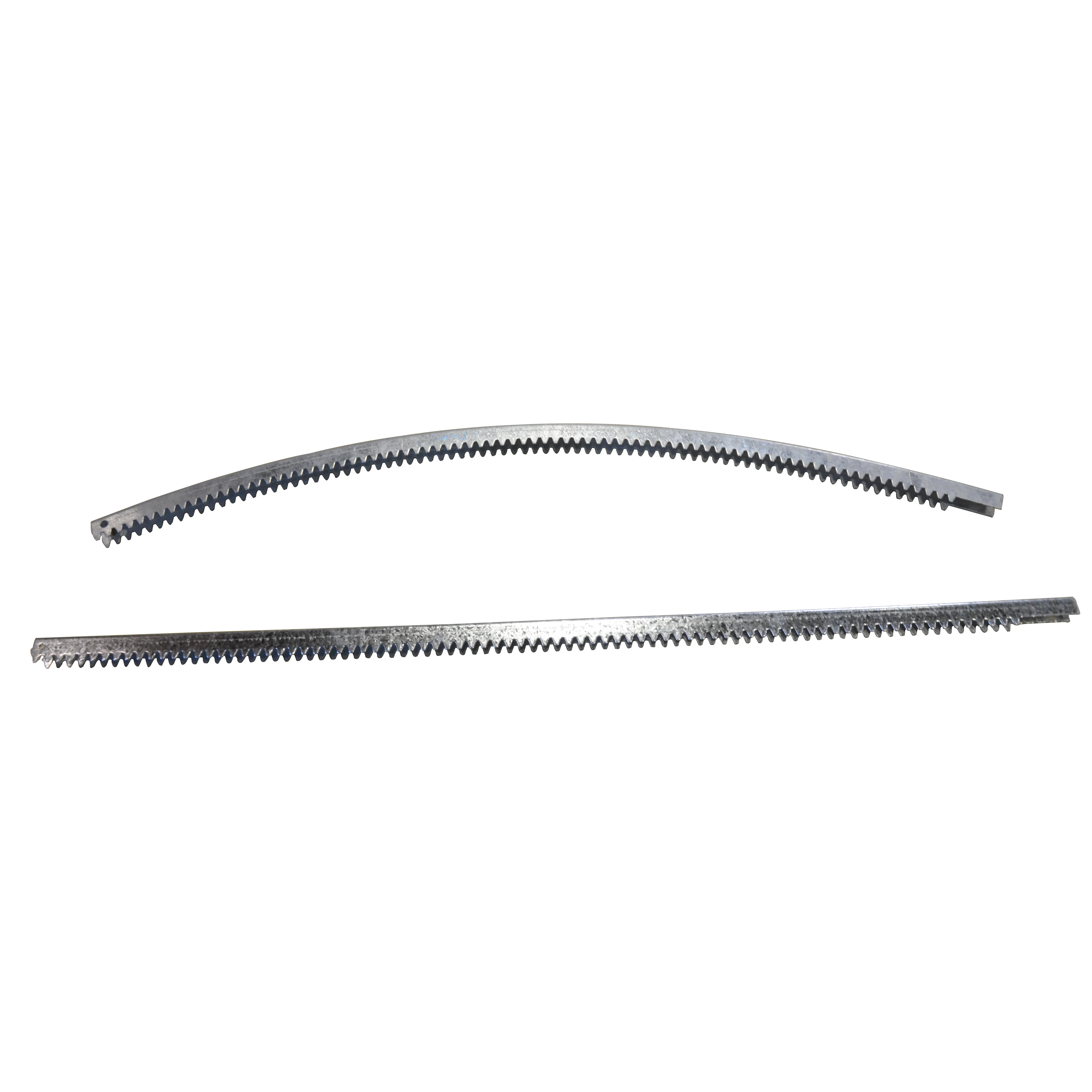

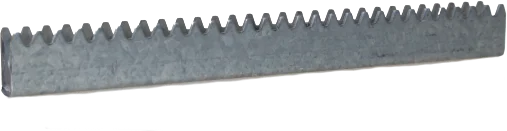

Rack for ventilation system |

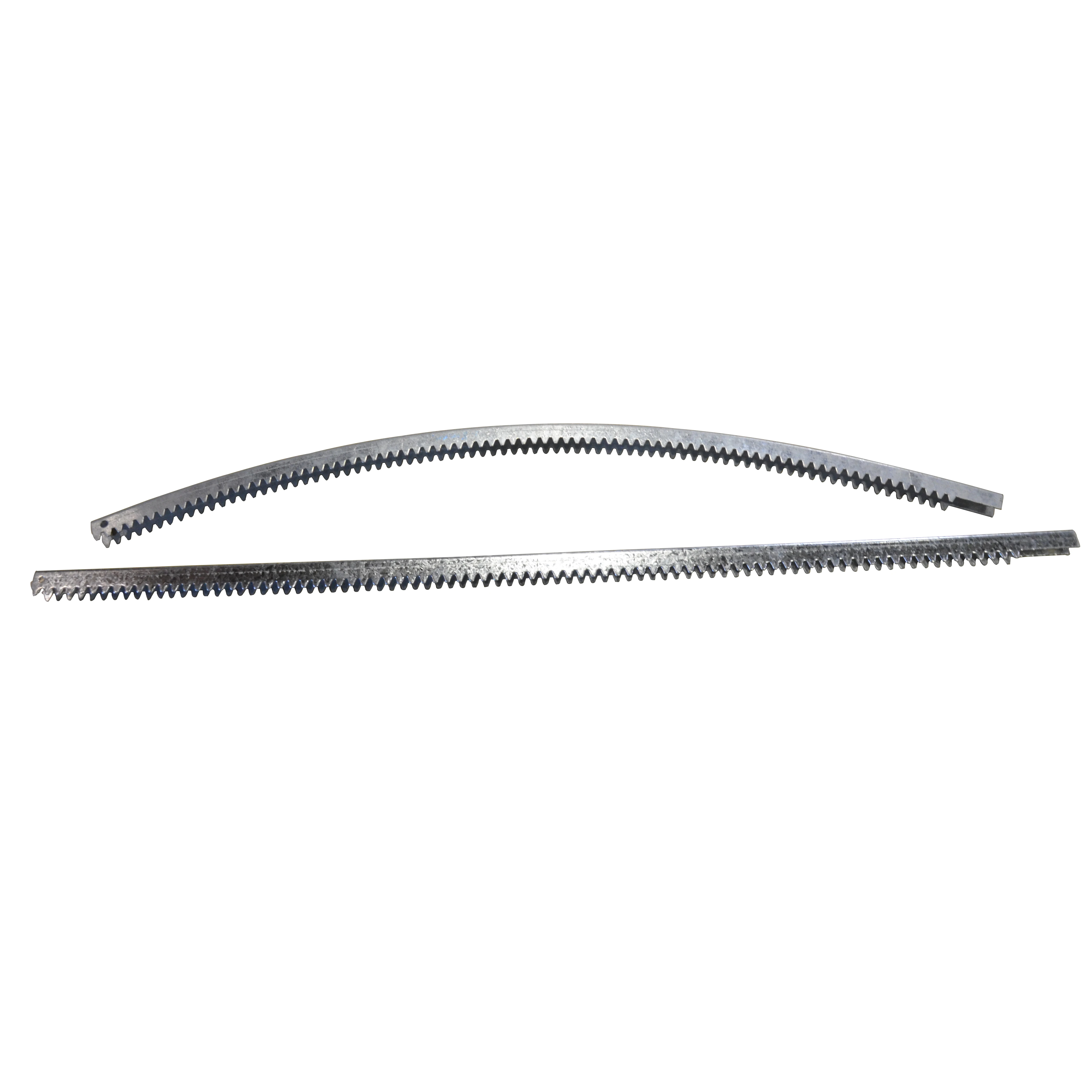

Type stright/curve |
Thickness 2-3mm |
Length 1050mm/1250mm/1450mm/OEM |

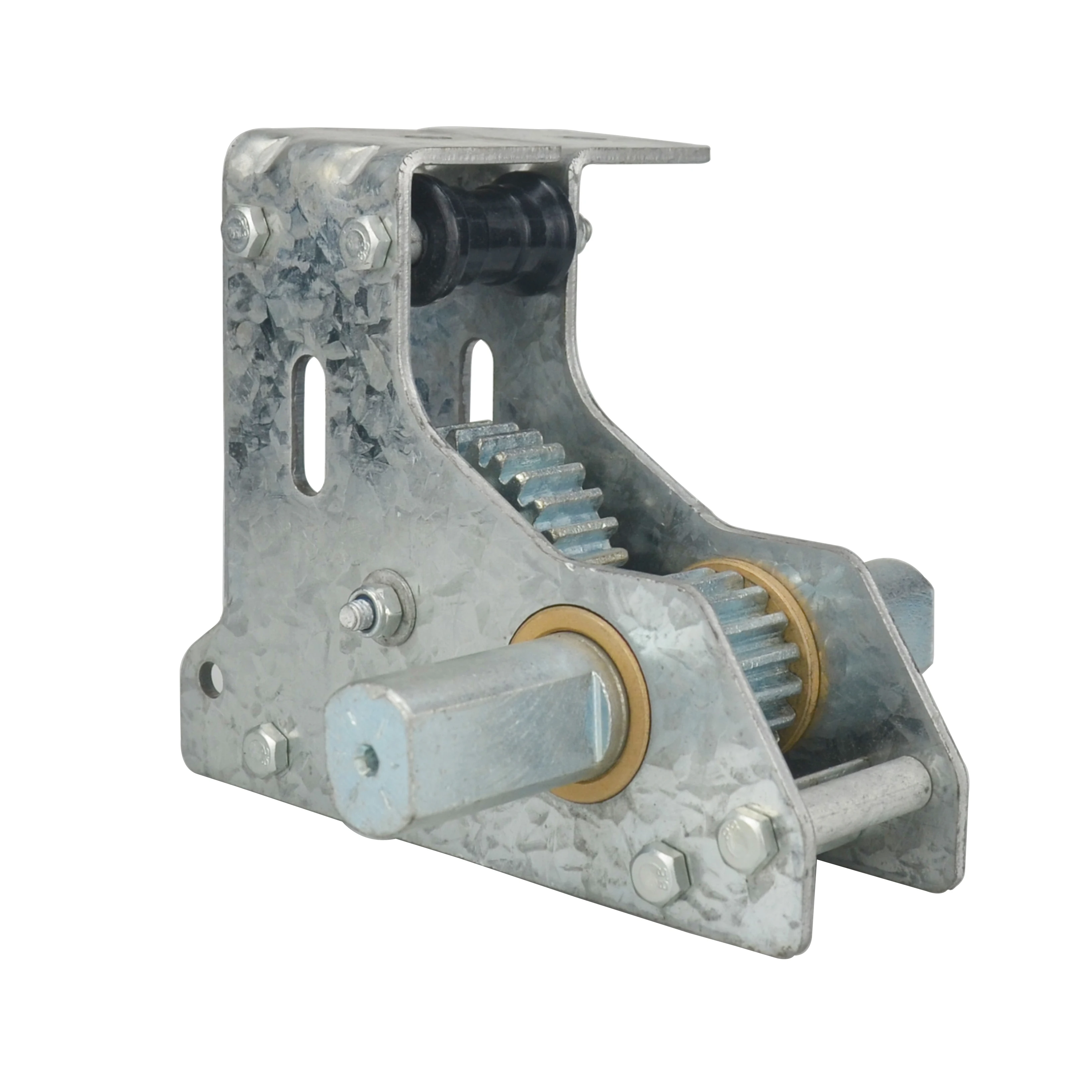

Pinion for shading system | ||
A type | B type | |
1 inch 5/4inch | 1 inch 5/4inch | |

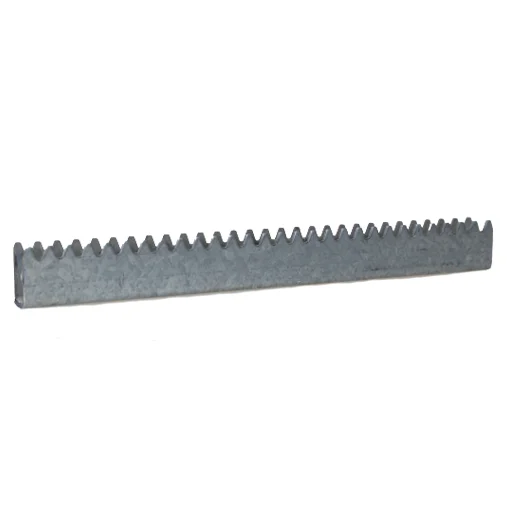

Rack for shading syetem |
Length 2965mm/3965mm/4965mm/4166mm or customization |
Thickness 2.75mm/3.0mm |
Hot Sale

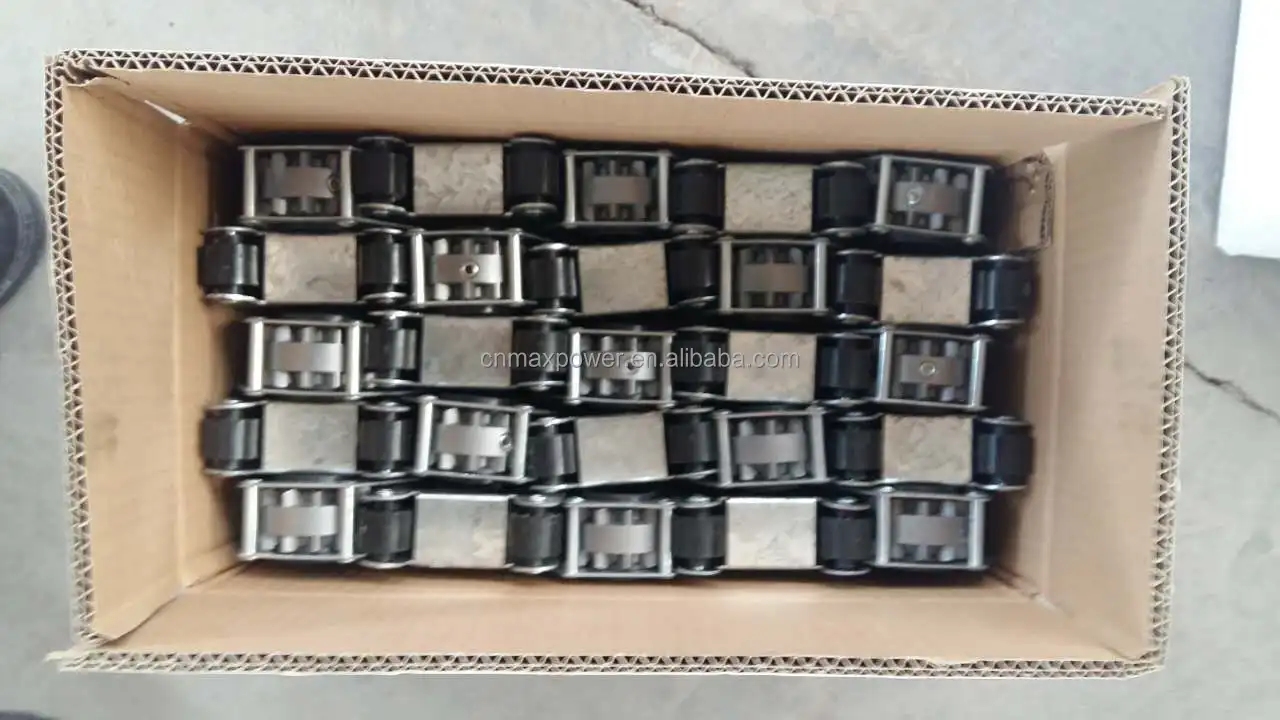

Packing&Delivery
