Industrial Electric Induction Copper Aluminum Melting Furnace Price

Product Overview

Description

Industrial Electric Induction Copper Aluminum Melting Furnace Price

Specifications

Price Industrial Furnace

Price Industrial Electric Furnace

Industrial Copper Furnace

1. Product Description

JIUCHEN Industrial Electric Induction Copper Aluminum Melting Furnace meets the needs for individuals who are melting small to medium jobs. The unit is light and compact for easy travel.

Some of the Metals that can be melted with this Furnace:Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc.Melts Pure Jewelry grade Metals such as: Gold 8k-24k, Silver (coin,sterling,fine), Copper, and more.

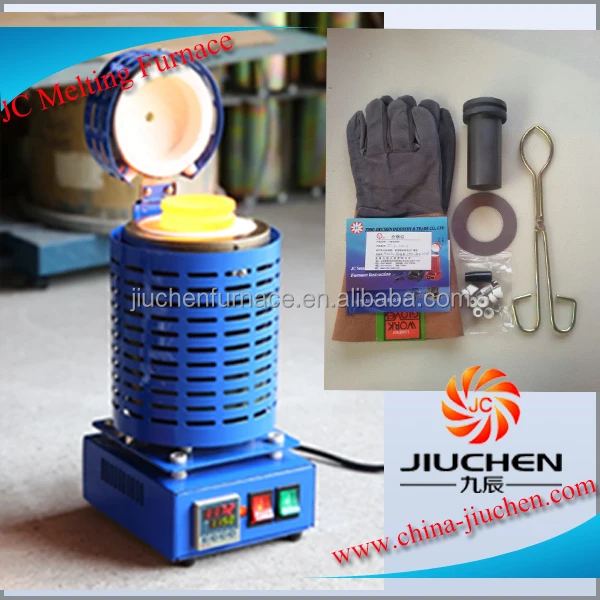

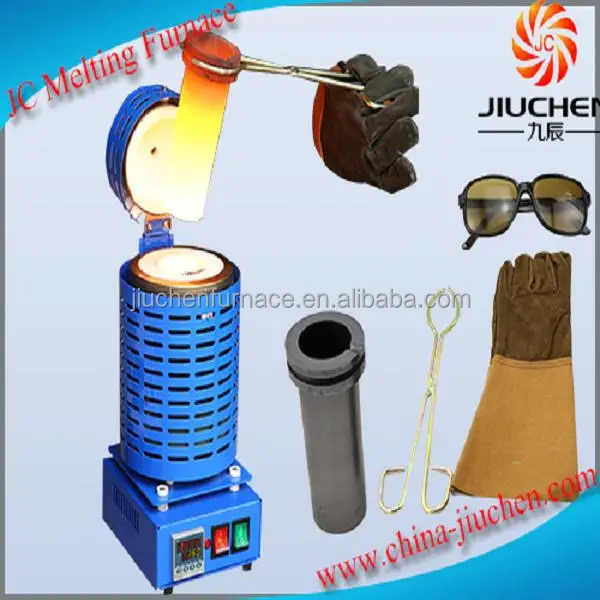

2. Industrial Electric Induction Copper Aluminum Melting Furnace Accessories

1-1kg graphite crucible

1-crucible tong.

1-replacement fuse.

1-insulating heat glasses.

1-insulating heat gloves.



3.Industrial Electric Induction Copper Aluminum Melting Furnace Instruction

Use	Removable crucible furnace for melting or maintaining melted state of non-ferrous metals.Handling the crucible with tongs.
Construction	Access to crucible from top,manual cover closing
Insulation	Multilayer insulation with double thickness of ceramic fiber
Electricity	Single-phase 220VAC,1500W,50Hz,220V standard plug
Heating	Silicon Carbide chamber with no crack,no distortion,comparied with other traditional ceramic fiber chamber and quartz chamber
Working temp	2102F (1150C) Temperature controlled with an accurate digital thermostat
Melting Speed	(Model JC-K-220-2) 15-20mins heat up to 1150 Degrees Celsius 25-30Mins(JC-K-220-1) heat up to 1150 Degrees Celsius
Standard Delivered with	1x1kg crucible,1xcrucible tongs,1xinsluation glasses,1xgloves





















Difference Feature JIUCHEN with Other Similar Furnace

Items	JC Electric Furnace	Other Similar Furnace
Furnace Chamber	Adopts new advanced SIC material with no crack no distortion under normal temp 1-1150 Degrees Celsius,which prevents disadvantage of short work life with tranditional ceramic fiber, quartz chambers.	Traditional chamber material:ceramic fiber, quartz with easy crack and distort after use 2-3 times,which easily lead to short circuit and reduce work life.
Heating Coil	Material: Fe-Cr-Ni alloys   Limited test temp up to 1600°C,make sure long continues continuous work time under normal 1200°C,which effectly extend furnace work life	Easy to crack after use 2-3times and lead to be out of work,it is very complicated process if replace coil singly,also many end users unable to replace it successfully by themselves.
Heating Speed	JC-K-220-1(220V1Kw) :25-30Mins JC-K-220-1(220V 2Kw):15-20Mins	25-45mins: Reheat:15-30mins Then need 10-15mins to complete finish the melting.
Working Temp	1-1150  Degrees Celsius	1-1100  Degrees Celsius

Furnace Package

Related Certificate

Industrial Electric Induction Copper Aluminum Melting Furnace Instruction

1. Put the molten gold into the crucible,then put the crucible into the furnace.

2.open green switch power supply, then red switch.
3. temperature controller with the digital furnace is slowly rising.

4.When the temperature reached 1150 degrees,the red light indicator cut off.

Then cut off red switch and green switch,take out the molten crucible from the furnace.

5. Please pay attention to safety and maintain mormal use of machine.

Furnace Shipping

1-10Units,DHL,Fedex,EMS Express:3-5working days

Above 10Units,Sea tranport,this way can save a lot of your purchasing cost.

We have professional packaging and shipping insurance so your purchase will arrive safely.

6.Our service

1)Machines will enjoy one year guarrantee ,Other tools will enjoy 3 months

2)we will send you replacement parts for you after you receive broken parts ,

    or some machine parts are broken after you use and the machine are under guarrantee period .

3)If  you have any query about the products , feel free to contact us .we  will reply  you in 24 hours .

7.FAQ

1)Which countries your products are exported to?

Our products are sold all over the world and with related certifications.

2)How about the warranty?

All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.

3)How to install your machine?

We have paper installation instructions and videos, we will teach till you learn it.

4)If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

If you have any queries/inquiries or interests on our products, please feel free to contact us .Your any of inquiries will be at our soonest attention and response.
