3meters high temperature forming and cure oven rubber making machinery extrusion microwave curing production line
- Category: Rubber Product Making Machinery >>>
- Supplier: Zhejiang Baina Rubber & Plastic Equipment Co. Ltd. [Zhejiang China]Zhejiang
Share on (60333738851):
Product Overview
Description
Specifications
It evenly heats the surface of rubber seals fastly by using the far infrared radiator. The heating temperature can reach to 450.

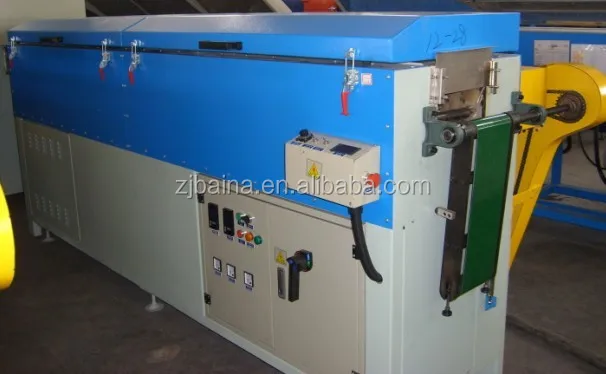

3M high-temperature forming machine | |
1.Main specifications
|
|
Model | BHN-16T-X |
Heating mode | Electric heating |
Heating power |
24 kw |
Feeding mode | Metal roller |
Material surface temperature | Room temperature~350℃ Max: 450℃ |
Feeding height | 1050mm±30mm |
Inlet and outlet dimensions |
180mmx90mm (W×H)or customized according to customer’s requirement |
Transmission power |
1.5kw |
Feeding speed | 2~30m/min Variable frequency speed regulation |
External dimensions | 3150mm×940mm×1260mm (L*W*H)MM |
Roller transmission |
Sprocket transmission |
Wheel surface treatment of non-stick roller | |
2.Electric control box |
|
Quantity | One (installed in the equipment rack) |
Main power supply specification | Three-phase five wire AC440±10% 60HZ |
Control circuit: AC220V, with neutral wire | |
Schneider products are used for circuit breakers, electromagnetic contactors and intermediate relays | |
Inverter using the Fuji products Temperature control using three components (circuit breakers, magnetic contactors, thermal relays) | |
3.Components installed on the control box |
|
Start, stop button and other operation buttons | |
Operation indicator and exception indictor (Power indicator: white; Operation indicator: green; Fault indicator: red) | |
Speed display meter |
1 unit. (Installed on the operation box at the entrance of the equipment. The speed control box contains speed meter, switches and potentiometer. Speed unit: M/min) |
Tank temperature control with a temperature regulator (control tank temperature); heating tank thermostat controlling the temperature is too high to protect | |
Emergency stop mounted on the side of the control box, control box installed in the entrance of the device | |
Installed in the heater circuit, solid state relay (SSR) | |
Operating procedures |
In normal operation, the equipment is started in the sequence of transmission and then heating, and shut down in reversed sequence. Transmission will shutdown 30 minutes after heating stops. |
Emergency stop |
When emergency stop switch is activated, all control loops are shutdown; |
Heater overheat |
The overheat protection temperature controller stops the heater, and the exception indicator lights up; |
Abnormal slot temperature |
The temperature controller in the slot stops the heater, and the exception indicator lights up. |
The rubber microwave vulcanization production line can produce:
(1) Rubber single wall hose, rubber composite hose
(2) Rubber braiding hose, rubber knitting hose and rubber winding hose
(3) Rubber profiled strip
(4) Rubber profiles with metal inserts
(5) Foam hose, foam strip
(6) Rubber sheet
(7)Butyl tape
(8) Rubber water-stop belt
(9)Automobile air condition hose, oil hose
(10)Door & window sealing strips, used for car, ship, plane, railway, construction and home decoration
(11)Household appliances sealing strips, used for refrigerator, oven
Features of the rubber microwave vulcanization production line:
1. Even vulcanization, high speed and high efficiency, 6 times of the traditional equipment.
2. Improve the quality of product and output.
3. Reduce the production cost and optimize working condition.

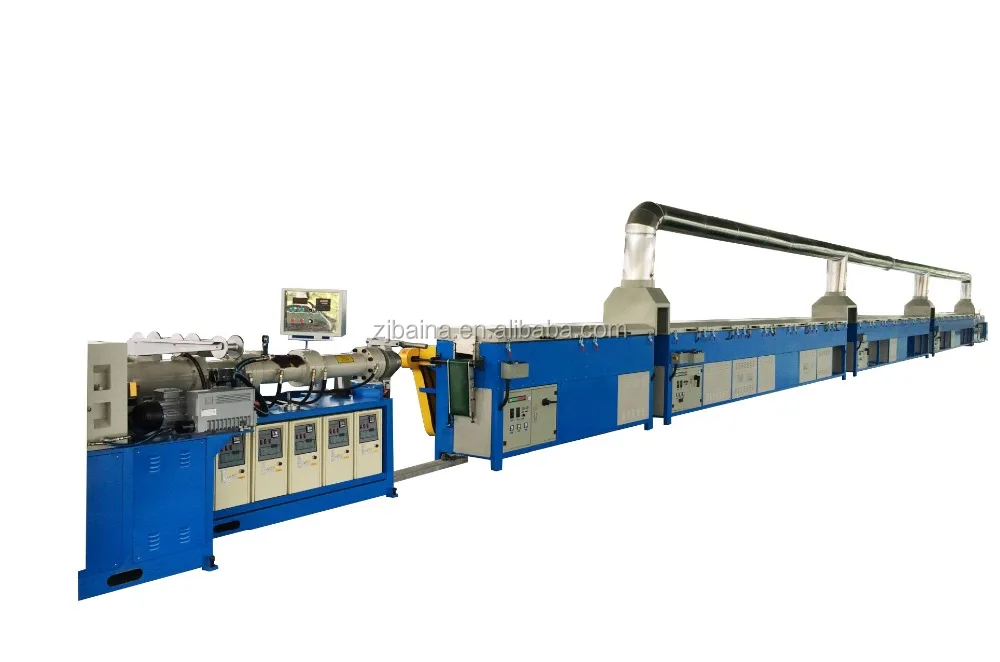

The production line is contained as below:
1. Extruder; 2.High temperature forming equipment; 3. Microwave vulcanization equipment; 4. Hot-air vulcanization equipment;
5.Cooling tank; 6. Traction machine; 7. automatically fixed-length cutting machine;
Our Service:
A dedicated team of engineers are always ready for any customer‘s requirement and troubleshooting.
These engineers have been specially trained for Problem Solving and Maintenance issues and have rich experience in rubber manufacturing.
1.Pre-sale services
(1) Model reference and equipment technical advice
(2) Training, including correcting mode, correcting maintenance way.
2.After-sales service
(1) One year’s warranty period
(2) Regular maintenance and product tracking service
(3) Lifelong supply of the required parts
(4) Instantly after-sales service
Welcome to visite our factory!
