Product Name: AWS A 5.18 ER70S-6 CO2 MIG Welding Wire Copper Coated Wire
Confirm with: AWS ER70S-6/ DIN SG2/ BS A18/ EN G3Si1/ JIS YGW12/ GB ER50-6
Shielded Gas: Ar+CO2 or 100% CO2
Diameter: 0.8mm 0.9mm, 1.0mm, 1.2mm, 1.6mm
Weight: 5kg, 15kg, 50kg, 250kg
Application:
CO2 welding wire ER70S-6 is mainly used in the welding of low carbon steel and 500Mpa grade alloy steel structure parts. Also used in all kinds of 500 Mpa grade steel board and pipe welding work. It is widely used in the area of vehicles, bridges, construction machinery, pressure vessel, engineering structures and container buildings etc.
Specifications
Diameter of wire& reference current(DC+)
Diameter of wire (mm)
Ø0.8
Ø 1.0
Ø 1.2
Ø 1.6
current (A)
40-180
100-220
160-320
170-550
Arc voltage(V)
16-21
17-27
18-32
23-43
Chemical composition of welding wire:(%)
C
Mn
Si
S
P
Cu
standard value
0.06-0.15
1.40-1.85
0.80-1.15
≤0.035
≤0.025
≤ 0.50
sample value
0.08
1.51
0.92
0.020
0.016
0.20
Chemical composition of deposited matal: (%)
C
Mn
Si
S
P
Cu
0.07
1.27
0.76
0.014
0.015
0.15
Mechanical properties of deposited metal:
Tensile strength
δb (MPa)
Yield Point
δ0.2(MPa)
Elongation
δ5 (%)
AKV Impact Value
(J) (-30°C)
Shielding gas
Standard value
≥ 500
≥ 420
≥ 22
≥ 27
Co2
Typical value
558
472
27
98
Co2
Packaging & Shipping

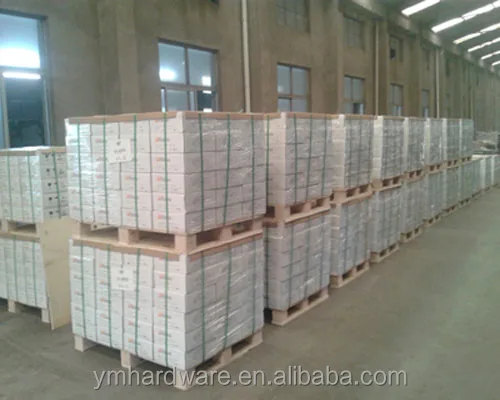

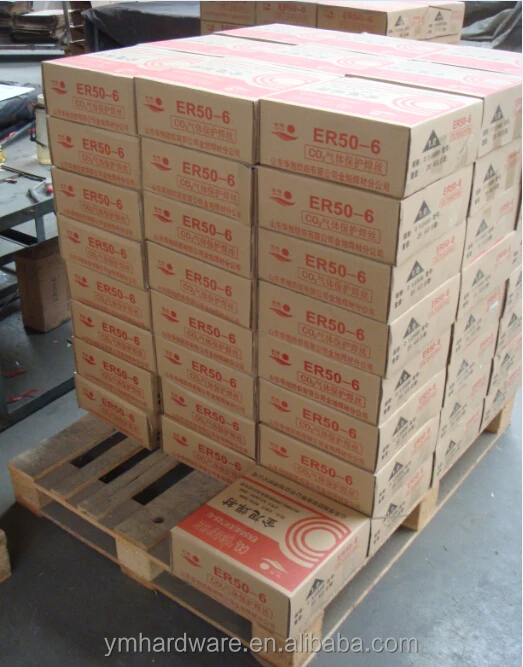

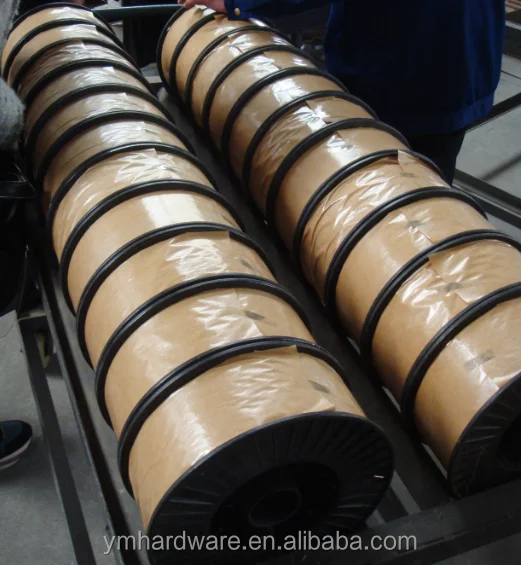

1.Net weight: 5KG/15KG/20KG in plastic spool; 72 cartons on pallet, 22-24 Tons in 20ft container.
2.Anti-tarnish paper& Heat shrink film wound on spool, one spool in each carton

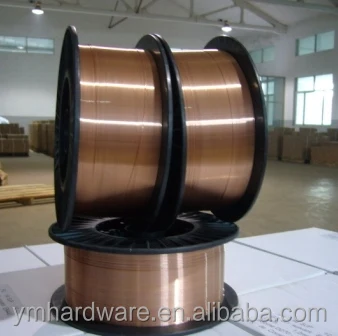

3.Spool type: D270 tensile plastic spool, white or black
4.OEM package/ Customer’s brand carton
Delivery time: within 15 days after pre-payment
Payment: 30% T/T in advance, 70% balance by receiving the copy of B/L.
Advantage:
1.Stable arc, low splashing, high deposited efficiency, beautiful seam, suitable for position;
2.Raw material: Qingdao Steel;
3.Loading port: The nearest port—Qingdao port;
4.Delivery time is flexible and pretty fast;
5.Can accept small trial order;
6.Free sample;
7. OEM strictly according to customer’s package design requirement
