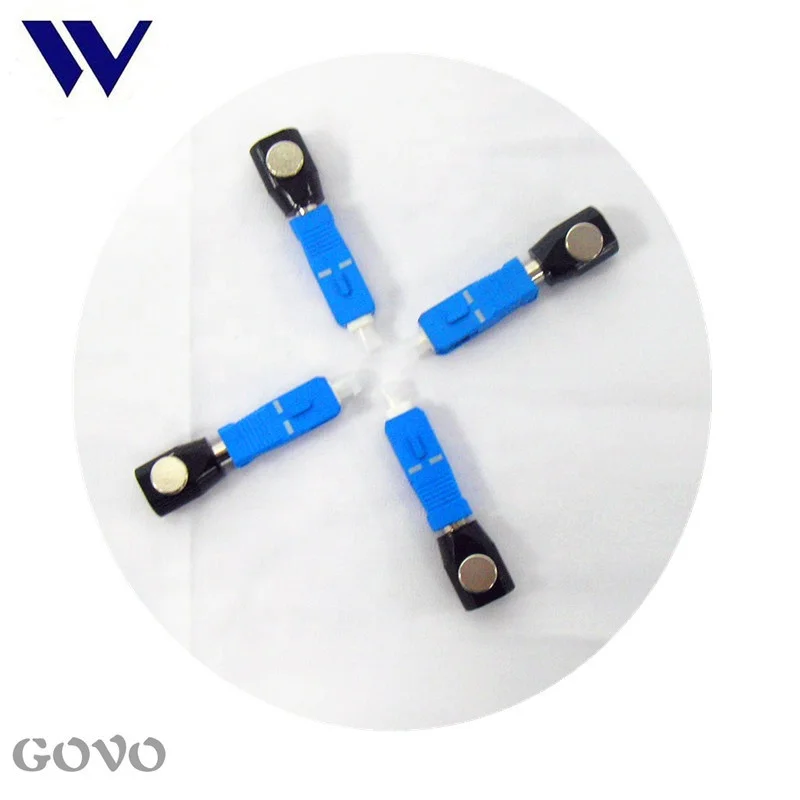

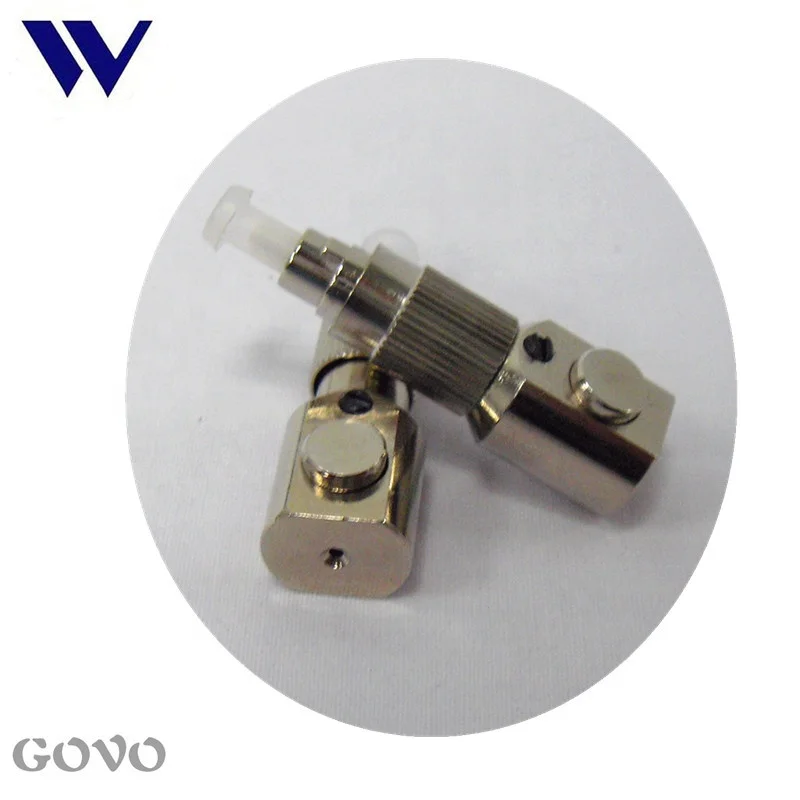

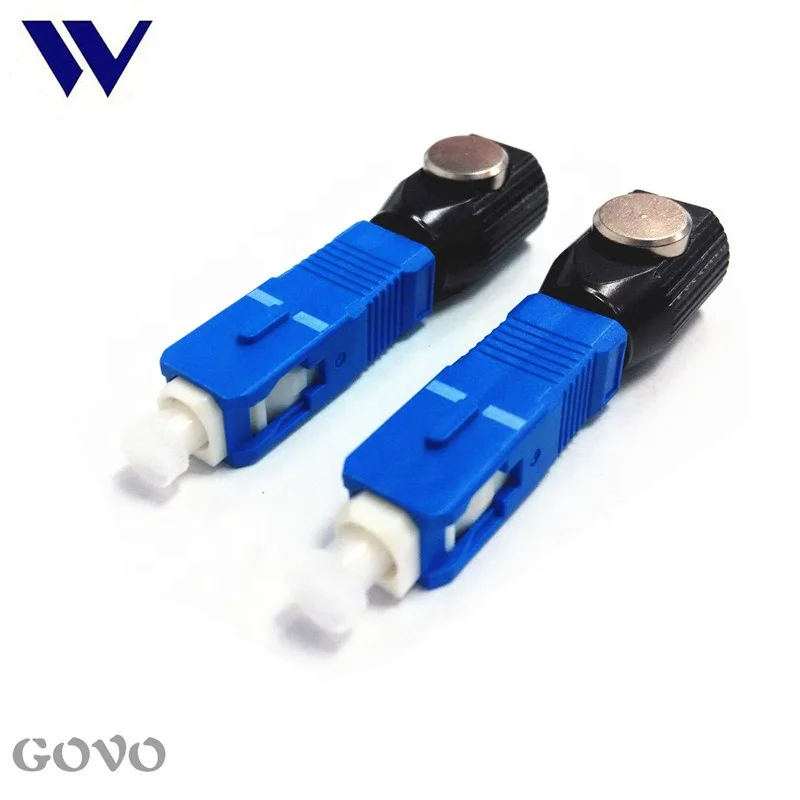

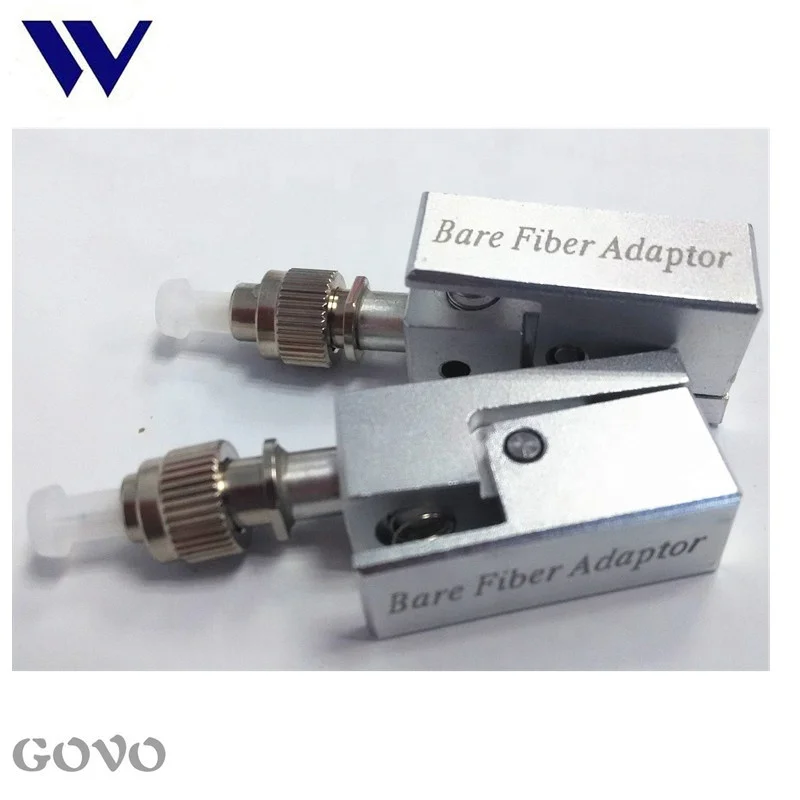

FC SC Square and round type fiber optic bare fiber adapter
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (60333866968):
Product Overview
Description
FC SC Square and round type fiber optic bare fiber adapter
Product Description
Bare fiber adaptors are used as the medium to temporarily connect the bare fiber with fiber optic equipment. It’s a very convenient way as well as a most affordable method to connect un-terminated fibers with standard FC, SC, ST, LC and SMA905 receptacles. They are recommended for power meter hook-ups, temporary system repairs or wherever a quick fiber connection is required.
You only need to simply strip, cleave, clean and insert the fiber, without the hassle of epoxy and epoxy curing steps. Broken fibers are easily removed with piano wire.
There are various types available: SC, FC, ST, LC, SMA, etc. Both single mode and multi-mode types are available.
Features
- Simply strip
- Compact design
- High stability, easy to operate
- Good repeatability and durability
- Suitable for fibers with coating diameters of 250um & 900um
Applications
- Fiber optic testing
- Fiber optic cable repair
- Production line of fiber optic devices
- OTDRs, Power meters, Talk sets, etc
- Fiber optic measurement in laboratory
- Testing bare fiber, fiber on the reel, fiber before and after installation
Specification
| Insertion Loss | ≤1dB |
| Return Loss | ≥ 45dB(PC), ≥ 50dB(UPC), ≥ 65dB(APC) |
| Plug and unplug force | 200-600(g/f) |
| Durability | 5,000 times |
| Exchangeability | ≤ 0.2dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +85°C |
About Us
Our company is professionally engaged in supplying of fiber optical products
Our products mainly fall into six categories, namely
Optic Power Meters, Light Source,Optic Multimeter,VFL
OTDR, Fiber Optic Identifier...
Fusion Splicers; Fiber Cleavers; Mechanical Splice;Splice-on Connectors;
Protective Sleeves;Blades,Electrodes, Batteries etc
Patch Cords, Pigtails,Attenuators,Couplers,Adapters, Fast Connectors,
Our products are extensively used in CATV, telecom/data transmission and other industries.
Shanghai Govo Telecom Co.,Ltd.
Your reliable supplier and partner!
Feel free to send us inquiry , we will offer the quality products with best prices and services.
