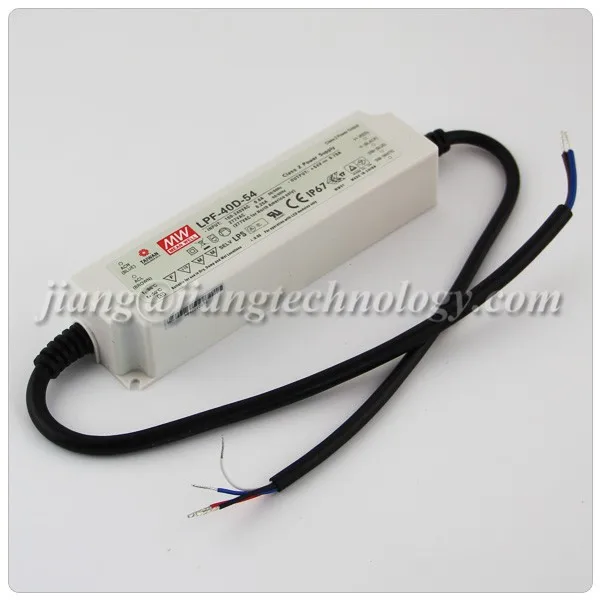

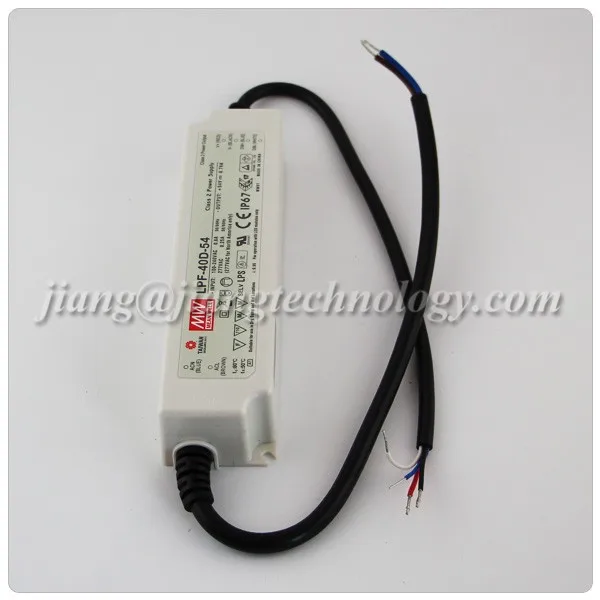

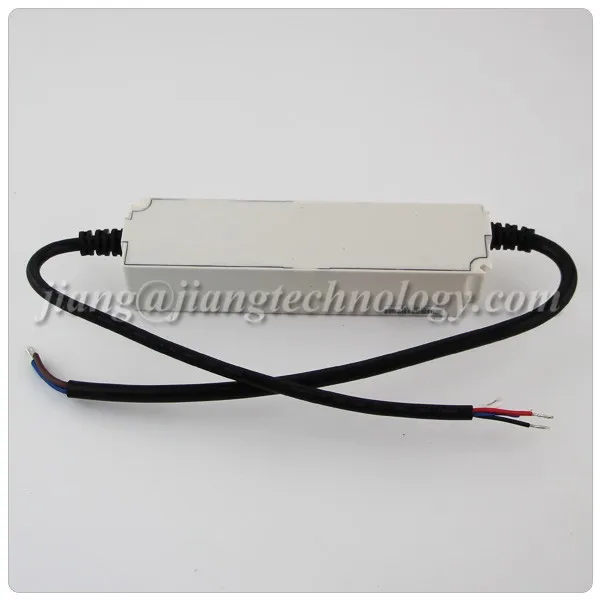

Mean Well LPF-40D-42 Power Supply 40W 0.96A Constant Voltage LED Driver 42Vdc SMPS Design
Product Overviews
Features:
- Meanwell Constant Voltage LED Driver
- Universal AC input / Full range (up to 305VAC)
- Built-in active PFC function
- High efficiency up to 90%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Fully isolated plastic case
- Fully encapsulated with IP67 rate
- ClassⅡ power unit, no FG
- Class 2 power unit
- Built-in 3 in 1 dimming function (1~10Vdc or PWM signal or resister)
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Suitable for dry / damp/wet locations
- 5 years warranty

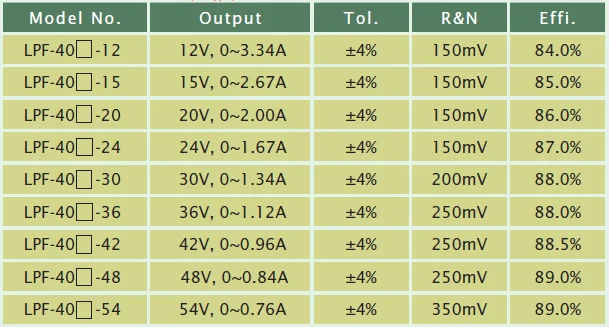

Model Series:
LPF-40D-12 / LPF-40D-15 / LPF-40D-20 / LPF-40D-24 / LPF-40D-30 / LPF-40D-36 / LPF-40D-42 / LPF-40D-48 /LPF-40D-54
Detailes:

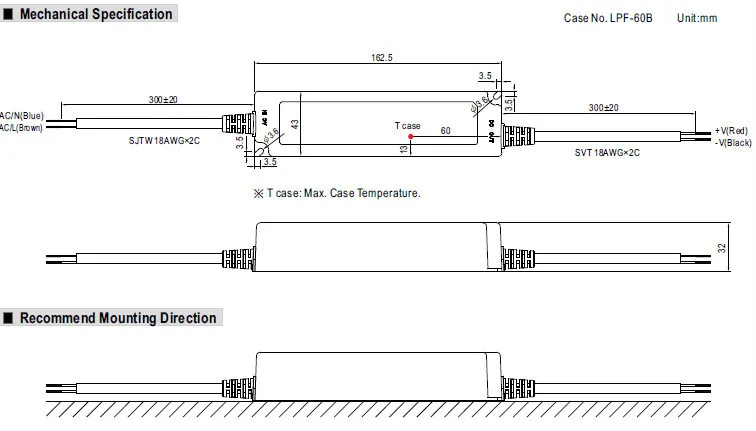

| LED Driver | LPF-40D-42 | |
| OUTPUT | DC VOLTAGE | 42V |
| CONSTANT CURRENT REGION | 25.2 ~ 42V | |
| RATED CURRENT | 0.96A | |
| RATED POWER | 41.32W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 80ms / 115VAC at full load 1200ms, 80ms / 230VAC | |
| HOLD UP TIME (Typ.) | 16ms / 230VAC 16ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.97/115VA, PF>0.95/230VAC, PF>0.92/277VAC at full load ( Please refer to " Power Factor Characteristic " curve ) | |
| EFFICIENCY (Typ.) | 88.5% | |
| AC CURRENT (Typ.) | 0.6A / 115VAC 0.3A / 230VAC 0.25A / 277VAC | |
| INRUSH CURRENT (Typ.) | COLD START 50A ( twist = 210μs measured at 50% lpeak ) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 240VAC | |
| PROTECTION | OVERCURRENT | 95 ~ 108% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |
| OVER VOLTAGE | 46~ 54V | |
| Protection type : Shut down o/p voltage with auto-recovery or re-power on to recover | ||
| OVER TEMPERATURE | 90°C ± 10°C (RTH2) | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70°C ( Refer to " Derating Curve " ) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03% / °C (0 ~ 50°C ) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | U8750, CSA C22.2 No. 250.0 - 08 ( except for 48V, 54V ), EN61347-1, EN61347-2-13 independent, IP67 approved ; J61347-1, J61347-2-13 approved; design refer to U60950-1, TUV EN60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P : 3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P :100M Ohms / 500VDC / 25°C / 70%RH | |
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 ClassC ( ≥60% load ); EN61000-3-3 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level ( surge 2KV ), criteria A | |
| OTHERS | MTBF | 438.8Khrs min. MIL-HDBK-217F (25°C ) |
| DIMENSION | 162.5*43.5*32mm (L*W*H) | |
| PACKING | 0.44Kg ; 32pcs/15.08Kg/0.93CUFT | |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 5. Derating may be needed under low input voltages. Please check the static characteristics for more details. 6. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. | |
