waterproof exterior wall insulated interior wall panel mgo sandwich panel

Product Overview

Description

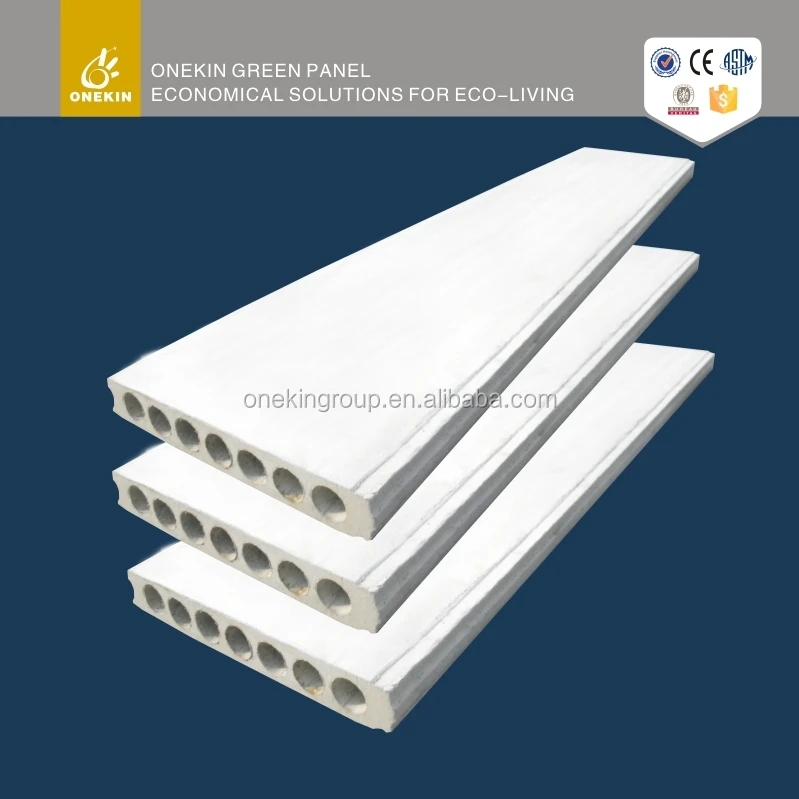

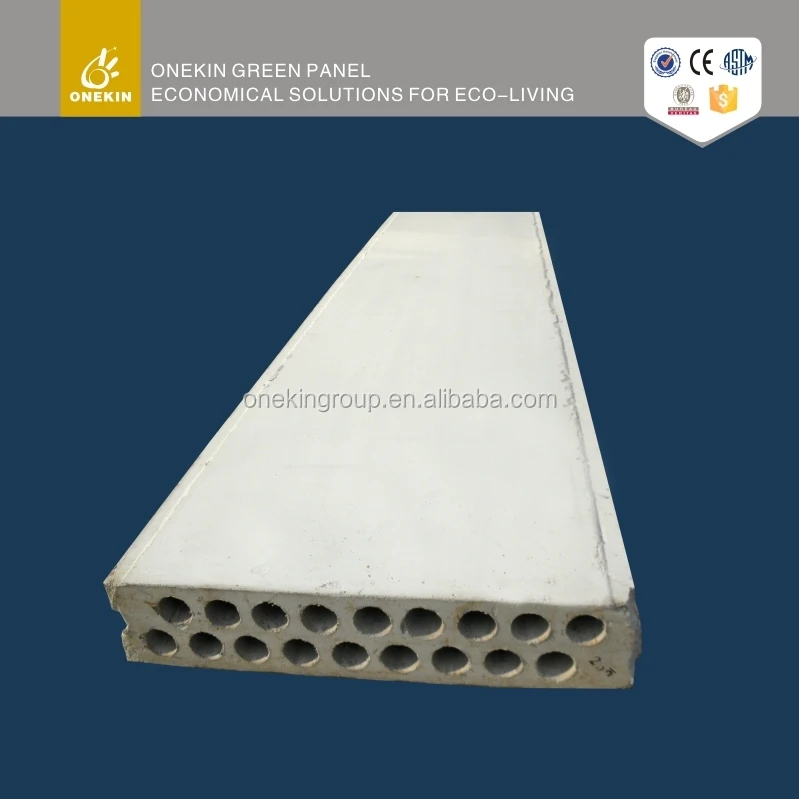

 magnesium oxid hollow core wall panel





Onekin steel structure building introduction

 Onekin steel structure building is a kind of environmental-friendly board which is widely used in wall construction.

It is a new type non-flammable material made of lightweight materials. It’s made from magnesium oxide, magnesium chloride, fly ash, plant fiber and mixed together with non-toxic chemical for strength



Magnesium oxide is a natural fireproof material, so the highly purified magnesium oxide is used as the main fireproof material,

fly ash and plant fiber as filling materials, the high quality MgC12 as the main cementing material to solidify other materials.



When compared with other similar materials, Onekin green panel offers a number of benefits

such as totally green material and no asbestos, higher fireproof, sound insulation, heat insulation,

fast installation,easier decoration, and lower the total cost for the project.



Onekin steel structure building specification



Length: 2200mm-3600mm



Width: 600mm



Thickness: 90mm/100mm/120mm/150mm/200mm



Standard size: 2800*600/2900*600

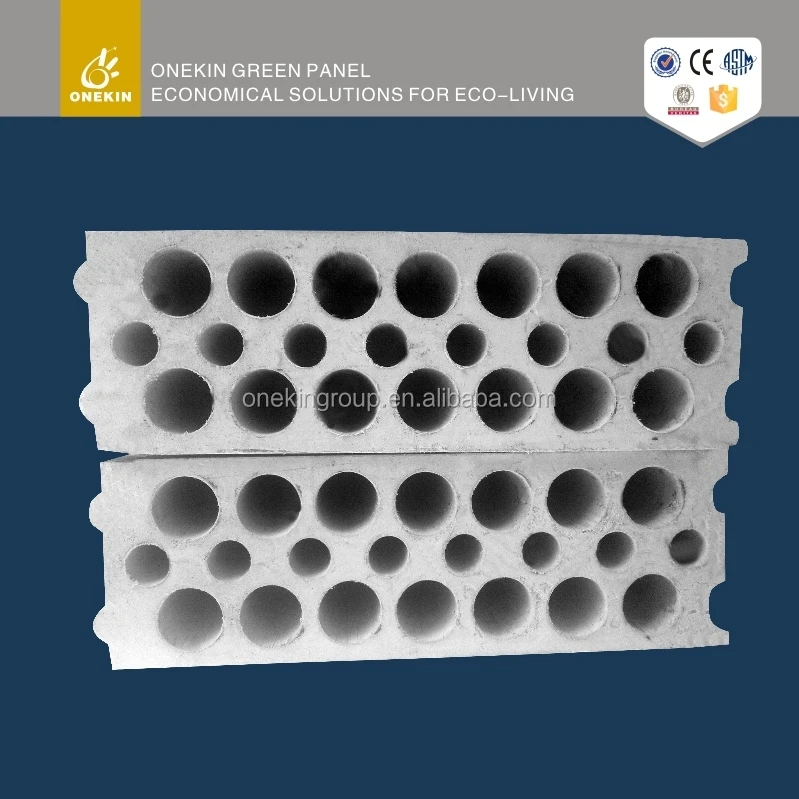

steel structure building Sectional drawing





 Super performance for Onekin steel structure building



1. Environmental friendly fire protection

Onekin magnesium partition panel used 100% raw materials do not contain harmful to human body substances, non-radioactive, class A products comply with national.standard. Light weight energy saving wall material under the high temperature of 1000 degrees Celsius the fire endurance of more than 4 hours, and don't release poisonous gas, non-combustible performance meet the national a-level standard.



2. Increase the usable floor area

Onekin  magnesium partition panel energy.saving wall materials.can increase the usable floor area.Method of anchorage steel structure, high strength of the wall, can increase the height, the overall seismic performance is higher than ordinary masonry wall many times.the board structure is closely,not deformation, metope is not easy to loose, good vibration resistance.



3. moisture-proof, waterproof, sound insulation

Experiments show that onekin fireproof partition board can make any waterproof decorative surface in the absence of circumstances, with cement bond into a pool filled with water, on the back wall can keep dry, leaving no trace, also won't appear condensate beads in wet weather. Wall panels are professional waterproof board, has a good waterproof, moistureproof performance, can be used in wet area such as kitchen, toilet, basement.



4. Heat insulation, heat preservation

Onekin fireproof partition board composition of the material by natural materials, high purity magnesium powder,fiberglass and plant fiber after high temperature and high pressure steam curing, and determines that he has good heat insulation function, make you more comfortable indoor environment. Fireproof board.keep a uniform humidity level, ecological regulation effect, keeping pace with the development of modern residential buildings.



5. Can hang nail

Onekin fireproof partition board can be directly nailing or bolts to hang heavy things, such as air conditioning, single point hanging force in more than 45 kg;



Onekin steel structure building application



Onekin steel structure building is mainly for interior and exterior nonbearing wall partition.
1. General industrial buildings, eg., high building, KTV
2. Residential buildings
3. Single house
4. Public construction, eg, Hotels, hospitals, schools
5. The fence of the factory
6. Kitchen, bathroom, and the toilet of indoor wall.
7. Also can paste on tiles and cement mortar.

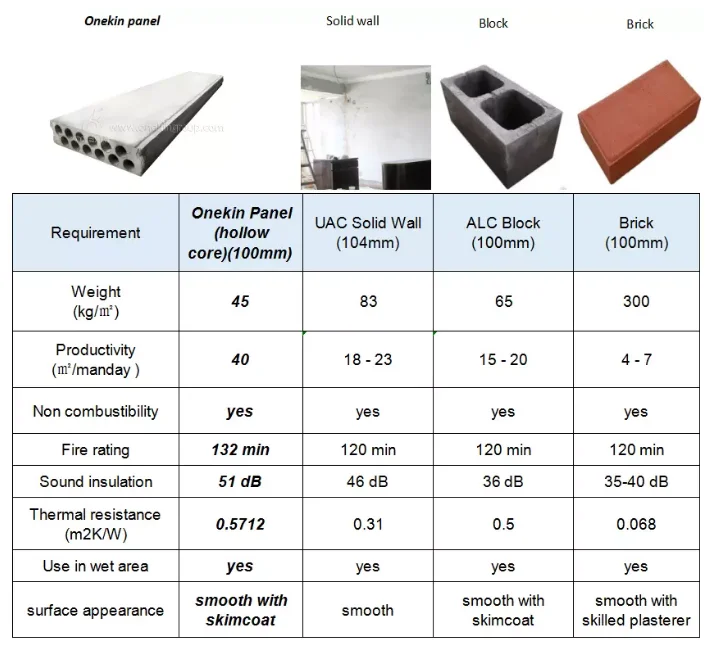

Onekin steel structure building VS cement panel VS bricks

Onekin Internatinal test data sheet



ASTM test report (90mm)
No.		Standard		Item	Result
1		ASTM C39/C39M-12a		Compressive strength	4.4  Mpa
2		ASTM C1609/C1609M-12		Flexural Strength	0.492 MPa
3		GB/T 9978.8-2008		Fireproof	>3hours
4		GB 50121-2005		Sound insulation	51dB
Singapore test report (100mm)
No.	Standard		Item			Result
1	BS 476 Part 22:1987		fireproof			132min
2	ASTM E413-04		Sound insulation			36dB
3	BS EN 772-1:2000		Compressive strength			5.56 Mpa
4	CT-21752/THC		Thermal conductivity			0.1739 w/m°k
5	CT-21752/THC		Thermal resistance			0.5712 m2°K/W
6	ditto		Crowd pressure			3 Kn/m
7	ditto		Light weight anchorage-pull out			100N
8	ditto		Light weight anchorage-pull down			250N
9	ditto		Heavy weight anchorage-wash basin			1500N
10	ditto		Heavy weight anchorage-wash cupboard			4000N

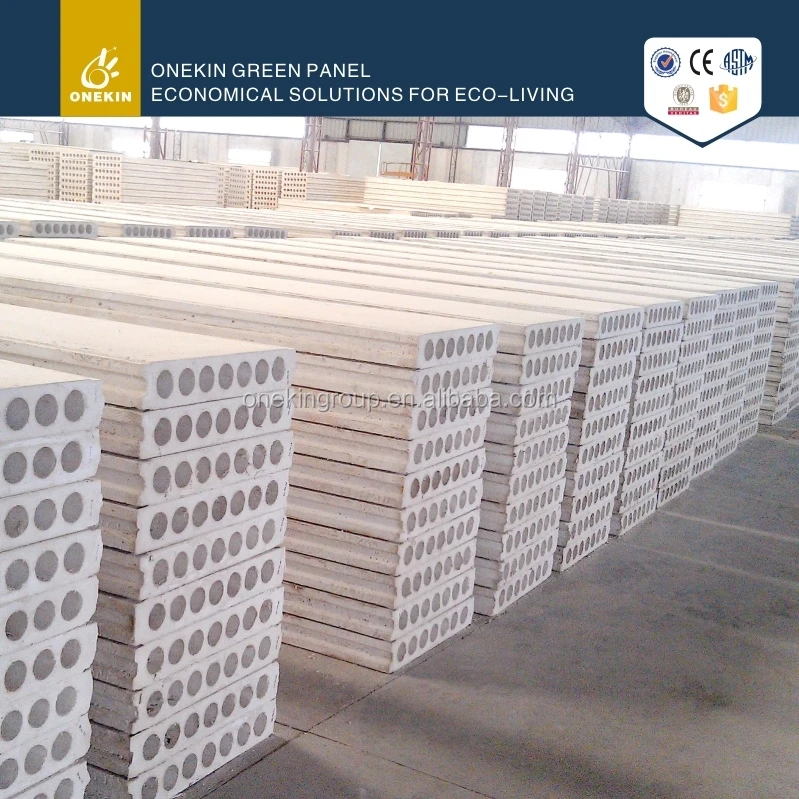

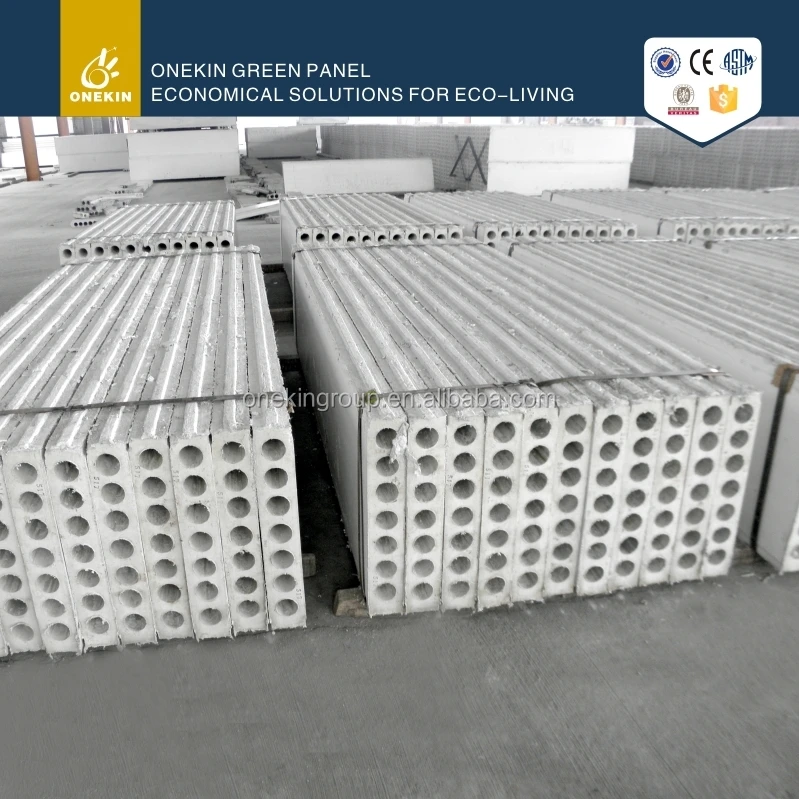

Onekin factory and packing



Onekin Customer visit



*********************************Onekin Green Wall System********************************



                                   Your Building Partner For Building Future



                We are searching for the agents and distributors all over the world



                                         We look forward to working with you

Q&A

wall panel

1. what is mgo wall panel

mgo wall panel is made magnesium oxide wall panel,which is a non-combustible material. Similar products with AAC, EPS and concrete wall panel.More details,please check attached catalog.

2. what the specific

length: 2400-3500mm, width:600mm, thickness: 75/90/100/120/150/200mm. Customized size available

3. how to install onekin wall panel

this is our wall panel installation video.

4. what is the weight of wall panel and one contaner loading

Onekin wall panel is a lightweight, the weight of 100mm thickness is 45kg/m2, loading for 40HQ is 352 pcs.

5. i want to use it for floor

onekin wall panel is non-bearing, not siggest to use for floor. for 2 floor house, if use Onekin wall panel as floor, at leat need 100mm wall panel + 8mm reinforced-concrete structure.

6. Can you produce 7m length

May i know what aew you going to use the wall panel for? 7m is too longth, currently and max length we can do is 3.5m, you can use splicing installation, by connect two panels. 7m panel is too long and too heavy, not easy for installation and transportation.

7. Does your panel heat insulaion?

Our panel has lower thernal conductivity 0.1739w/mk, can make the room warm in winter and cool in summer. But our panel is not insulate panel for cold room use.

8. Does it waterproof?

yes, onekin wall panel is water resistant. This is our soak testing video. We have some projects in high humidity area and near the sea. please check attached pics. Does your project in rainy area?  if so, we'd like to suggest you to use waterroof coating, which can better protect the wall panel.

9. do you have ** certificate?

Sorry, we don have such certificate. the certificate we hae i've sent to you. This certificate is required by your goverment? We can arrange such test for you, but the test fee need u to pay in advance. i'll refund you gradually according to your later orders.
