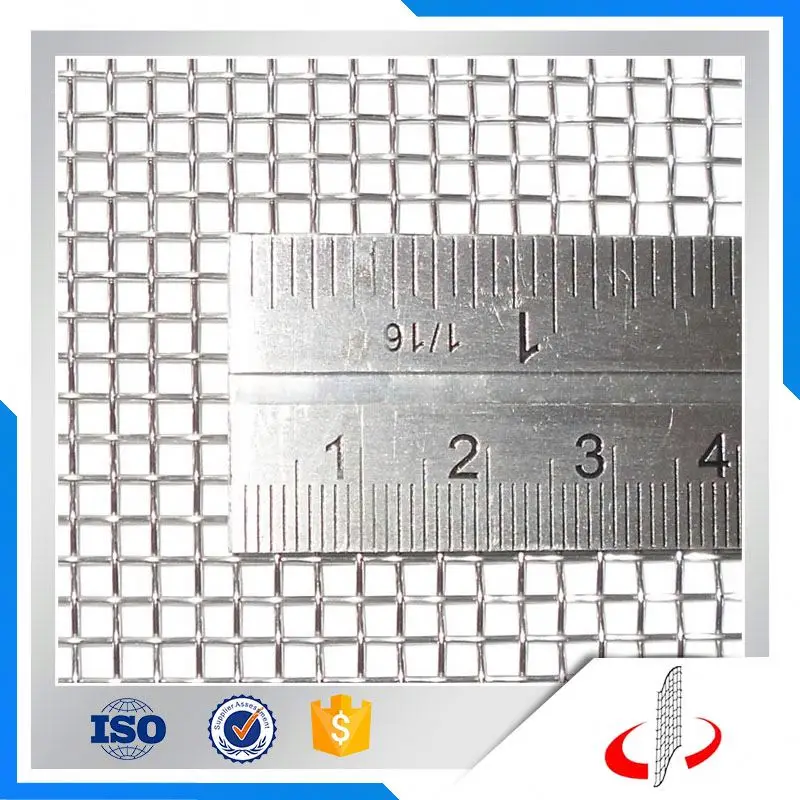

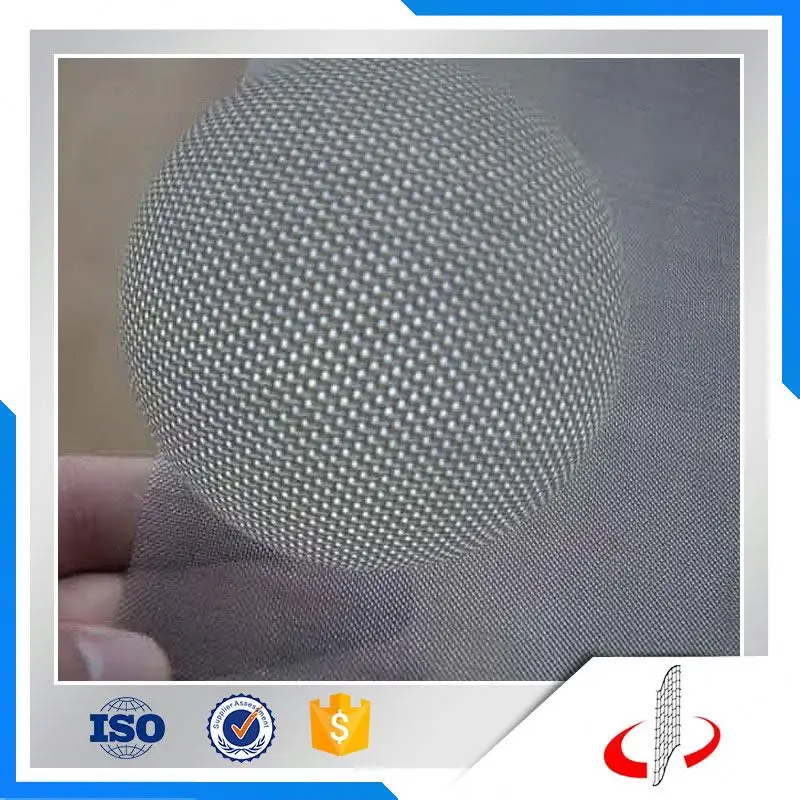

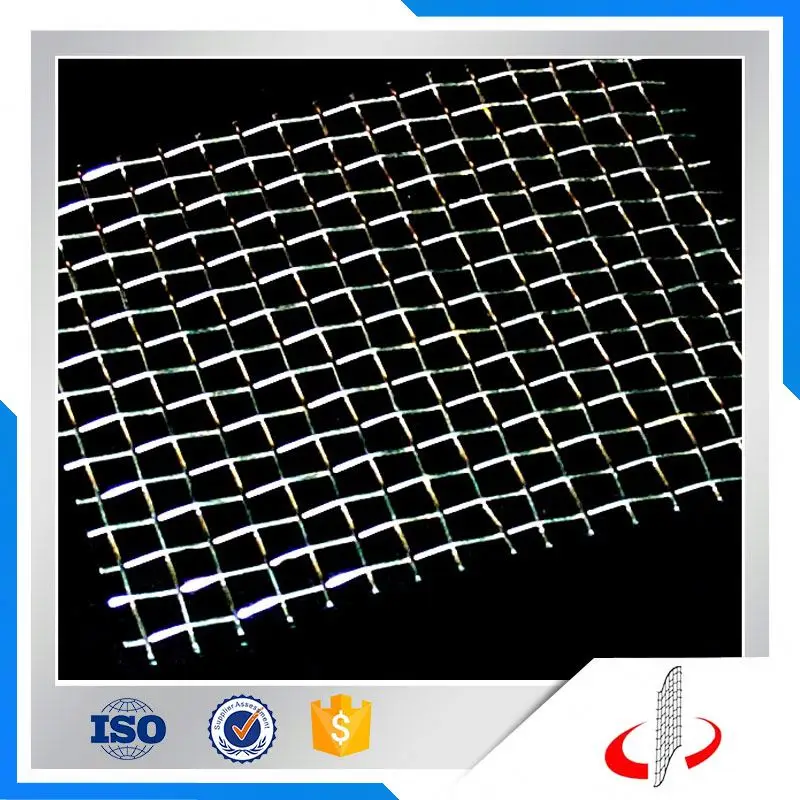

12/64 stainless steel filter wire mesh

Product Overview

Description

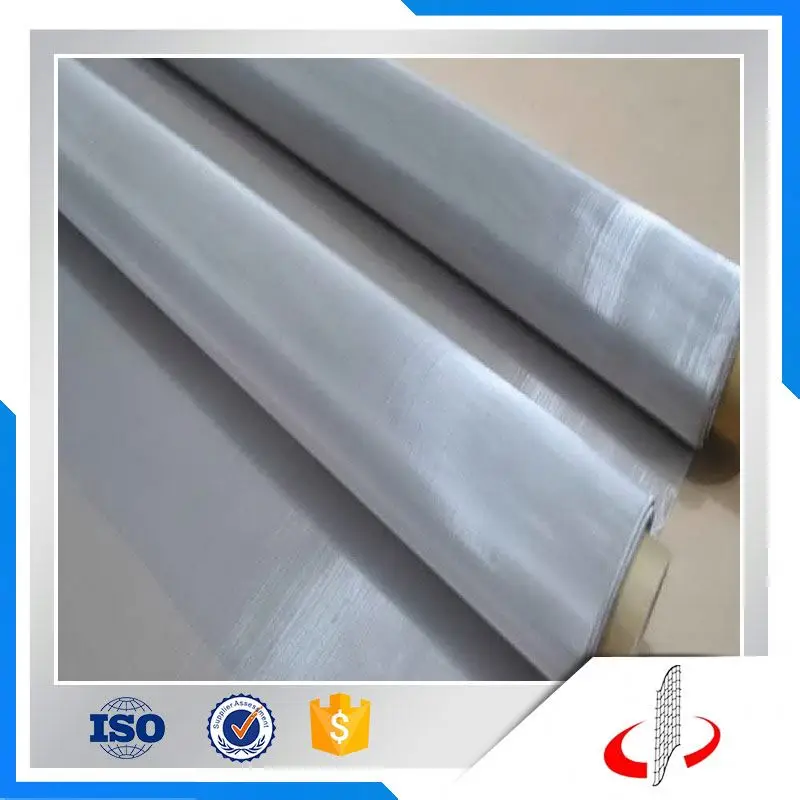

Stainless Steel Filter Wire Mesh



Stainless Steel Mesh Screen can be widely used in acid,alkali conditions screening and filtering,the oil industry

make mud network,chemical industry,screen filters,electroplating industry for pickling network.



Material: AISI 302, 304, 304L, 316, 316L, etc.

Wire dia: 0.0203-4.0mm
Mesh: mesh 8 -mesh 638
Width: 3inch, 4inch, 5inch, 1m,1.2m,1.5m, up to 3m
Length: 30m or as required.



Material Component

AISI Grade	Stainless Steel Wire Chemical Composition (%)
C	Si	Mn	P	S	Ni	Cr	Mo
304	0.08	1	2	0.045	0.03	8.00~10.50	18.00~20.00	-
304H	0.08	1	2	0.045	0.03	8.00~10.50	18.00~20.00	-
304L	0.03	1	2	0.045	0.03	9.00~13.50	18.00~20.00	-
316	0.045	1	2	0.045	0.03	10.00~14.00	10.00~18.00	2.00~3.00
316L	0.03	1	2	0.045	0.03	12.00~15.00	16.00~18.00	2.00~3.00
430	0.12	0.75	1	0.04	0.03	0.6	16.00~18.00	-
430A	0.06	0.5	0.5	0.03	0.5	0.25	14.00~17.00	-



Popular Specifications.







Stainless Steel Woven Wire Mesh, wire mesh ,wire mesh screen ,screen mesh(Plain Weave)
mesh/inch	wire diameter mm	aperture mm	mesh/inch	wire diameter mm	aperture mm
2mesh	1.80	10.90	60mesh	0.15	0.273
3mesh	1.60	6.866	70mesh	0.14	0.223
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.25	0.0385

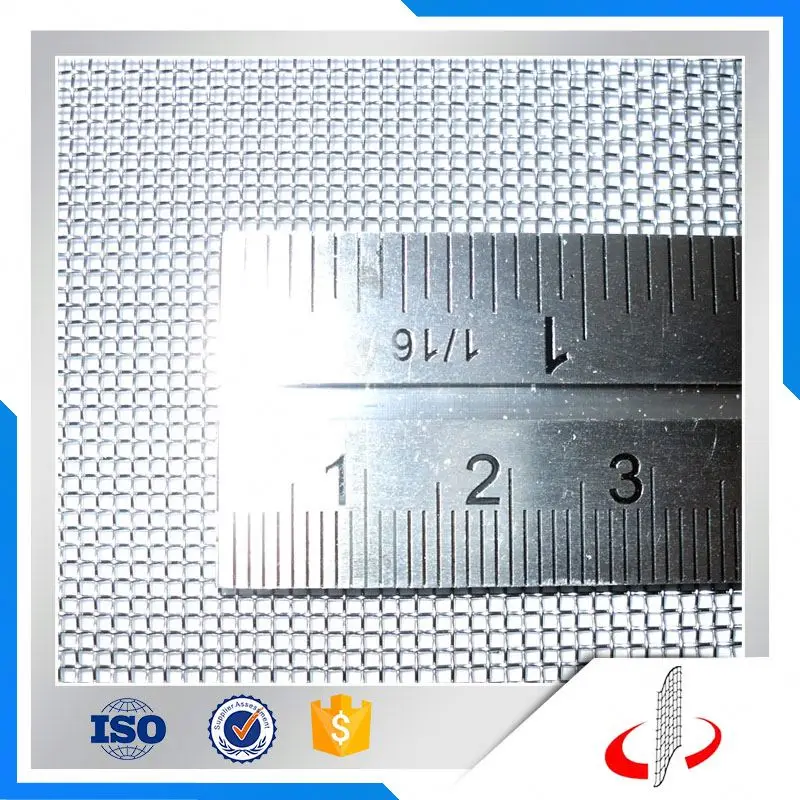

Different Mesh size pictures for reference

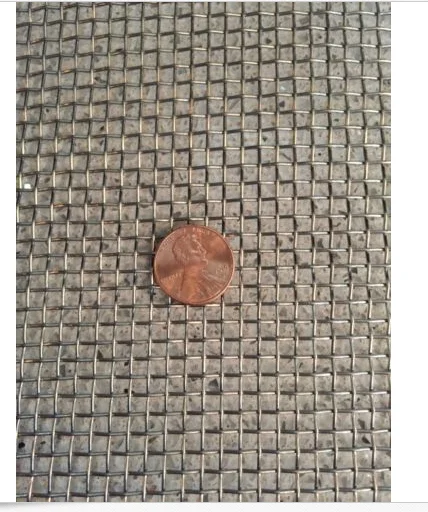

    Mesh 6x6

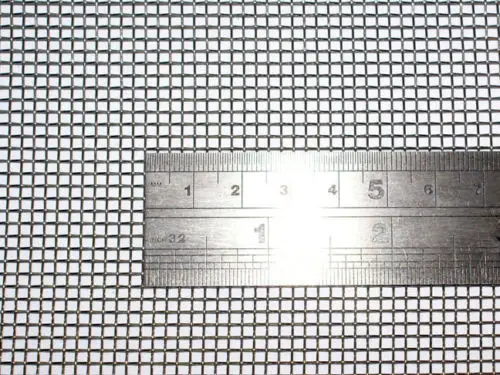

Mesh 10x10

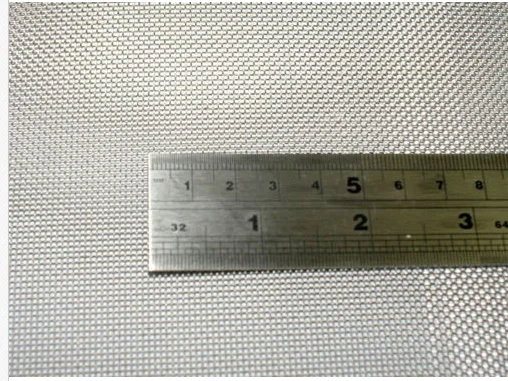

Mesh 20x20

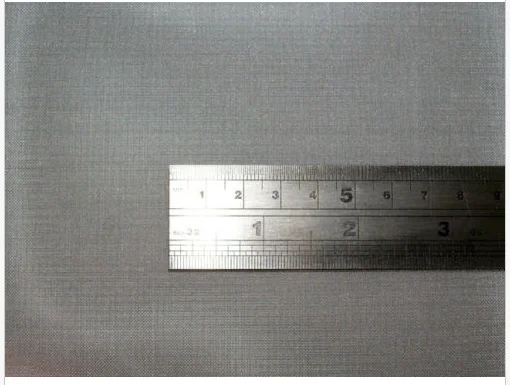

Mesh 60x60

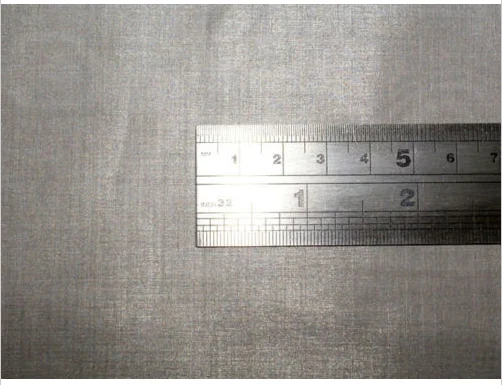

Mesh 400x400
