Product Overview

Description

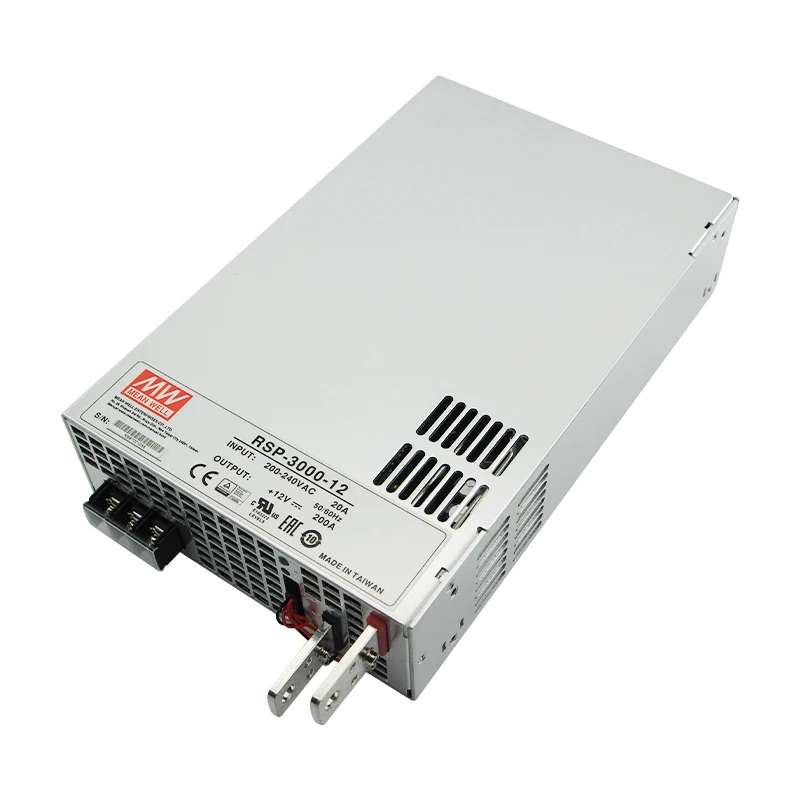

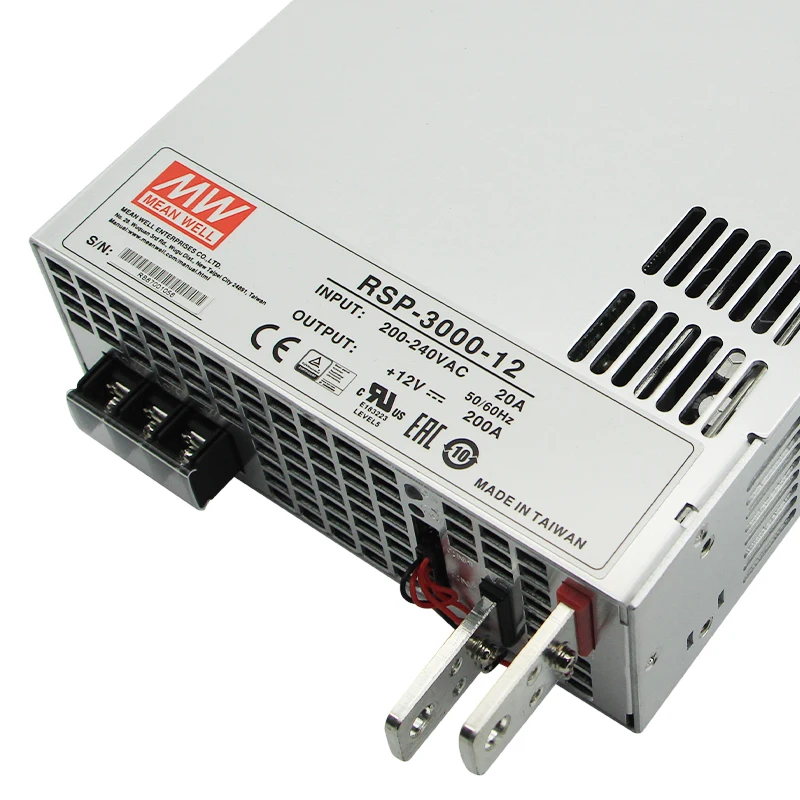

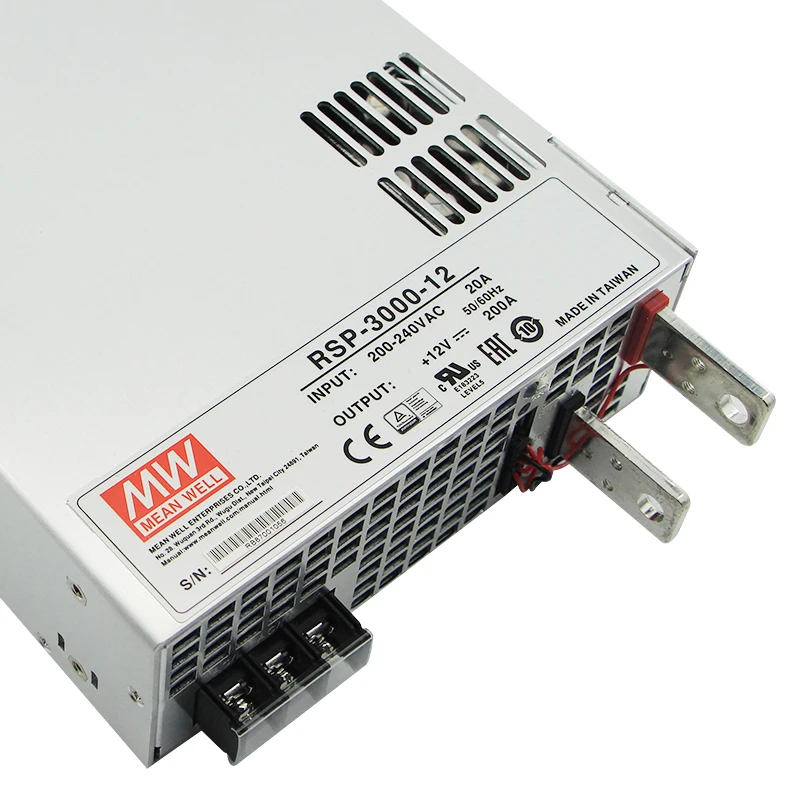

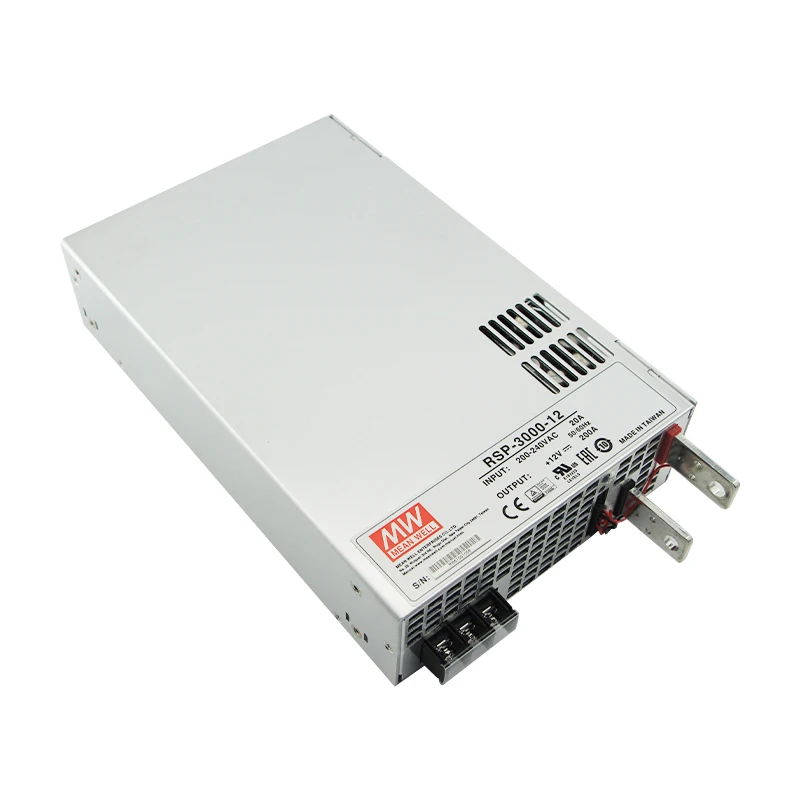

RSP-3000-12 Meanwell AC DC 3000W 12V 200 Amp Industrial Switching Power Supply





RSP-3000-12 Meanwell AC DC 3000W 12V 200 Amp Industrial Switching Power Supply



Product Overviews







Features:



  • Meanwell 3000W 12V Power Supply

  • AC input 180~264VAC

  • Built-in active PFC function

  • High efficiency up to 91.5%

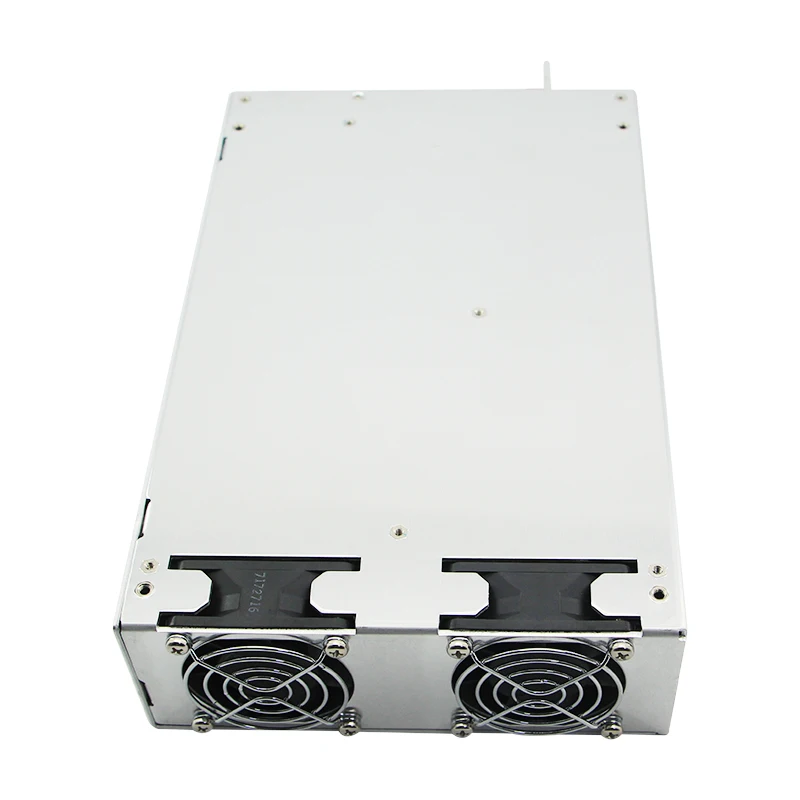

  • Forced air cooling by built-in DC fan

  • Output voltage programmable

  • Active current sharing up to 9000W (2+1)

  • Built-in remote ON-OFF control / remote sense / auxiliary power / power OK signal

  • Protections: Short circuit / Overload / Over voltage / Over temperature

  • Optional conformal coating

  • 5 years warranty



Applications:


  • Factory control or automation apparatus

  • Test and measurement instrument

  • Laser related machine

  • Burn-in facility

  • Digital broadcasting

  • RF application


Model Series:



RSP-3000-12 / RSP-3000-24 / RSP-3000-48



Details:





































































































































MODEL NO.RSP-3000-12RSP-3000-24RSP-3000-48
DC VOLTAGE12V24V48V
CURRENT RANGE0 ~ 200A0 ~ 125A0 ~ 62.5A
RATED POWER2400W3000W3000W
RIPPLE & NOISE150mVp-p 150mVp-p 200mVp-p
VOLTAGE ADJ. RANGE10.8 ~ 13.2V22 ~ 28V43 ~ 56V
VOLTAGE RANGE180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
POWER FACTOR0.95/230VAC at full load
EFFICIENCY86%89.5%90.5%
AC CURRENT20A/180VAC 16A/230VAC
INRUSH CURRENT60A/230VAC
LEAKAGE CURRENT<2.0mA / 240VAC
OVER LOAD100 ~ 112% rated output power
User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover
OVER VOLTAGE13.8 ~ 16.8V28.8 ~ 33.6V57.6 ~ 67.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATUREShut down o/p voltage, recovers automatically after temperature goes down
WORKING TEMP.-20 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT±0.05%/°C (0 ~ 50°C )
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDSU60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
DIMENSION278*177.8*63.5mm (L*W*H)
PACKING 4Kg; 4pcs/16Kg/1.89CUFT

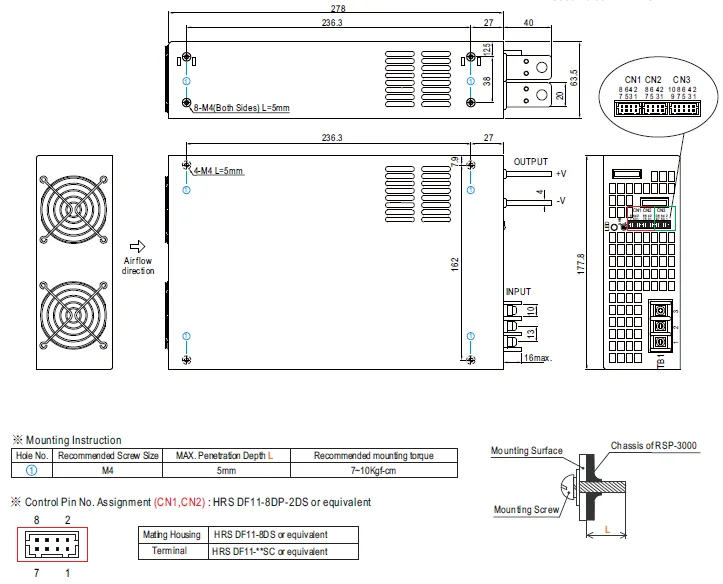

Mechanical Specification:


RSP-3000-12 Meanwell AC DC 3000W 12V 200 Amp Industrial Switching Power Supply

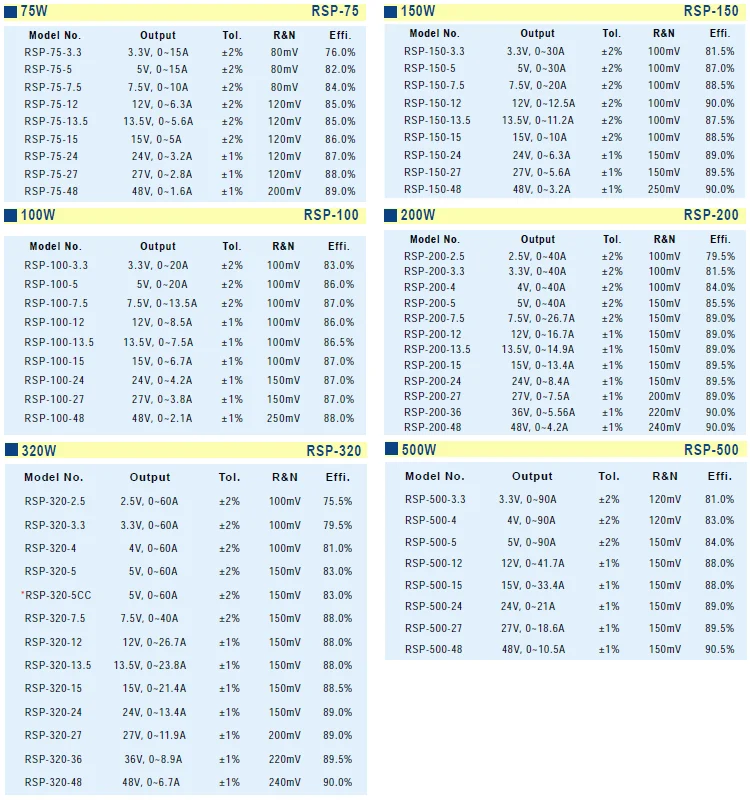

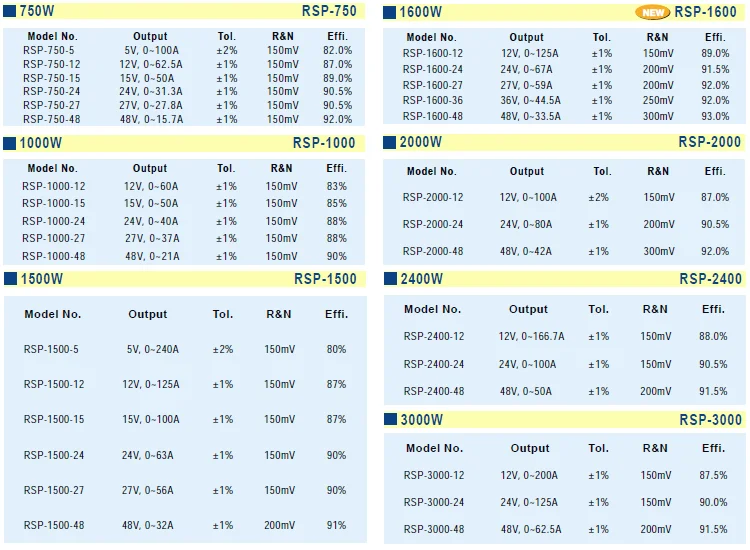

Other Series for Choose:
