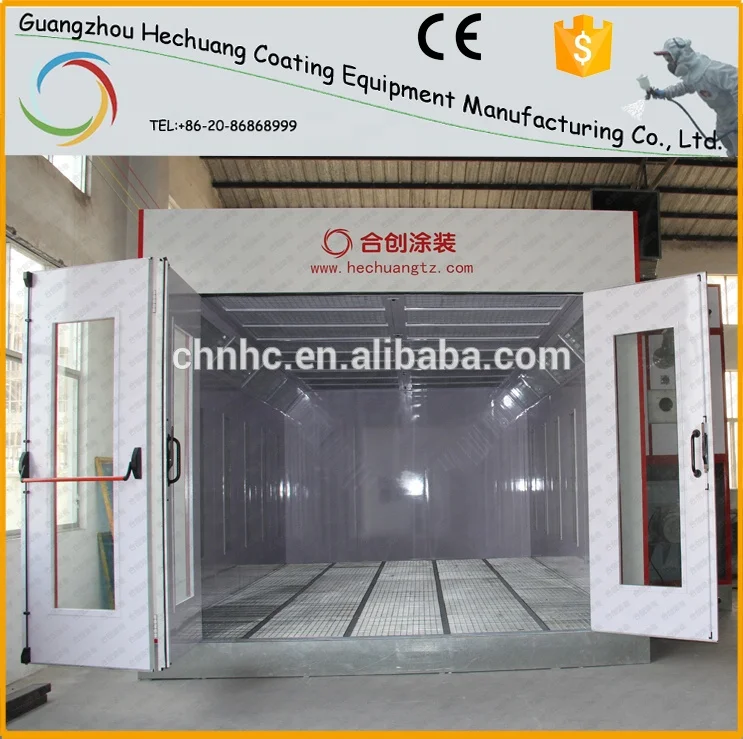

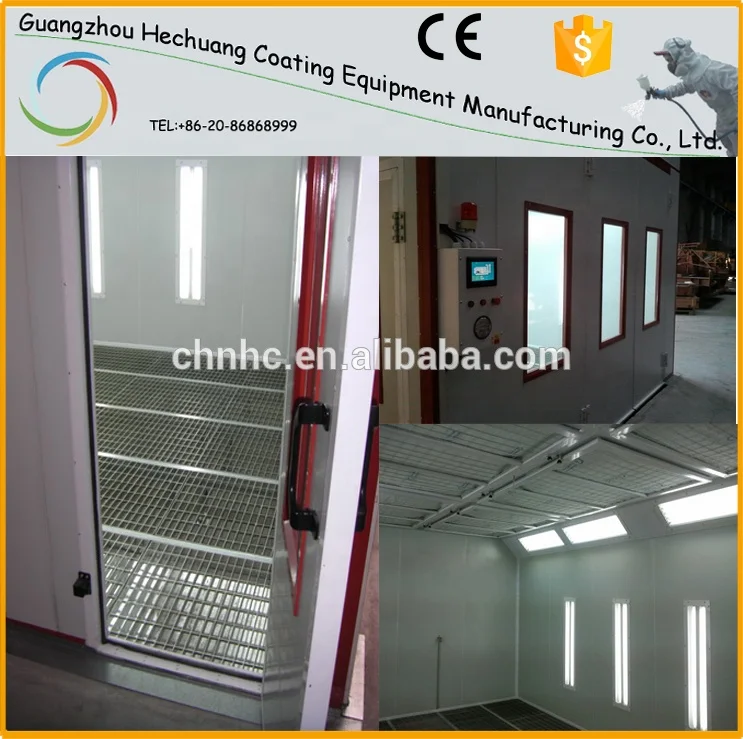

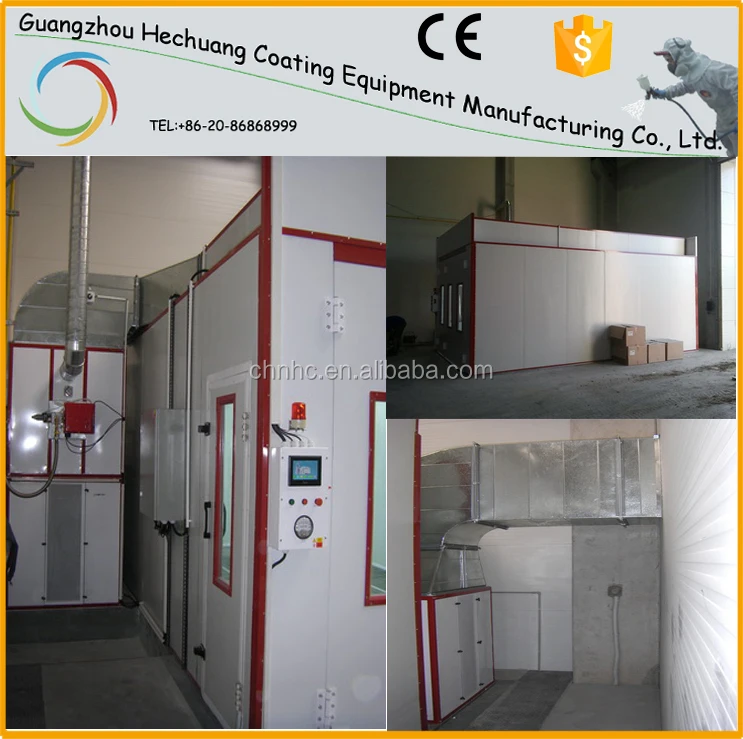

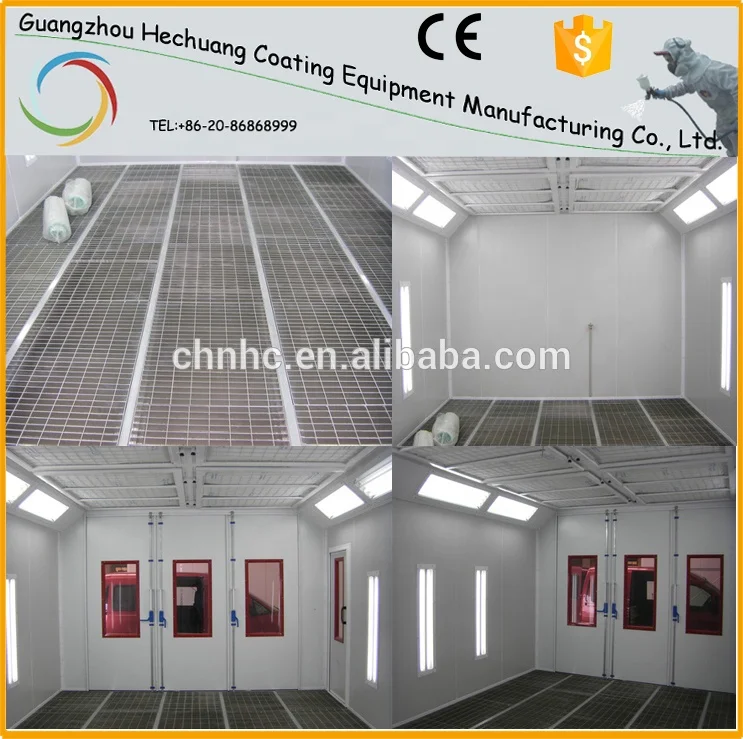

Industrial spray painting booth for sale
- Category: Spray Booths >>>
- Supplier: Guangzhou Hechuang Coating Equipment Manufacturing Co. Ltd.
Share on (60334477500):
Product Overview
Description
Product Description
Product Description
Specification of industrial spray painting booth for sale
Outside size: | 7110 x 5570 x 3810 mm (L x W x H) | Inside size: | 7000 x 4000 x 2800 mm (L x W x H) | |
Foundation and floor | Foundation | Adopt galvanized bending forming, more durable and strong. Full grids | ||
Surface area of foundation | 27 M²(full galvanized grids) | |||
Metal basement | 350mm height, the ventilation effect is better than traditional spray booth. | |||
Drive-in ramps | 3 big drive-in ramps, each size: 2000x1030mm, diamond plate structure. | |||
Wall and door | Wallboard and roof panel | High quality double construction fireproof insulation rock wool panel, thickness: 50mm | ||
3-folded entrance door with safety glass window | 1set,size: 3200x2700 mm(B x H),tempering glass observation window , size is bigger than traditional spray booth. | |||
Operator’s door with safety glass window | 700x2000mm(B x H)the top of service door installs door closer to close the door automatically | |||
Spray gun hanging system | Install hanging arm in cabin, convenient for operators to hang spray gun, etc. | |||
Lighting | Ceiling lighting | 8units,each 4 x 36 W,total 1152w , adopt Germany OSRAM Lamp | ||
Side lighting | 8units,each 2 x 36 W,total 576w, adopt Germany OSRAM Lamp | |||
Brightness | ≥1000 LUX | |||
Filtration system
| Pre-filters | EU3 grade pocket filter, filtration effect is much better | ||
Ceiling filter | EU5 grade high efficient filter | |||
Bottom filter and exhaust filter | Fibreglass paint-stop filter | |||
Ventilation system | Inlet fan (Direct drive motor) | Adopt big impeller turbo fan,Germany SIEMENS Brand motor, 7.5KW,6-pole motor, 970RPM, 380V,50HZ | ||
Outlet fan(Direct drive motor) | Adopt big impeller turbo fan,Germany SIEMENS Brand motor, 7.5KW,6-pole motor, 970RPM, 380V,50HZ | |||
Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange | |||
Total fan capacity | 25.000m³/h | |||
Air flow speed in cabin | Inverter adjustment, 023m/s in empty both, 0.25-0.35m/s in loaded booth | |||
Heating system | Heating exchanger material | Adopt high efficient heat-resistant stainless steel as cycling heat exchanger | ||
Heating exchanger capacity | 200KW(260.000Kcal/H) | |||
Burner model | Adopt Italy REILLO two ranges diesel burner RG5D(260.000kcal/H),quicker heating and much better effect, more rest assure for quality | |||
Heating time | 3-5 minutes( from 20°C to 60 °C) under baking status, the max baking temperature is 80°C | |||
Control system | Control system | Inverter control system | ||
PLC controller | Yes, PLC control, more reliable, lower breakdown rate | |||
Human-computer interface touching screen control system | Yes, touching screen control, easier to operate | |||
Inverter control | Inverter control , more energy-saving, more economic | |||
Function | Painting, warm painting, baking, leveling, emergency stop switch, inverter, pressure adjust balance, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection | |||
Total power | 17.5KW | |||
![29-147229409[1].jpg](http://g02.s.alicdn.com/kf/HTB1bd7jGFXXXXcmXFXXq6xXFXXXf/220840012/HTB1bd7jGFXXXXcmXFXXq6xXFXXXf.jpg)
![00-147229410[1].jpg](http://g01.s.alicdn.com/kf/HTB1qFImGFXXXXaZXpXXq6xXFXXXp/220840012/HTB1qFImGFXXXXaZXpXXq6xXFXXXp.jpg)
Packaging & Shipping
Package and Shipping
Package: Professional export package-use the iron bracket package
Loading situations: a 40GP container
Our Services
Our Services
A. All of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.
B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before
shipment.
C: Delivery time: To effect shipment within 7 days after the receipt of deposit.
D:Warranty time: 1 year. During the warranty time, any defective caused by product’s quality, CHNHC has responsibility to offer free spare parts to customers freely and bear the
delivery cost for DHL or TNT Carrier.
E:We are a mumber of Trade Assurance Service.
Company Information
Company Information
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus spray booth, preparation station, mixing room, brake lathe, car bench and so on. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.
Our Factory
CE and ISO Approved
FAQ
FAQ
Q: Are you a factory or a trading company?
A: We are a factory and all machines are produced at our own factory.
Q:Can I order special color which I like?
A: Yes, we can also produce machines with special color according to client's request.
Q: Can I order spray booth in any special size?
A: Yes,you can.
The size is customized.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need to
do is finishing the simple procedures according to the installation instructions.
Q: When the product can be delivered?
A: Commonly the lead time will be within 7 working days after receiving 30% deposit by T/T.
Q: What is "Trade Assurance"?
A: Trade Assurance is a new service provided by Alibaba, which can provides buyers with a number of trade safeguards, protect buyers' payments, and to ensure suppliers fufill their obligations regarding order delivery time and product quality.
Thanks for your visit.
If you need more information, please click "Send" now.
If you have any other questions, please feel free to contact us.
Name | Zoe |
24 Hours Mobile | +86 189 0220 1147 |
WhatsApp/wechat | +86 189 0220 1147 |
