Pre and Post Weld Heat Treatments Ceramic One Line Rope Heater
- Category: >>>
- Supplier: Yancheng Xuanyuan Heating Equipment Technology Co. Ltd.
Share on (60334497917):
Product Overview
Description
Description for Pre and Post Weld Heat Treatments Ceramic One Line Rope Heater
Ceramic Heater mat are manufactured by weaving multi-stranded 80/20 Nichrome electric resistance heating wire through passages within interlocking ceramic beads.The beads are molded from sintered 95% Alumina ceramics, more that 3/8-inch thick. The Alumina has excellent high-temperature dielectric properties which combined with the interlocking bead design provide FCP heaters with exceptional electrical insulating qualities.
The interlocking bead design imposes rigidity along the heater length while allowing flexibility along the heater width, enabling it to conform to the curved surfaces of pipes and pressure vessels.
Advantage:
Ceramic pad has heater has stable radiation rate,no harmful radiation,no pollution,small thermal inertia,fast thermal response
Technology Data of Pre and Post Weld Heat Treatments Ceramic One Line Rope Heater
Voltage (V) | 80 |
Current (A) | 45 |
Power (kw) | 3.6 |
Maximum Working Temperature*, °C (°F) | 1121 (2050) |
Heating Element Type | Ni-Cr |
Lead Length (in.) | ~24 |
Insulator Type | Aluminum Oxide |
Insulator Color | Pink |

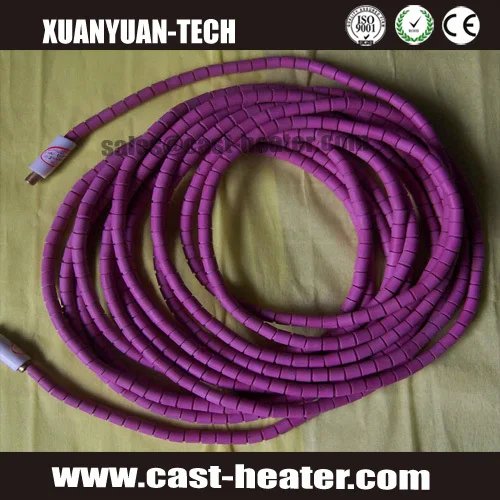

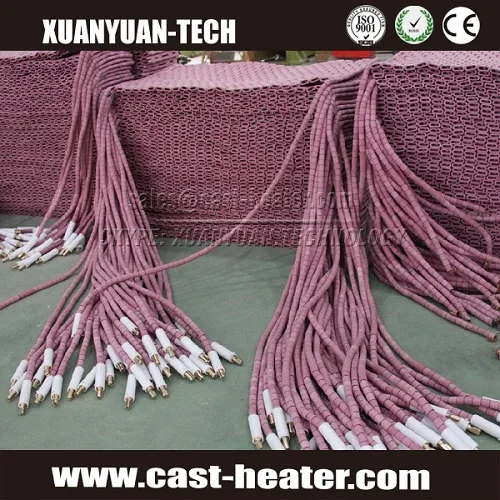

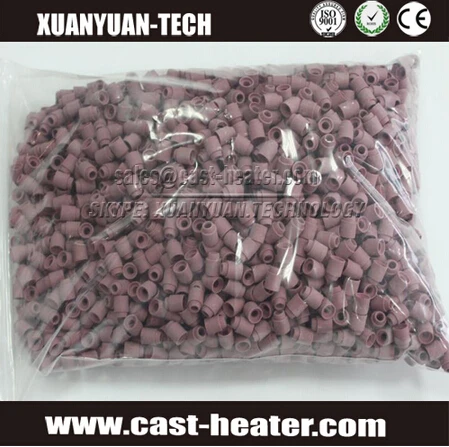

Product Photos of Pre and Post Weld Heat Treatments Ceramic One Line Rope Heater

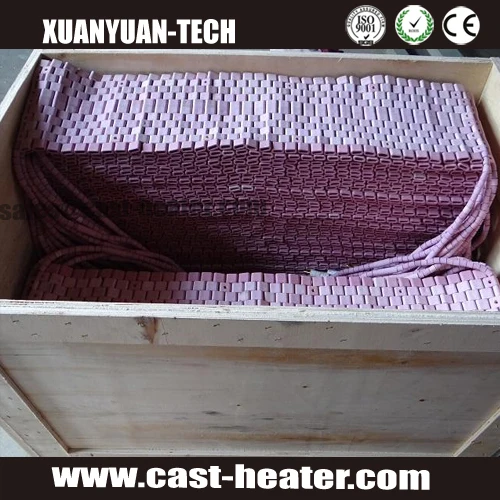

Packaging & Shipping
Packaging:Standard carton or any other packing needs for Pre and Post Weld Heat Treatments Ceramic One Line Rope Heater
Delivery:7-10 working days after CFM order details
Comopany Information
Yancheng Xuanyuan Heating Equipment Technology Co.,ltd are the direct supplier with more than 10 years of manufacturing Cast Aluminum Heater,Cast Copper Heater,Teflon coated heaters,Cast Iron Electric Heater, other material heaters ,such as Flexible Silicone Rubber Heaters, Ceramic IR Heaters, Flange Heater,tubular heater,stainless steel heater, Laboratory heater board..
Our company has a modern standard working area of 10000 m2, There are 80 sets of various precision machining and checking facilities. It also has technical talented people over 30%. Our company has an abundant ability to develop new products and perfect checking means.
The company has obtained CE mark and ISO 9001 international quality system certificate. Product coverage nationwide and has entered Western Europe,North Africa, South America and Southeast Asia market.
Order Guide for Pre and Post Weld Heat Treatments Ceramic One Line Rope Heater
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. Xuanyuan sales send the Proforma Invoice with xuanyuan seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5.Initial Production Stage-Inform the clients that we have got the payment,And will make the products according to your request,. After getting the sample or drawing approval, we inform that we will arrange the production & inform the estimated time. |
6. If possible,middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and We Ship the goods .Also can accept other payment ways. |
When you inquire,pls supply some info as the following:
1.Size and shape
2.Voltage and power
3.Operation temperature requirement
4.Other design requirement
5.Order quantity
6.It’s best you can supply drawing pics
More info about Pre and Post Weld Heat Treatments Ceramic One Line Rope Heater ,pls feel free to contact us
