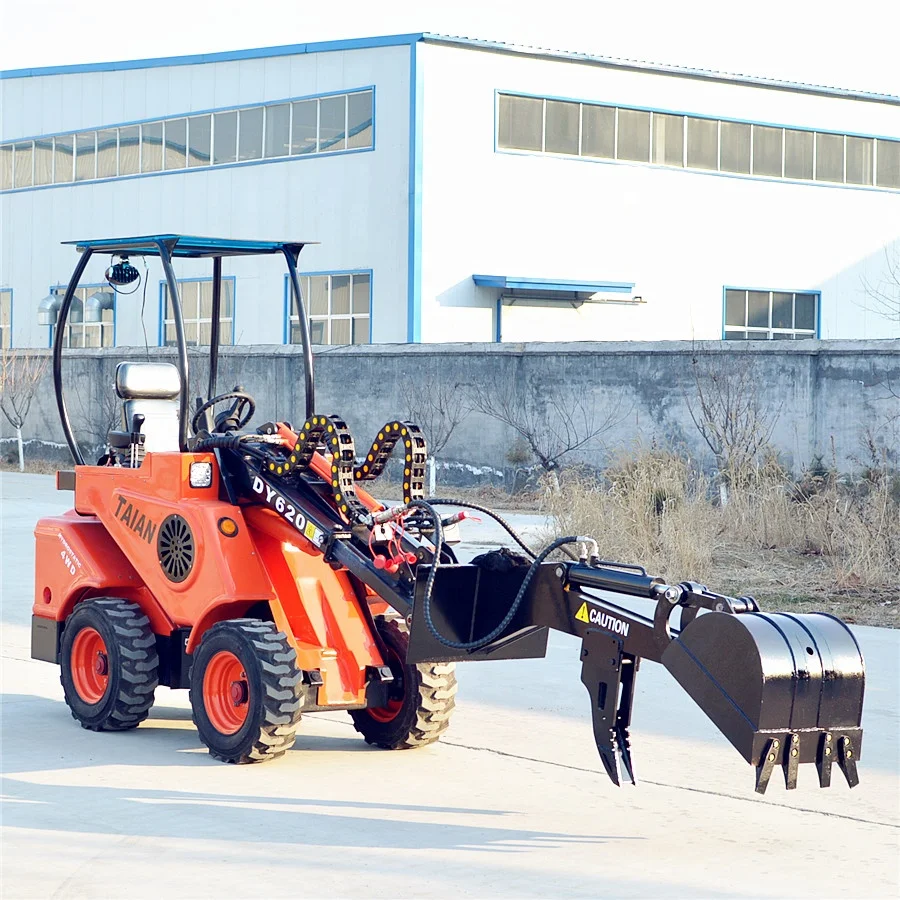

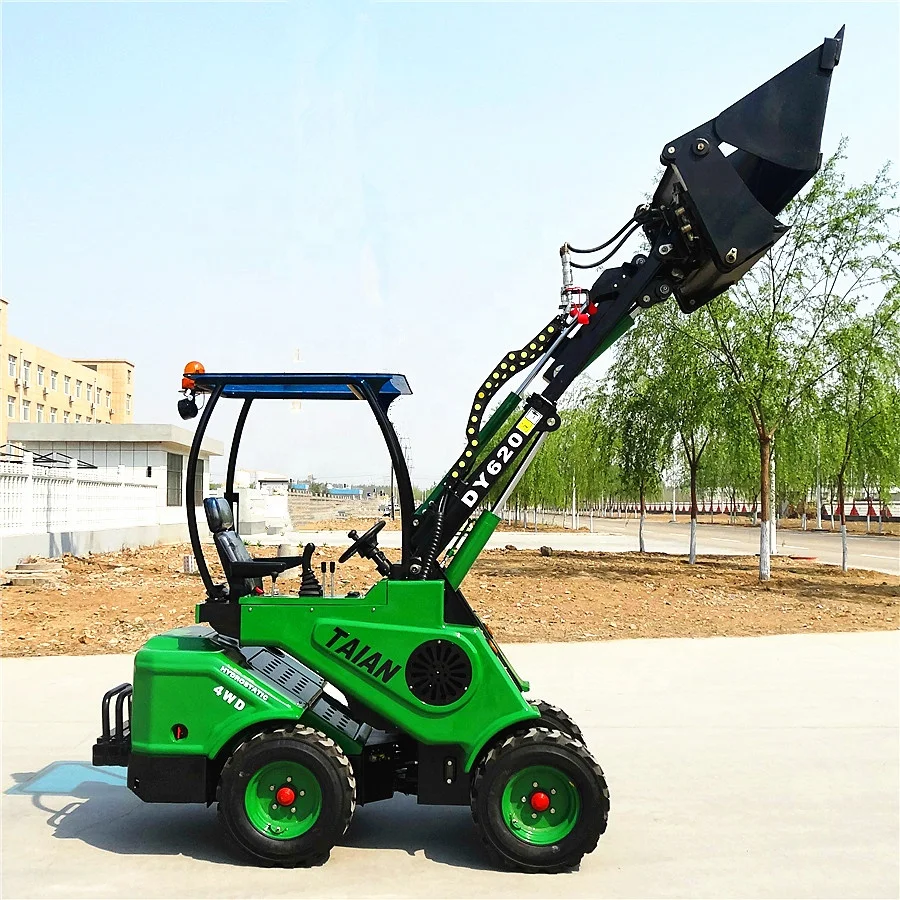

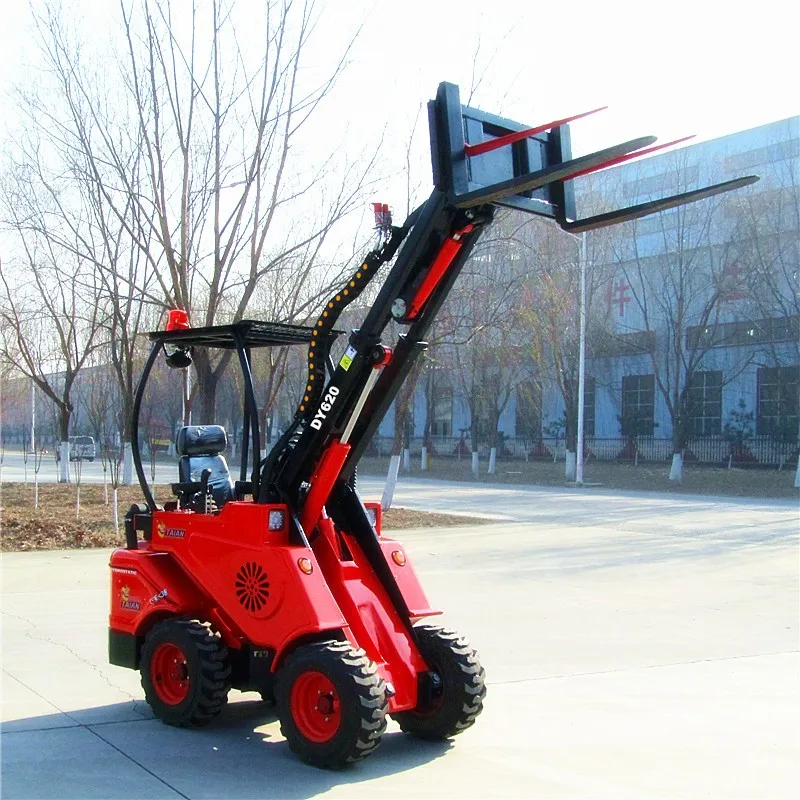

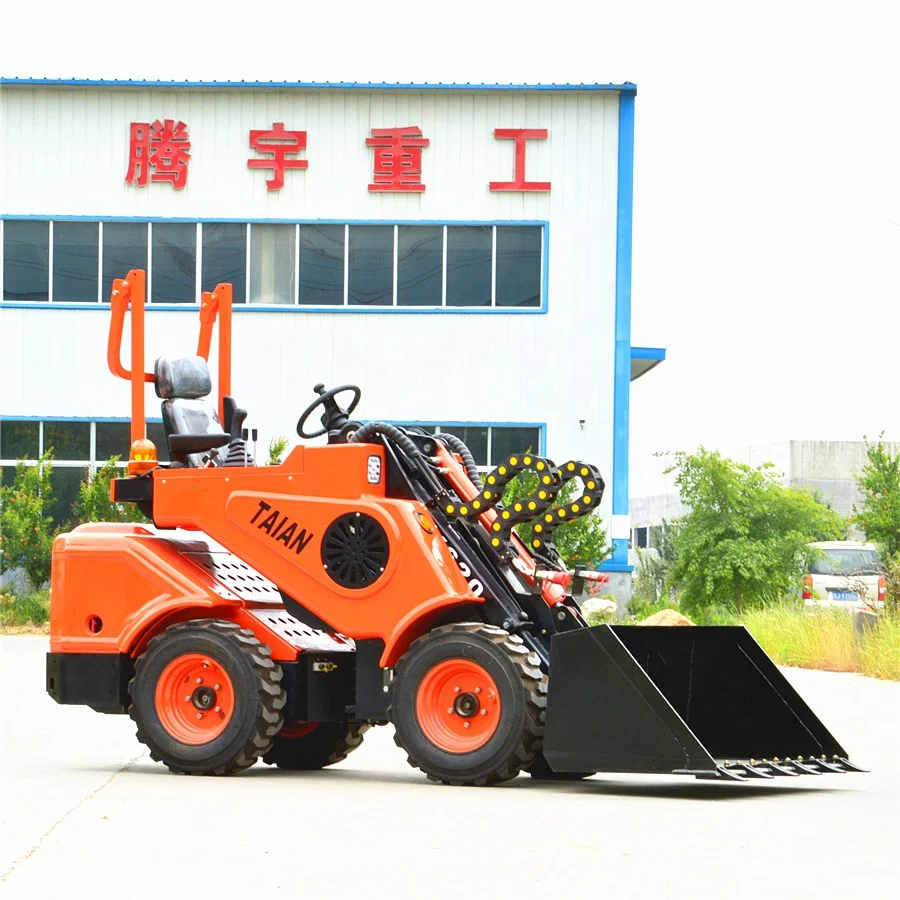

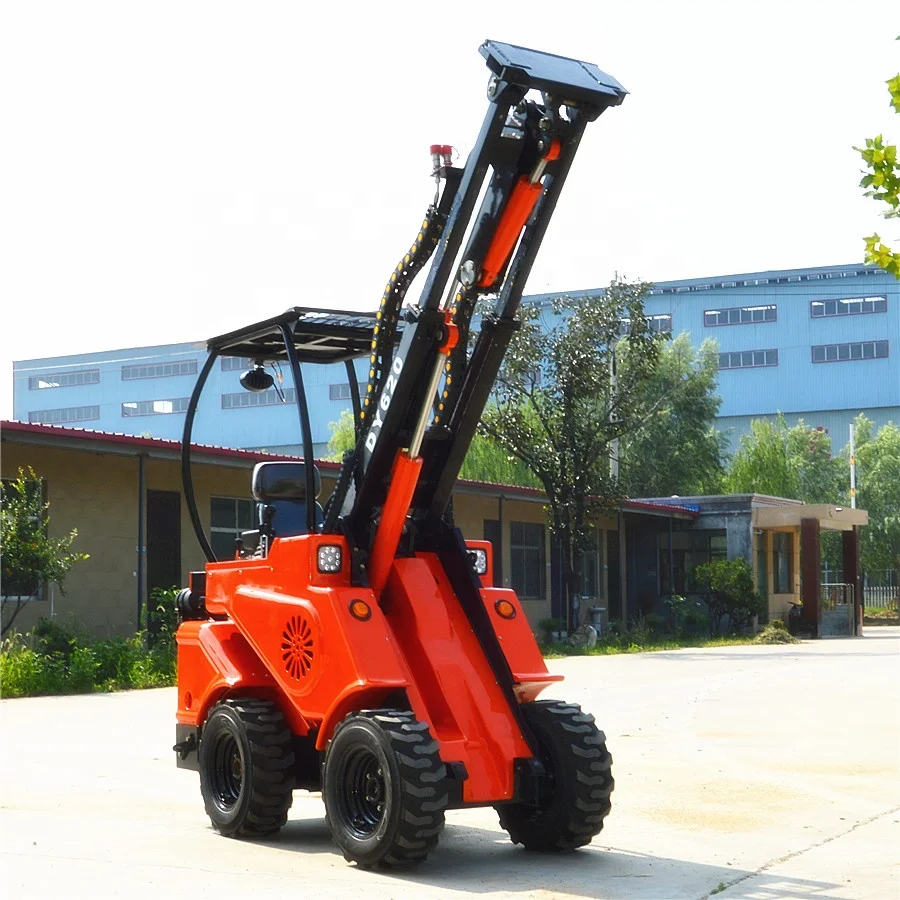

TAIAN DY620 mini wheel loader for sale

Product Overview

Description

TAIAN DY620 mini wheel loader for sale:



General Introduction:

DY series telescopic loaders have three models, DY620, DY840 and DY1150, width from 980mm to 1500mm offered best solution to narrow space works, and front articulated design makes the turning radius much smaller which also helps a lot. Telescopic boom offers wider usage.



Safety

ROPS Cabin or canopy can protect the driver in any case if there’s a tilt danger.

Top rotating warning light give an eye-catching signals to people around.

Warning signals for maintenance and operating protect the machine from over-use.

Reversing beeper and lights, traffic lights, rear and front working lights well protects people around and also the operator.

Cylinder protection can prevent any possible damage caused by the boom falling down.

Thanks to the front articulated design, it greatly reduce the tilt possibility.



Maintenance

Thanks to the pressure test connector on the chassis of our machine, it saves a lot of trouble in any case there’s a problem happen on the machine.

The display board indicates the working hours, engine speed, and whenever there’s over heating, lack of oil, etc. Happens, the relative lights will be on to remind the operator. The operator can know the machine’s condition just by a glance.

We cut some holes on the rear cover of the machine to enable the operator can get his hand in and check the oil level.

The engine top cover can be removed by just loosen four bolts.



Advantage:

It is a machine designed for the maintenance of gardens and lawn care. Purposely developed for people who want to be completely independent and efficient.



Thanks to the employed technology, DY620 can satisfy all requirements connected with cleanings, lawns mowing and handling. It is easy to use, comfortable and safe; its turning radius is equal to zero thus guaranteeing easy handling even in narrow spaces. The 4WD hydrostatic transmission with pedal control will smoothly drive you on all types of terrain assuring availability of high power whenever needed.



With its innovative design and great comfort and stability, DY620 is the ideal machine for building firms, municipalities, touristic facilities and rental companies.



Model	DY620
Max. length	2195 mm
Max. width	980 mm
Max. height	2100 mm
Max. reach(boom extended)	2750mm
Max. reach(boom retracted)	2270mm
Bucket capacity	300L
Rated loading capacity	500kg
Tipping load	800kg
Min. turning radius	1980mm
Turning angle	400
Speed	10 km/h
Weight	1100 kg
Standard tire	23X8.5-12
Tire pressure	2.8 bar
Oil tank capacity	35L
Pressure	190bar
Working oil flow	16.5L/min x 2
Tracking oil flow	50L/min
Oil model(mineral oil)	L-HL46
Engine brand	Perkins 403D-07
Number of cylinder	4
Cooling system	Water cooling
Rated power	12.5Kw
Rotation speed	2800 r/min
Fuel tank capacity	18L
Battery capacity	55Ah
Voltage	12v
