Led Matrix 8x8 ,64pixels Full Color Micro Led Dot Matrix Display Screen

Product Overview

Description

led matrix 8x8 ,64pixels full color micro led dot matrix display screen



There's a new square design LED matrix in iPixel LED!

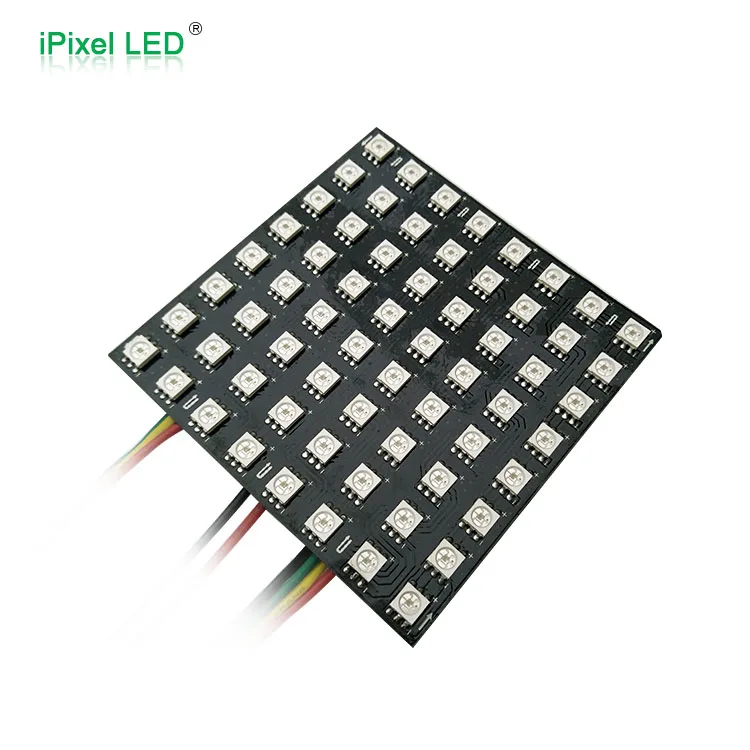

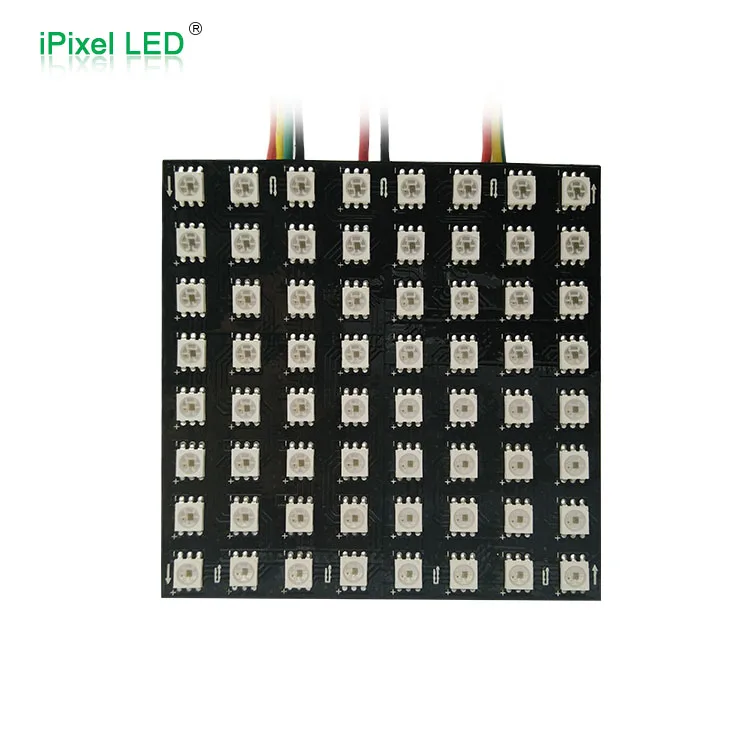

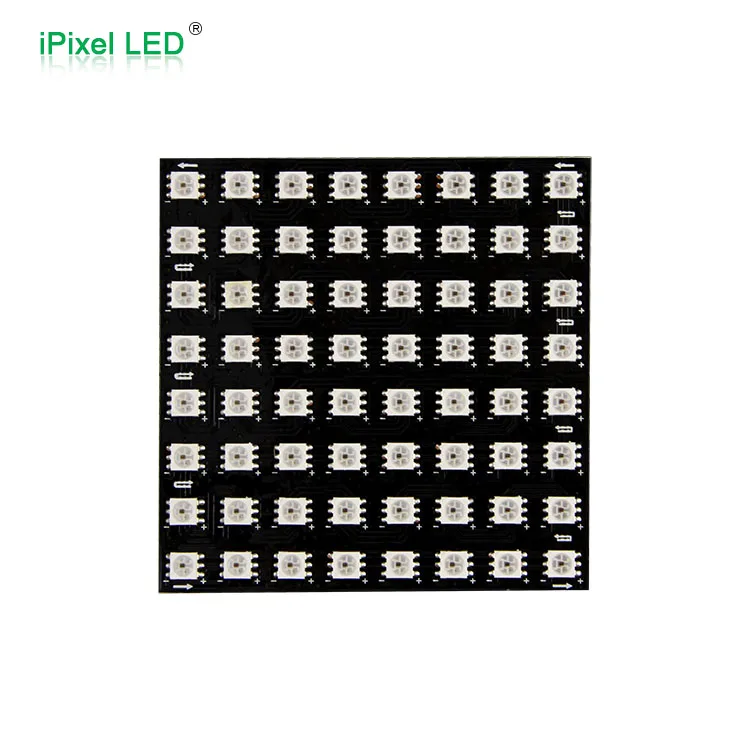

8*8 Pixel APA102C LEDs
use a 2-wire SPI,it can push data much faster than with the WS2812B 800 KHz protocol and there's

no specific timing required. it's also have much higher PWM refresh rates.





This SMD 5050 LEDs is GRB color sequence ,not RGB sequence !!!
with an embedded microcontroller inside the LED. You can set the color/brightness of each LED to

24-bit color (8 bits each red green and blue). Each LED acts like a shift register, reading incoming

color data on the input pins, and then shifting the previous color data out on the output pin. By sending

a long string of data, you can control an unlimited LEDs





These LEDs have 2 wires (input and output) for clock and one data pin.
Because the clock and data is seperated, you can use any microcontroller or microprocessor, including

Arduino, Raspberry Pi, BeagleBone, Propeller to control it
PWM rate. You only have to set the 24-bit color data for each pixel LED once, and then the LED+built-in

-chip will handle the PWMing of the red, green and blue.
On our WS2812B Matrix, this PWM rate happens 400 Hz, which works well but is noticably at lower

brightnessesand if the strip is moving in any way.

have a 20 KHz PWM rate, even if you set any color or animation, there is no pixelation





The Matrix is made of flexible PCB material,Non-waterproof ,for indoor use only, 1 Ounce copper PCB

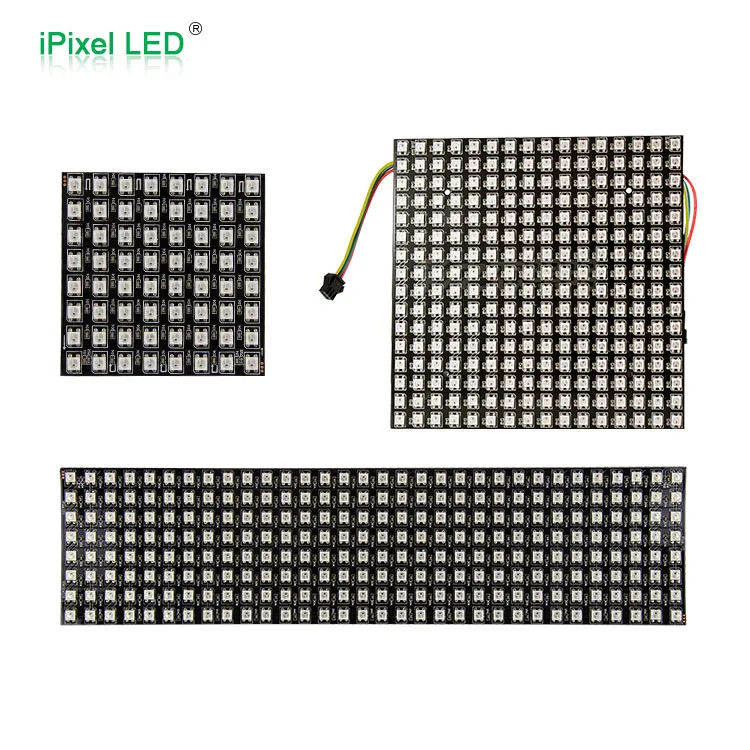

and black color you can also connect each matrix to together to make them as large as a

P10 LED screen, makesure gave them enough Power , each matrix 64 pcs LEDs request

about 2A.

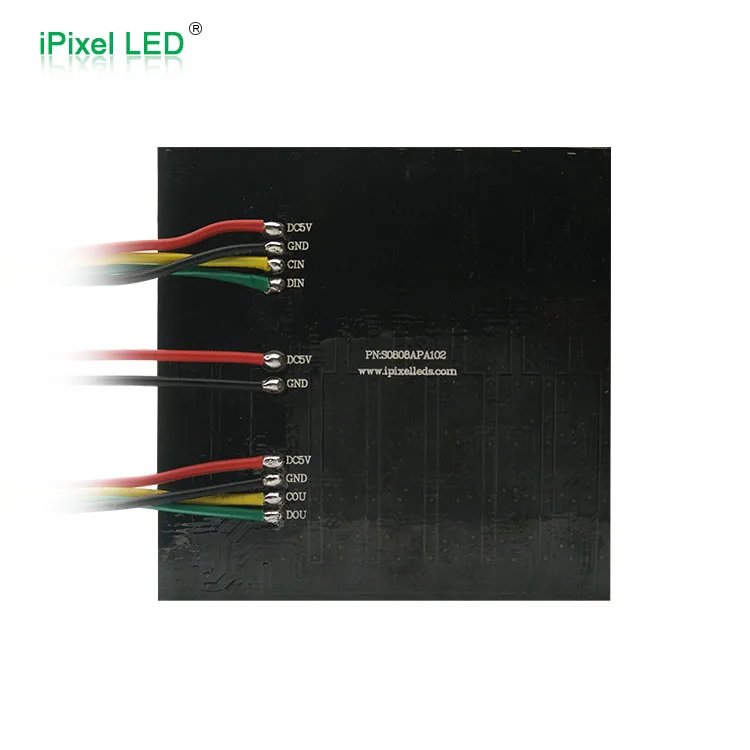

These matrix comes in 1pcs per bag, on the back side, soldered a pair of 4-pin JST SM connector, it's

makeseasy to link to next matrix
