30V 10A High Quality Single Output Linear Laboratory DC Regulated Power Supply TP 3010

Share on (60334734636):


Price:

Quantity:


Product Overview

Description



30V 10A High Quality Single Output Linear Laboratory DC Regulated Power Supply TP-3010


TP-3010-750







Product Description







Features
Constant voltage and constant current operations
Auto CV and CC switch
Output ON/OFF control
High efficiency, light and compact design
High power density
Over load and reverse polarity protections
Dual-color two digital panel meters




Specifications













































































Model



TP-3010



TP-6005



TP-3020



TP-6010



Constant voltage operation



Line regulation



0.01%+5mV



0.01%+5mV



0.01%+10mV



0.01%+5mV



Load regulation



0.02%+5mV



0.02%+5mV



0.02%+10mV



0.02%+5mV



Ripple & Noise (5Hz~1MHz)



3mVrms



Constant current operation



Line regulation



≤0.2%+3mA



Load regulation



≤0.2%+3mA (I≤3A)


≤0.2%+5mA (I>3A)


≤0.2%+15mA (I≥10A)



Ripple & Noise (5Hz~1MHz)



3mArms (I3A)


10mArms (I>3A)



Display



Accuracy



Real voltage and current output: ±(1% reading+2 digits)


Preset voltage and current: ±(1% reading+8 digits)



General



Operating environment



0~40, ≤80%RH



Storage environment



-10~70, ≤70%RH



Power source



AC110V/220V±10%, 50/60Hz



Accessories



Power cord x1, Operation manual x1






Selection Guide

















































































Model



TP-3010



TP-6005



TP-3020



TP-6010



Output voltage



0~30V



0~60V



0~30V



0~60V



Output current



0~10A



0~5A



0~20A



0~10A



Voltmeter



3 digits LED



3 digits LED



3 digits LED



3 digits LED



Ammeter



4 digits LED



3 digits LED



3 digits LED



4 digits LED



Resolution



100mV/10mA



100mV/10mA



100mV/100mA



100mV/10mA



Fixed output




Preset V&I








Output ON/OFF











Dimension (WxHxD)



255x155x370mm



255x155x330mm



Weight



10kg



10kg



14kg



14kg







Detailed Images

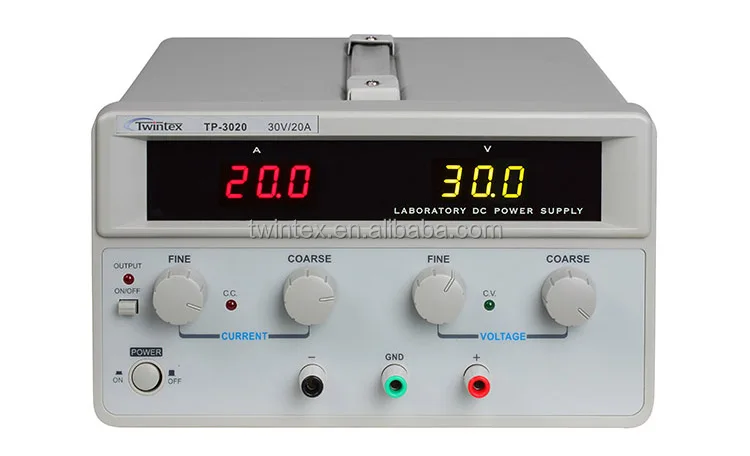

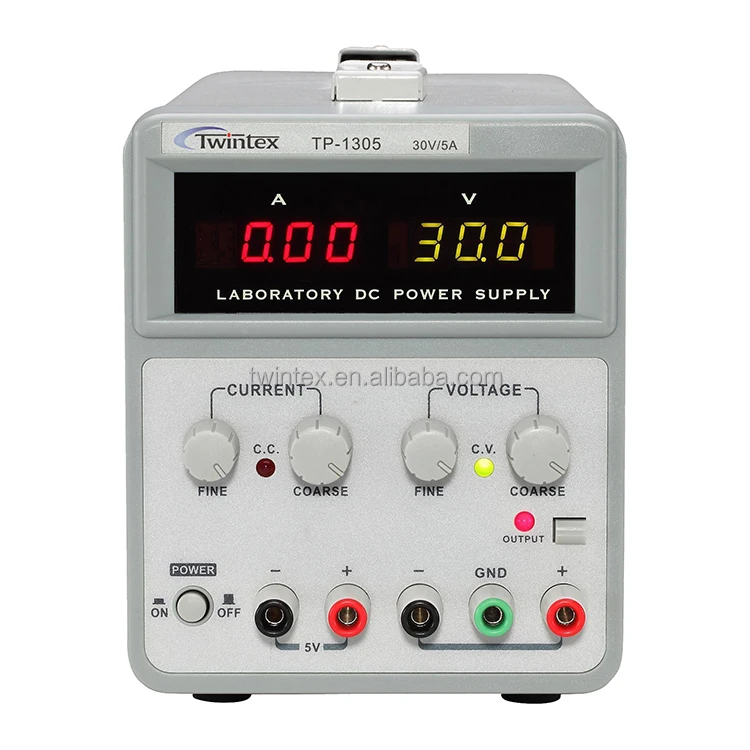

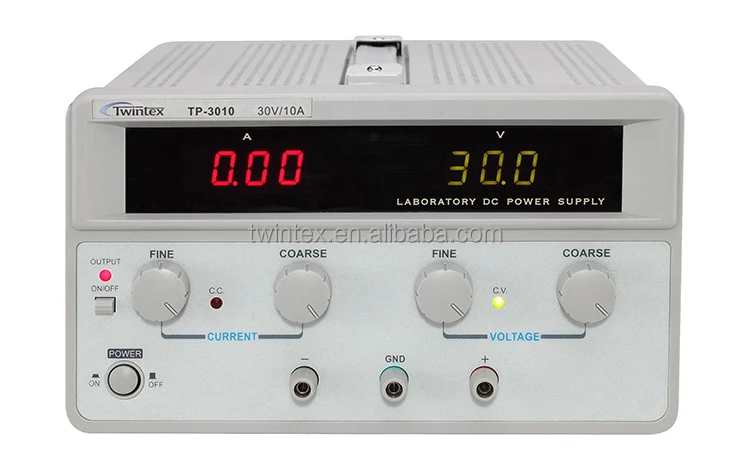

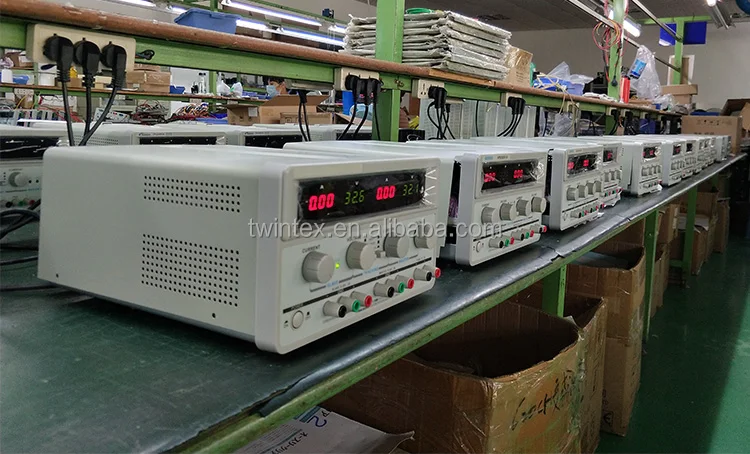

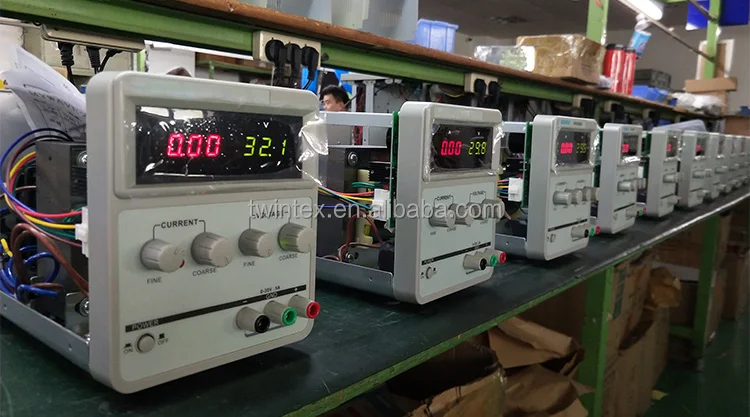

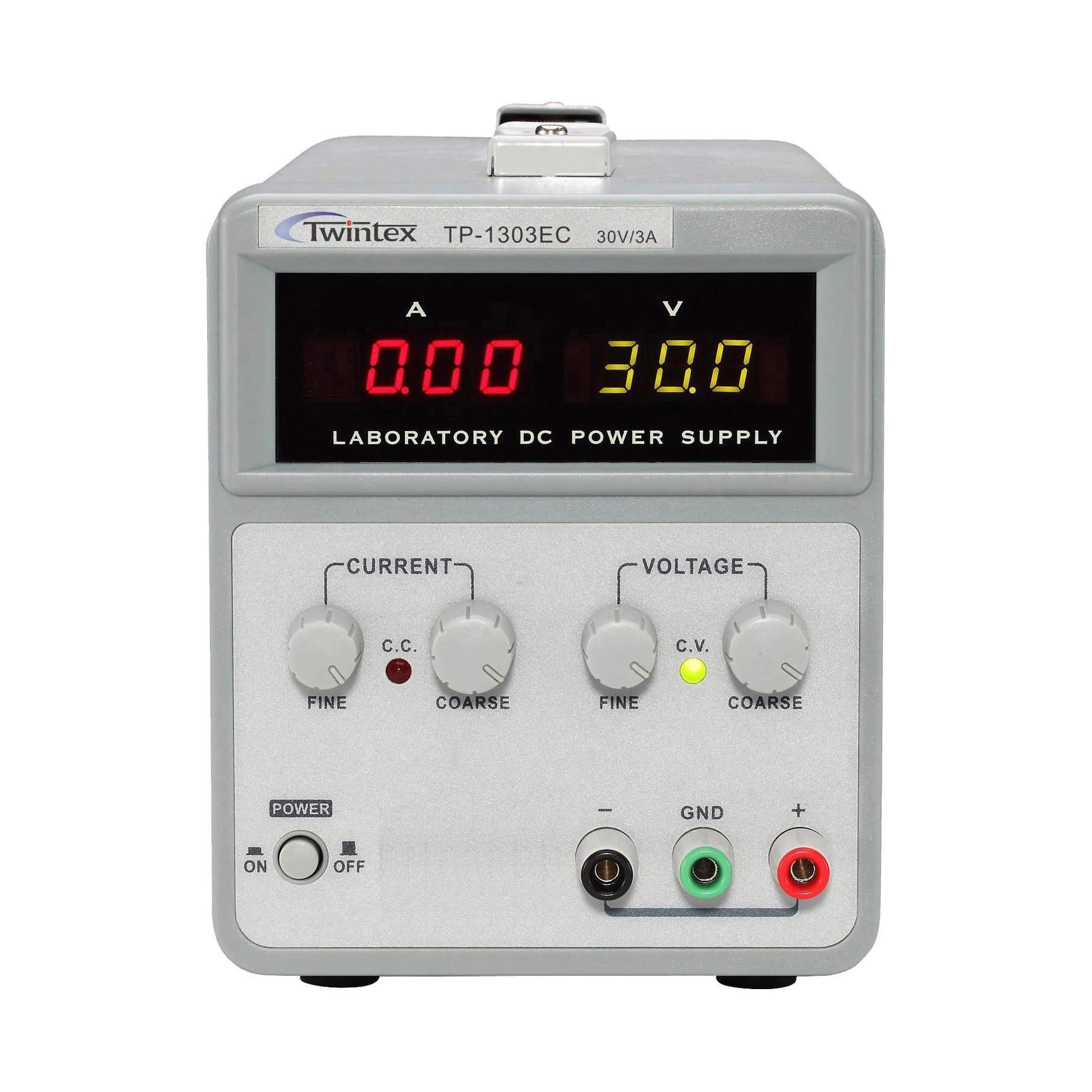

 TP-3010-750TP-3020-750TP-1303EC-750x750TP-1305-750x750TP-1305EC-production1-750TP-2305C-production1-750








Company Information









Warranty




All products by TWINTEX are tested and guaranteed to keep in good quality with one year warranty except wearing parts, such as test leads and power cords.





If quality problems happen during warranty period, we provide technical supports and spare parts. Our local distributor if any will help to solve your problems in time after receiving phone calls or emails.



Welcome to contact us at any time if any questions about using our products.





However, TWINTEX is free of responsibility to personal injuries or property damages caused by improper operation.
