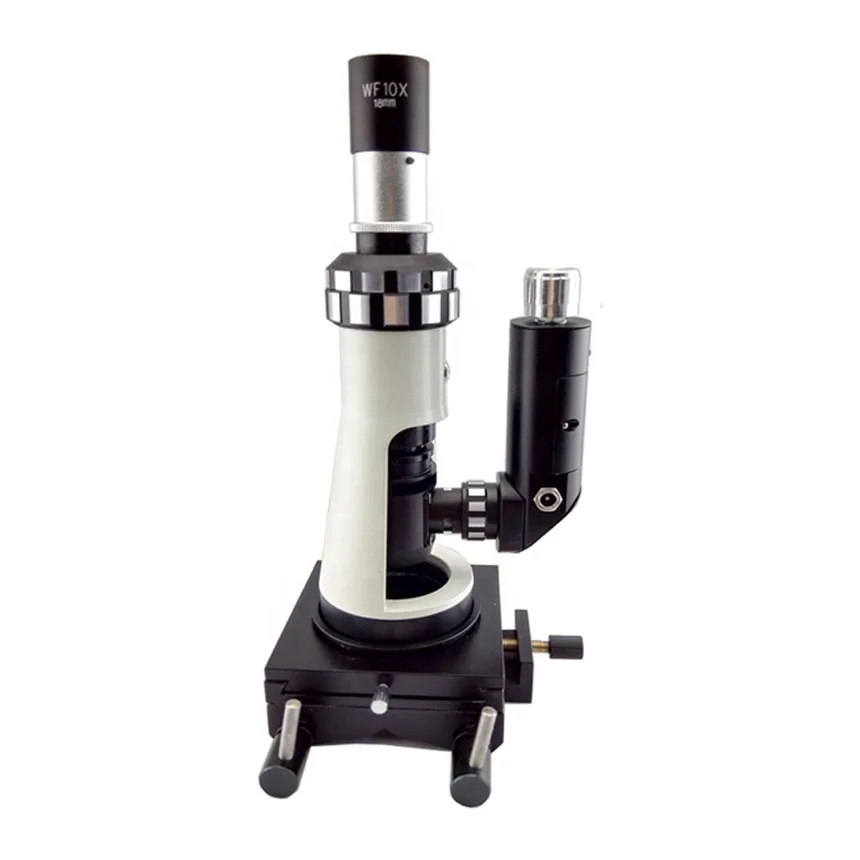

FD34X4 mono metallurgical portable operating microscope

Share on (60334773946):


Price:$178.00 - $190.00

Quantity:


Product Overview

Description


FD34X4   mono metallurgical portable operating microscope



Description



♦ FD34-X4 mono metallurgical portable operating microscope can be easily used in field identification the structure of various metals and alloys, also can be widely used in the factory metallurgical test chamber for the analysis of metal materials, research and identification,and the analysis of the structure of the metallographic structure of the material. As well as be used for the observation and analysis of the surface structure of the jade, pottery and bronze ware

♦ This mono metallurgical portable operating microscope uses LED vertical lighting, does not use 220V AC power, the use of convenient, real portable features, the user observe the degree of freedom, light and convenient, safe.

This mono metallurgical portable operating microscope charge once can be used for about 40hours, power saving, the biggest characteristic of LED lights is temperature rise small, there is no too heat, use safety.

♦ FD34X4 mono metallurgical portable operating microscope can be configured CCD, digital camera, can be easy to collect, save, enter the field of image analysis

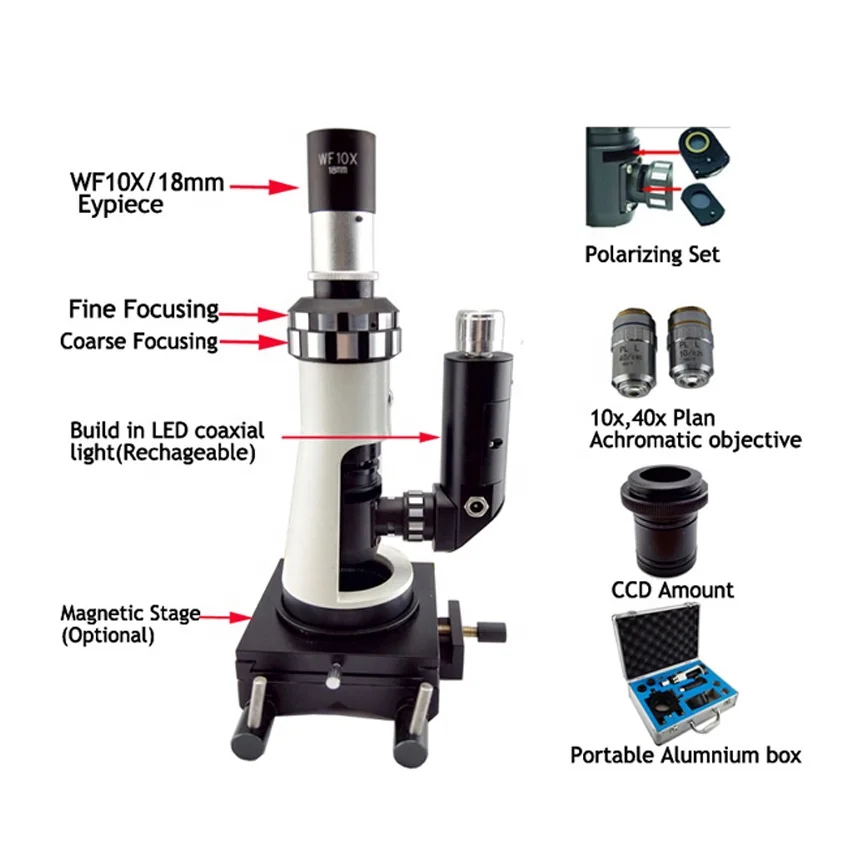

Structure

portable metallurgical microscope.jpg            microscope accessory.jpg

1.objective            2.objective holder                   3.Polarizer insert4.body            5.Position Screw

6.coarse adjustment position screw                   7. fine & coarse adjustment handle

8.fine adjustment handle        9.eyepiece tube         10.eyepiece              11.Analyzer insert

12.LED adjustment button                   13.power indicator                     14.charger insert

15.Vertical light connector            16.microscope base



Optical Parameter
Model No.FD34X4  mono metallurgical portable operating microscope
Eyepiece WF10X/18mm, Dia.23.2
ObjectiveLong Working Distance Plan Achromatic Objective10X
Long Working Distance Plan Achromatic Objective40X
AdapterC-mount adapter (for connecting C-mount cameras)
Mechanical Tube Length160mm
Focusing System36mm
Polarize KitsPolarizer and Analyzer
Light SourceCoaxial illumination, build-in LED rechargeable, brightness adjustable

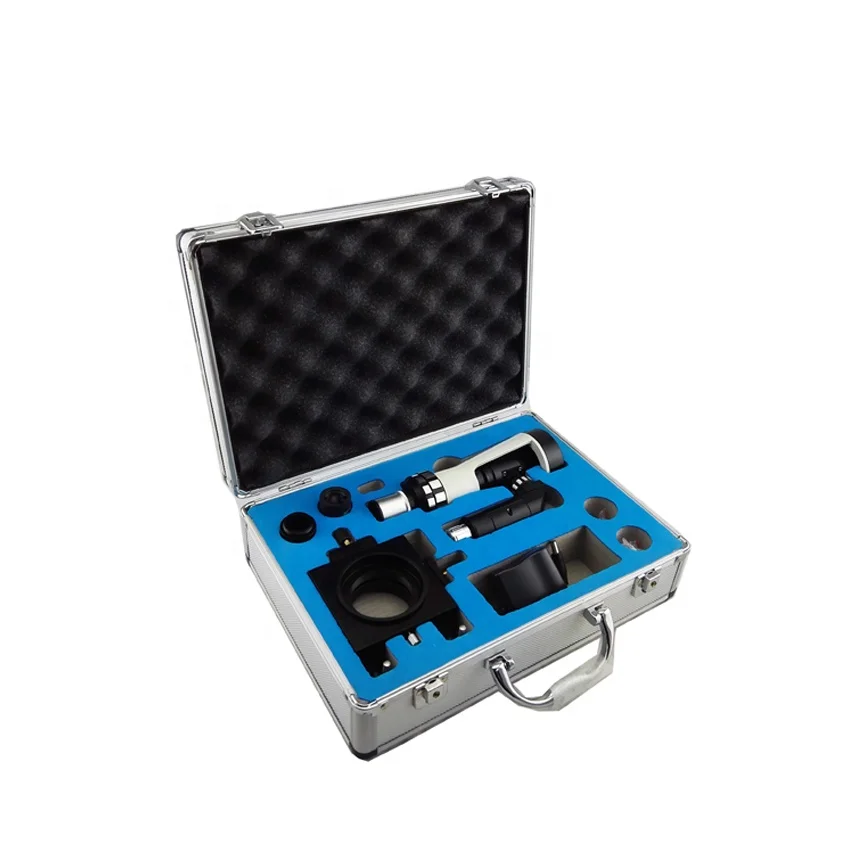

Packing CasePortable aluminum case



Optional Accessorry

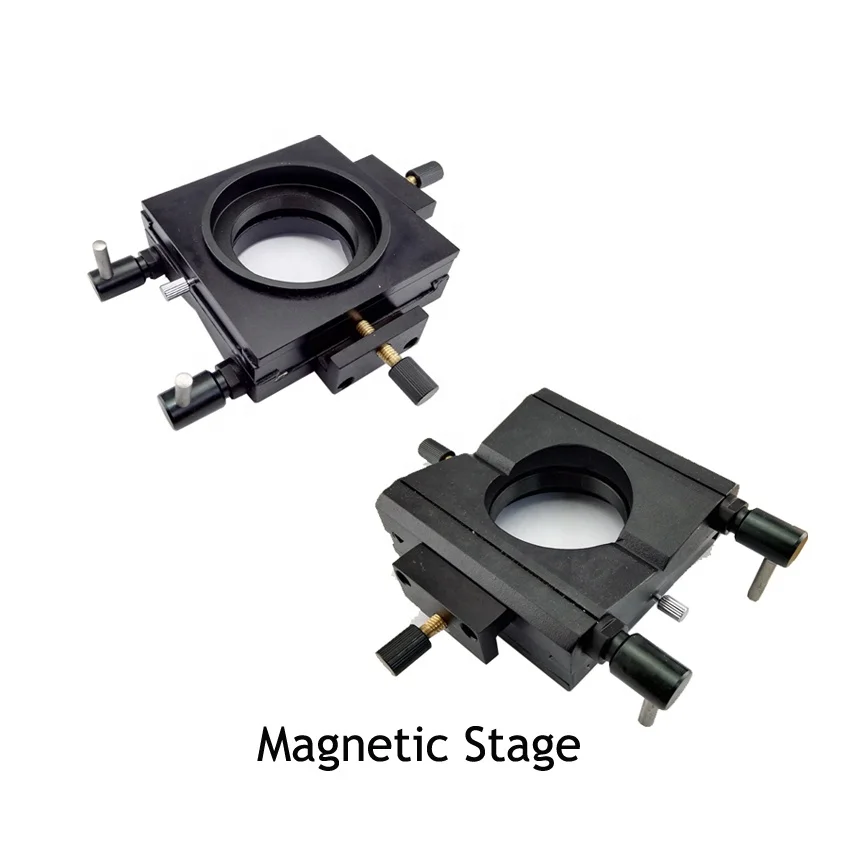

Magnet StageMagic stage, which can be sticked on metal samples, make observation easier
CCD AdapterStandard CCD adapter(Can be connected to camera)
ObjectiveLong Working Distance Plan Achromatic Objective20X
Long Working Distance Plan Achromatic Objective60X
Long Working Distance Plan Achromatic Objective80X
Long Working Distance Plan Achromatic Objective100X



  FD34X4  mono metallurgical portable operating microscope

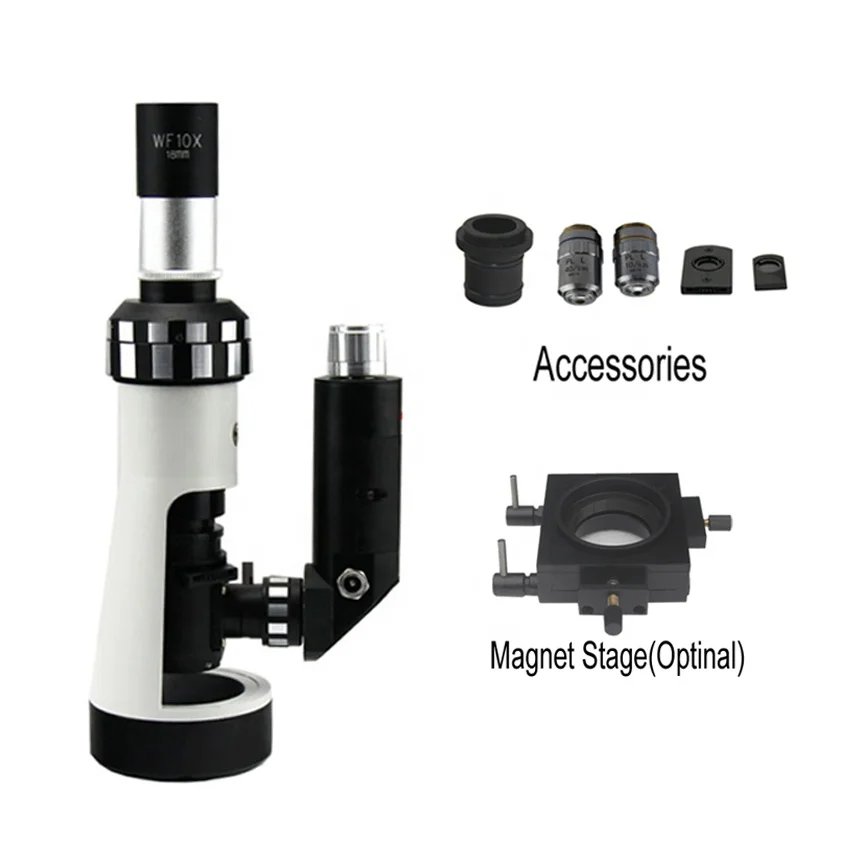

Accessory Display:








  FD34X4  mono metallurgical portable operating microscope









Standard Package

metallurgical microscope.png
