CNG D/M Type Standard Mother Station Compressor Natural Gas compressor
- Category: >>>
- Supplier: Shanghai Souair International Trade Co. Ltd.
Share on (60334932057):
Product Overview
Description

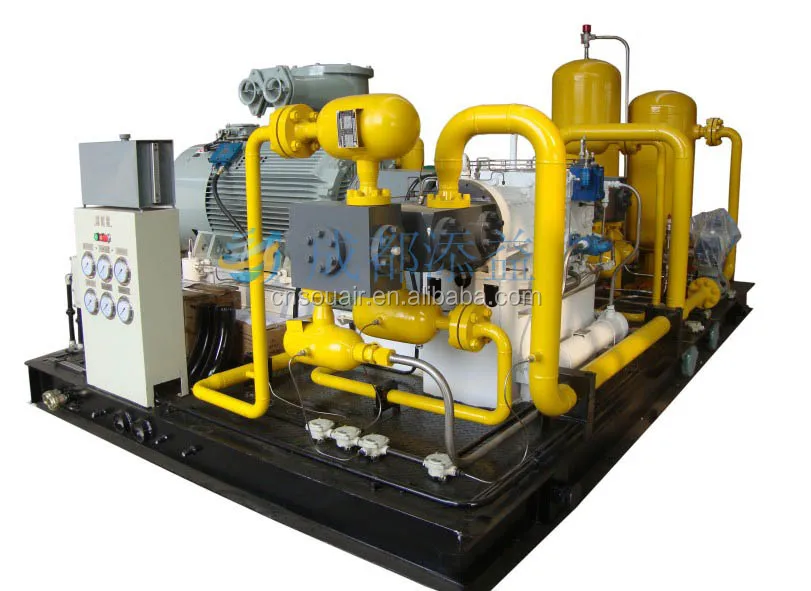

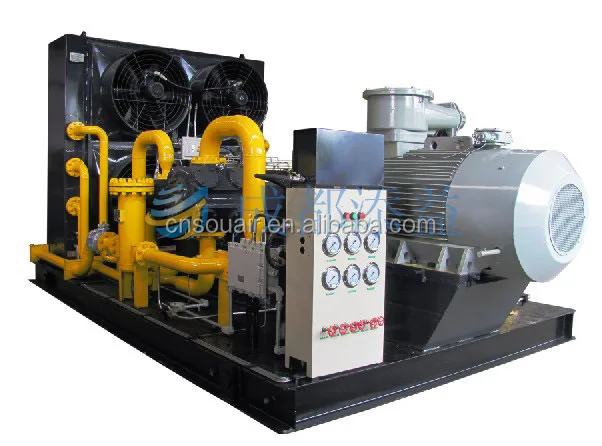

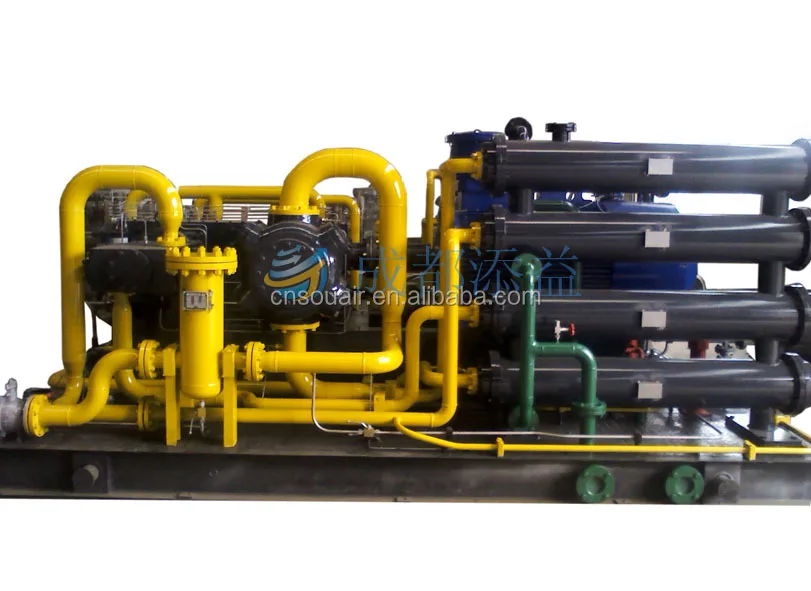

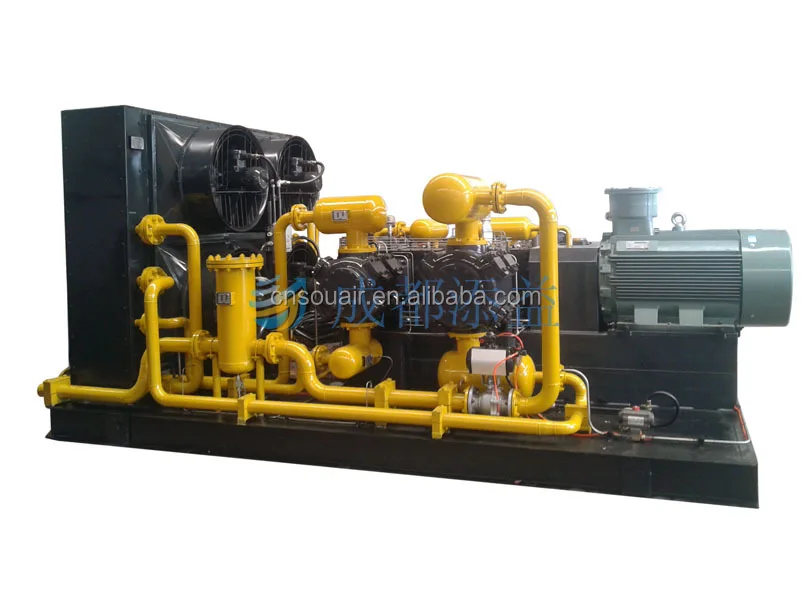

CNG D/MType Standard Mother Station Compressor Natural Gas compressor
Main Features
Horizontal Symmetry Balanced Reduced Vibration Amplitude
High Efficiency Low Energy Consumption
Low Maintenance Cost
Adopt full automation or semi automation control mode. High performance PLC monitor the whole system momently, any failure can shut down the compressor and ring the alarm. Can design and manufacture to match different capacity requirement of CNG filling station according to the inlet pressure and capacity requirement from different customers.
Technical Specifications
Compressor Type | D Type Balance - Opposed (2 Rows) | M Type Balance - Opposed (4 Rows) |
Inlet Pressure | 0.02~10.0MPa | |
Discharge Pressure | 25.0MPa | |
Discharge Capacity | 500~10000Nm3/h | |
Motor Power (Kw) | 90,110,132,160,185,200, 220,250,280,315,355,400,450,500,600 | |
Rotation | 988,1488rpm | |
Voltage | 380 (415)V | |
Cooling Method | Gas: Water Cooling or Air Cooling; Cylinder: Natural Cooling | |
Lubrication | Cylinder, Packings: Less Oil Lubricated | |
Drive Mode | Direct by Shaft Coupling | |
Control Mode | PLC + Touch Screen + Soft Start OR PLC + Touch Screen + Frequency Converter | |
Protection Level | IP54 | |
Explosion-proof Degree | d II BT4 | |
30-1600Nm3/hr At 1-250bar,15kw-315kw Motor Power chlorine hydride/chloro ethylene/methyl chloride gas compressor,oil free reciprocating medicine and experimental research gas compressor oil free reciprocating fueling cylinder project
Product features:
Product has no oil lubrication, low noise, small vibration, compact structure, smooth operation, safe and reliable, high automatic control level, a digital display and control over a long distance can be configured according to user request, has low compressor oil, water, lower the high temperature, low inlet pressure, exhaust pressure is high, stop functions such as alarm, take the compressor run more smoothly.
Product application:
Pressure, voltage, power and purging, can also be used for power plant, food industry, medicine and experimental research units to provide a stable source of power
(this series all pressure data can be modified according to customer specific requirements, if any requirements, please ask our online customer service, we will answer for you)
