High Quality Manual Chain Hoist/Chain Block

Product Overview

Description





Manual Chain Hoist  HSZ-B



• Robust all-steel construction.
• Top and bottom hooks are fitted with safely latches as standard.
• With brake mechanism.
• Double ratchet pawls.
• Hand chain cover and slots accurately guide the hand chain.
• Stripper ensure accurate alignment of the load chain over the load sheave.
• Powder metal bushing.
• Conform to CE safety standard.

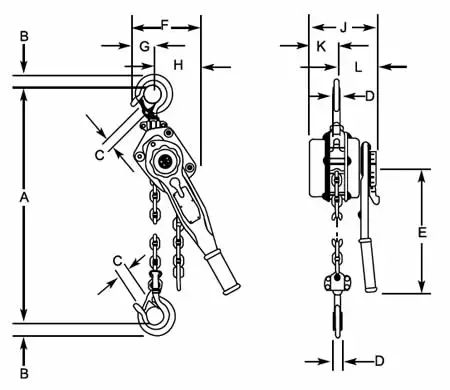

Model	Capacity	Standard lift	Test load	Effort required to lift max. load	No. of falls of load chain	Dimensions(mm)											Net weight
	(kg)	(m)	(N)	(N)		A	B	C	D	E	F	G	H	I	J	K	(kg)
HSH-075B	750	1.5	9375	150	1	321	23.8	28.5	17.5	279	111	56	56	151	60	90	6.8
HSH-100B	1000	1.5	12500	160	1	328	25.6	29.5	18.6	279	111	58	56	151	60	90	7.1
HSH-150B	1500	1.5	18750	230	1	376	28.6	31.8	20.6	413	121	60	60	175	76	100	12
HSH-200B	2000	1.5	25000	250	1	385	32.5	33.5	22.8	413	121	65	60	175	76	100	20
HSH-300B	3000	1.5	37500	350	1	475	42.9	39.7	31.8	413	191	86	106	200	86	116	20.4
HSH-600B	6000	1.5	75000	370	2	495	50.8	43	34.5	413	191	94	106	200	86	116	30
