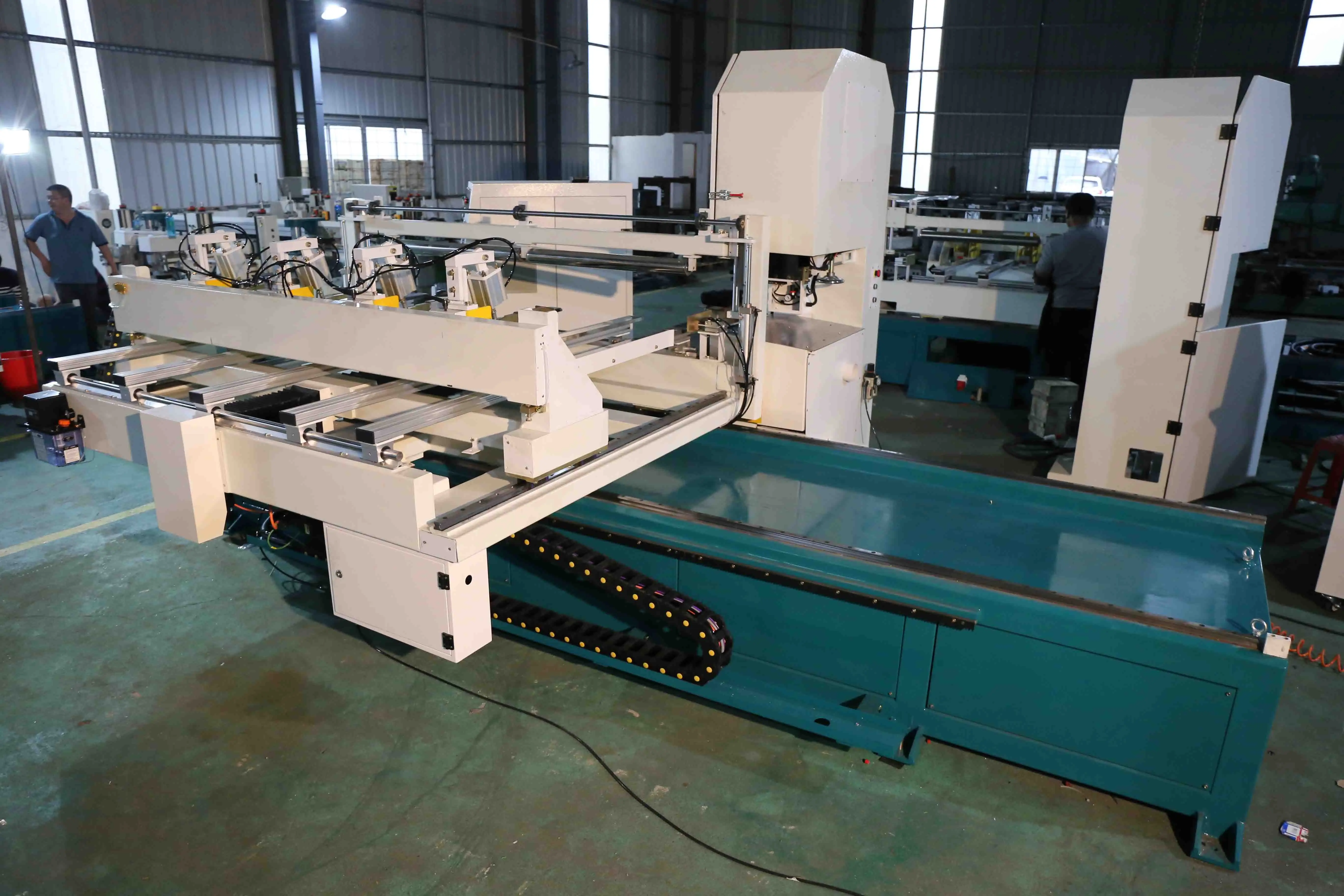

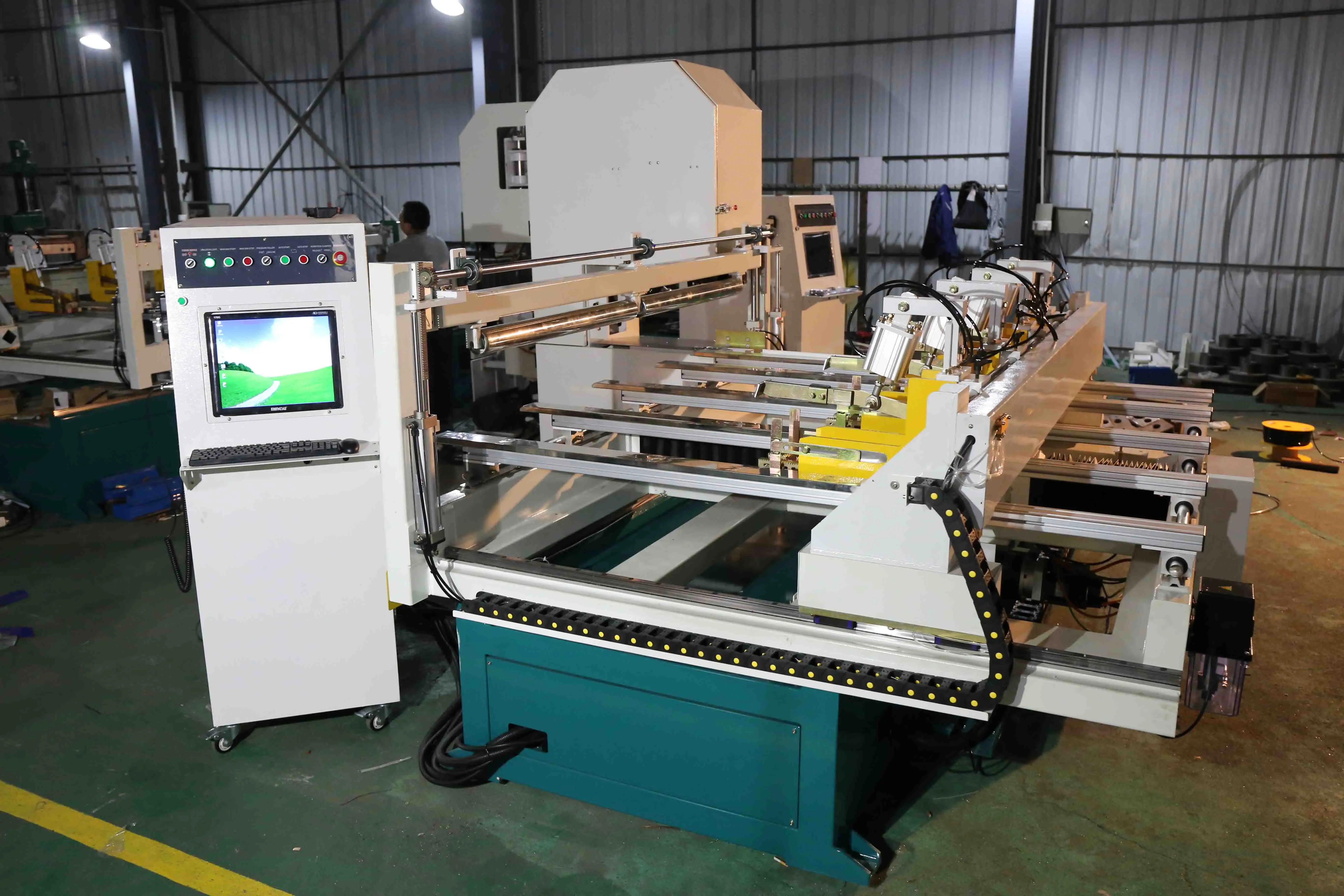

Woodworking CNC Band Saw Machine for Curved Line Processing( MJS 1612B)

1. Automatic processing operation and stable quality, improve efficiency exponentially and lay ground work for lather processing operation which will smooth and speed processing line.

1,  Machining method Work feed movement and saw blade rotation

2,  Working size:  2500×1250×200mm

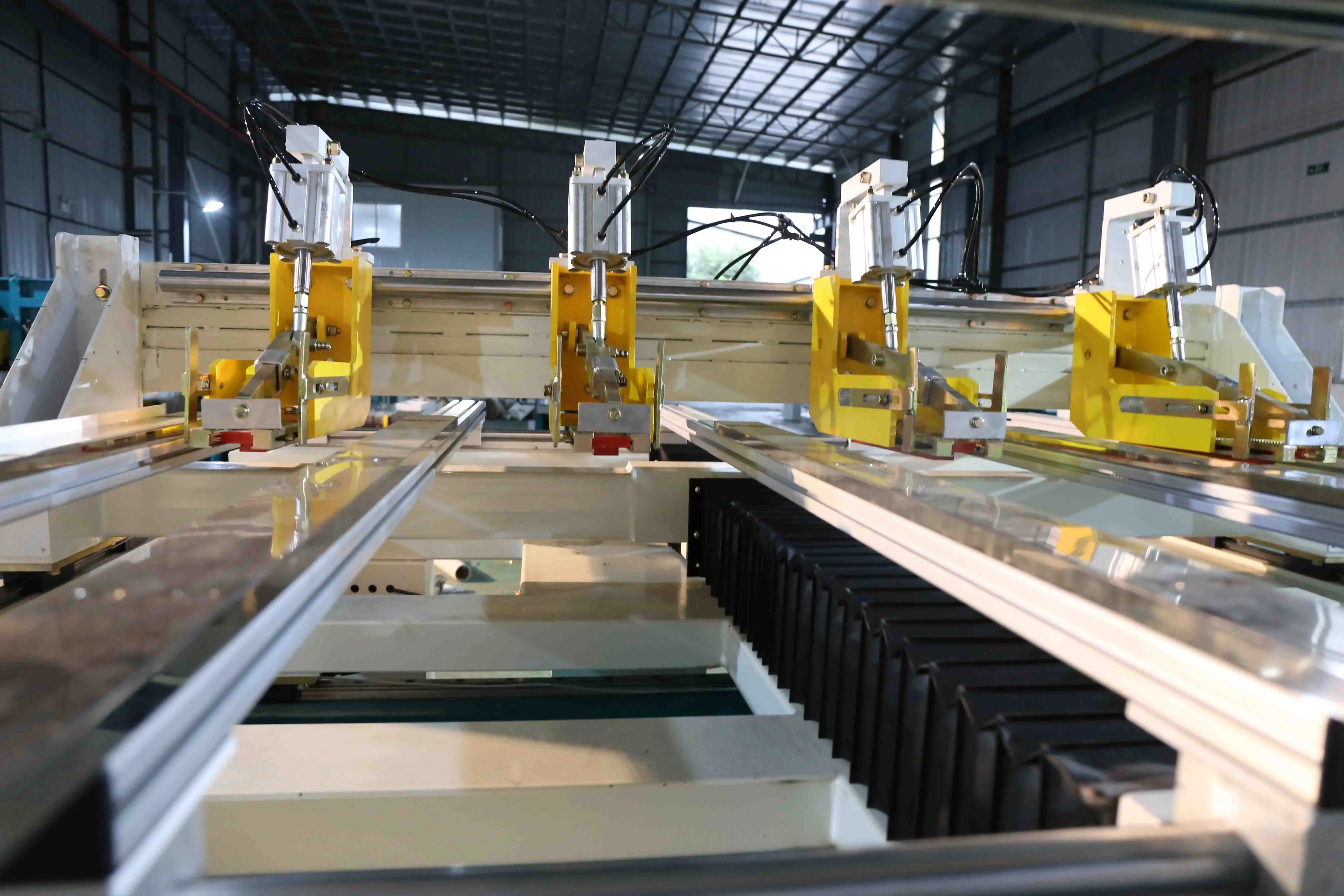

3,  Material Clamps    4 pieces in total

4,  Press Method:  Roller Press×2(D76×1150mm)

5,  Movable Aluminum Alloy Bar  5 pcs

6,  X-axis drive method:  Precision rack and pinion

7,  Y-axis drive method :  Precision ball screw

8,  Maximum working feed:  1~25m/min

9,  Maximum return feed:  50m/min

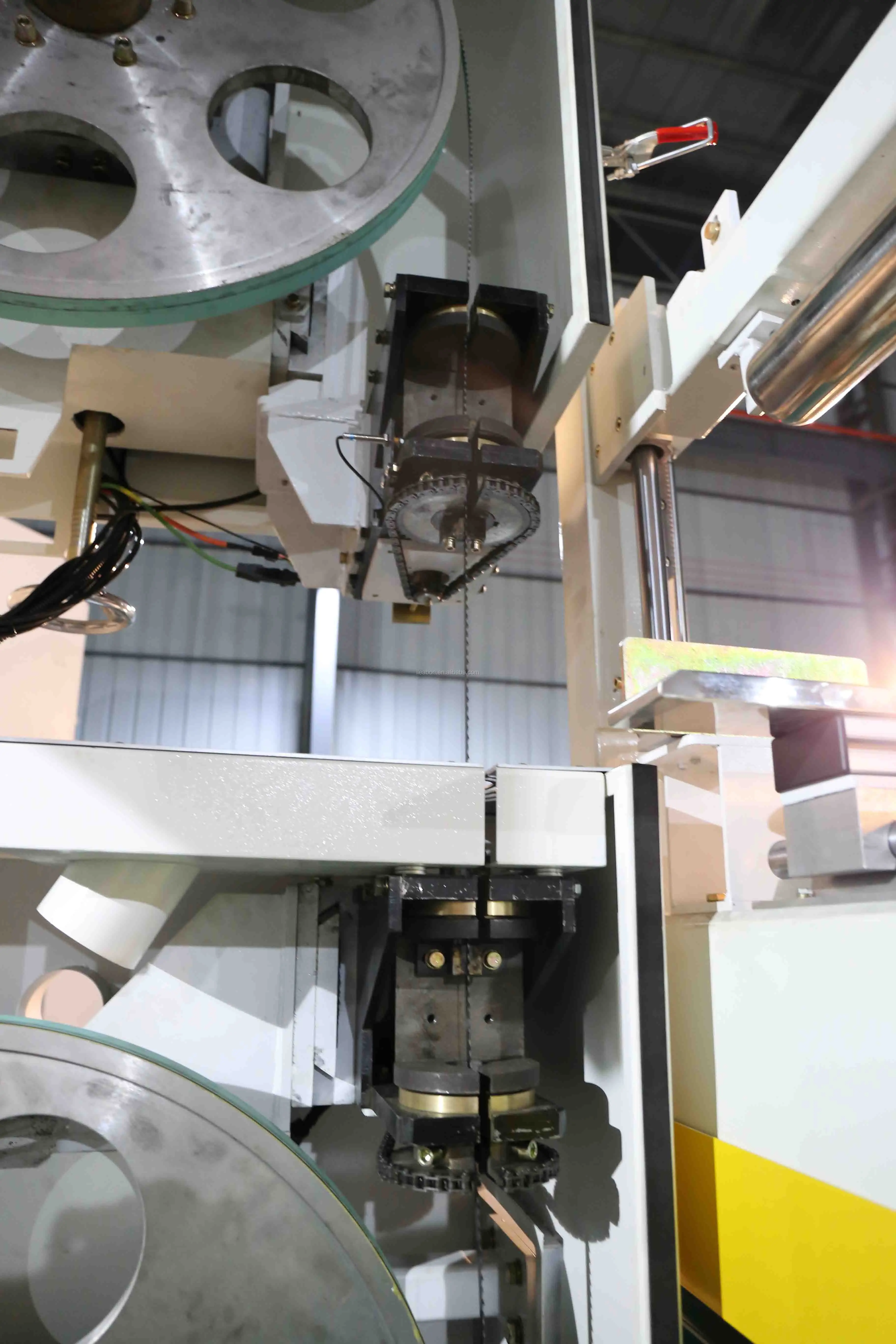

10,Dimension of saw blade: L 5040×W 12~1mm×T 0.7mm

11,Saw blade tensioning method: Air pressure tension

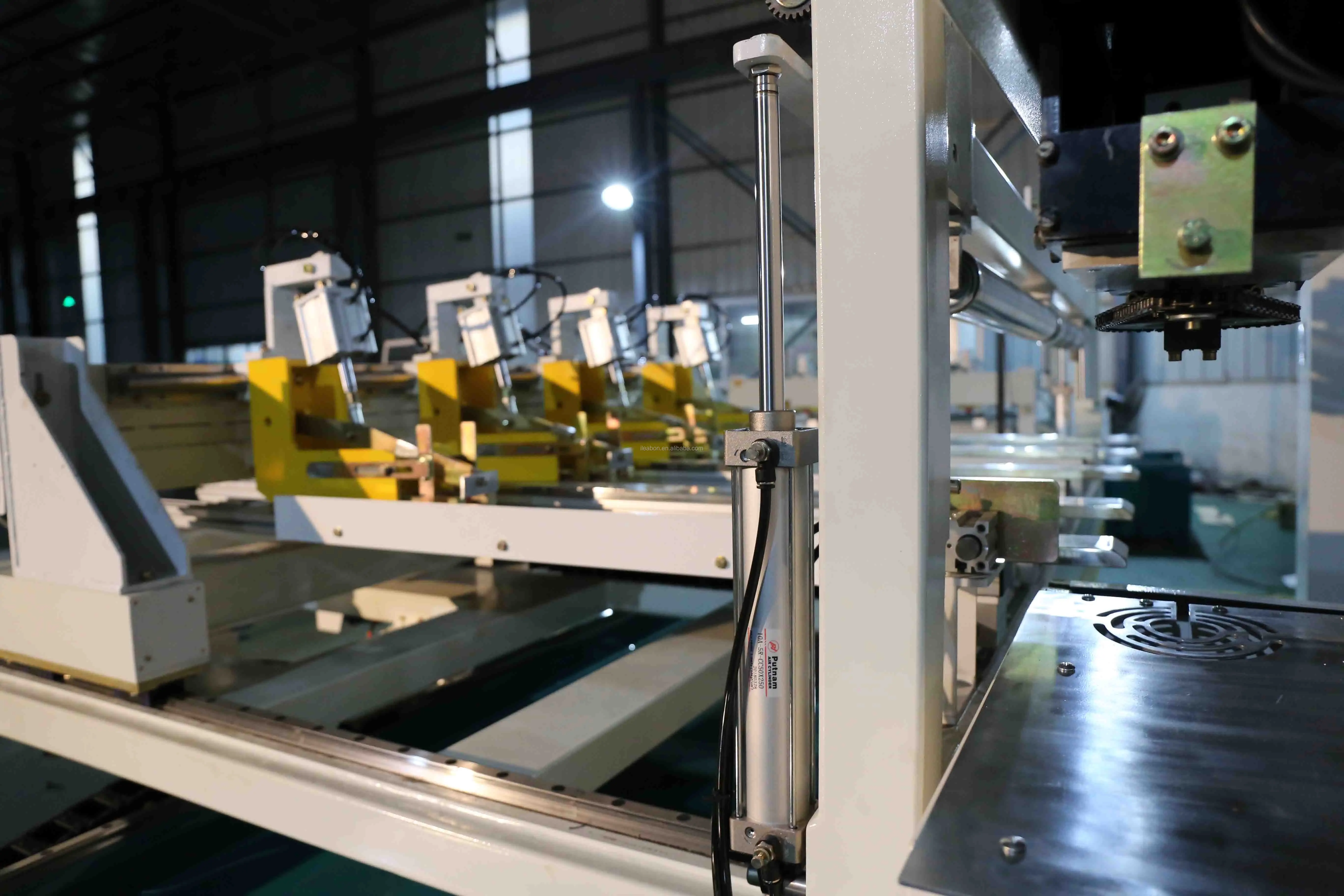

12,Saw wheel tensioning cylinder:  D125×50

13,Cylinder tension pressure:  0.4Mpa

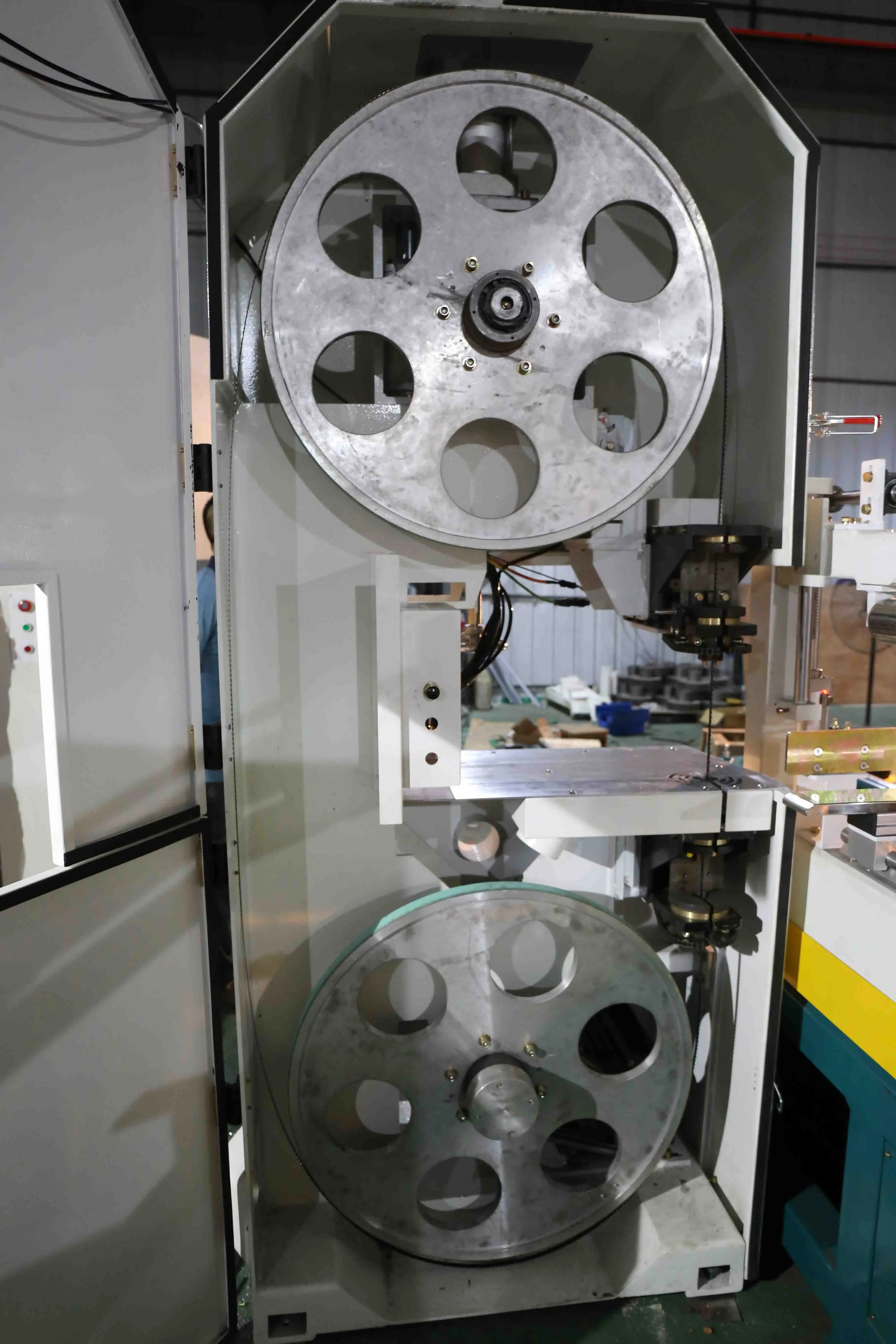

14,Saw wheel diameter:  800×40mm

15,Saw wheel rotation:   450~700rpm

16,Minimum cutting radius of the arc: 30mm

17,Saw blade turning angle: ±90°

18,Power of main motor:  11kw

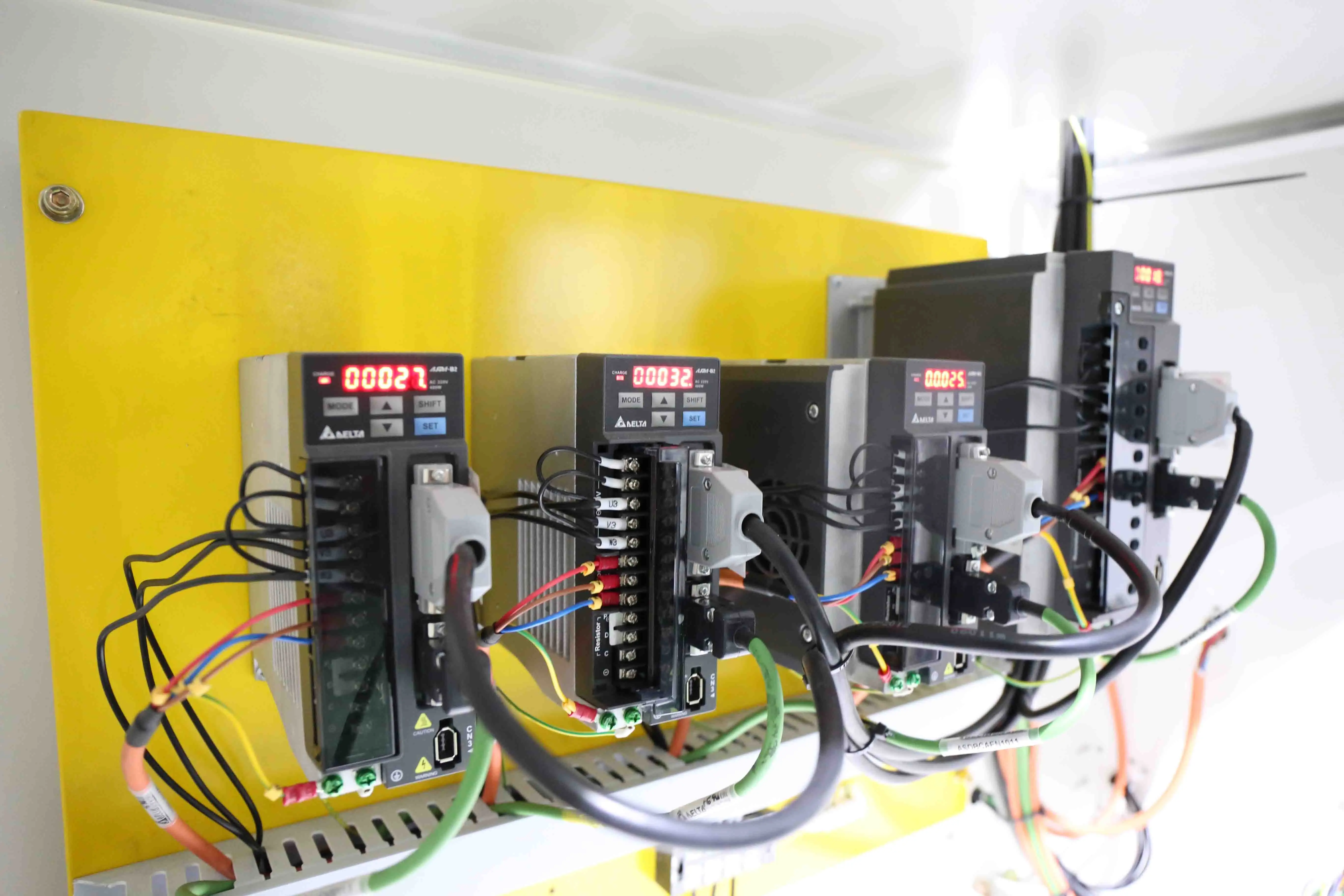

19,X-axis servo motor power : 2.0kw

20,Y-axis servo motor power : 1.0kw

21,Z-axis servo motor power : 0.4kw×2

     22,  Worktable feed linear guide: 30

     23,  Control System:  CNC

     24,  Overall dimension

             Saw  (L×W×H)   1000×665×2325mm

             Worktable(L×W×H) 5300×2100×1660mm

             Electric control box(L×W×H) 1250×600×1600mm
