3T Mini Spider Crane, Crawler Crane, Foldable Crane with Total Body Width 800mm

Share on (60335207405):


Price:$15,000.00

Quantity:


Product Overview

Description


3T Mini Spider Crane, Crawler Crane, Foldable Crane with Total Body Width 800mm



Product Description

Brief Introduction

Mini Spider Crane is mainly used for lifting heavy things under three dimensional environment
that loads beyond the normal capability of man and transporting them to other places. It is mini-sized,

flexible design, easy to operate and wireless remote control technique. It can rotates at 360 degree.
So it is the most suitable crane to work in narrow space. Mini Spider Crane has been adopted by many

factories successfully and has been sold all over the world, it has good reputation.  Mini Spider Crane
is suitable to work in the dock, warehouse, workshop etc.



Picture Show

-1



Parameters and data

3T Mini Spider Crane, Crawler Crane, Foldable Crane with Total Body Width 800mm

Capacity

2.95Tx1.3m

Working Radius

8.3m



Ground Lifting Height

9.2m

Winch device

Hook speed

0-6.5m/min(4Times)


Rope type

Φ7.7mm×45m

Telescopic System


Boom form

Full automatic 5 section


Boom length

8.92 m

Up and downs

Boom angle

0°-75°

Slew system

Slew angle

360°continuous/1.0rpm

Outrigger


Type

Automatic for the 1 section,manual adjustment for 2,3 section.

Maximum extended dimensions

3900mm×3750mm

Traction system


Drive

Hydraulic motor driven



Walking speed

0-2.9km/ h      0-2km/h


Ground length×width

1010mm×200mm×2


Grade ability

20°

Ground pressure

51Kpa



Hydraulic fuel tank capacity

50L


Length×width×Height

2900mmx800mmx1450mm


Weight

2050Kg

Safety Devices

Air level,Moment limiter(Height limiter),Alarm Device,Emergency Stop Button



Single hanging basket, Single fall hook,2-fall hook


Diesel Engine


Model

2TNV70-PYU


Displacement

570ml


Maximum Output

7.5KW


Starting method


Electric starting


Type


Four stroke,two cylinder, hydrocooling


Fuel Tank Capacity

11L


Operating Temperature

-15°C~40°C


Battery Capacity

12V  45Ah


Petrol Engine


Model

GX390


Displacement

389.2ml


Maximum Output

6.6KW


Starting method


Recoil start/Electric starting


Type


Four stroke,single cylinder,forced air cooling


Fuel Tank Capacity

6L


Operating Temperature

0°C~40°C


Battery Capacity

12V  36Ah


Electric Motor


Three-phase AC asynchronous motor

4KW(380V,50HZ)


Remote Control


Type

BOX1.1


Operating range

100m


Water-proof Standards

IP-67

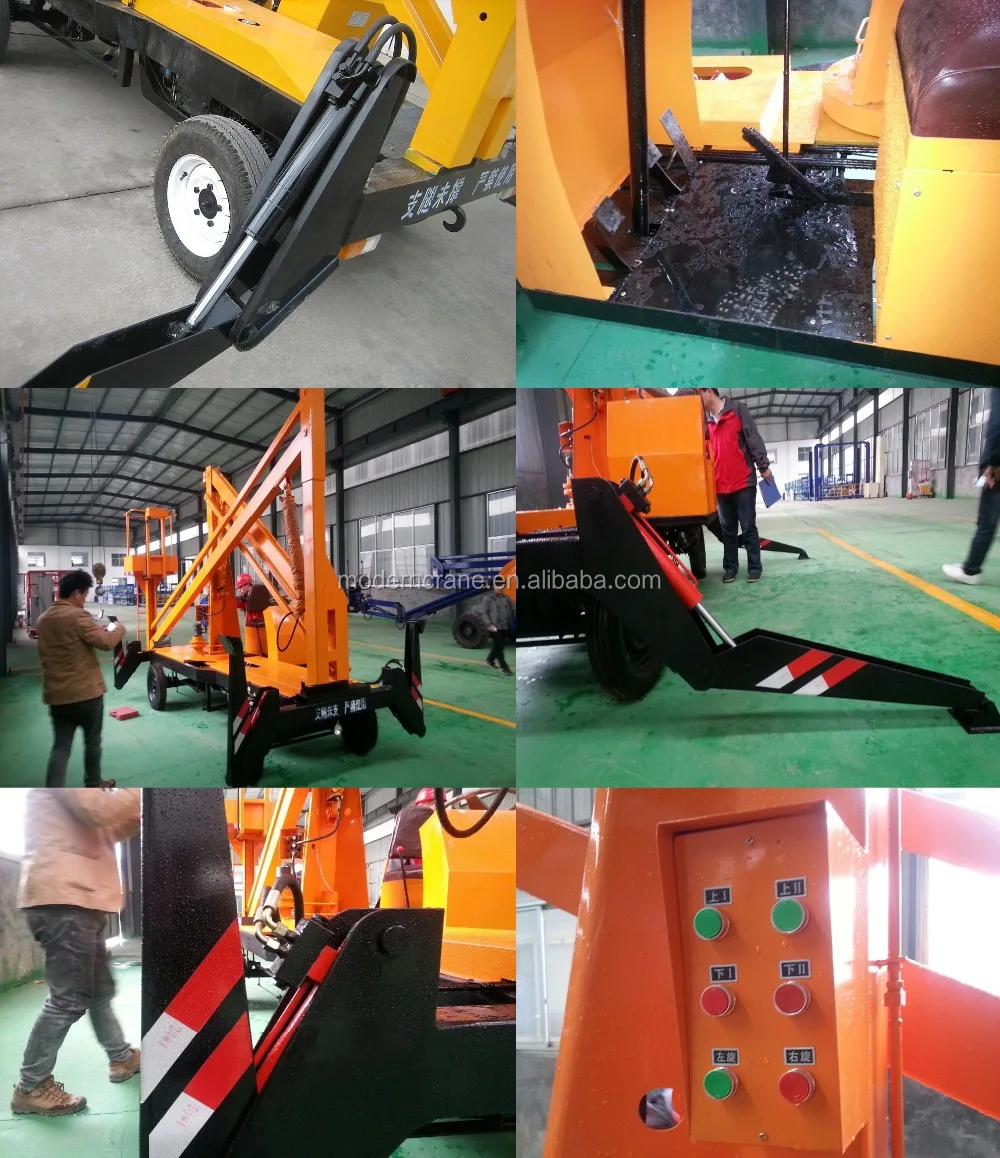

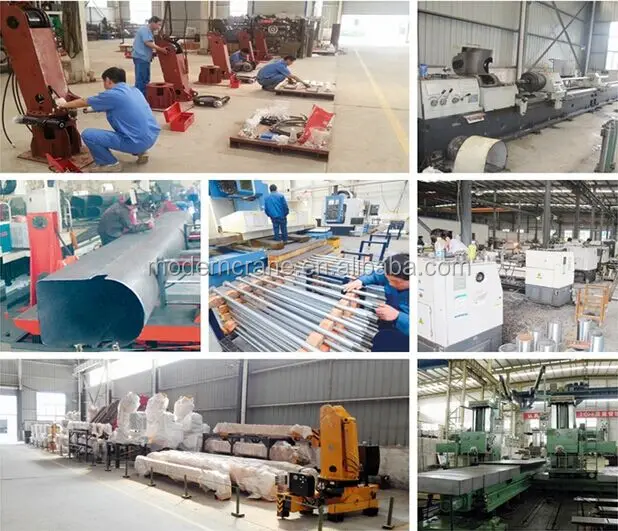

Produce progress

111

.jpg

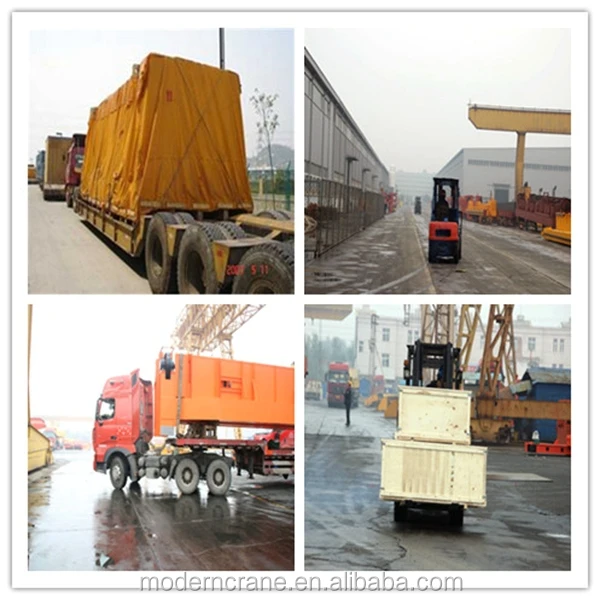

Packaging & Shipping

Electricals and other parts are packed by high quality plywood crates,  Nude packed into container or as requirement.

 (15)







Company Information

We Modern Crane Company is professional at cranes & hoists for over 10 years, our products cover cranes, hoist, winches and the end beam lifting accessories etc.

Hope we can have opportunity to cooperate with you.

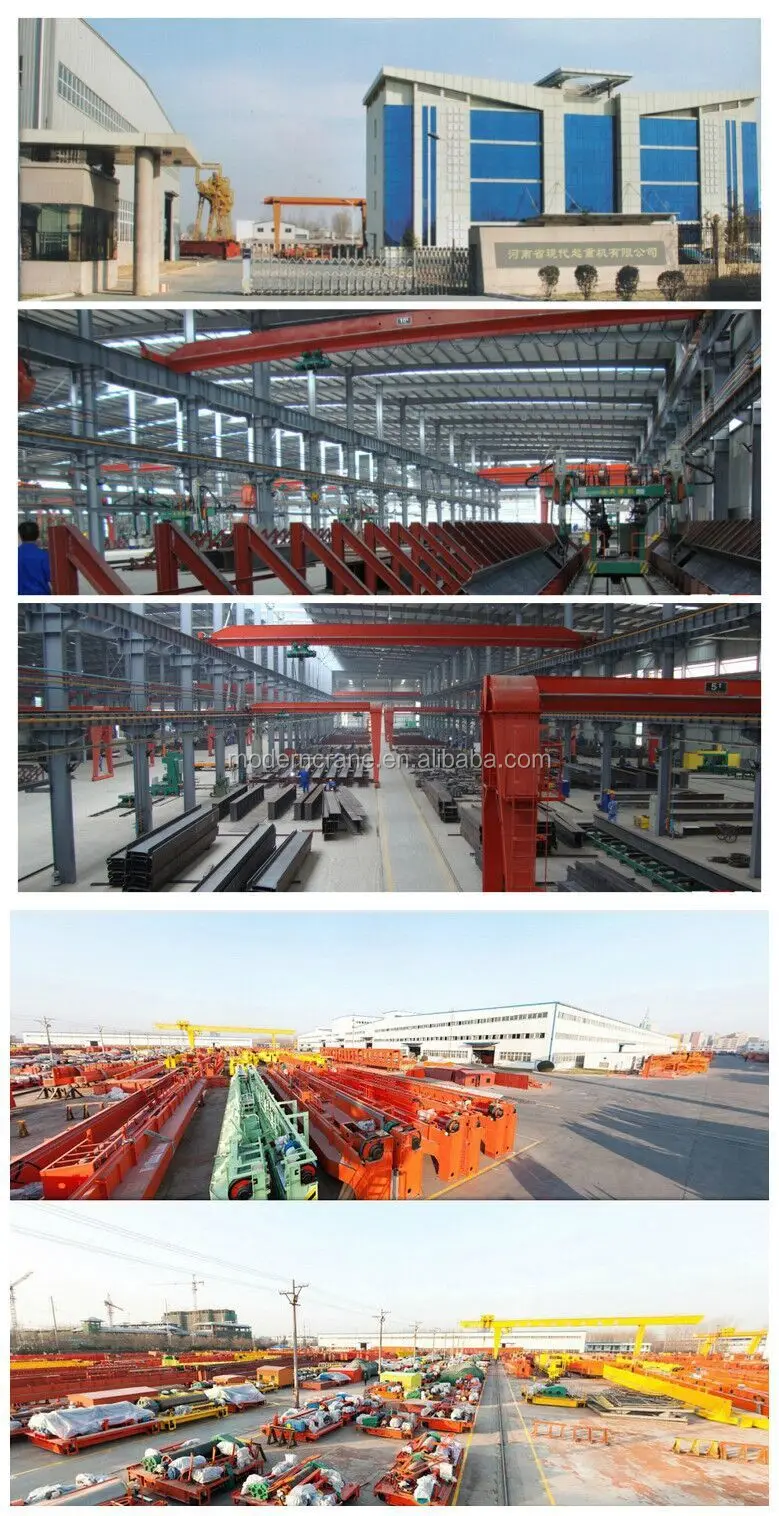

factory overview

Customer vists

HTB1DcWrGVXXXXXJXFXXq6xXFXXX7



Certifications

Certifications

Modern crane welcome your visit, hope to cooperate with you!


FAQ
In order to choose the suitable type crane for your need, please provide us the following data.

-Lift capacity? (Ton)

-Span(m)

-Lift height? (Meter)

-Power supply? Is 380V/50Hz/3P?

-Your nearest port?
