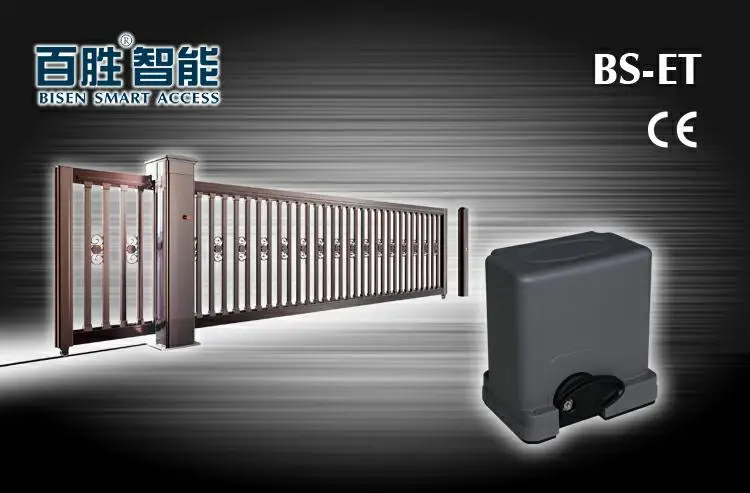

UV Proof Cover Wireless Remote Electric Sliding Gate Motor With Built In Control Board BS ET 400 24VDC Motor Door Opener
- Category: >>>
- Supplier: Bisen Smart Access Co. Ltd.
Share on (60335445520):
Product Overview
Description
Technical Specifications
Model: | BS-ET |
Motor power: | 24DC/60W |
Power supply: | 220VAC 50HZ / 110VAC 60HZ |
Motor rotational speed | 2200 r/min |
Reduce ratio : | 60:1 |
Gate max weight: | 400kg |
Features
1. This is an innovative sliding gate operator ,which low stand-by consumption is the best design for solar charging. |
2. One Touch Easy Programming,The control syetem learns the Open and Closing limit automatically. |
3. Electronic soft-start ,ensures the motor starts steadily and smoothly. |
4. Release key for power failure and locking the operator's cover. |
5. Intelligent terminals for photocell,alarm lamp ,external receiver,etc. |
6. Easy to install and maintain. |
7. Woking encironment temperture -10℃`+50℃. |
Accessories
Trouble shooting
Trouble | Cause | Shooting |
Motor can not work | 1,No power supply 2,Break fuse 3,Surpass load | 1,Check power supply 2,Change fuse 3,Check if any barrier on the track |
Can open but can not close | 1,Photocell is not connected properly 2,Photocell beam is block off 3,Photocell is broken | 1,Connect the photocell 2,Clear out obstacle 3,Change a new device |
Can open (close) but can not close (open) | 1,Position of limit switch is not correct 2,Limit switch is damaged | 1,Adjust position 2,Change limit switch |
Can not locate accurately | 1,Distance of limit switch is too large 2,Limit switch is wrong 3,Magnetic-stell’s position is wrong | 1,Adjust position of limit switch 2,Change limit switch 3,Re-adjust the position |
Release device is doesn’t work | 1,Operating handle is broken 2,Worm gears are jammed | 1,Change the handle 2,Rotate the pinion |
Push the “OPEN” button but the gate close | Push the “OPEN” button but the gate close | Connect correctly according to wiring diagram |
Motor can turn but can not work | 1,Compression spring of clutch is dead 2,Gear box is released | 1,Change the spring 2,Couple the worm gear |
Company Profile
BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.
We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.
Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.
Exhibition
Certifications
Manufacturing Technique
Testing Equipment
Our Services
1.OEM Manufacturing welcome: Product, Package.
2. MOQ: 1 piece
3. Warranty:1 year
4. We will reply you for your inquiry in 24 hours.
We have our own overseas service department and professional technology team, can meet different requirements of customers in the shortest time and supply the best service when you back home. To solve all the troubles back home and putting customer at first is our principle all the time!
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Depends upon the quantity. Normally about 5 days for 1 full 20 container, 7 days for 1 full 40 container.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide samples, it depends on the price, free or not need to negotiate.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance, balance before leaving factory
If you have any other question, pls feel free to contact us.
