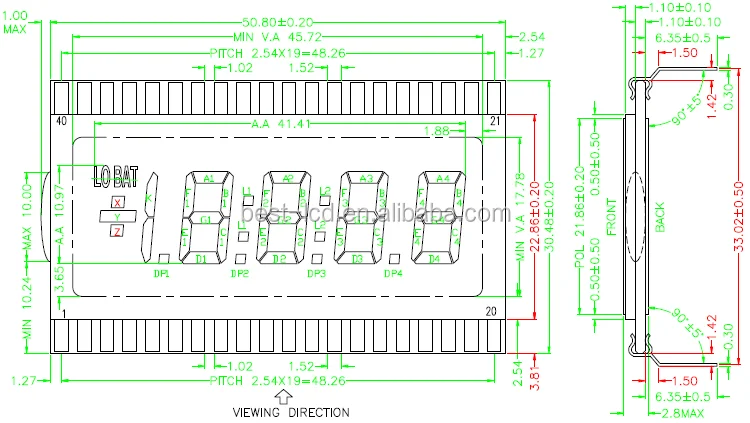

1. Professional Mechanical Drawing:

2. Precisely Technical&Mechanical Parameters FYI:
| Application | For Fuel Dispensers / Gas Station Oil Machine /Petrol Pump |
| Display Type | TN/Positive |
| Polarizer Type | Reflective |
| Outline Dimension | 50.80*22.86/30.48*1.10mm |
| Viewing Direction | 6 O'clock |
| Connector Type | Metal Pin |
| Driver Method | 1/1duty,1/1bias Static |
| Pitch | 2.54mm |
| Operate Temp. | -30~80 celcius degree |
| Storage Temp. | -40~90 celcius degree |
| Operative Vol. | 5.0V |

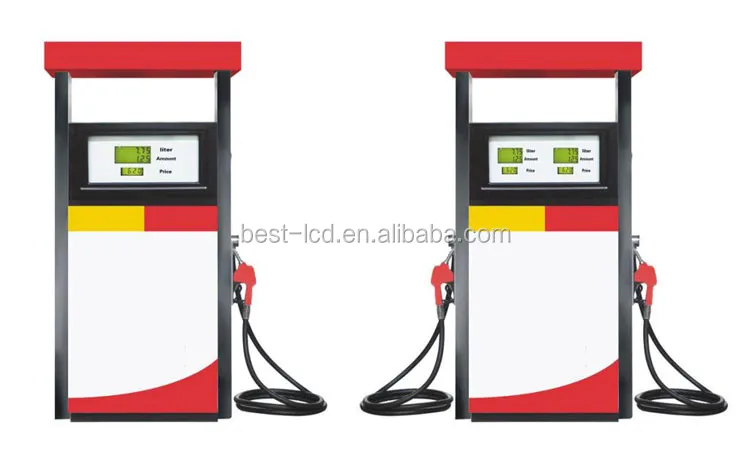

3. Appropriate Application: Extremely Wide Temperature Anti-UV 4 and Half Digits 7 Segment Oil Machine Fuel Dispenser Mono Reflective Segment LCD Display.

4. Qualified Packaging:

5. Trusted Shipping:

6. Outstanding Capabilities&Services:
Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.
Product Type:
1. LCD Type: TN, HTN, STN, FSTN, VA, COB, COG etc.....
2. Any digitals, Icons, graphic can be customized and designed according to customers' requirements.
3. Polarizer type: Transmissive, Transflective, Reflective
4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...
5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm
6. The range of operating Temperature: -40~90°C
Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..
