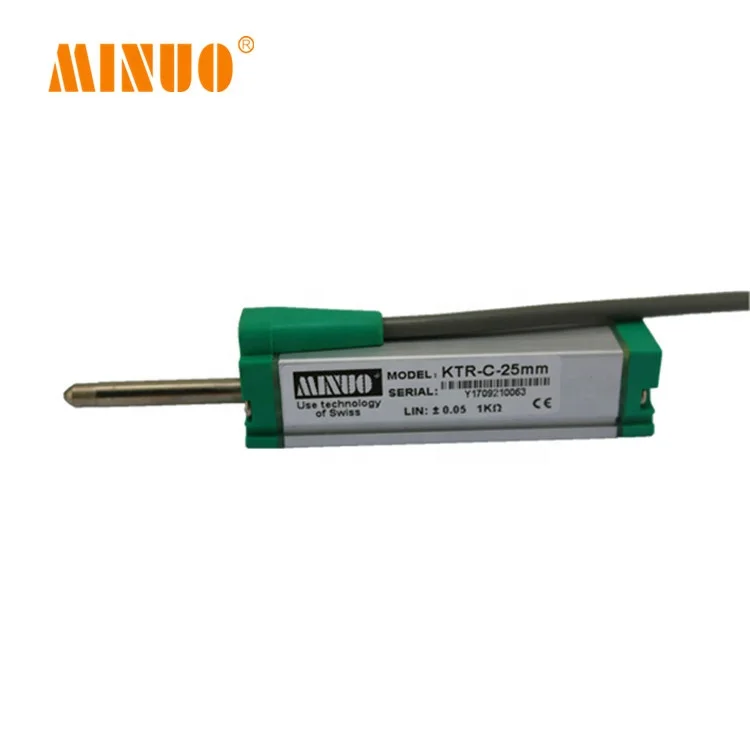

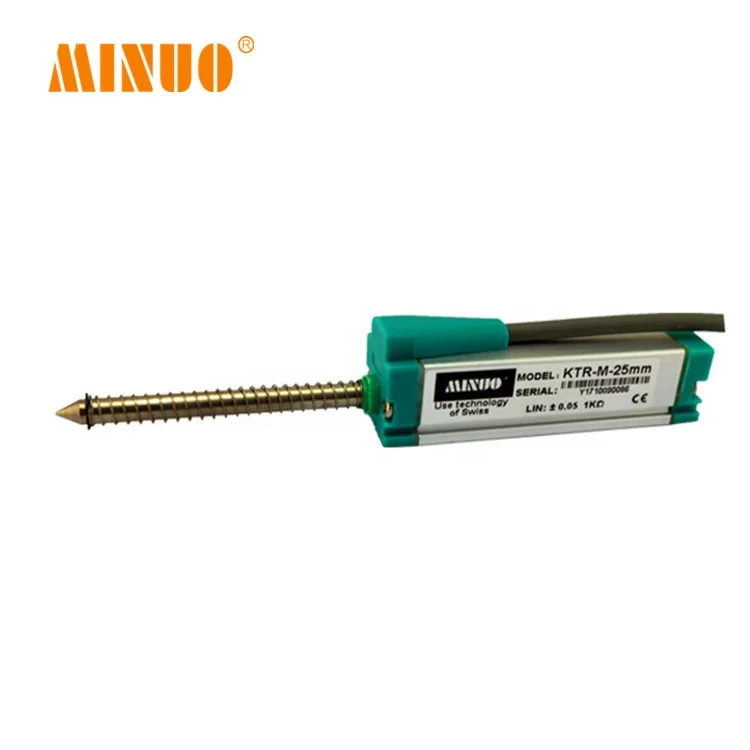

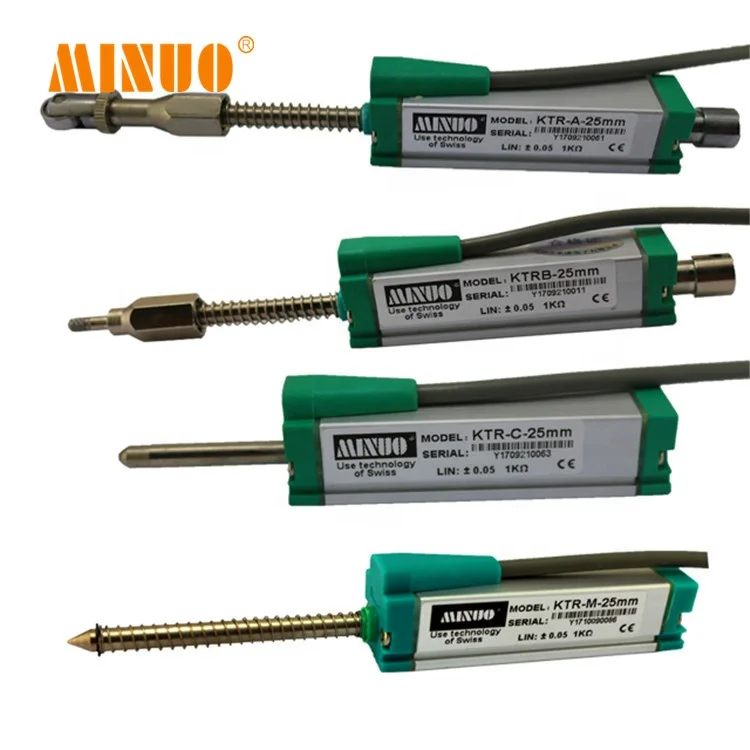

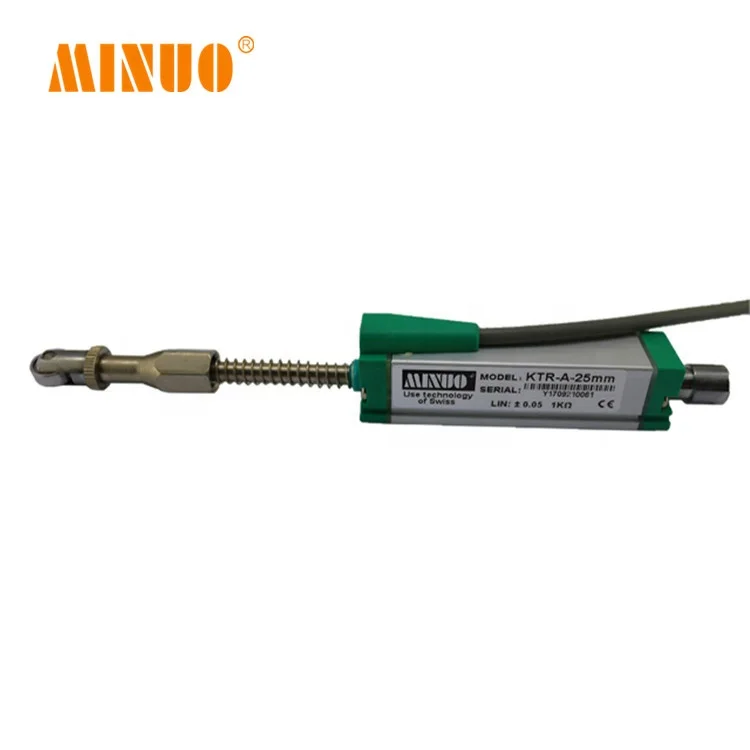

KTR B linear actuator potentiometer linear motion position sensors
- Category: >>>
- Supplier: Shenzhen Minor Electronics Co. Ltd.
Share on (60335495165):
Product Overview
Description
KTR Linear Position Sensor and Components
Standard Dimensions:
One meter wire incloud>>Red: Anode
Blue: Negative Electrode
Black: Output
KTR auto-return series linear position sensors are designed for measurement of displacement under the condition of limited space. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside, the product could run smoothly and have low-noise output signals.
All KTR sensors has groove for the mounting brackets to fasten it on the machine
This kind of transducer has the function of self-return through external spring so that there is almost no requirement to connecting mechanism, just keep touch with the target. MINUO could not only provide you with required linearity, but also any resistance you need, such as 5678Ω or 8765Ω.
Output signal mode
| Output signal mode |
| A.Resistance: 1K,2K, 5K,10K,20K Ω |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
Product Characterist
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Application Range
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
Product Description
 |  |  |

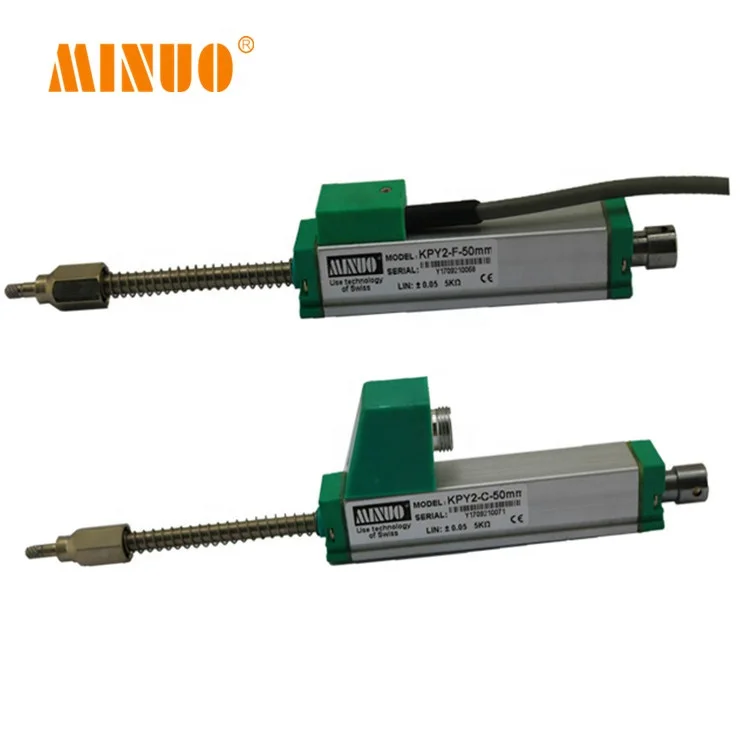

| KDC | KTR-C | KPY3 |
 |  |  |
| LWH | LTM | KTW-A |
 |  |  |
| KPZ34 | PKM | KTR-M |
