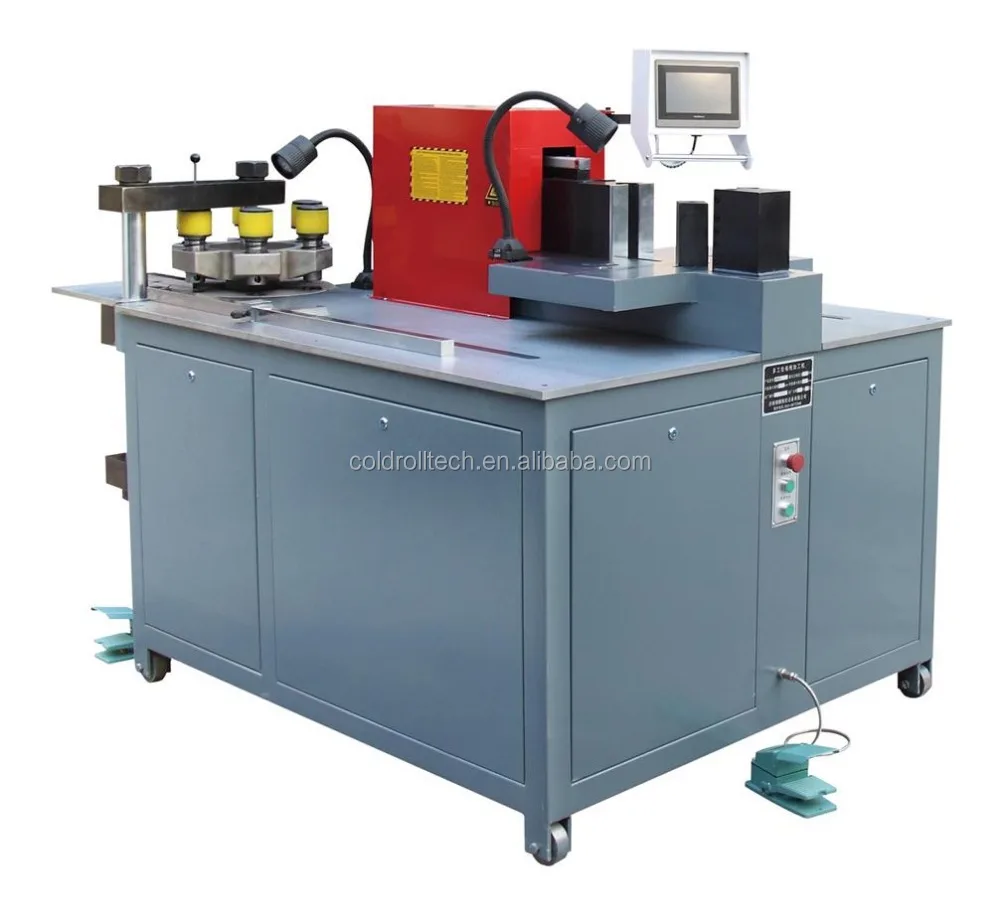

CNC Busbar Punching Cutting And Bending Machine

Product Overview

Description

CNC BUSBAR PUNCHING BENDING AND CUTTING MACHINE





The busbar machine is specal for manufacturing aluminum and copper busbars. The process of punching, bending and cutting can work together as well as some other functions such as embossing, twisting, flattening, pressing tie-in, etc.



Prodcution Applicaton

Switch cabinet, electric control panel manufacturing, high low voltage switchgear, eletric transformer station, electric panel, voltage transformer,appliance swich, electric elevator manufacturing,electric cabinet manufacturing, power distribution system product maufacturing, etc



Main Features:

1.  Adopt double column cutting, the cutting surface is smooth, no droop, no burr, no waste

2.  Rotary turret punch system with 6 dies, less replacing, high efficiency

3.  Double work table, three work positions can be used at the same time.

4.  Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.5 degree

5.  Manual button and foot switch are optional

6.  Bending angle digital input, with record and auto-save





Main Parameter of the Machine





Item		303ESK	503ESK	803ESK
Punching	Max. force	300KN	500KN	800KN
	Punching hole size	4.3-25mm	4.3-34mm	4.3-36mm
	Material thickness	max. 12mm	max. 16mm	max. 20mm
	Material width	max. 150mm	max. 200mm	max. 260mm
Cutting	Material thickness	max. 12mm	max. 16mm	max. 20mm
	Material width	max. 150mm	max. 200mm	max. 260mm
Horizontal Bending	Max. force	300KN	500KN	800KN
	Material thickness	max. 12mm	max. 16mm	max. 20mm
	Material width	max. 150mm	max. 200mm	max. 260mm
Vertical Bending	Material width	max. 100mm	Max.120mm	Max.120mm
	Min. bending angle	90 degree	90 degree	90 degree
Working Table	First layer size	1800x1230mm	1800x1230mm	1950x1600mm
	Second layer size	1000x500mm	1000x500mm	1100x500mm
	Motor power	3 x 4KW	3 x 5.5KW	3 x 5.5KW
	Outside dimension	1830x1400x1480mm	1830x1500x1480mm	1950x1650x1500mm
	Machine weight	1420kg	1750kg	2350kg
	Power supply	380V 50Hz	380V 50Hz	380V 50Hz
CNC description	Siemens PLC system, bending angle digital input, precision +-1 degree. Punching, cutting and bending can work at the same time







Accessories:



-- Punching moulds: 8 sets (sizes can be selected)



-- Cutting blade: one piece



-- Horizontal bending moulds: two sets



-- Vertical bending moulds: two sets



-- Embossing mould: one set



-- Tool kit: one



-- Foot switches: 3 pieces

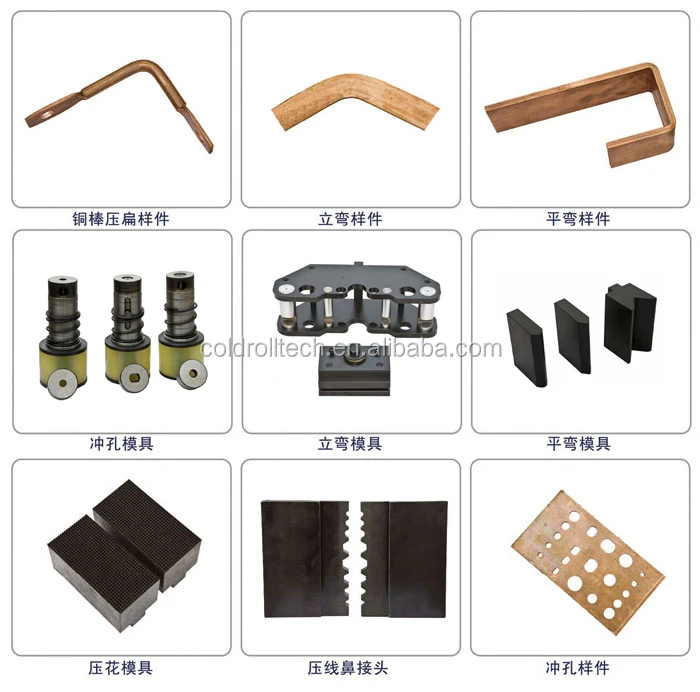

Moulds and Samples
