Dewatering Machine Produced By China Manufacture , Vacuum Rotary Drum Filter

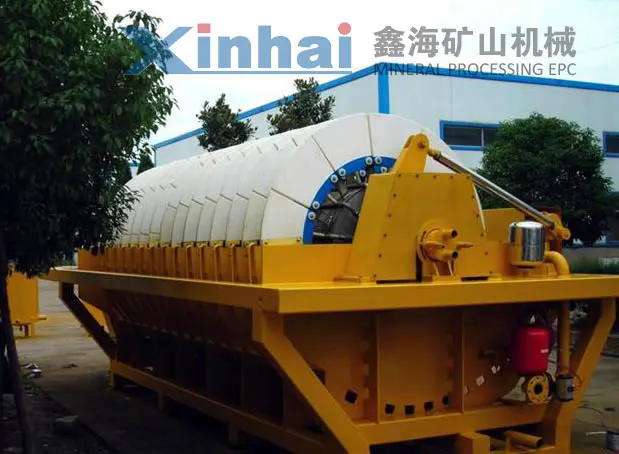

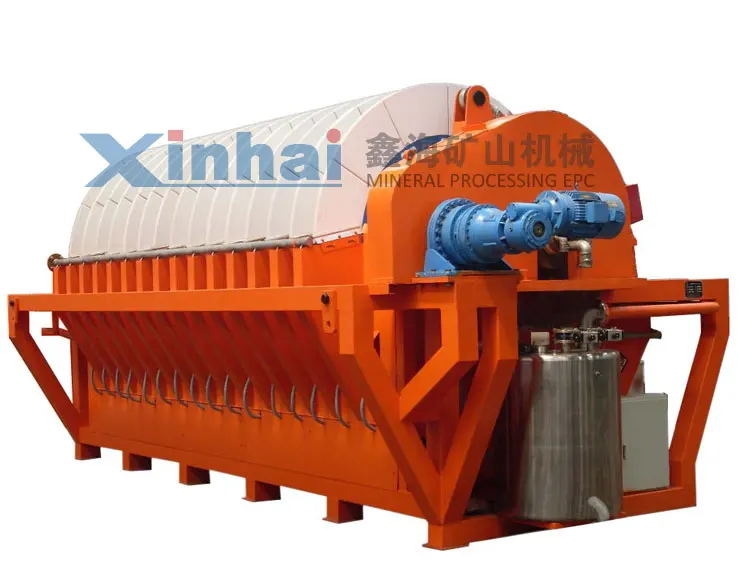

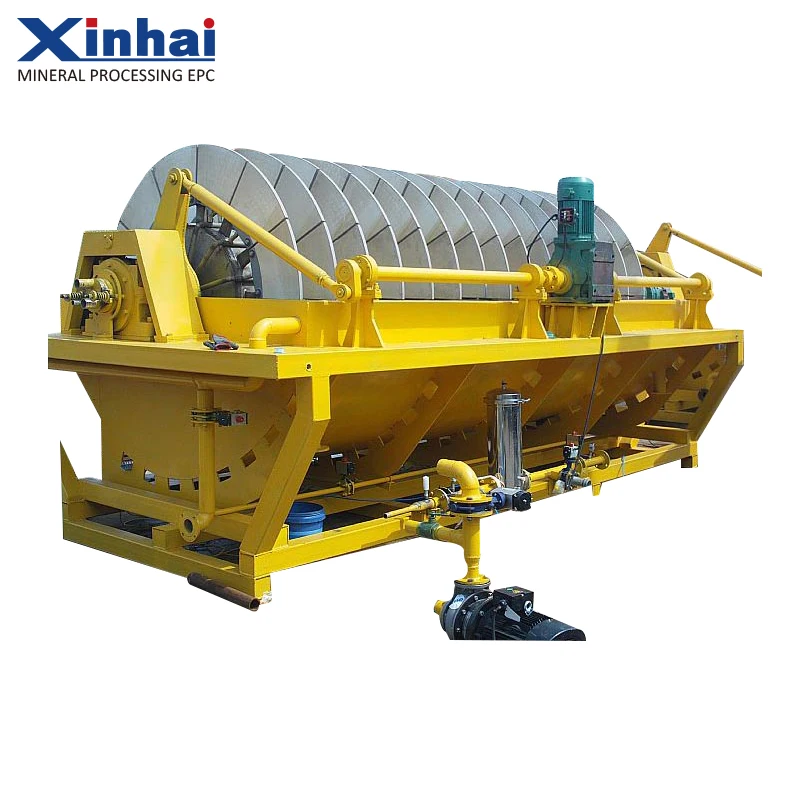

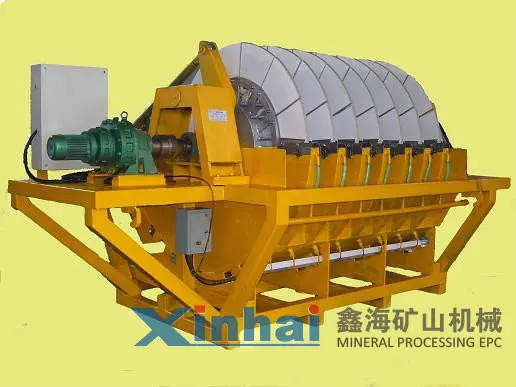

Product Introduction
vacuum rotary drum filter —introduction
A vacuum filter with vertical discs consisted of fanning plates
Capacity: 9~116m²
Improvement: Adopt the polypropylene plastic plate, light weight, corrosion resistance, stepless speed regulation, change spindle speed according to different needs.
Advantages
vacuum rotary drum filter —advantages
Large filtering area, large capacity;
The new fan plate greatly improves the performance and service life;
The technical and economic effect is remarkable;
Small floor space, easy to manufacture, strong adsorption capacity, etc..
Working Principle
vacuum rotary drum filter —principle

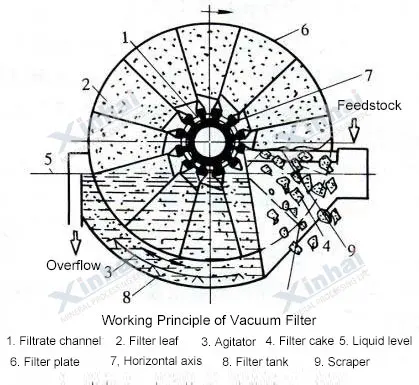

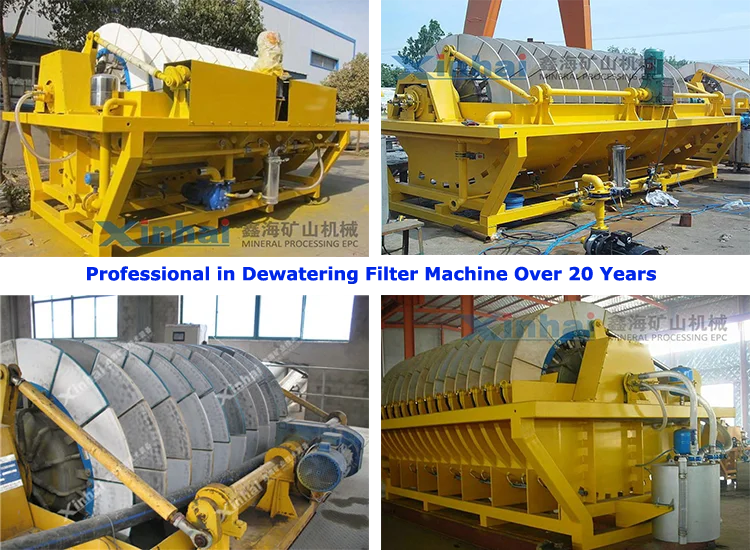

Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate. Filter cake comes out from slime hopper receiving spray washing. Filter cake falls into the tank by the pressure from the wind and scraper.
It can be used for floating and dewatering in clean coal and fine materials like tailings, and it can be also used in metallurgy, chemical, petroleum, sewage treatment, and other aspects of the solid-liquid separation.
Technical Parameters
vacuum rotary drum filter —technical parameters
| Model | PG18-4 | PG27-6 | PG39-4 | PG58-6 | PG78-8 | PG97-10 | PG116-12 | |
| Filter Area (m2) | 18 | 27 | 39 | 58 | 78 | 97 | 116 | |
| Quantity of Filter Disc | 4 | 6 | 4 | 6 | 8 | 10 | 12 | |
| Diameter of Filter Disc (mm) | 1800 | 1800 | 2700 | 2700 | 2700 | 2700 | 2700 | |
| Rotating Speed of Filter Disc (r/min) | 1 | 0.135 ~0.607 | 0.135 ~0.607 | 0.135 ~0.607 | 0.15~0.67 | 0.15~0.67 | 0.148~0.66 | 0.148~0.66 |
| 2 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.285~1.285 | 0.285~1.285 | |
| 3 | 0.44~1.98 | 0.44~1.98 | ||||||
| Rotating Speed of Agitator (r/min) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Main Drive Motor | Model | YCTL132-4B | YCTL132-4B | YCT160-4A | YCT160-4B | YCT160-4B | YCTL180-4A | YCTL180-4A |
| Power (kW) | 1.5 | 1.5 | 2.2 | 3 | 3 | 4 | 4 | |
| Rotating Speed (r/min) | 1230~125 | 1230~125 | 1250~125 | 1250~125 | 1250~125 | 1250~125 | 1250~125 | |
| Drive Motor of Agitator | Model | Y90L-4 | Y90L-4 | Y90L-4 | Y100L1-4 | Y100L1-4 | Y112M-4 | Y112M-4 |
| Power (kW) | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | |
| Rotating Speed (r/min) | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | |
| Vacuum Pump | Model | SZ-4 | 2YK-27 | SZ-4 | SZ-4 | SZ-4 | 2YK-110 | 2YK-110 |
| Quantity | 1 | 1 | 1 | 2 | 2 | 1 | 1 | |
| Blower | Model | SZ-2 | SZ-2 | SZ-2 | SZ-3 | SZ-3 | SZ-3 | SZ-3 |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Weight (kg) | 3500 | 4500 | 6000 | 8000 | 9000 | 10000 | 12000 | |
| Overall Dimensions: (LXWX H) (mm) | 2820X2355 X2295 | 3820X2355 X2295 | 3015X3275 X3275 | 3930X3355 X3275 | 4730X3355 X3275 | 5530X3355 X3275 | 6330X3355 X3275 | |
