Peristaltic Pump Lab Medical Peristaltic Pump 5V 12V 24V Adjustable Speed Intelligent Peristaltic Pump
- Category: >>>
- Supplier: Zhengzhou Mingyi Instrument Equipment Co. Ltd.
Share on (60335681850):
Product Overview
Description

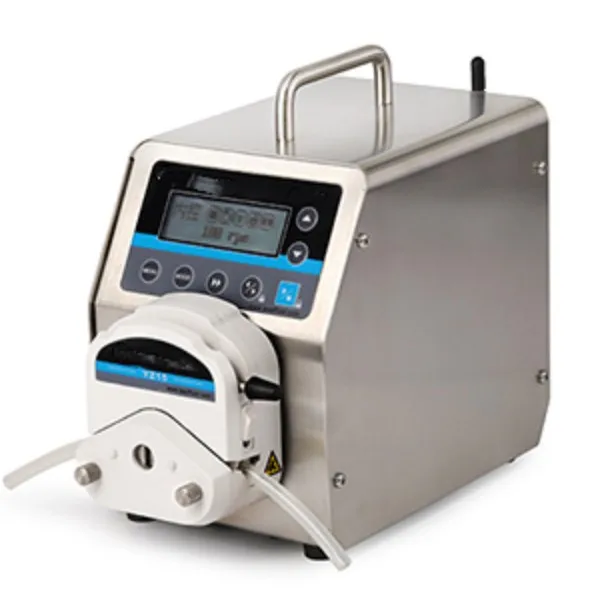

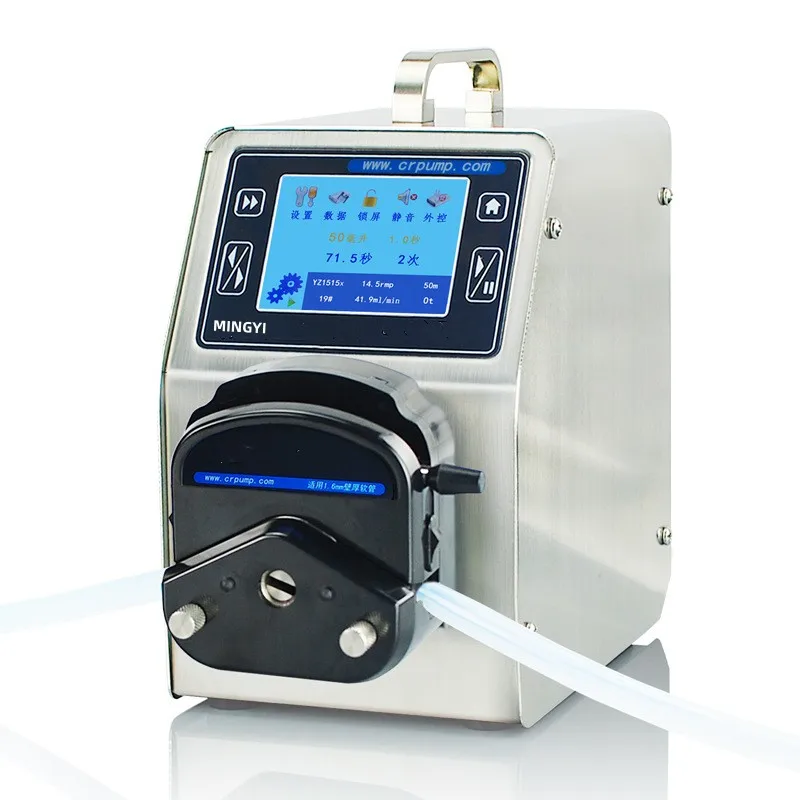

Adjustable speed intelligent peristaltic pump
BT600S speed-adjustable intelligent peristaltic pump adopts imported core processor, and the flow range is 0.006～2900ml/min. The pump can be controlled remotely through the Rever APP software, and supports a variety of signal modes to achieve systematic centralized control
Functions and Features
• LF-LCD-OS software system, high-definition dot-matrix LCD display, Chinese and English interfaces can be switched, simple parameter setting, and intuitive status display;
• Driven by high-quality and high-torque stepping servo motors, with precise speed, wide range, stable operation, and high-precision flow transmission;
• Industrial-grade mask button operation, simple and convenient, durable;
• LF-EasyChange universal design, large torque output, strong expandability, can match a variety of high-performance pump heads;
• It has basic functions such as start and stop, forward and reverse, full speed, speed regulation, and state memory;
• Parameters such as running time, intermittent time, and cycle times can be set to meet the needs of timing quantitative, liquid dispensing, and flow testing;
• It has the function of speed slow stop and suction back, which can effectively prevent the liquid from dripping when the machine stops;
• Has a key lock function to prevent misuse;
• Remote start and stop, speed regulation, timing operation and other operations can be realized through the Rev APP software, and it has monitoring functions such as shutdown alarm and pump tube replacement reminder (optional);
• Stainless steel 304 shell, effectively prevent the erosion of various organic solvents, easy to clean;
• The internal structure adopts a double-layer isolation design, and the circuit system is specially protected to effectively improve the dust-proof, moisture-proof, anti-corrosion and anti-oxidation performance;
• Super anti-interference characteristics, wide voltage design, suitable for complex power supply environment;
• RS485 communication, compatible with Modbus protocol, easy to connect with various control equipment;
• It can accept a variety of external industrial control signals to control start and stop, forward and reverse, and speed adjustment, with optocoupler isolation;
• Support start-stop, forward and reverse, current speed and other working status signal output;
• An external thermal printer (optional) can be connected to print the operating parameters in real time;
• It can be equipped with accessories such as foot switch, pulse damper and liquid leakage detector.
• Driven by high-quality and high-torque stepping servo motors, with precise speed, wide range, stable operation, and high-precision flow transmission;
• Industrial-grade mask button operation, simple and convenient, durable;
• LF-EasyChange universal design, large torque output, strong expandability, can match a variety of high-performance pump heads;
• It has basic functions such as start and stop, forward and reverse, full speed, speed regulation, and state memory;
• Parameters such as running time, intermittent time, and cycle times can be set to meet the needs of timing quantitative, liquid dispensing, and flow testing;
• It has the function of speed slow stop and suction back, which can effectively prevent the liquid from dripping when the machine stops;
• Has a key lock function to prevent misuse;
• Remote start and stop, speed regulation, timing operation and other operations can be realized through the Rev APP software, and it has monitoring functions such as shutdown alarm and pump tube replacement reminder (optional);
• Stainless steel 304 shell, effectively prevent the erosion of various organic solvents, easy to clean;
• The internal structure adopts a double-layer isolation design, and the circuit system is specially protected to effectively improve the dust-proof, moisture-proof, anti-corrosion and anti-oxidation performance;
• Super anti-interference characteristics, wide voltage design, suitable for complex power supply environment;
• RS485 communication, compatible with Modbus protocol, easy to connect with various control equipment;
• It can accept a variety of external industrial control signals to control start and stop, forward and reverse, and speed adjustment, with optocoupler isolation;
• Support start-stop, forward and reverse, current speed and other working status signal output;
• An external thermal printer (optional) can be connected to print the operating parameters in real time;
• It can be equipped with accessories such as foot switch, pulse damper and liquid leakage detector.
Specification
• Flow range: | 0.006～2900ml/min |
• range of rotation: | 0.1～600rpm |
• Speed resolution: | 0.1rpm (speed ≤ 100rpm), 1rpm (speed > 100rpm); speed accuracy error <±0.2% |
• Display method: | Window 77mm×32mm, monochrome 132×32 dot matrix LCD |
• Language interface: | Switch between Chinese and English |

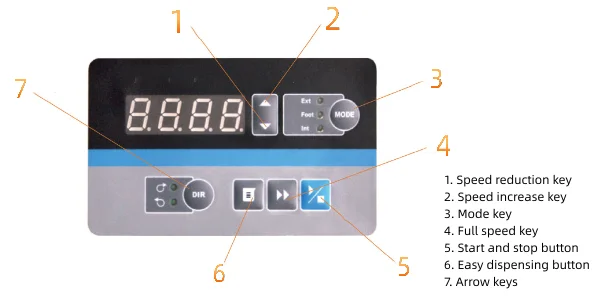

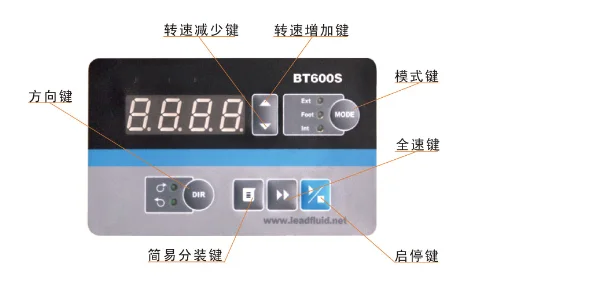

• Operation method: | Industrial grade mask button |
• Key lock: | Long press the direction key to lock, long press the start and stop key to unlock |
• Timing function: | Timing running time 0.1～999 seconds/minute/hour/day, intermittent time 0.1～999 seconds/minute/hour/day |
• Cycles: | 0~999 times (0 means infinite loop) |
• Suckback angle: | 0～720 degrees |
• External control signal input: | (1) Start\\Stop: passive contact, external control input level (5~24V) |
(2) Forward rotation\\reverse rotation: passive contact, external control input level (5~24V) | |
(3) Speed adjustment: analog 0~5V, 0~10V, 4~20mA can be set | |
• External control signal output: | (1) Start\\Stop: level signal (follow the input voltage) |
(2) Forward rotation\\reverse rotation: level signal (follow the input voltage) | |
(3) Speed status: analog 0~5V | |
• External control digital communication: | RS485, compatible with MODBUS protocol, DB15 external control interface |
• voltage: | AC100～240V, 50HZ/60HZ |
• Power: | ＜60W |
• working environment: | Ambient temperature 0～40℃, relative humidity＜80% |
• Degree of protection: | • Protection class: IP31 |
• physical dimension: | 264×150×270mm |
• Drive weight: | 5.5KG |

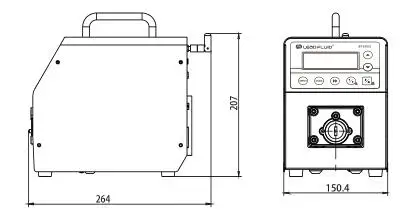

Dimensions (unit: mm)

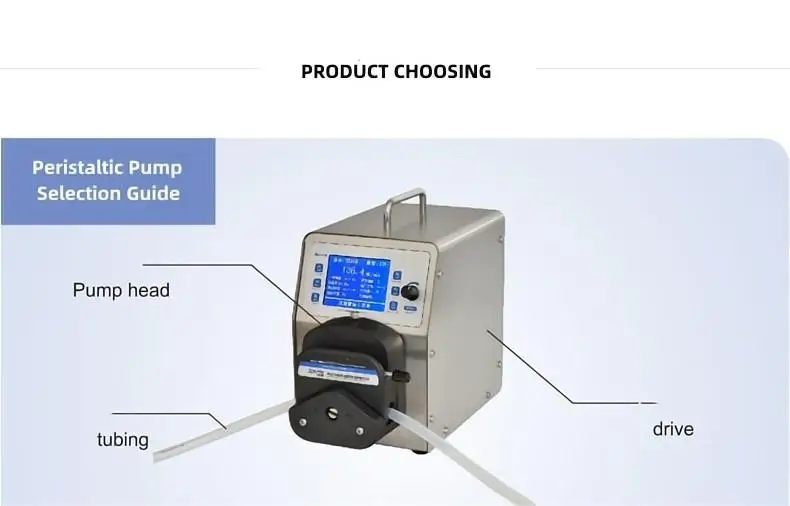

1、Determine the flow range and channel number you want to use to select the model of the pump head.
2、Determine the properties of the liquid you want to transfer, such as whether it has viscosity, whether it is corrosive, whether it has particles, flocs, etc., and is used to select the material and model of the hose
3. Determine the function and working mode you want to use to select the model of the drive.
Can be integrated with PLC to quickly complete equipment delivery and use

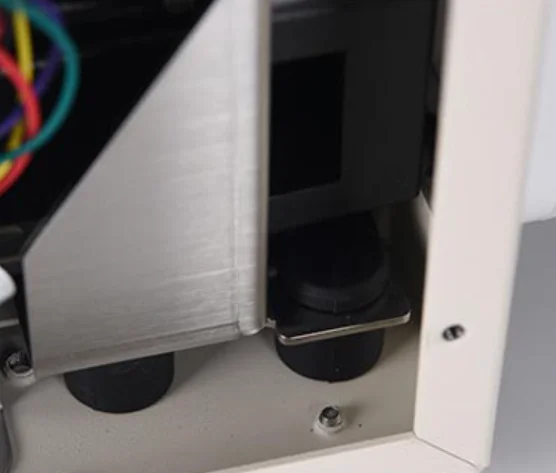

Soft rubber shock absorption technology, reduce motor vibration and greatly reduce noise
Perfect full service
Technical Support Customized service After-sales service shipment service
One-on-one technical guidance OME, drawing, etc. One year warranty and Professionals come to install
to solve technical problems to meet your actual needs lifetime maintenance and debug if necessary
for you around the clock
Product packaging
Machine packaging:
-Standard wooden case or carton.
- Both neutral and custom packaging are available.
Machine delivery:
- We can ship the goods to you by international express such as DHL, UPS, TNT, EMS, or you can choose the suitable one according to your schedule and budget. Additionally, you can choose to use your
move forward.
-Standard wooden case or carton.
- Both neutral and custom packaging are available.
Machine delivery:
- We can ship the goods to you by international express such as DHL, UPS, TNT, EMS, or you can choose the suitable one according to your schedule and budget. Additionally, you can choose to use your
move forward.
FAQ
We take every step strictly, modern management system and experienced gangs escort the quality, if necessary, welcome to inquire
