Product Overview
Description
small mobile boom lift
Product Description
Brief Introduction
Description

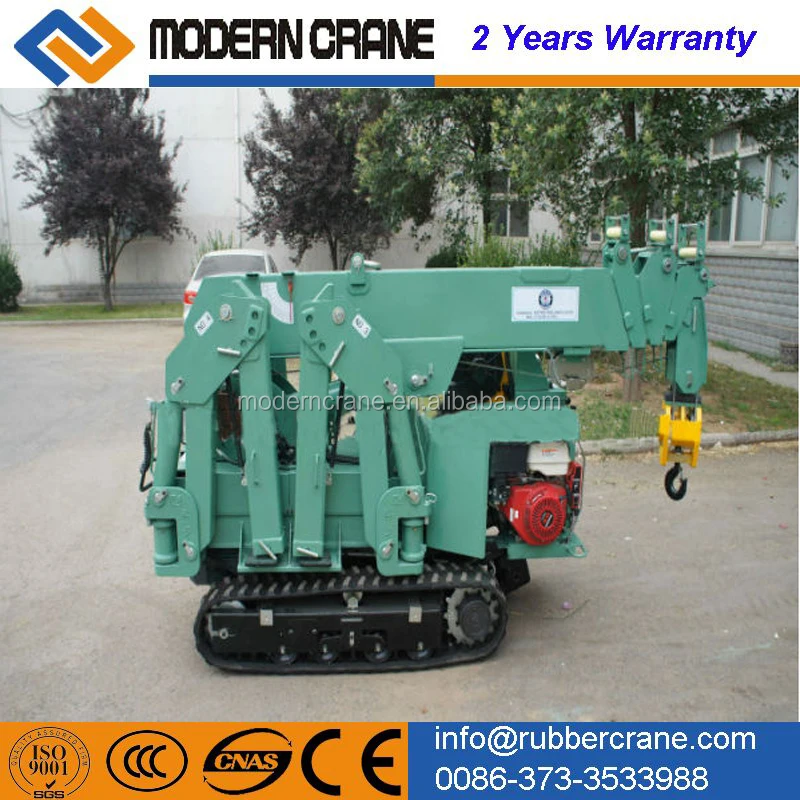

The URW-376 UNIC mini crane features a six section hydraulic boom to allow a maximum working radius of 14.45m. This mid-capacity spider crane can be controlled either from the onboard operator's seat or from a distance using a remote control. This spider crane has been used for a number of different applications, from forestry to the replacement of underground machinery.
- Capacity 2.9t x 2.5m
- Total width 1.3m
- Max working radius 14.45m
- Max boom length 14.61m
- Diesel powered and optional mains electric
- Zero length increase with electric option
- Operator control of outrigger extension
- Radio remote control as standard
- Working area limitation
- Slew limitation (optional)
- Intelligent throttle activation for economy and ecology

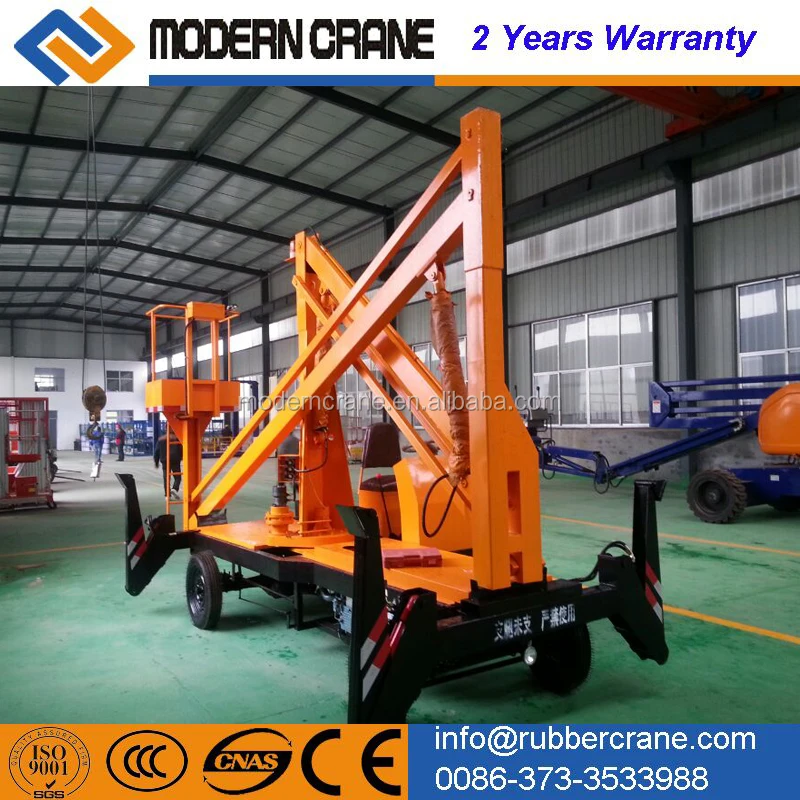

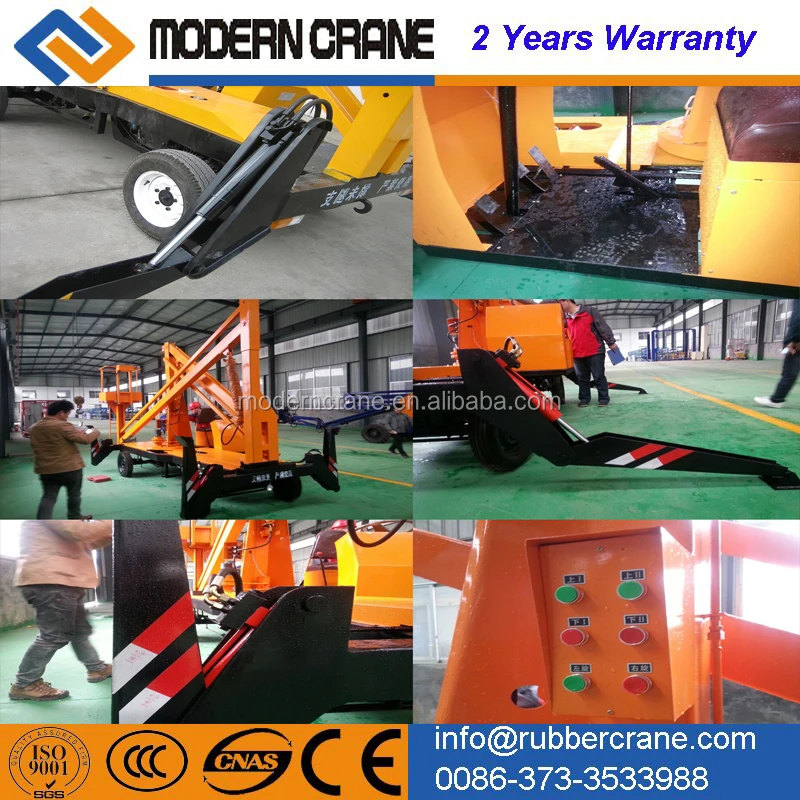

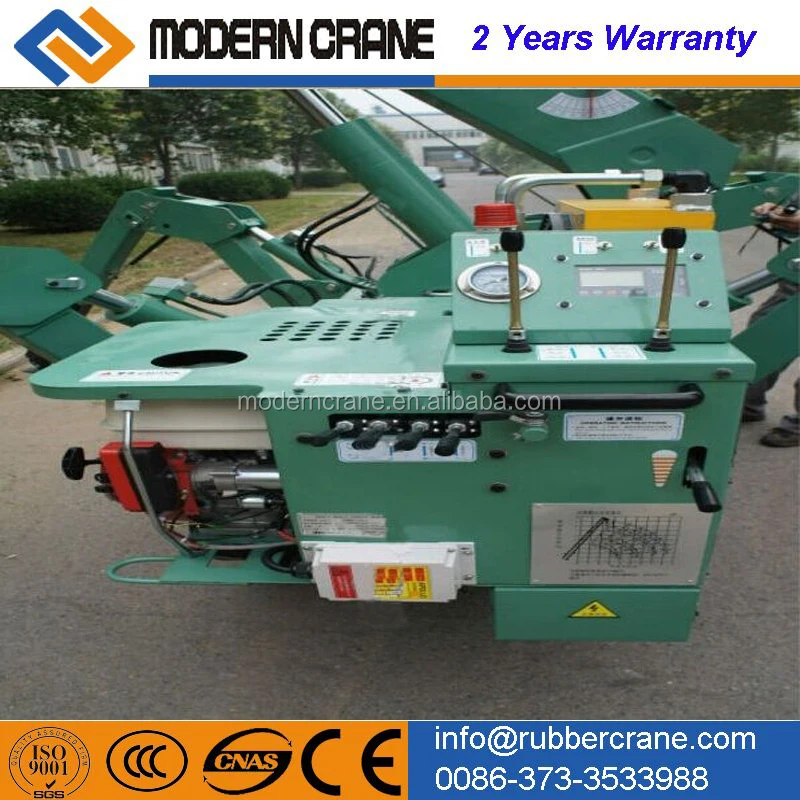

Picture Show
Parameters and data
mini hydraulic boom crane small mobile boom lift
Capacity | 2.95Tx1.3m | |
Working Radius | 8.3m | |
Ground Lifting Height | 9.2m | |
Winch device | Hook speed | 0-6.5m/min(4Times) |
| Φ7.7mm×45m | |
Telescopic System | | Full automatic 5 section |
| 8.92 m | |
Up and downs | Boom angle | 0°-75° |
Slew system | Slew angle | 360°continuous/1.0rpm |
Outrigger | | Automatic for the 1 section,manual adjustment for 2,3 section. |
Maximum extended dimensions | 3900mm×3750mm | |
Traction system | | Hydraulic motor driven |
Walking speed | 0-2.9km/ h 0-2km/h | |
| 1010mm×200mm×2 | |
| 20° | |
Ground pressure | 51Kpa | |
Hydraulic fuel tank capacity | 50L | |
| 2900mmx800mmx1450mm | |
| 2050Kg | |
Safety Devices | Air level,Moment limiter(Height limiter),Alarm Device,Emergency Stop Button | |
| Single hanging basket, Single fall hook,2-fall hook | |
|
| 2TNV70-PYU |
| 570ml | |
| 7.5KW | |
|
| |
|
| |
| 11L | |
| -15°C~40°C | |
| 12V 45Ah | |
|
| GX390 |
| 389.2ml | |
| 6.6KW | |
|
| |
|
| |
| 6L | |
| 0°C~40°C | |
| 12V 36Ah | |
|
| 4KW(380V,50HZ) |
|
| BOX1.1 |
| 100m | |
| IP-67 |
Produce progress
Packaging & Shipping
Electricals and other parts are packed by high quality plywood crates, Nude packed into container or as requirement.
Company Information
We Modern Crane Company is professional at cranes & hoists for over 10 years, our products cover cranes, hoist, winches and the end beam lifting accessories etc.
Hope we can have opportunity to cooperate with you.
Customer vists
Certifications
Certifications
Modern crane welcome your visit, hope to cooperate with you!
FAQ
In order to choose the suitable type crane for your need, please provide us the following data.
-Lift capacity? (Ton)
-Span(m)
-Lift height? (Meter)
-Power supply? Is 380V/50Hz/3P?
-Your nearest port?
-Lift capacity? (Ton)
-Span(m)
-Lift height? (Meter)
-Power supply? Is 380V/50Hz/3P?
-Your nearest port?
