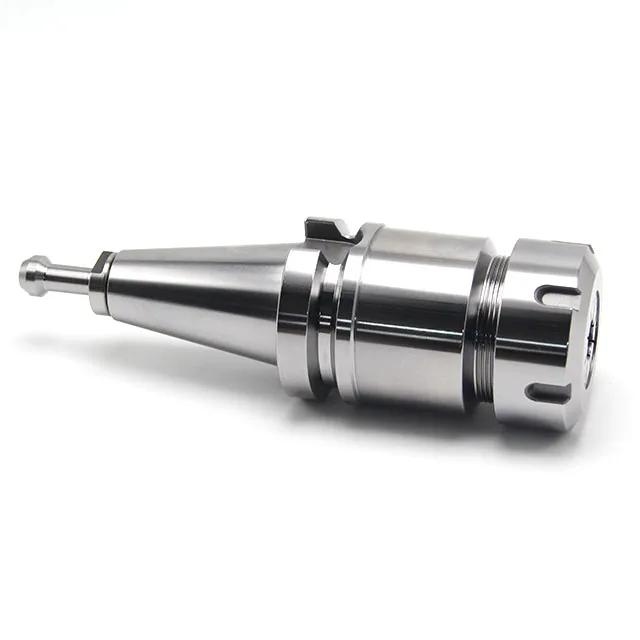

BT40 BT50 BT30 Lather collet chuck tool holder BT40 ER40 collet chuck lathe chuck
- Category: >>>
- Supplier: Dezhou Shengda Precision Tools Co. Ltd.
Share on (60335810498):
Product Overview
Description
Product Description
Direction for use
Product Name:
BT-ER Tool Holder
Condition:
Brand New
Material:
42CrMo Steel
Coating:
Quenching
D:28-78mm
D1:31.75-69.85mm
Color:Slivery White
Price Term:
FOB Price
Payment Method:T/T, PayPal, Alibaba Trade Assurance Payment
MOQ:
1 piece
BT-ER Tool Holder
Condition:
Brand New
Material:
42CrMo Steel
Coating:
Quenching
D:28-78mm
D1:31.75-69.85mm
Color:Slivery White
Price Term:
FOB Price
Payment Method:T/T, PayPal, Alibaba Trade Assurance Payment
MOQ:
1 piece
Description of application effect
1)Adopting 20CrMnTi matetial with Carburizing Process whch can enhance hardness and abrasion performance. So our products have a
longer service life than that of the others.
2) Section Processing after heat treatment which can improve concentricity precision.
3) Jumping Ontology<0.002mm, 4D Clamping tool<0.005mm.
4) Dynamic balance test for each product to ensure high quality.
longer service life than that of the others.
2) Section Processing after heat treatment which can improve concentricity precision.
3) Jumping Ontology<0.002mm, 4D Clamping tool<0.005mm.
4) Dynamic balance test for each product to ensure high quality.

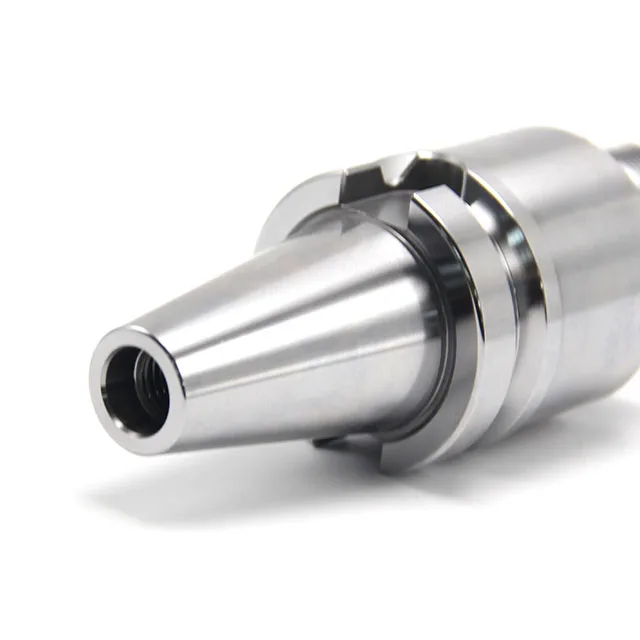

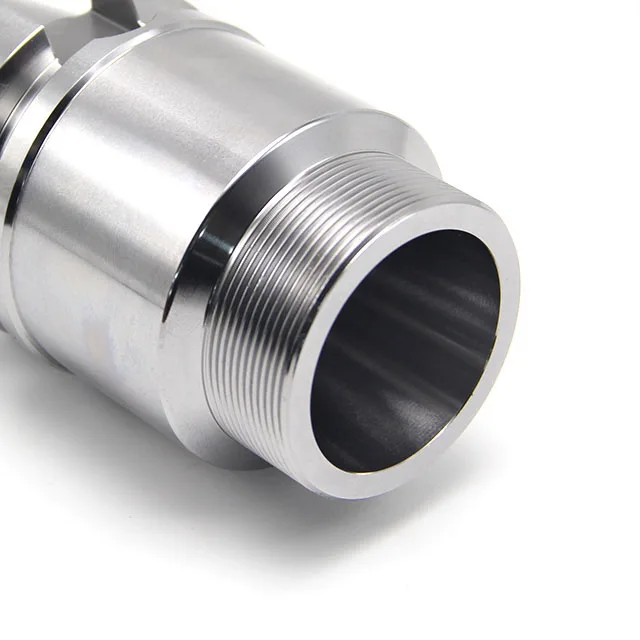

Screw thread in the Front of Shank . Accuracy of Thread is ±0.005mm.
Netted design at the end of shank: better balance, higher balancing factor, suitable for high-speed process.
Cryogenic Treatment : Increase the surface hardness, HRC50-53 degree.

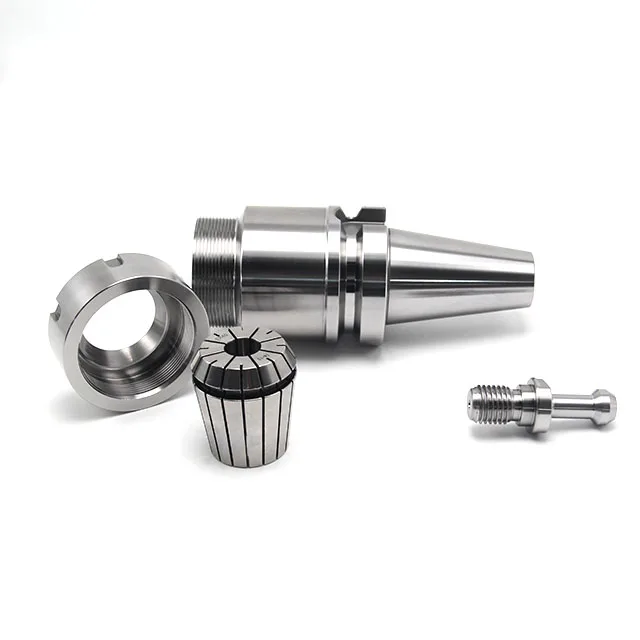

Combination of precision : Pull stud + tool holder + collets + end mills = 0.01
Netted design at the end of shank: better balance, higher balancing factor, suitable for high-speed process.
Cryogenic Treatment : Increase the surface hardness, HRC50-53 degree.
Combination of precision : Pull stud + tool holder + collets + end mills = 0.01
Details Images

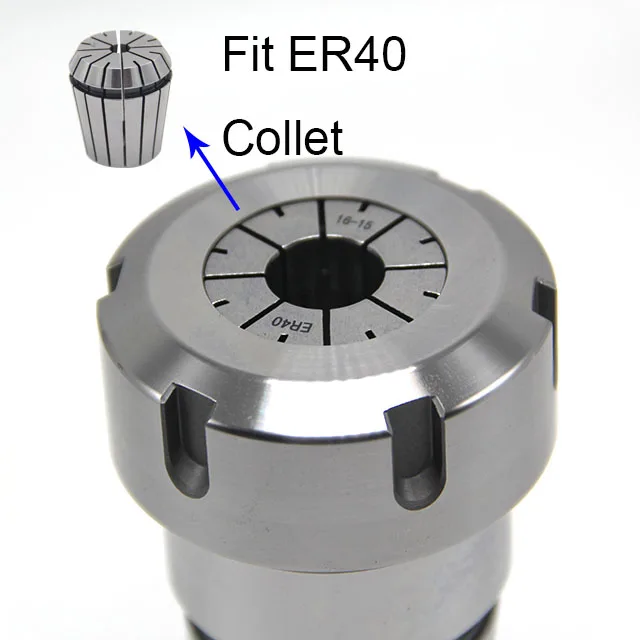

Fit Good Quality collet
Grinding process is adopted for the hollow slot of cylinder clamp, which is more suitable for high-speedmachining. The outer
circle and the end face can be grinded many times, reaching Ra0.4, which has a mirror effect
circle and the end face can be grinded many times, reaching Ra0.4, which has a mirror effect

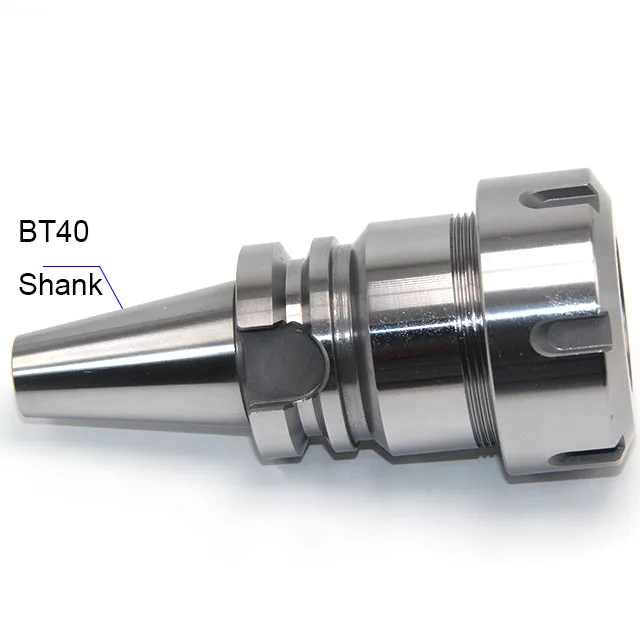

MAS403 BT40 Standard
Using high quality bearing steel, after heat treatment, quenching and tempering, cryocooler treatment, the hardness and toughness
of the product is improved, the clamping force performance is excellent;
of the product is improved, the clamping force performance is excellent;

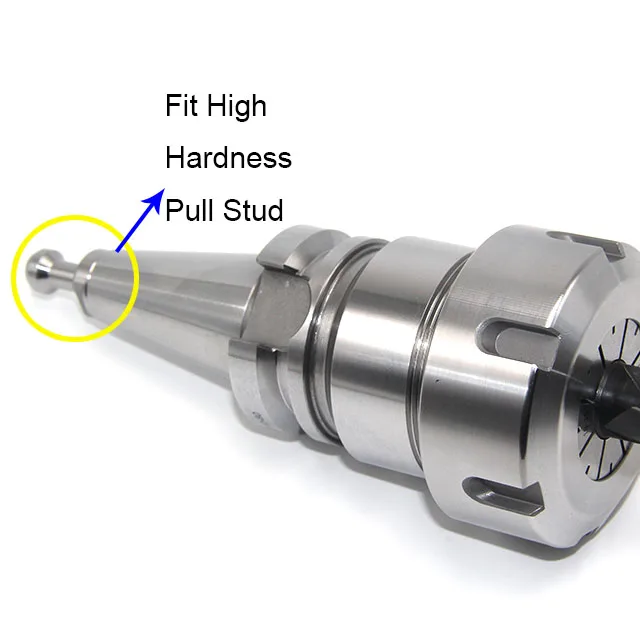

BT40 pull stud
At the same time, the collet elasticity has been improved
several times, greatly prolonging the service life of the product.
several times, greatly prolonging the service life of the product.

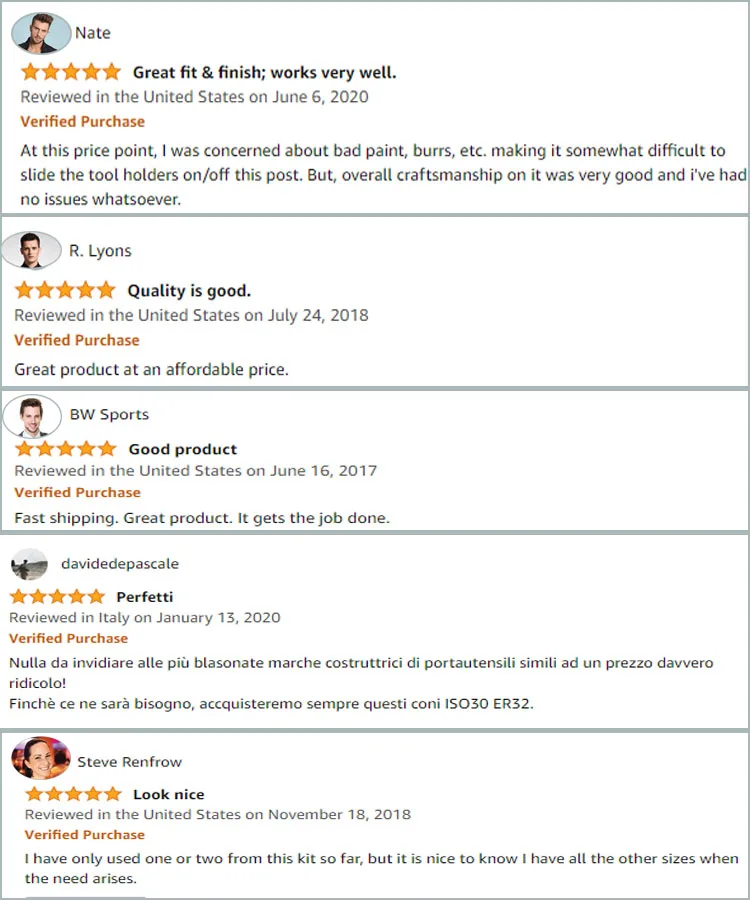

Good Review From Our Customers

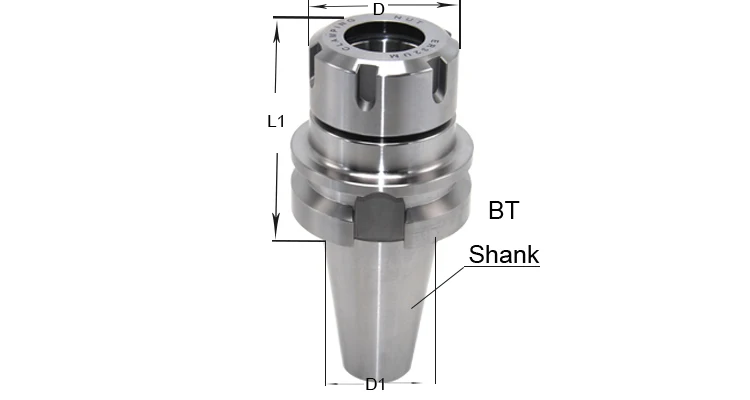

Size Information
Model | D | D1 | L1 | Clamping Range | |
BT30-ER8-100 | 13.5 | 31.75 | 100 | 1-5 | |
BT30-ER11-60 | 19 | 31.75 | 60 | 1-7 | |
BT30-ER11-100 | 19 | 31.75 | 100 | 1-7 | |
BT30-ER16-60 | 28 | 31.75 | 60 | 1-10 | |
BT30-ER16-100 | 28 | 31.75 | 100 | 1-10 | |
BT30-ER20-60 | 34 | 31.75 | 60 | 2-13 | |
BT30-ER20-100 | 34 | 31.75 | 100 | 2-13 | |
BT30-ER25-60 | 42 | 31.75 | 60 | 2-16 | |
BT30-ER25-100 | 42 | 31.75 | 100 | 2-16 | |
BT30-ER32-60 | 50 | 31.75 | 60 | 3-20 | |
BT30-ER32-100 | 50 | 31.75 | 100 | 3-20 | |
BT40-ER11-70 | 19 | 44.45 | 70 | 1-7 | |
BT40-ER11-100 | 19 | 44.45 | 100 | 1-7 | |
BT40-ER16-70 | 28 | 44.45 | 70 | 1-10 | |
BT40-ER16-100 | 28 | 44.45 | 100 | 1-10 | |
BT40-ER20-70 | 34 | 44.45 | 70 | 2-13 | |
BT40-ER20-100 | 34 | 44.45 | 100 | 2-13 |
Related Products
Packing&Shipping
Packing
The packing of the products should be wrapped in plastic transparent packing bags,and the packed onto cylindrical plastic buckets or paper boxes.
We can laser mark your logo and pack according to your requirement.
We can laser mark your logo and pack according to your requirement.
Shipping
1. FedEx/DHL/UPS/TNT for samples,Door-to-Door.
2. By Air or By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Goods have in stock will be sent out directly,but customed need to 2-3 weeks for delivery.
2. By Air or By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Goods have in stock will be sent out directly,but customed need to 2-3 weeks for delivery.

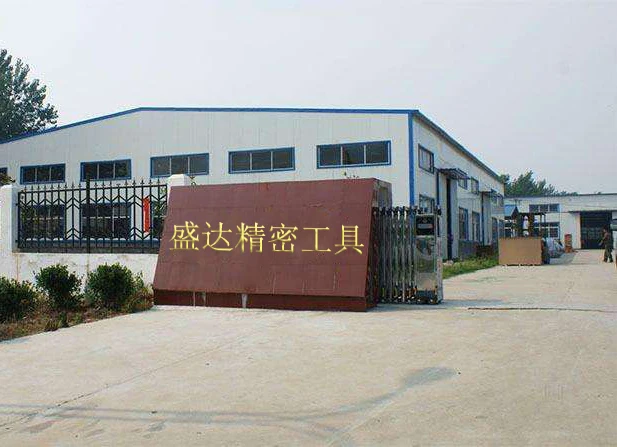

Company Introduction
Dezhou Shengda Precision Tools CO.,LTD. hammers at investigation exploitation, manufacturing, selling of cnc machine tools accessories for more than 15 years. The main
products include: ER, SK , OZ , R8, 5C and other series spring collets, BT tool holder, DIN69871 SK tool holder, ISO CAT HSK MS
cnc tool holder and R8 Shank milling chuck and other machine tools accessories. Company also undertakes customized processing
business and owns import and export rights. The products are exported to the United States, Germany , Italy, Britain, Spain,
Southeast Asia and other company and regions, winning the good public praise.
Relying on the advanced production and testing equipment, following the scientific management concept, our company actively keep
to offer the good quality products to serve all customers
products include: ER, SK , OZ , R8, 5C and other series spring collets, BT tool holder, DIN69871 SK tool holder, ISO CAT HSK MS
cnc tool holder and R8 Shank milling chuck and other machine tools accessories. Company also undertakes customized processing
business and owns import and export rights. The products are exported to the United States, Germany , Italy, Britain, Spain,
Southeast Asia and other company and regions, winning the good public praise.
Relying on the advanced production and testing equipment, following the scientific management concept, our company actively keep
to offer the good quality products to serve all customers
Our Services & Strength
1. We can offer you the sample to check our products , if the products are not what you are looking for , please give me your
detail requirement .
2. If you have any questions , please contact me at any time . I will reply you as soon as possible .
3. We also undertake proccessing all kind of CNC machine tools accessories with your requirement .
detail requirement .
2. If you have any questions , please contact me at any time . I will reply you as soon as possible .
3. We also undertake proccessing all kind of CNC machine tools accessories with your requirement .
FAQ
1.What’s your delivery time?
If a case of stock, generally within two or three days for delivery arrangement.Others require custom need 5-20 days.
2.Do you have MOQ?
Yes, we do. Our MOQ is 10 pcs. Set product’s MOQ is 5 sets.
3.What’s your payment way?
T/T, L/C, Paypal, Western Union. For keeping safe , you’d better
Choose trade assurance on alibaba.com.
4.Could you undertake customized?
Yes, we could. But we need your supply drawings or samples.
5.Where do you export?
Our products are mainly exported to United States, Italy, Germany, Britain, Spain, South Asia and other countries.
6.Are you factory or Trade Company?
We are one of the trade and Industry.
7.How to control the quality of your product?
Our products meet the standard of ISO9001, We have our own perfect testing equipment and sophisticated detection personnel.
8.What’s your package?
Plastic bay + packing box. Set product have special kit box.
9.Can you provide a sample?
Yes, we can.
10.How about the quality of your products?
Our company carries our “the quality first, the goods faith for this purpose”, reply on advanced productions technology and
equipment, follow the scientific management concept, and strive to provide qualified perfect products for client.
If a case of stock, generally within two or three days for delivery arrangement.Others require custom need 5-20 days.
2.Do you have MOQ?
Yes, we do. Our MOQ is 10 pcs. Set product’s MOQ is 5 sets.
3.What’s your payment way?
T/T, L/C, Paypal, Western Union. For keeping safe , you’d better
Choose trade assurance on alibaba.com.
4.Could you undertake customized?
Yes, we could. But we need your supply drawings or samples.
5.Where do you export?
Our products are mainly exported to United States, Italy, Germany, Britain, Spain, South Asia and other countries.
6.Are you factory or Trade Company?
We are one of the trade and Industry.
7.How to control the quality of your product?
Our products meet the standard of ISO9001, We have our own perfect testing equipment and sophisticated detection personnel.
8.What’s your package?
Plastic bay + packing box. Set product have special kit box.
9.Can you provide a sample?
Yes, we can.
10.How about the quality of your products?
Our company carries our “the quality first, the goods faith for this purpose”, reply on advanced productions technology and
equipment, follow the scientific management concept, and strive to provide qualified perfect products for client.
