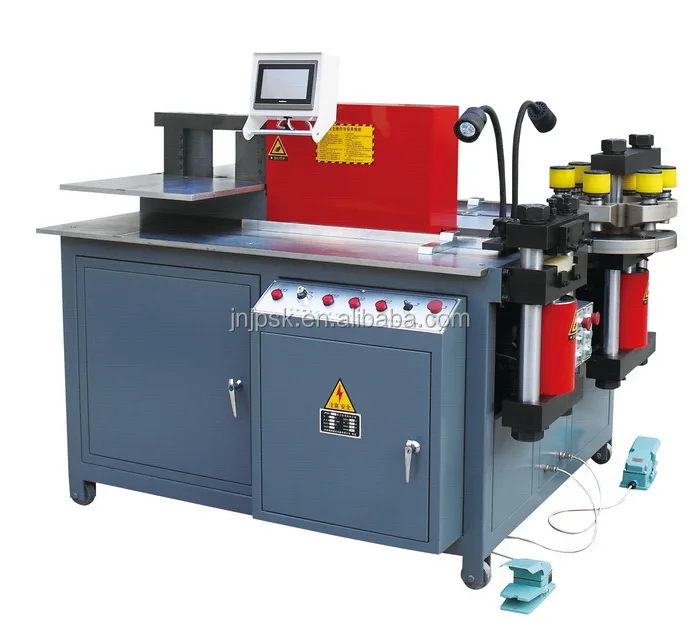

Jingpeng brand CNC 3 in 1 Copper bus bar bending punching cutting machine
Jingpeng Care for your switchgears
Busbar machine Innovation Learder
We are Busbar Machine Factory ,"Jingpeng" brand have Been in Busbar machine Area for ten years .
Product Description
This series Max.Width 150mm ,thickness 12mm CNC Copper bus bar processing machine has three units:punching, shearing and bending.It is easily to adjust each unit to shorten the processing time and improve the production efficiency.
CNC Type: PLC Control
Work Unite:
Bending cutting punching independently .
Metal Processed on :
Brass/Copper and Alumimum Busbar.
Functions:
1. bending at vertical and horizontal direction.
2. punching for round and oblong hole.
3. cutting busbar.
4. special for embossing, knurling, twisting, cable joints pressing.
Technical Parameters
Parameters Of Busbar bending cuting / Shearing Punching Machine
| Function | Item | MODEL | |
| JPMX-303ESK | JPMX-503ESK | ||
| Punching | Max. Punching Force (KN) | 300 | 500 |
| Punching Diameter Range (MM) | Ø4.3-Ø25 | Ø4.3-Ø34 | |
| Max. Thickness (MM) | 12 | 16 | |
| Max. Width (MM) | 160 | 200 | |
| Shearing/Cutting | Max. Shearing Thickness | 12 | 16 |
| Max. Shearing Width (MM) | 160 | 200 | |
| Honrizental Bending | Max. Bending Force (KN) | 300 | 500 |
| Max. Thickness (MM) | 160 | 200 | |
| Max. Width (MM) | 12 | 16 | |
| Vertical Bending | Max. Width (MM) | 100 | 120 |
| Max. Angle (Degree) | 90° | 90° | |
| Out Dimension | MM | 1870*1480*1520 | 2060*1660*1650 |
| Power | KW | 3*4kw | 3*5.5kw |
| Weight | KG | 1400kg | 1700kg |
| CNC Precision | Bending Precision | ±1° | ±1° |
| Repeat Bending Precision | ±0.5° | ±0.5° | |
Main Features:
1. The cut surface is smooth and neat, no droop, no burrs, no waste
2. Rotary turret punch unit installed 6 dies, less replacing, high efficiency
3. More work space added by double work table, three work positions can be used at the same time.
4. Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree
5. Easily to be moved with four castors
6. Manual button and foot switch are optional
7. Adjustable working stroke
8. on users requirement, special mold for special shape
Detail Pictures
How does Busbar machine finish Bending Cutting Punching :

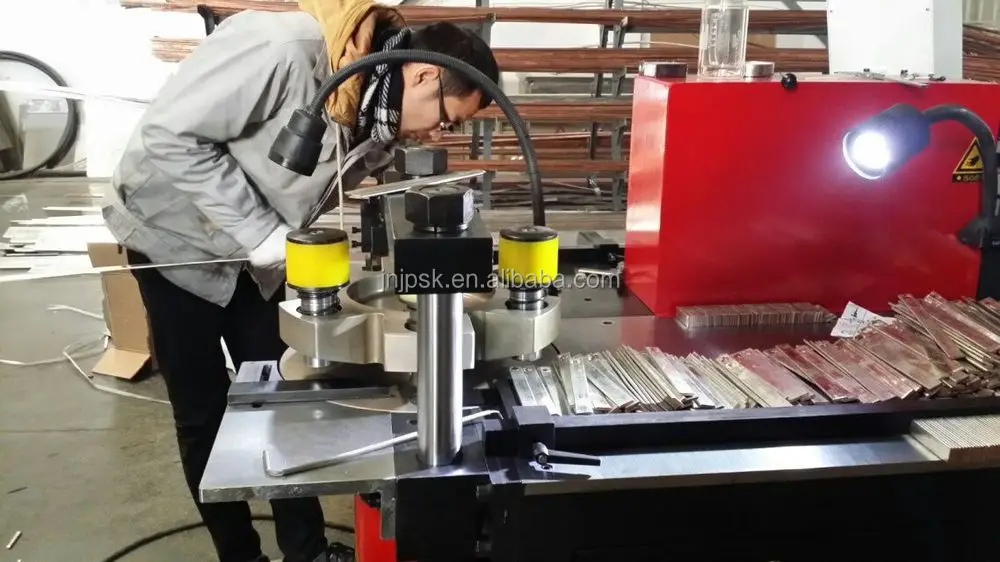

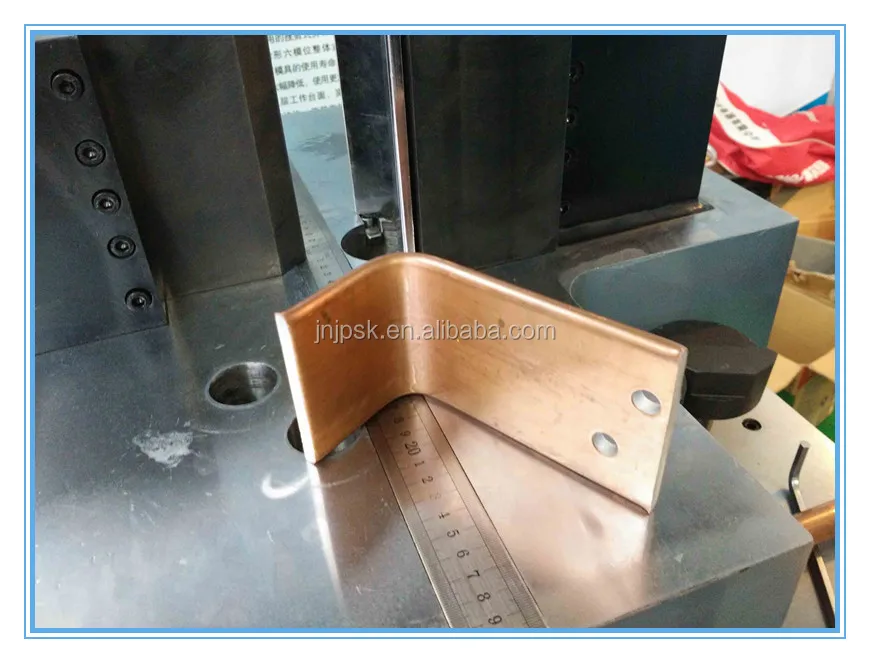

Busbar bending Process
Busbar Cutting/Shearing Process

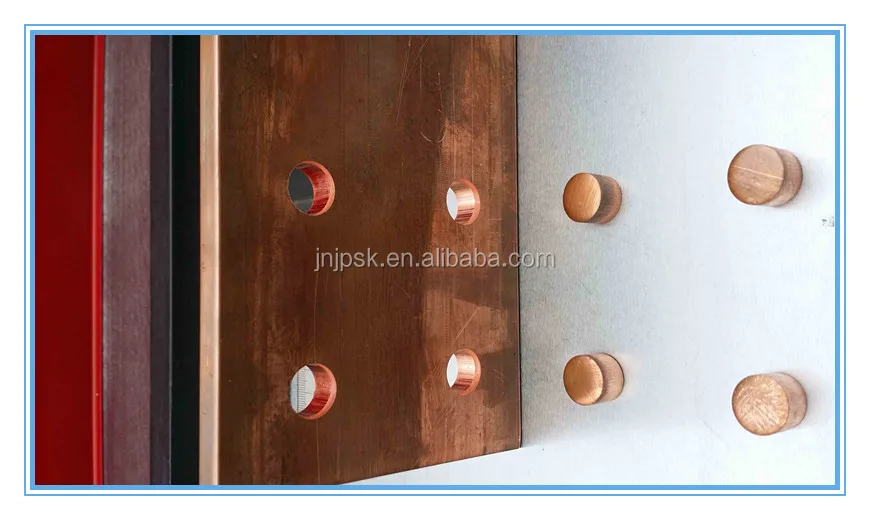

Busbar Punching Process
Accessories:
8 sets of punching die. (Ø7, Ø9, Ø11, Ø13, Ø15, Ø17, Ø13 * 18, Ø17 * 21 or as per customer's requirement)
1 set of shearing die
2 sets of horizontal bending die
2 sets of vertical bending die
1 set of embossing die
1 set of U bending die
1 set of oil filler
1 set of tool for die installing
3 sets of foot switches
1 set of hydraulic system sealing ring
2 pieces of Limit Switch
1 piece punching location pin.

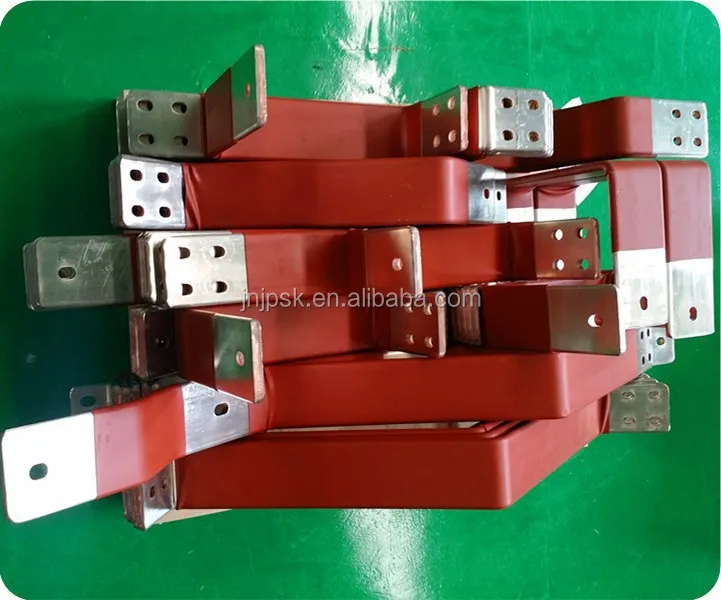

Samples:
Application Area:
Switch cabinet, electric control panel manufacturing , high low voltage switchgear, eletric transformer station,Electric panel ,voltage transformer,appliance swich,ship manufacturing,electric elevator manufacturing,electric cabinet manufacturing , Power distribution system product maufacturing.

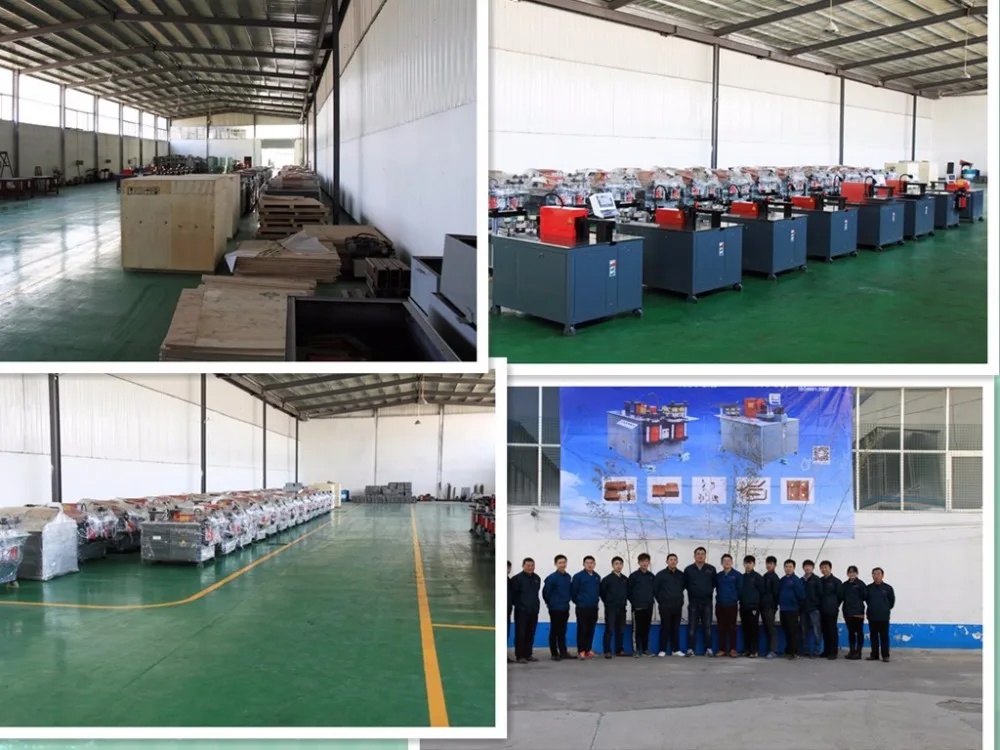

Our Factory :
Packaging & Shipping
The Packing of Busbar bending machine is plywood case .
Our Services
Our advantage:
1. Warranty : one year guarantee for whole machine ( not including spare part)
3. Our PLC are from Siemens.
Our thermal relays, AC contactors, circuit breakers are from Schneider.
4. We are factory. we can do OEM as per clients request.
5. We have strong after-sales services team and professional technicians who can gurantee
professional guidance after sales.
6. With Certification of CE&ISO 9001 .
Certificate : CE & ISO 9001
Team Work:
FAQ
1. What is your payment terms:
30% TT as deposit, balance be paid when goods are ready for loading before shipment.
2. What is your delivery time?
Usually within 15-20 days after the deposit.
3. What is your power supply?
We will adjust according to your countries power supply. No problem.
4. What is the language of the manual and instructions on machine ?
All in English language .
