Product Overview

Description

Excellent design wind solar hybrid charge 12v 24v mppt controller 300w







PRODUCT mppt controller 300w

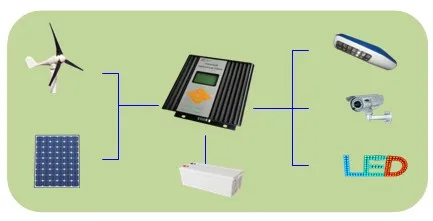

MPPT Wind solar hybrid street-lighting controller is the firstly apply MPPT technology for the small power wind generator in china. With the application of this technology, the charge efficiency has vastly improved under the situation of low-wind , and obvious exceed the traditional PWM charging mode of 30% .Solved the charging efficiency of the low-power wind generator. Especially apply to the horizontal and vertical low-power wind generator of 200W to 600W.Meanwhile,the advanced wind/solar hybrid controller has functions of electricity backup, data communication and so on. This controller has strong compatibility and a great many functions, And many years, practice has proved it has high reliable and stability. It can be used to the street lighting, monitoring system ,outdoor advertisement, and home user and so on.





PERFORMANCE FEATURES of 12v 24v mppt controller 300w

l  MPPT technology, maximum power point tracking method to optimize using the wind energy.

l  Boost circuit designed. Start charging on 10VAC(24V system);6VAC(12V system). User can set this voltage parameter.

l  12V/24V System Automatic Recognition function.

lBe able to use for 200W-600W wind turbine with high compatibility.

l  Digital design,module structure, stable and reliable

l  With perfect protection, such as over-charge, over-discharge, open circuit, anti-reverse connection, overload, short-circuit, PMG over speed brake, over current brake, solar anti-reverse charging on night .

l  Dual-line output, light sensor and timer functions, morning lighting, constantly output 24hours.

l  User can adjust setting of system parameters as voltage protection point, boost voltage, light sensor voltage, timer. and so on.







System Capability
Rated wind-turbine Power	200W to 600W
PV Max. power	150W / 300W
Rated battery voltage	12V/24V Auto configuration
Output current Max.	10A
Output power Max.	120W / 150W
Indication	LED or LCD
Performance
static power consumption	≤ 30mA (LED); ≤ 80mA (LCD)
Data-transfer	RS232 to RS485,RJ45 converter
Operating temperature	-35°C to +55°C
Store temperature	-35°C to +80°C
Humidity	10% - 90% (NC)
Temperature compensation	-35mV/°C (25°C ref.)
Altitude	≤5000 meter
Protection class	IP55
Net-weight	1.3 kg
