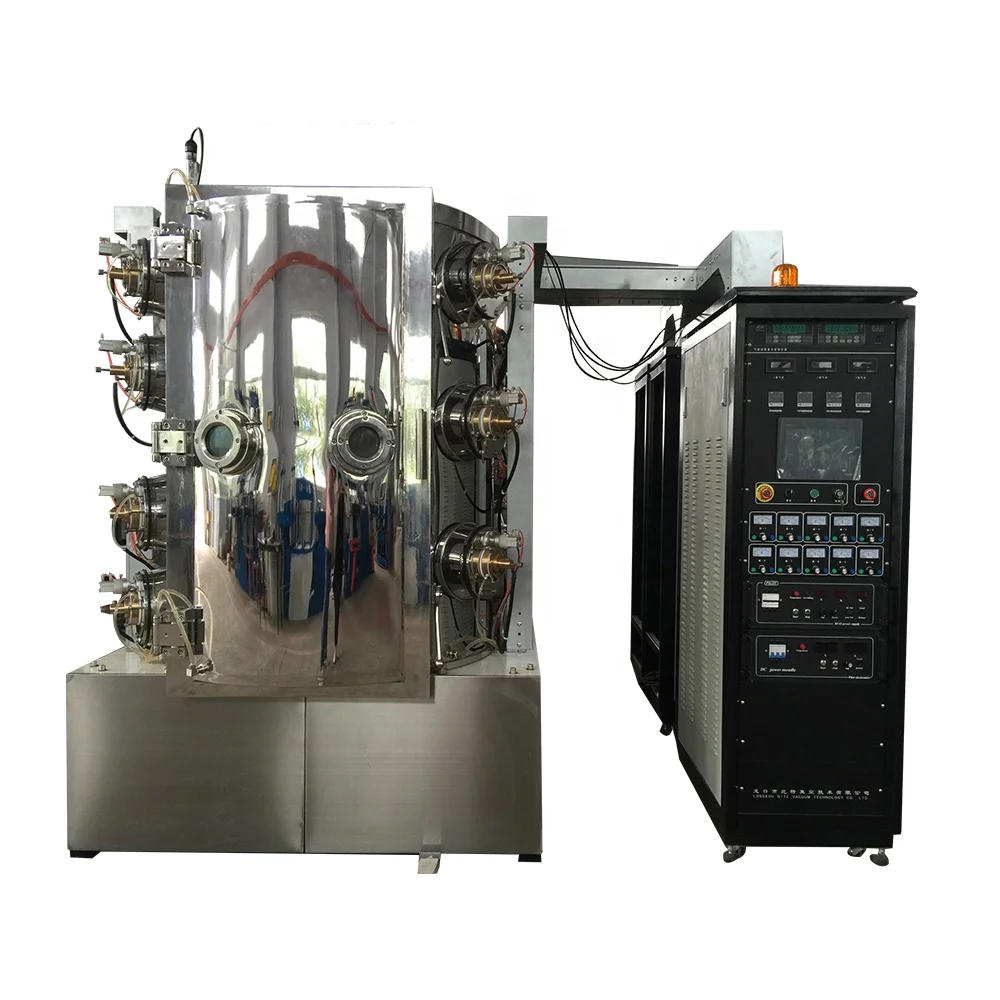

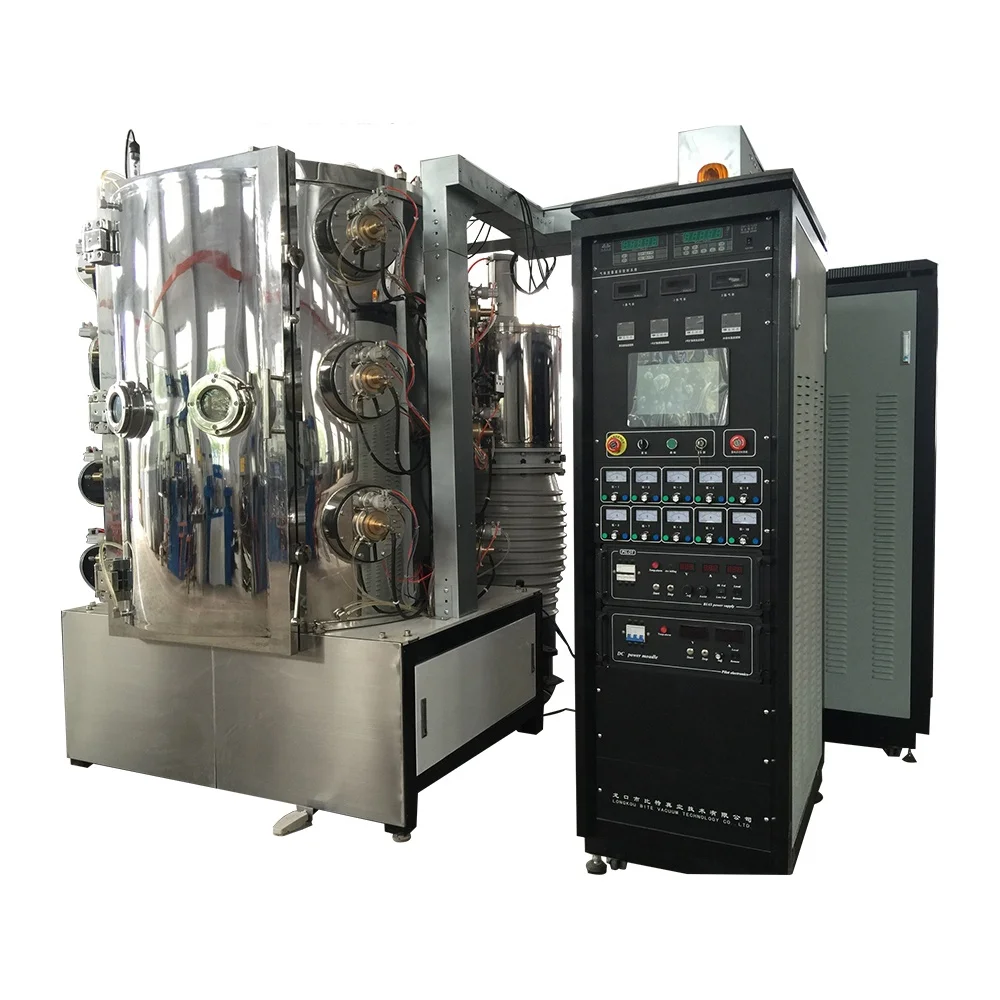

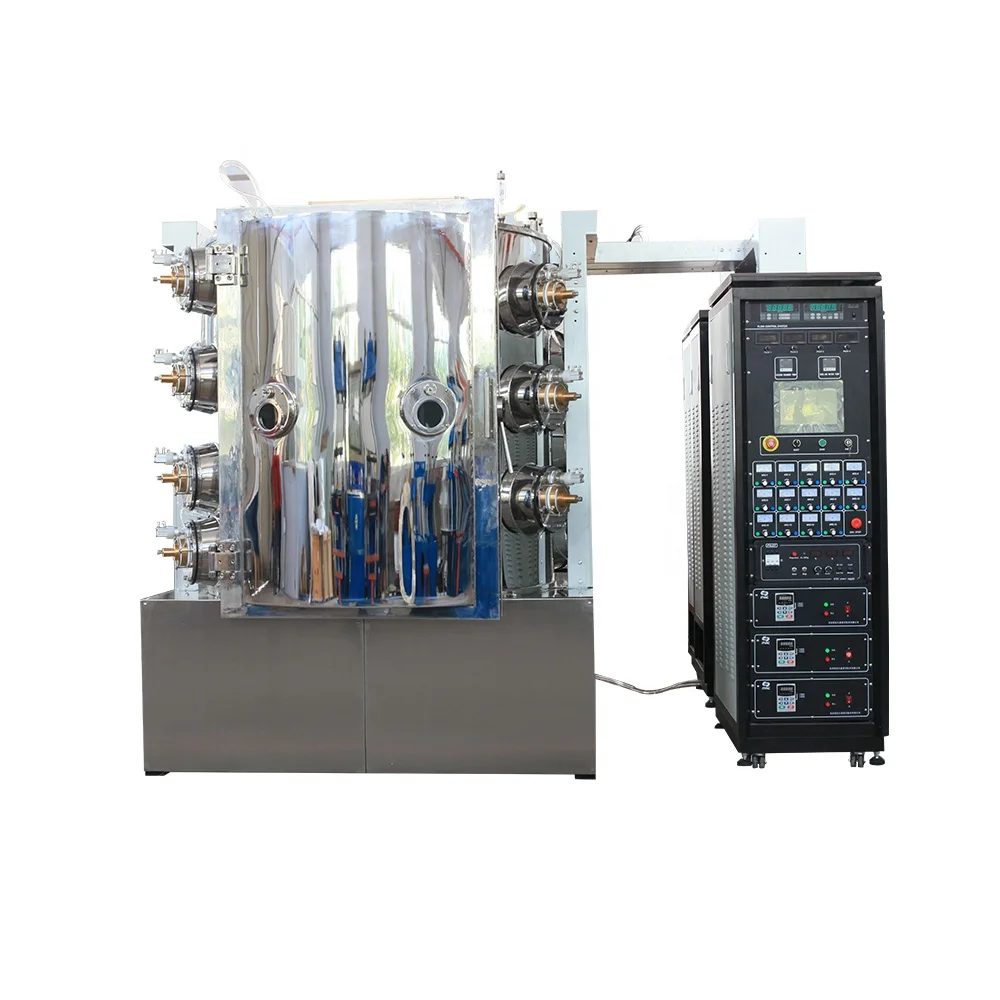

gold color pvd plating machine /PVD stainless steel zipper vacuum coating equipment

Product Overview

Description



 Also you can add my other online chatting ways:

QQ:1358544345     wechat:pili888

TEL (whats App): +86-15098573886

mail:bitevacuum(at)aliyun.com





PVD Stainless Steel Zipper Vacuum Metalizing Plating Machine Equipment



Advantages of this machine(vacuum PVD coater):

1) Simple visual interface for the operator, process control system runs on Windows system interface and easy to use
2) Vacuum pump system efficiency,  which increases productivity due to shorter batch times
3) High performance layer monitoring system is equipped for enhanced production result
4) Automated work cycle, which requires less workers per shift and training time, low production cost

5) Repeatable and reliable coating

6) Safter and Environmentally-friendly process guarantee

7) Highest yield

Coating properties:

• Excellent layer properties

• Longer lifetime

•  Smooth surface
• Many bright, metallic colors, decorative or functional
• Excellent scratch protection



Machine Outfit:

The chamber diameter of this series is 1800-2300mm, and height is 3600-4400mm, With three sets of large power vacuum pumping systems, high pumping speed, short cycle time; With  pieces of round arc targets, they are installed reasonable, at the same time, equipment is equipped with pulsed bias system, which make the adhesion of coating strong, color of coating uniform.

 Touch screen + PLC control achieved full automatic of equipment, manual and auto can be switched any time, which make machine reliable and easy operation.



Coating Colors: The colors of this equipment can do are gold, silver, brown, black, rose gold, coffee, rainbow and blue ect decorative coatings.



Application:  And it’s widely used in metals, furniture, lights, hardware, car parts and aircraft industry ect





Machien Technical Parameter:



	Parameters	Model No.	Quantity
The structure of the vacuum chamber	Vertical front door , Double or cooling tank cooling
dimension of vacuum chamber	900×1000		1
pumping speed	1×105Pa~3×10-3Pa≤15min
limit vacuum	≤8×10-4Pa
system form a complete set	Maintaining the pump	2X-15	1
	Mechanical pump	2X-70	1
	Diffusion pump	KT-500	1
	roots-type pump	ZJP-300
workpiece system	Rotation of the planet forms(8 roating shaft, since the amount)		8
heating methods	Edge installation of stainless steel heating tube		4
ion bombardment	20KW inverter bias	PLS-20KW	1
Arc target	40-200A adjustable	TIG-250	3
magnetron target amount	one plane target or Cylindrical target		2
Magnetron power	30KW IF power	MF-30KW	1
working methods	PLC semi-auto control or PC+PLC auto control
working gas	Ar N2 O2
total power	40KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself)





We can also finish to coat:

Bright and firm finish

Anti-corrosion and oxidation









Packing/Loding/Shipping

Always On Time Delivery

Professional packaging for export in case damage duiring shiping

Wooden packing, Carton packing or customized
