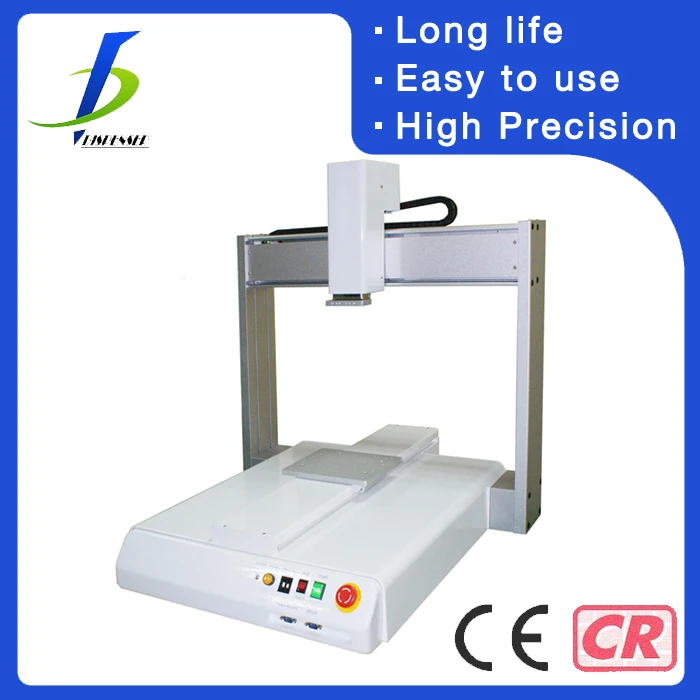

long life easy to use automatic thermal paste dispensing robot

Product Overview

Description

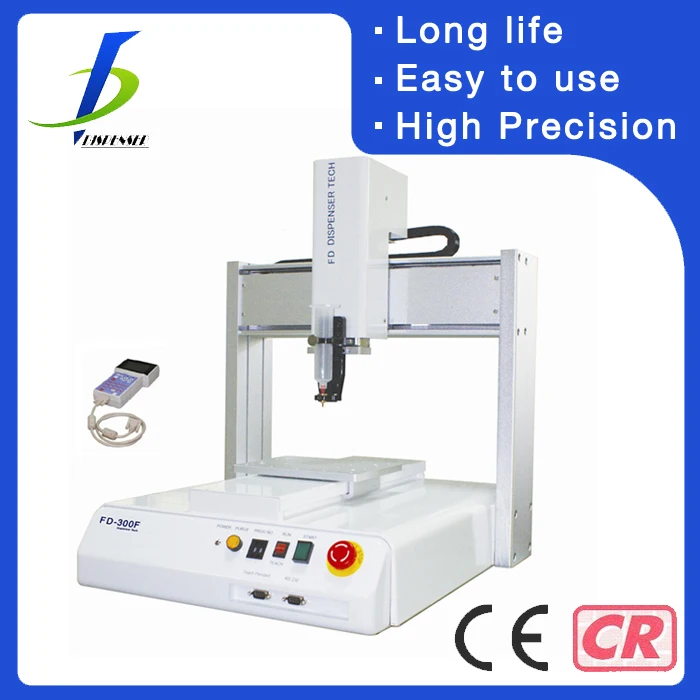

 Model number: FD-300F





















































































Model number: FD-400F

 Model number: FD-500F

Applicable fluid
Silica gel, EMI conductive adhesive, UV glue, AB glue, fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, etc.







Automatic Glue Dispensing Machine/Plastisol Dispensing Robot/UV Glue Dispenser , FD Dispenser company more than 8 years only specialized in glue dispenser robot and all the parts of dispenser products PC controll dispenser robot promotion, accept PC commanda will be more best solution for dispenser robot



Models	FD-200F	FD-300F	FD-400F	FD-500F
Working Range X/Y/Z(mm)	200/200/50	300/300/100	400/400/100	500*500*100
Load Y-AXIS / Z-AXIS	5 kg / 3 kg	10 kg / 5 kg
X&Y / Z (mm/sec)	0.1-500/250	0.1-600/300
Resolution	0.001 mm/Axis
Repetitive Positioning Accuracy	+/- 0.01 mm/ Axis
Program Capacity	100 Programs,4000 points/program
Program Display	Teach Pendant LCD
Motor System	Micro stepping motor
Control Method	PTP & CP
Interpolation Function	3 axis ( 3D )
Programming Method	Teach Pendant
I/O Signals Port	8 Inputs / 8 Outputs
External Control Interface	RS232
Power Supply	AC110 ~ 220V 300W
Working Temperature	10 - 40 'C
Working Relative Humidity	20 - 90% no condensation
Dimensions (WxDxH mm)	385 x 370 x 500	485 x 500 x 600	585 x 600 x 600	685 x 700 x 600
Robot Weight (kg)	23 kg	32 kg	40 kg	45 kg

Features
*The popular robot in FD series robots
*Dispensing Area 200 X 200 X 100 ,300 X 300 X 100 and 400x400x100, 500*500*100 mm
*Dot, Lines, Arc etc. and 3D dispensing path is available.
*100 programs, 4000 points per program
*A hand-held Teach Pendant is provided for simple and intuitive programming functions
*SRE software is available for CAD file input (optional)

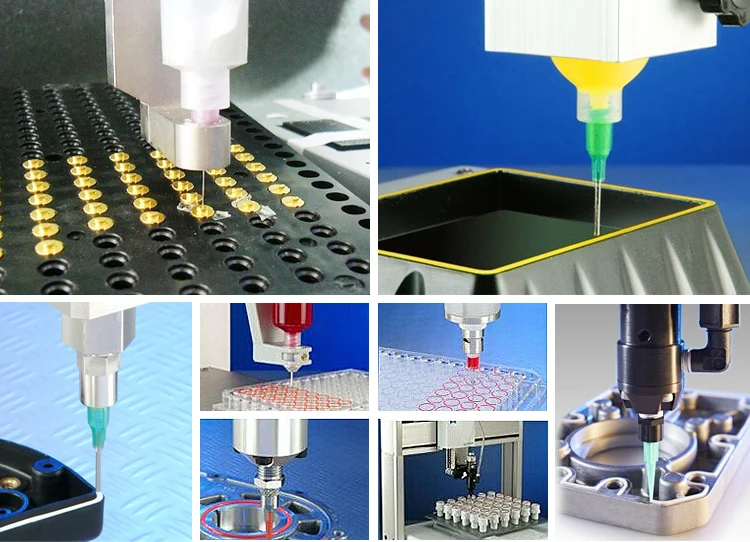

*Apply adhesives, cyanoacrylates, silicone, RTV, anaerobic resin, epoxy, UV cure formulations and many more fluids.
*Every robot will be with one small dispenser controller TS9150,tips barrels etc as full unit
*OEM/ODM service.

*2 Year warranty

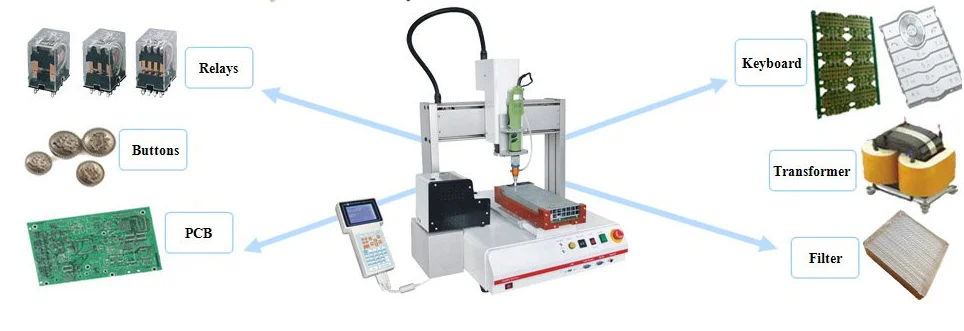

Robots provide precise control over adhesive placement, from exact beads, to repeat timed dots or potting of components. Programming is simple via a teach pendant. Even complex patterns can be created quickly. Storage is to internal flash memory allowing for up to 255 programs to be created. High speeds are achieved reducing time spent hand applying adhesives. Accuracy of placement and volume of fluid ensures zero waste, mess and error. Our robots will dispense most materials including adhesives, pastes, epoxies, gels, silicones, sealants, RTV's, grease, anaerobics, cyanoacrylates, inks and lubricants.

FD Dispenser CO.,LTD is a Top leading dispenser manufacturer in the global market. the products line include dispenser,robot dispenser, dispenser tips,barrels adapter.valve.pressure tank,mixer tube and specialized dispenser accessories as every customer demand. we have very good global marketing net and self shipment way to bridge with all the customers as neighbor.

From Establish of the dispenser supplier in 2007. all the FD staff alway in the standard of the customer solution. Quality control and Credit service are basic rule and the life for every person of FD Dispenser company.to progress and make good brand of FD is the aim forever

If you are looking for professional supplier of liquid control and dispensing equipment with creativity, advanced technology and rich experiences. believe FD will be behind of your forever base on our motto "Good quality","reasonable price"and "credit service" .





For more detailed information, pls feel free to contact us.We will for your fast and professional service ! send us a message below
