HTV silicon rubber insulator making machine 600 ton/800x800mm platen
- Category: >>>
- Supplier: Hengyang Huayi Machinrery Co. Ltd.
Share on (60336150205):
Product Overview
Description
Our Services

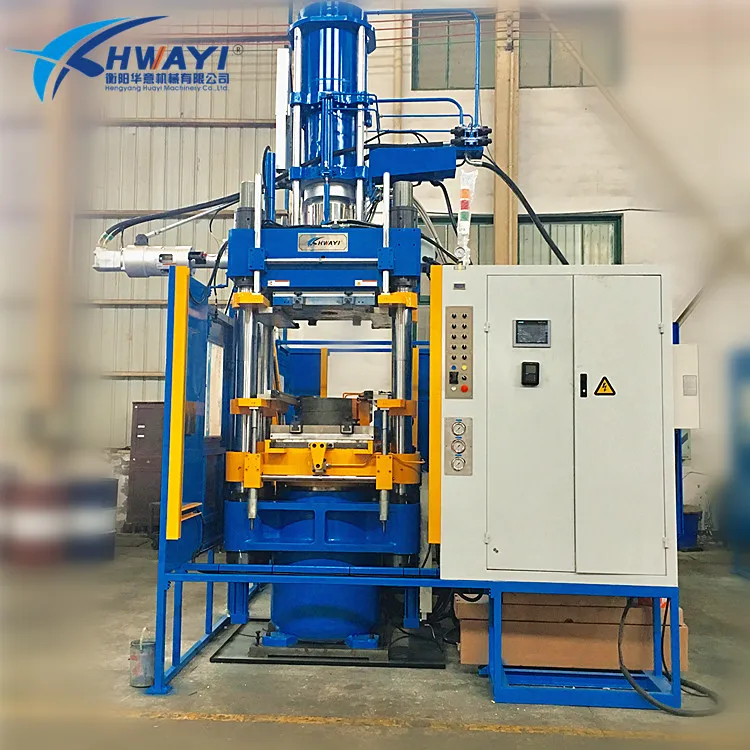

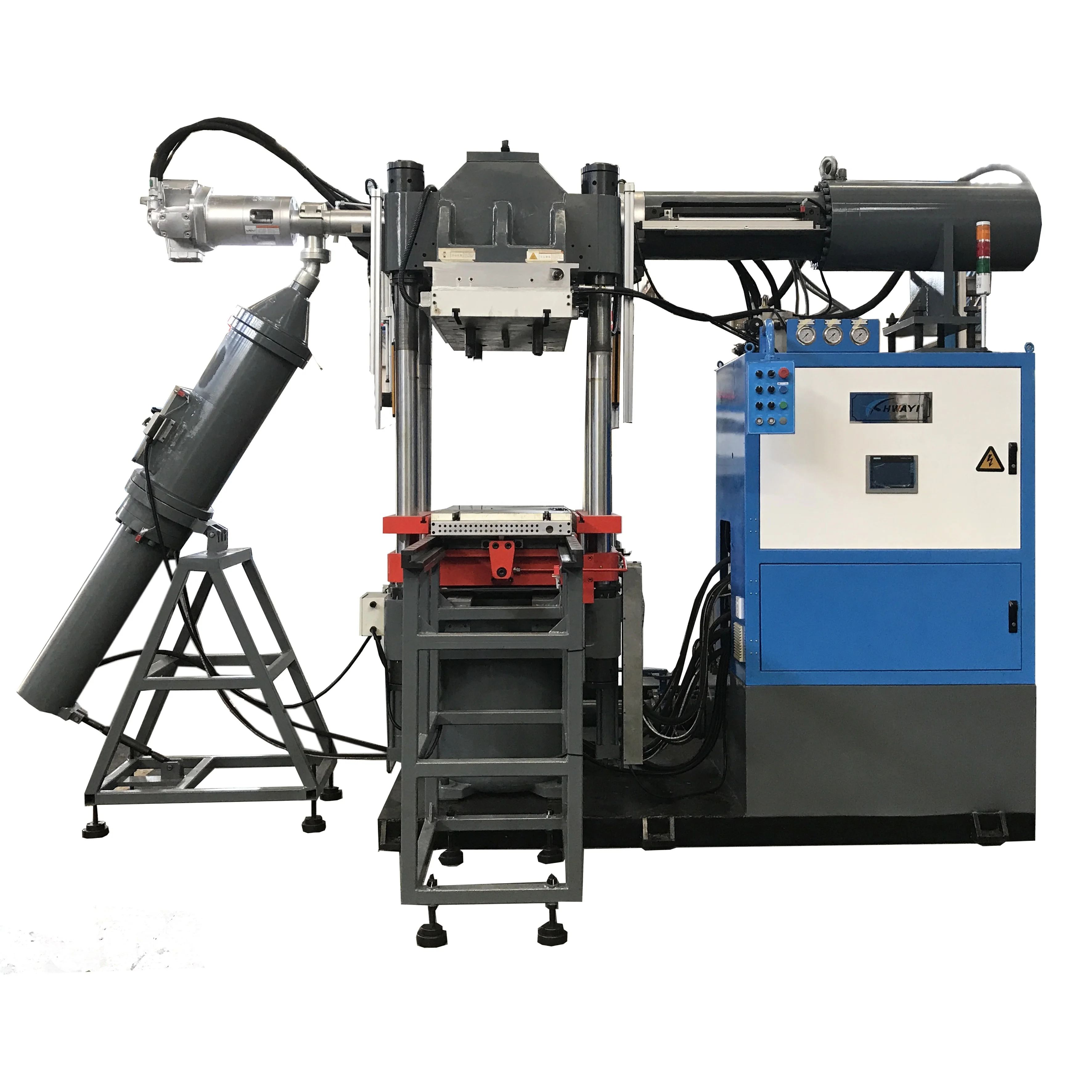

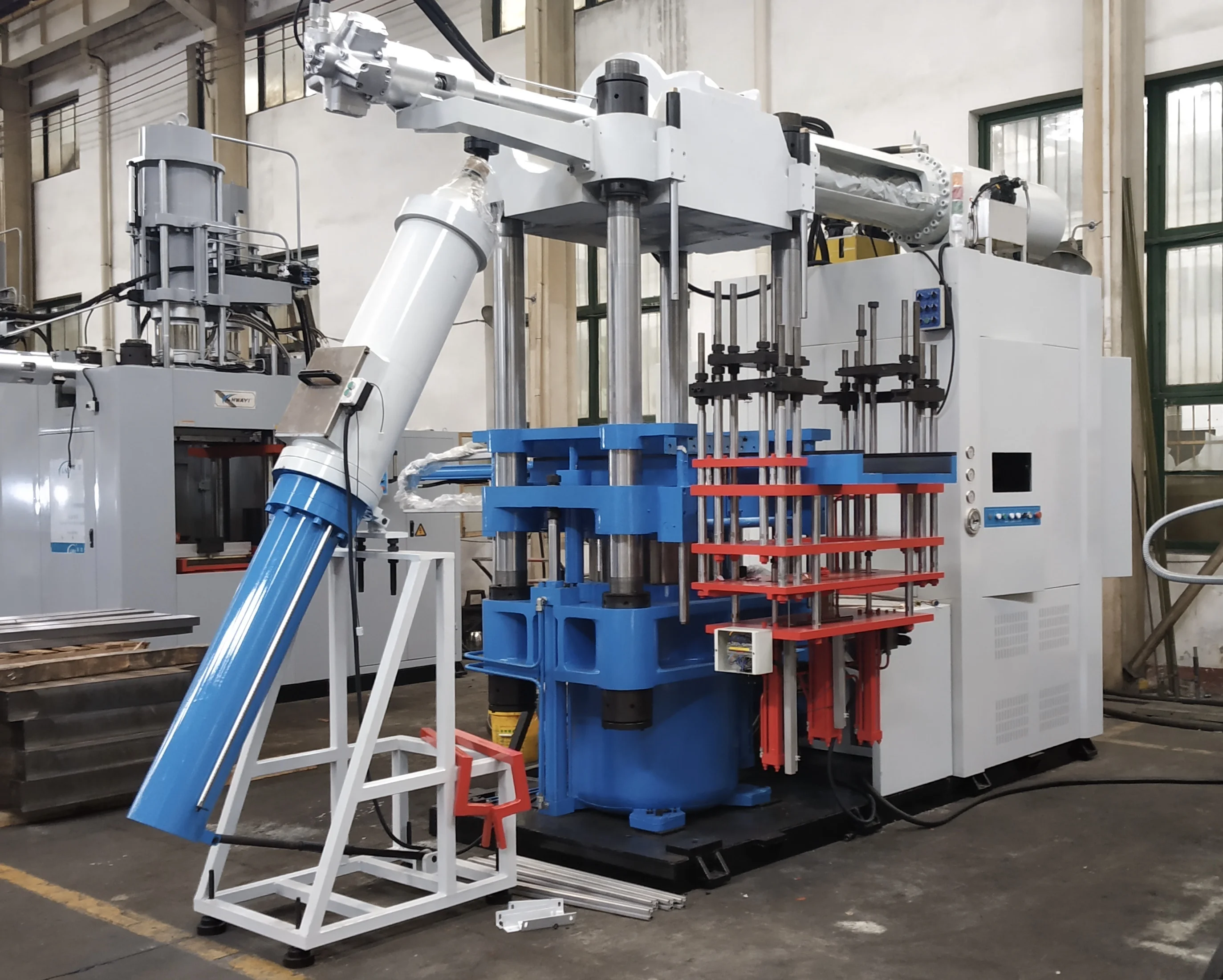

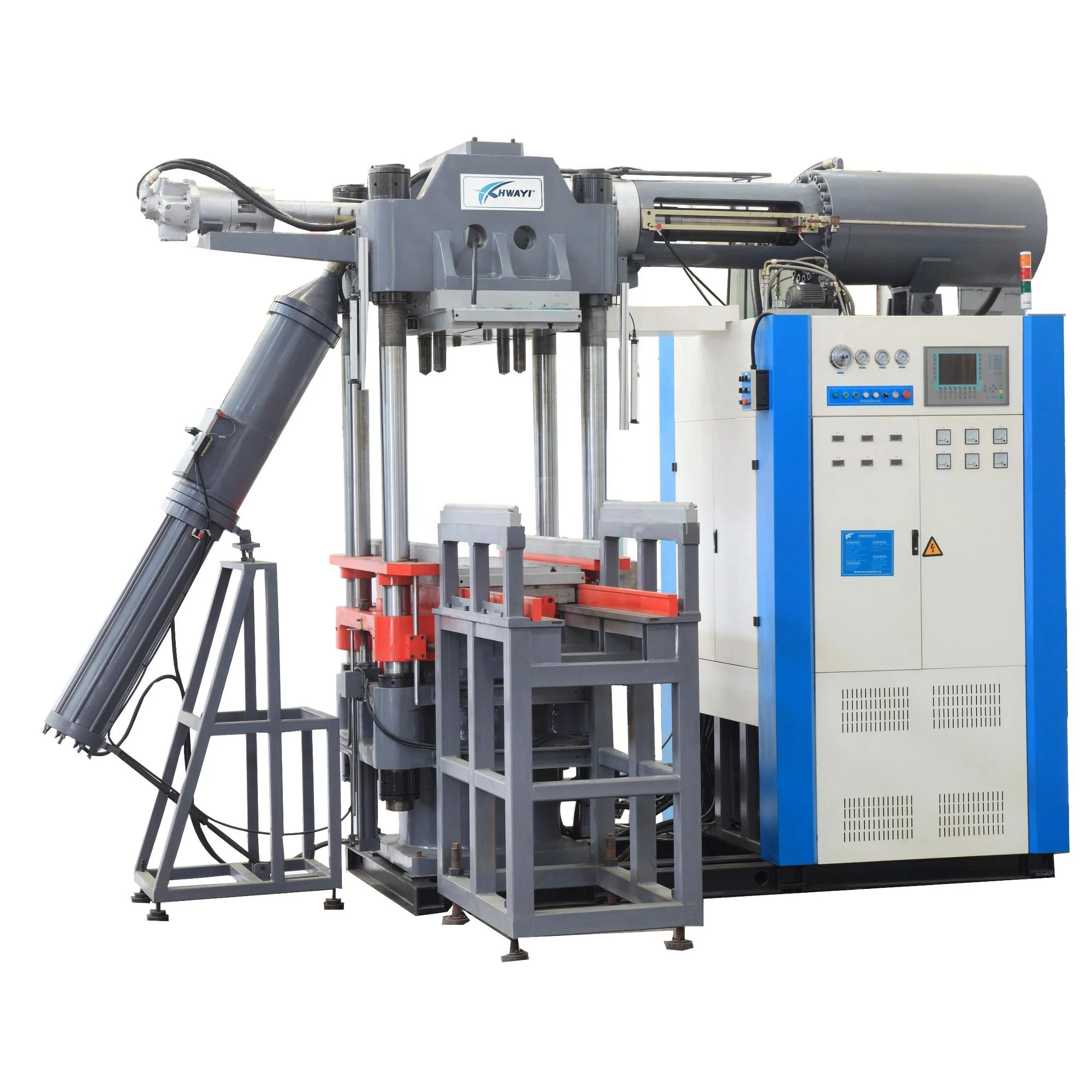

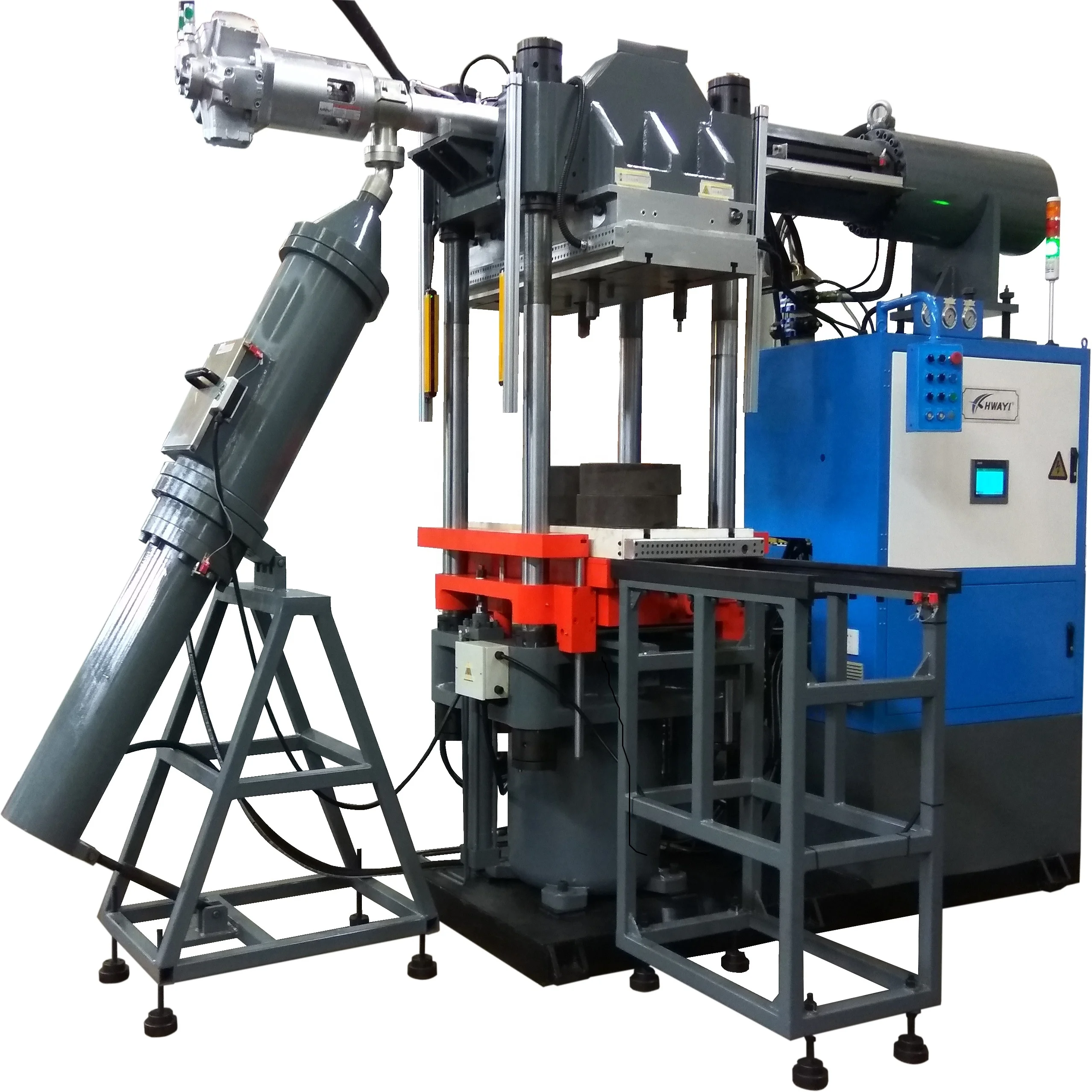

600T E Series HTV silicon rubber insulator making machine
Specifications

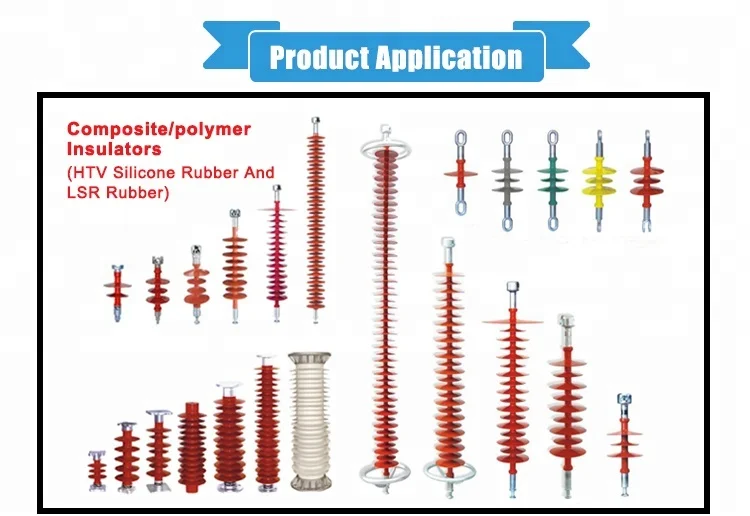

It is suitable for producing insulator, arrester, bushing, cable joints and all other kinds of rubber mold products.
Four-column vertical structure; Oil tank, power cabinet and display screen are right located, which spare the back room of machine for operation. Equipped with HTV stuffer(optional), machine is suitable for producing insulator, arrester, bushing, cable joints and all othe kinds of rubber mold products.
Series Main Technical Parameter
| Parameter Name | HYZ-200E | HYZ-300E | HYZ-400E | HYZ-600E | ||||
| Injection Volume(cm3) | 2000 | 2400 | 3000 | 4000 | 3000 | 4000 | 5000 | 8000 |
| Clamping Force(KN) | 2000 | 3000 | 4000 | 6000 | ||||
| Platen Size(mm)(W*L) | 550*550 | 600*700 | 700*700 | 800*800 | ||||
| Dimention Btwn Tiebar(mm) | 650*360 | 710*510 | 860*490 | 1010*560 | ||||
| Space of Platens(mm) | 570 | 750 | 710 | 1000 | ||||
| Max.Clamping Stroke(mm) | 500 | 600 | 500 | 800 | ||||
| Min.Mold Thickness(mm) | 80 | 160 | 220 | 210 | ||||
| Nozzle Diameter(mm) | φ5.5 | φ5.5 | φ5.5 | φ4.5 | ||||
| Arc Radius of Nozzle(mm) | SR19 | SR19 | SR19 | SR19 | ||||
| Heating Power(KW) | 12 | 18 | 26 | 27 | ||||
| Total Power(KW) | 28 | 40 | 48 | 55 | ||||
| Machine Dimension(L*W*H)(m) | 3.5*1.2*3.9 | 3.8*2*4.5 | 4.2*2*4.5 | 3.8*3.3*5 | ||||
| Machine Weight(Ton) | 8 | 10 | 12 | 42 | ||||

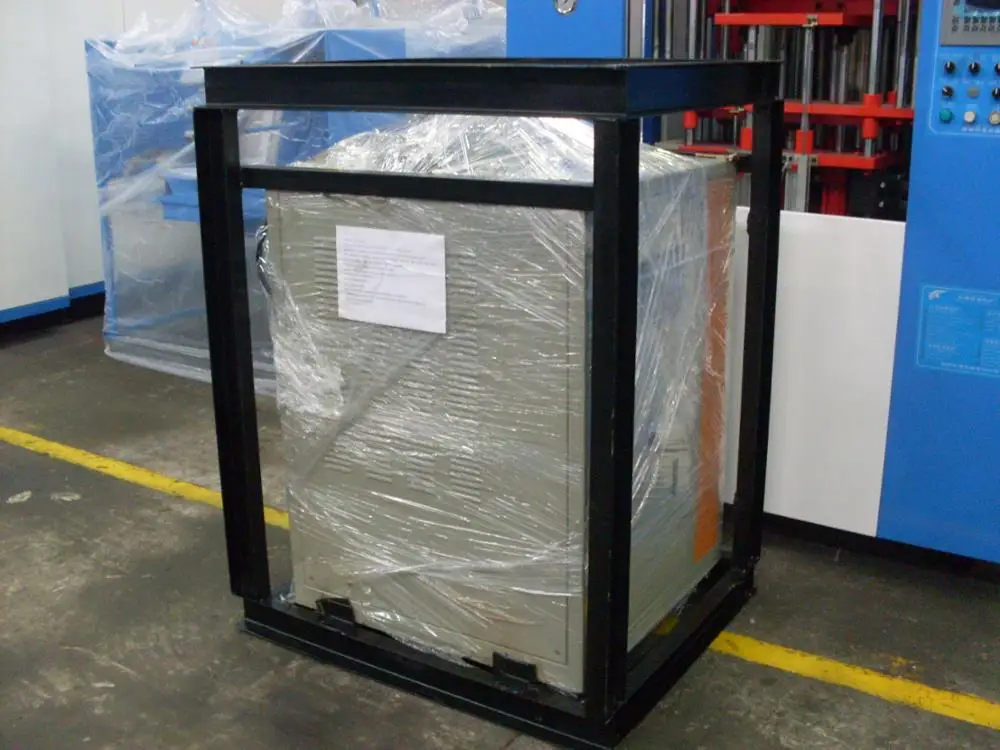

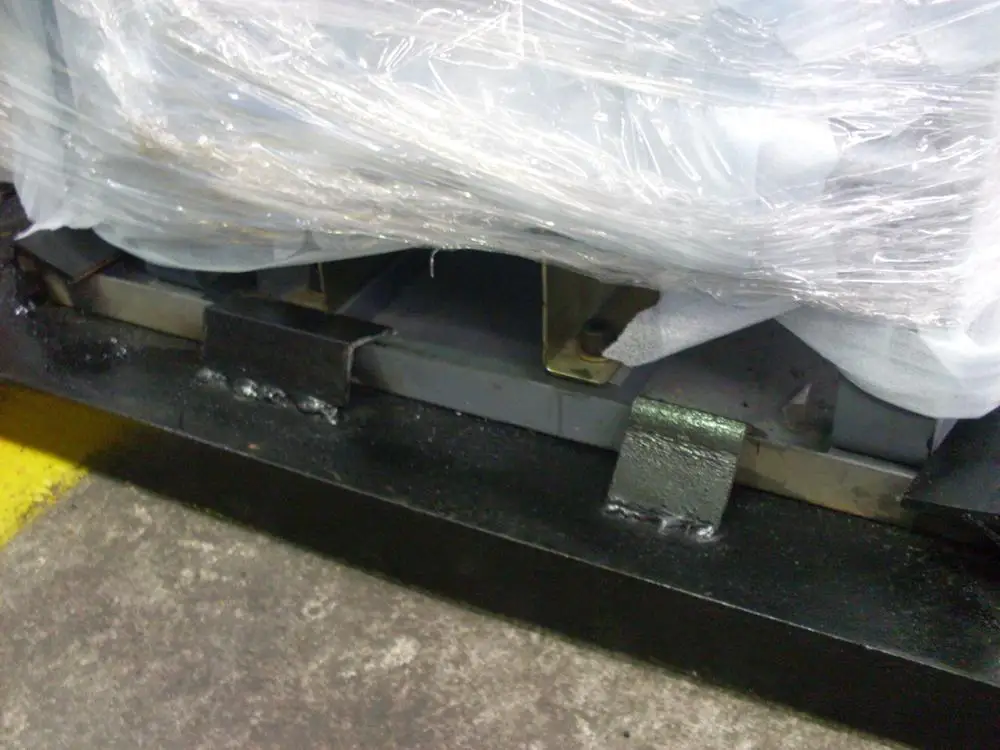

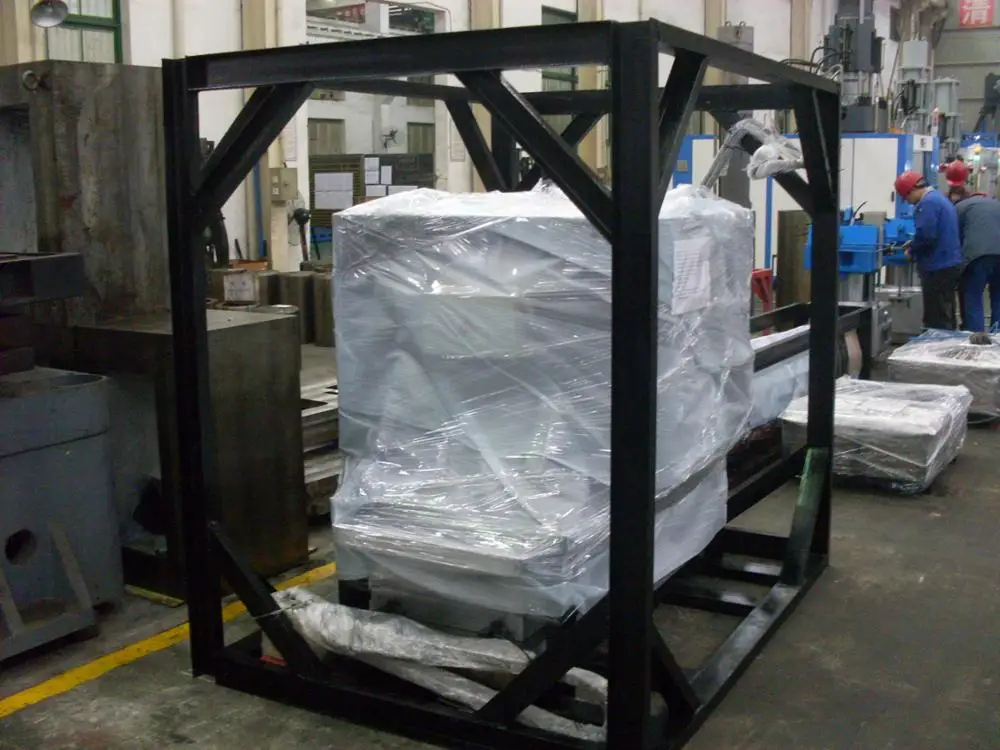

Packaging & Shipping

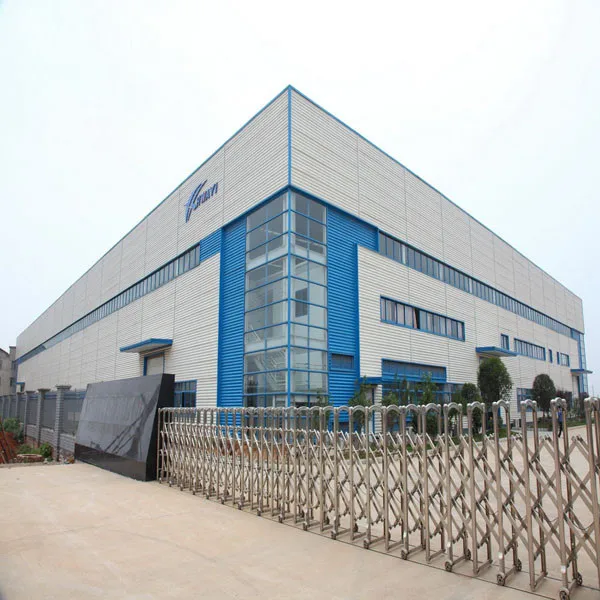

Company Information
Hengyang Huayi Machinery Co., Ltd., a Hong Kong invested high-tech enterprises in Hunan Province, who have been concentrated on rubber injection molding machine R&D since 2001. We are the biggest manufacturer of rubber products making machineswith the excellent R&D and largest production capacity in China.
Our main products as below:
1, Rubber Injection Moulding Machine(HTV silicon rubber insulator making machine, TPV/TPE Rubber Injection Machine)
2, Rubber Transfer Press ( Rubber Transfer Molding Machine)
3, Rubber Vacuum Vulcanizing press (Rubber Compression Molding Machine)
4, LSR Clamping Machine&pump machine, rubber jointing machine, and electrical insulators molds.
Now our machines are widely used in electric power, high voltage transmission, automotive rubber parts, railway infrastructure and mechanical seals and other industries.
Contact
Don't hesitate to contact us for HTV silicon rubber insulator making machines, any further questions or technical constancy, welcome to contact me.
Joyce Lau
Email: huayijx003(@)huayijx.com Wechat/whatsapp: 0086 15073424261
