earth auger big and hand operated auger and stainless steel auger

Share on (60336253081):


Price:RUB 5,213.93

Quantity:


Product Overview

Description






Product Description

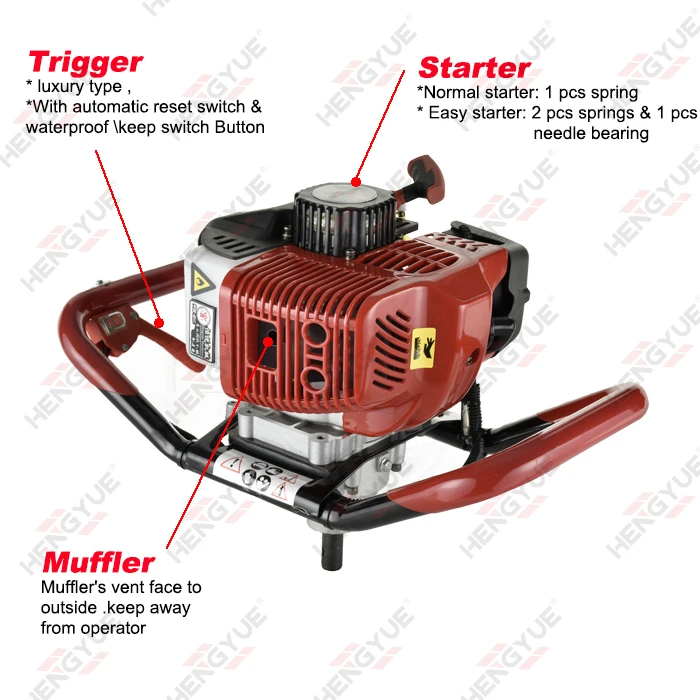

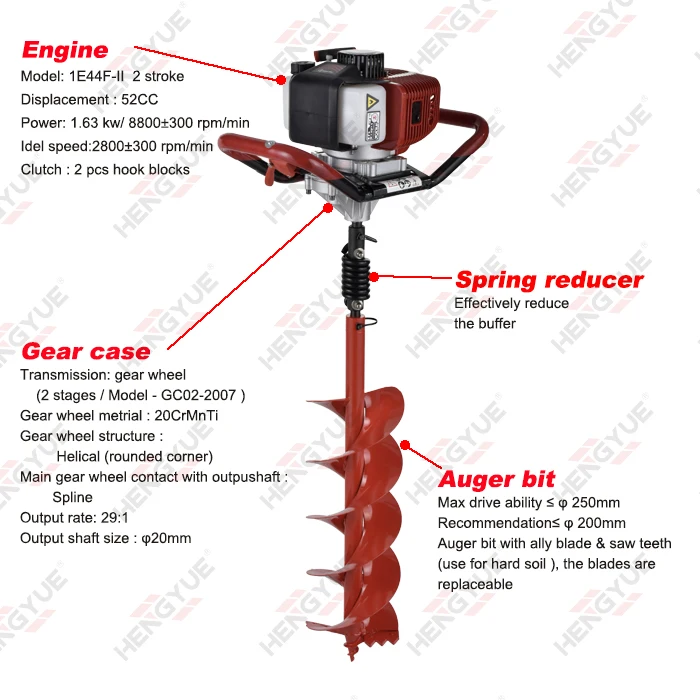

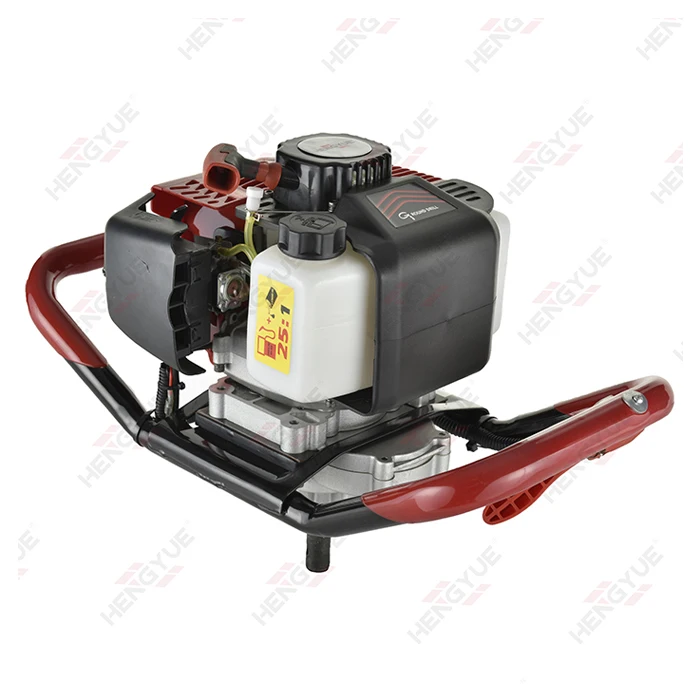

Engine model: 1E44F-5   2 stroke HandlE:oval elbow design , with dipping rubber on two sides of the handle
Engine power: 1.63kw / 8800±300 rpm/min Trigger :(Optional )
Displacement : 52CC    * Simple with waterproof keep switch button
Max output speed:8800±300 rpm/min    * luxury type with automatic reset switch & waterproof keep switch Button (Bisc)
Fuel  tank capacity: 1200 ml Vibration reduction system:2 pcs rubber & 2 pcs metal
Fuel  tank : (Optional ) Transmission: Gear case  ( 2 stages / Model - GC02-2007 )
        *Normal standard fuel tank  Gear wheel metrial :20CrMnTi
        *With external balance air level  (Basic) Gear wheel structure : Helical (rounded corner)
Fuel tank keeper:(Optional ) Main gear wheel contact with output shaft : Spline
        * Without  Output rate:  (Optional )
        * Simple metal           * 29:1  (Basic)
        * Luxury / Plastic metrial  / Fully surrounded   (Basic)         *10:1   /    5:1
Fuel: Gasoline mix 2 stroke Oil (25:1) Output shaft type :(Optional )
Clutch : 2 Pcs hoof blocks          * Spline
Starting systerm : Recoil         * Cylinder φ20mm (Basic)
Starter: (Optional )         * Cylinder φ22mm
        *Normal starter Max drive ability : ≤ φ 250mm  auger bit
        * Normal easy starter Recommend drive :≤φ 200mm auger bit
        *Supper easy starter: 2 pcs spings  & 1 pcs needle bearing (Basic) Auger bit size :  φ40/60/80/100/150/200/250mm

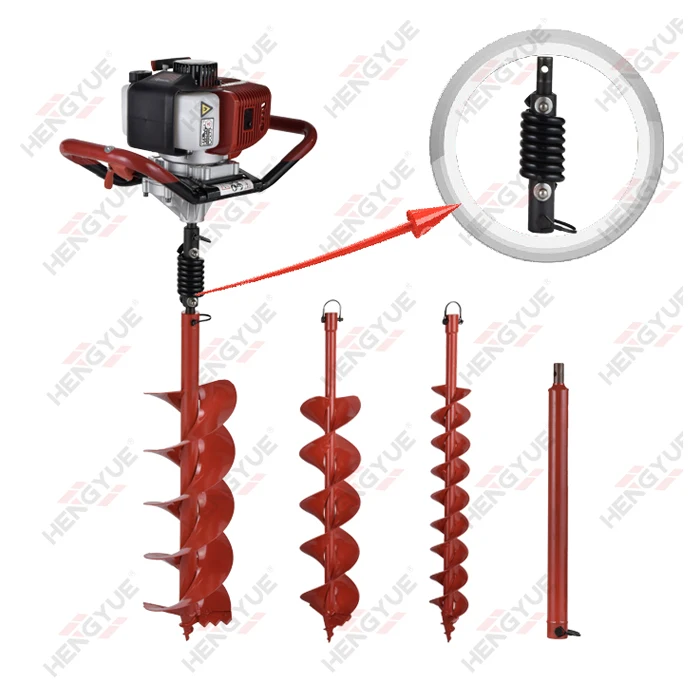

Different drill bit you can choose



1. Different tips

 HY-ZT01
 A. Cast steel tip, which can not be take down
 B. Simple blade, which can not be take down
 C. Single laminae or double laminaes
 HY-PT01
 A. Easy tip
 B. Simple blade , which can not be take down
 C. Single laminae or double laminaes
 HY-HJZT01
 A. Cast steel tip, which can not be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Single laminae or double laminaes
 HY-ZYHJ01
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Whole metal disk plate in the bottom
 D. Single laminae or double laminaes
 HY-BYHJ01
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Alloy sawtooth or flat blade, which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes
 HY-CX01
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes



 HY-CX02
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Alloy sawtooth or flat blade , which can be take down
 D. Half metal disk plate in the bottom
 E. Single laminae or double laminaes

HY-CX03
 A. Cast iron twist tip, which can be take down
 B. Alloy sawtooth or flat blade , which can be take down
 C. Single laminae or double laminaes





 HY-ICE01
 A. Supper tip, which can be take down
 B. XK5 material blade ,which can be take down
 C. XK5 material blade ,which can be take down
 D. Single laminae or double laminaes
 HY-ICE02
 A. Supper tip, which can be take down
 B. XK5 material blade ,which can be take down
 C. XK5 material blade ,which can be take down
 D. Single laminae or double laminaes
 HY-ICE03
 A. Cast iron twist tip, which can not be take down
 B. Alloy sawtooth or flat blade, which can be take down
 C. Alloy sawtooth or flat blade, which can be take down
 D. Half metal disk plate in the bottom
 E - Single laminae or double laminaes
 HY-CX04
 A. Spring adapter, can reduce shake
 B. Single laminae or double laminaes
 C. Cast iron twist tip, which can not be take down
 D. Whole metal disk plate in the bottom
 E.Alloy sawtooth or flat blade, which can be take down





2. Different size and spare parts
