R senda 12v/p4 pc power supply 450w

Product Overview

Description

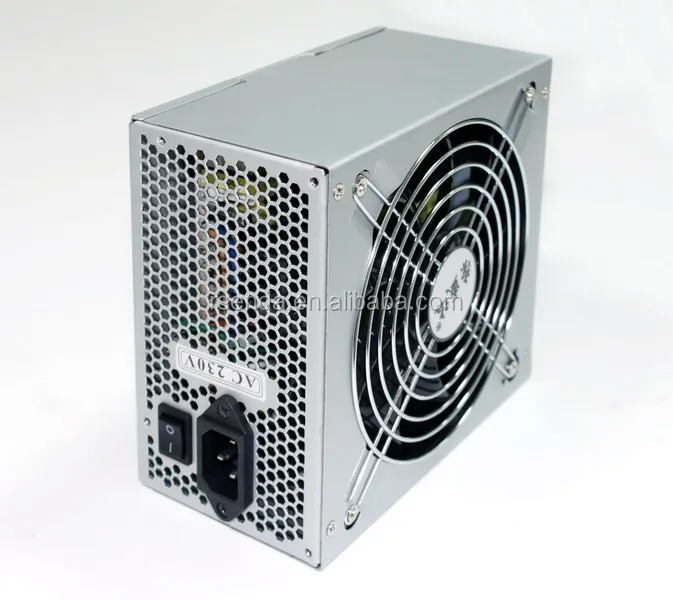

R-senda 12v/p4 pc power supply 450w

* Output power: 450W

* ATX 12V Ver2.3

* 8cm fan

* With EMI

* 20P+4P for M/B, 4+4pin+12V CPU, 4Pin for HDD×4, 4Pin for FDD, PCI-E 6+2Pin, SATA Connector×3

* For Core Series CPU

* High efficiency

* Low ripple & noise

* Output over voltageprotection

* Short circuitprotection on all outputs

* 100% Hi-pot tested

* 100% burn-in underhigh ambient temperature(45°C)

* MTBF:80K hours at 25°C

AC INPUT	VOLTAGE			CURRENT			FREQUENCY
	230V			4A			50Hz
DC OUTPUT	+5V	+3.3V	+12V1	+12V2	-12V	+5VSB	PS-0N	POK	COM
	18A	18A	18A	14A	0.5A	2A	PEMOTE	P.G	RETURN
MAX POWER	120W		336W		6W	10W	TOTAL 450W
	434W				16W











Advantages:



*  Reliable and capable supplier

* The leading manufacturer of PSU in China

* Over 10 years of manufacturing experience.

* Safety and Health at Work

* Perfect and professional design

* High-quality raw material

* Proficient worker and skill

* Strict quality testing

* Strong research & development and desigh

* Excellent after sales service

* Double win

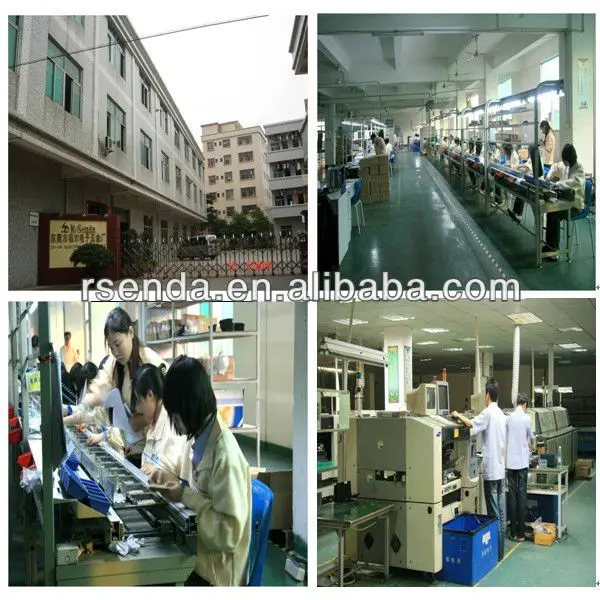

Factory:







DC Connectors:







Package:





Standard export packing

Dimension:158(L)*150(W)*85(H)mm

Carton size:460*360*170mm(8pcs/CTN)







R-Senda Attitude:



1)  Personal merchandiser for order



2)  Reporting order process everyday



3)  Memo with order process picture



4)  Delivery on time



5)  Promise NG less than 1%









Terms:



* Price Term: FOB Shenzhen

* Payment Terms: T/T, L/C

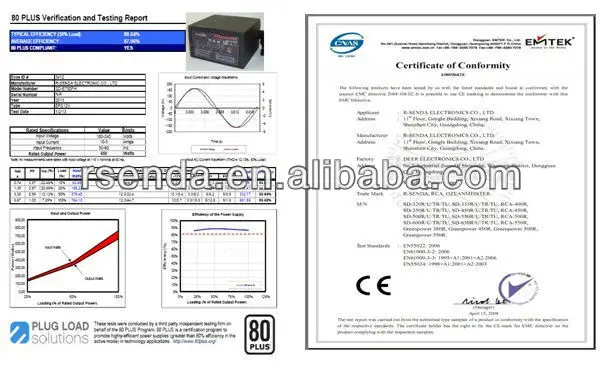

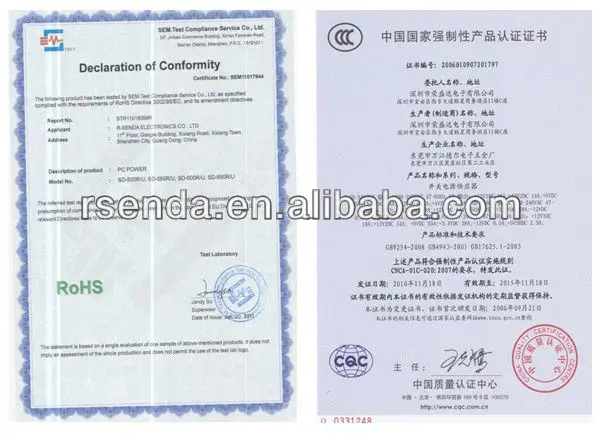

* Approved Certificates: CE, RoHS, FCC, 80 PLUS (Bronze, Silver)

* Delivery Time: 15-20 days after receipt advance

* Package: Standard export packing or as your requirement

* Warranty: 1 year

* OEM are acceptable

* Range: ATX, EPS, Micro ATX, FLEX, TFX, 1U and 2U from 180W-1000W



R-Senda Key Values: Integrity, verity, innovation, high-efficiency, creating value for customers.



Welcome to visit our factory.
