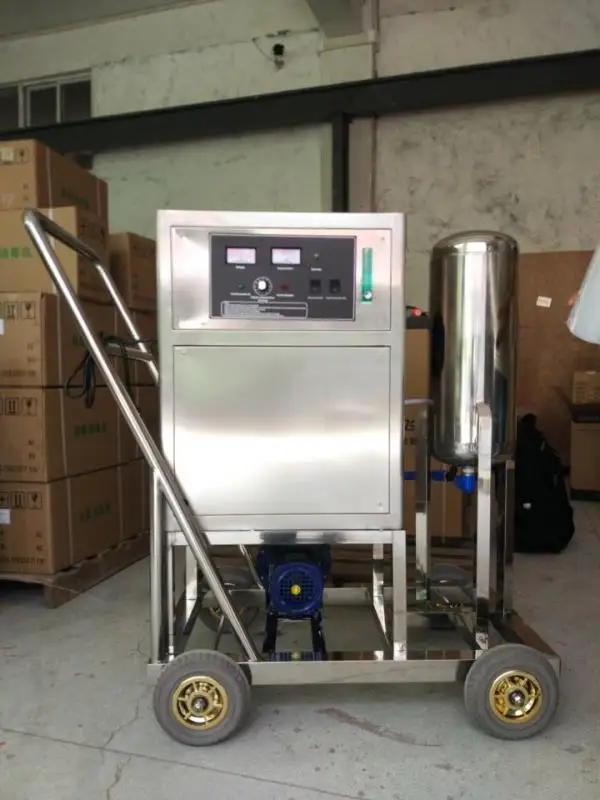

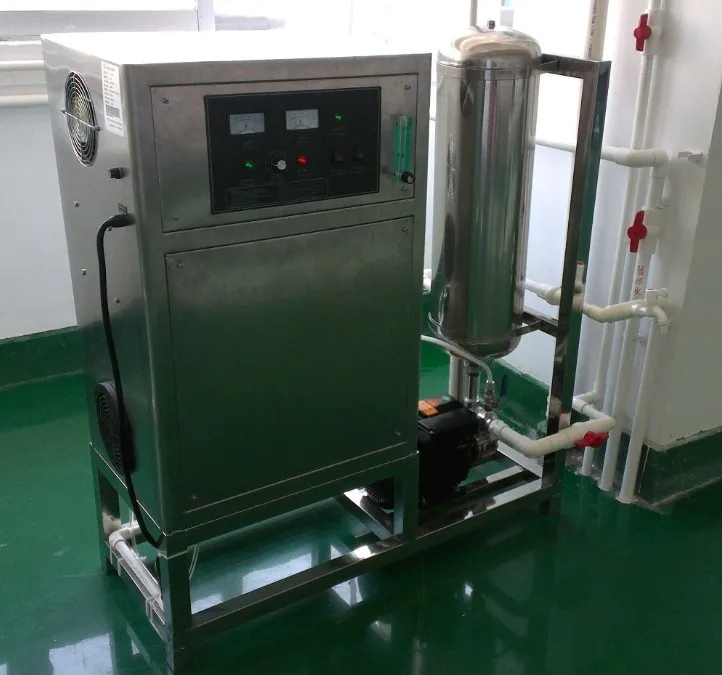

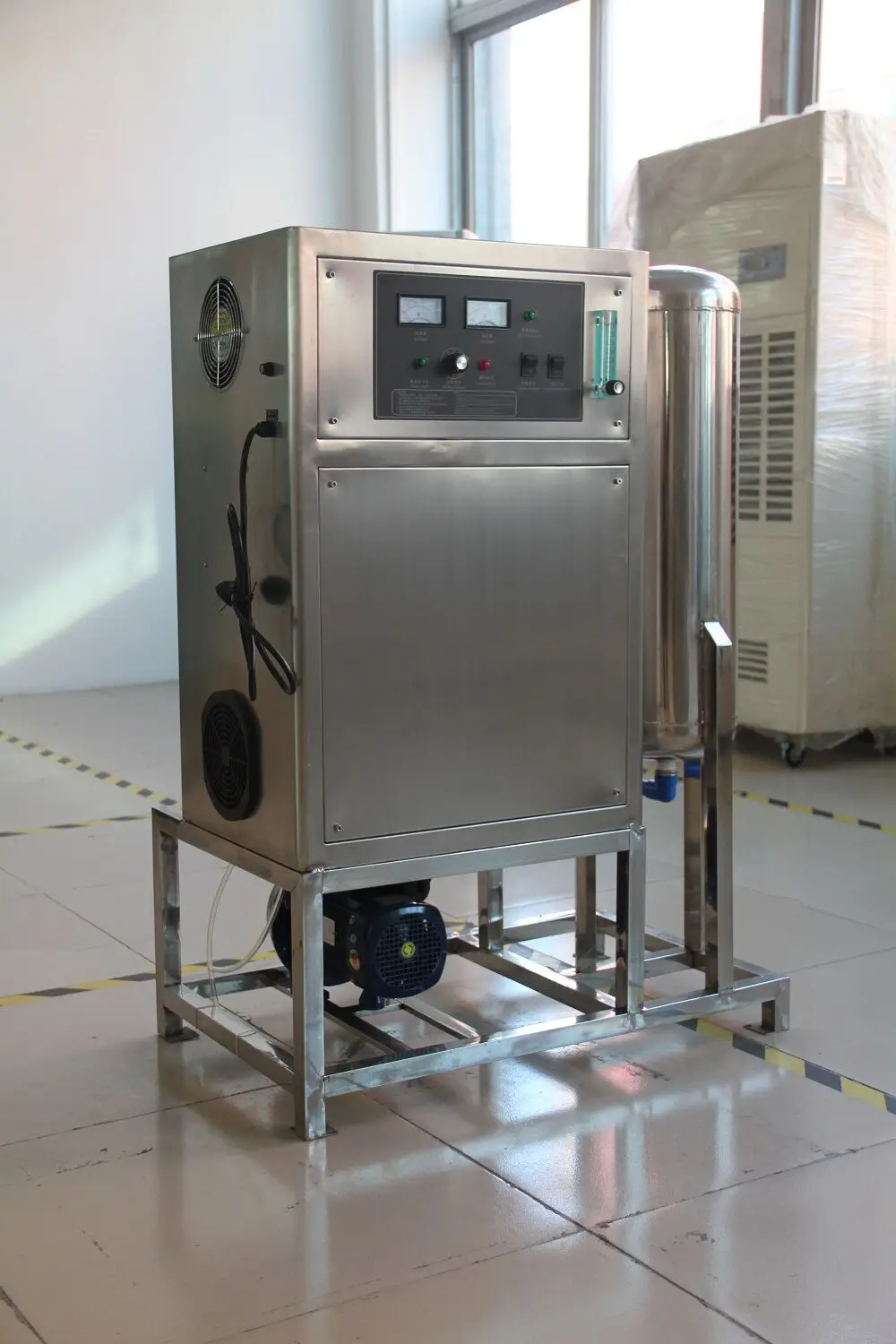

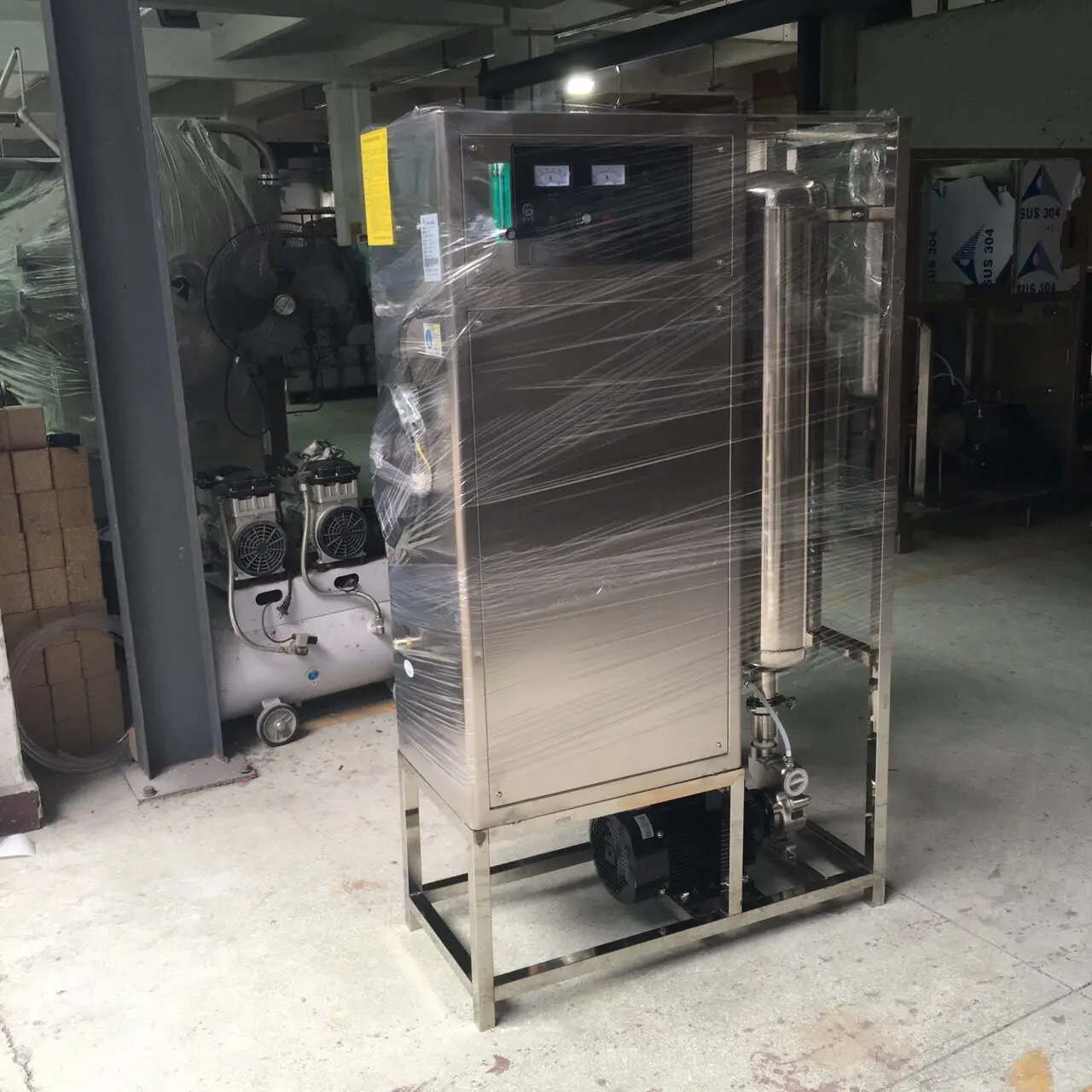

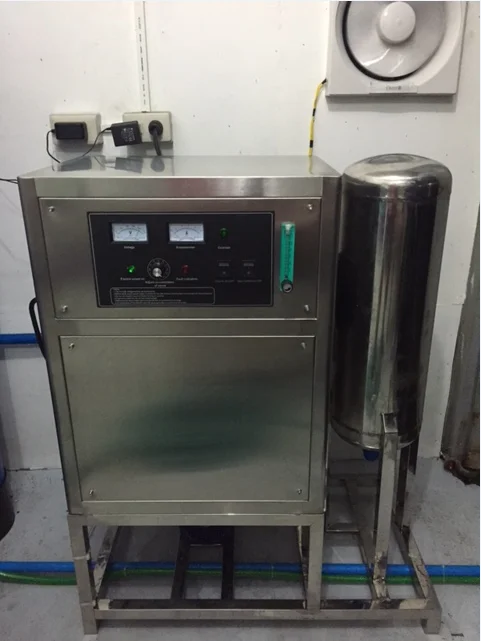

30g Venturi Mixer Injector Water For Ozone generator Water Treatment

Product Overview

Description

Model	30g
Ozone output(g/hr)	30g/hr
Input voltage(V)	220V/50HZ
Input power(W)	2450W
Ozone concentration(mg/l)	60-80mg/l
Weight(kg)	130kg
Cooling method	Air and water
Size(cm)	85*55*128cm
Ozone water concentration	Up to 3 ppm
Water flow rate	Up to 6M3/hr



Characteristic:

1.ozone output :30g/hr



2.integrated ozone generator with oxygen feeding ,blending pump ,venturi injector ,contact tank ,water outlet pressure pump.



3.High concentration ozonated water , ozone dosing up to 2ppm or more.



4.Technology with quartz tube .the enamle tube also for your option.



5.Valuable oxygen air flow rate adjuster .



6.Adjuster ozone output 0%-100%



7.Inner temperature controller to prevent heat generating.



8.Cooling way -ozone tube .advanced water cooling system.



9.Special design to avoid water return



10.120mins controller or contineuos running .



11.inner oil less compressor .inner refrigerant dryer .inner mullfler



12..inner ultra-filter(2 set).inner electric drain valve( 2 set)



13.inner psa oxygen generated unit for feeding



Applications:

1.Waste water treatment , Chemical oxidation ,sterilization



2. Swimming pool and SPA water sterilization and disinfection



3. Domestic water sterilizer for housing estate



4. Aquaculture and aquarium water sterilization



5. Space air purification ,sterilizing room



6. Ozonated water for sterilization and disinfection ( sea food processing ,washing beverage bottle and Barrel, washing floor )



7. Bottle water sterilizer



8. Beverage and Drinking water disinfection



9. Ozone generator for food processing



10.Decompose chemical residual from vegetable and fruit ,Eliminate bacterium for agriculture products to keep fresh ,use for food processing, cold storage .



(1) water ozone generator by venturi for small water treatment (5g-60g) ,mixing pump for your option

(2) water ozone generator by mixing pump for high ozonated water(60g/hr-100g/hr)



(3) water ozone generator by mixing pump for large water treatment(100g/hr-200g/hr)



(4)water ozone generator used in drinking water / tap water / mineral water / purifier water





Ozone in water becomes a powerful disinfectant. It is able to kill bacterium, parasites and fungi more effectively and safer than traditional chemical methods. Ozone controls water pollution and is more effective than reverse osmosis or water filters. Commercial pure water systems are mostly run with ozone being implemented in the final stage of sanitisation.



As a wash or spray, water treated with ozone can be used for drinking, sanitise surfaces and equipment used in food processing. Utensils and small equipment can be rinsed in ozone treated water to remove chemical and bacterial residue.



The magic part is the by-product of ozone is oxygen, so that no residual chemicals remain.



Ozone Water Treatment and Advanced Oxidation



Municipal Drinking Water - Ozone has been shown to be effective in a variety of drinking water applications including: disinfection, color removal, iron (Fe) and manganese (Mn) reduction, hydrogen sulfide removal, taste and odor reduction micro pollutant removal and  improved filtration and flocculation of potable water.



Ozone can also reduce formation of disinfection by-products such as trihalomethanes and haloacetic acids.  Ozonation is effective for removal of difficult-to-treat pathogens such asgiardia and cryptosporidium.



Industrial Wastewater Treatment - Ozone and advanced oxidation processes can selectively remove pollutants from industrial wastewater and process water, e.g. TOC, COD, BOD, cyanide, phenol, color among many other compounds.
This can include discharge to surface waters or to POTW (referred to as pretreatment). Ozone can also be used to keeps sumps clean and odor free.



Cooling Water Treatment - Ozone has been used extensively for treatment in cooling water towers.  It is a powerful and environmentally friendly oxidizing biocide.



Rainwater Harvesting - Ozone and UV can be used to treat water produced from rainwater harvesting application.
Combined with filtration these technologies can safely treat the rainwater for many applications such as toilet flushing and landscape irrigation.



Food and Beverage Applications - Ozone generators are used a variety of applications for food and beverage processing.  For example, ozone is the dominant method for the treatment of bottled water. It is also used the processing of fruits and vegetables.



Aquaculture - Ozone is used to treat feed water as well as improve water quality in aquaculture systems including recircualting aquaculture systems (RAS).



Municipal Wastewater Treatment - Ozone has been used in two applications for municipal wastewater treatment: disinfection of wastewater effluent prior to discharge and treatment of sludge from the activated sludge process.  In the latter case the sludge treatment can reduce the amount of excess sludge and minimize the phenomenon known as bulking.  More recently, ozone is being considered for water ruse applications to recycle municipal wastewater for a variety of applications including indirect potable use.

Any questions pls feel free to contact us.
