Product Overview
Description

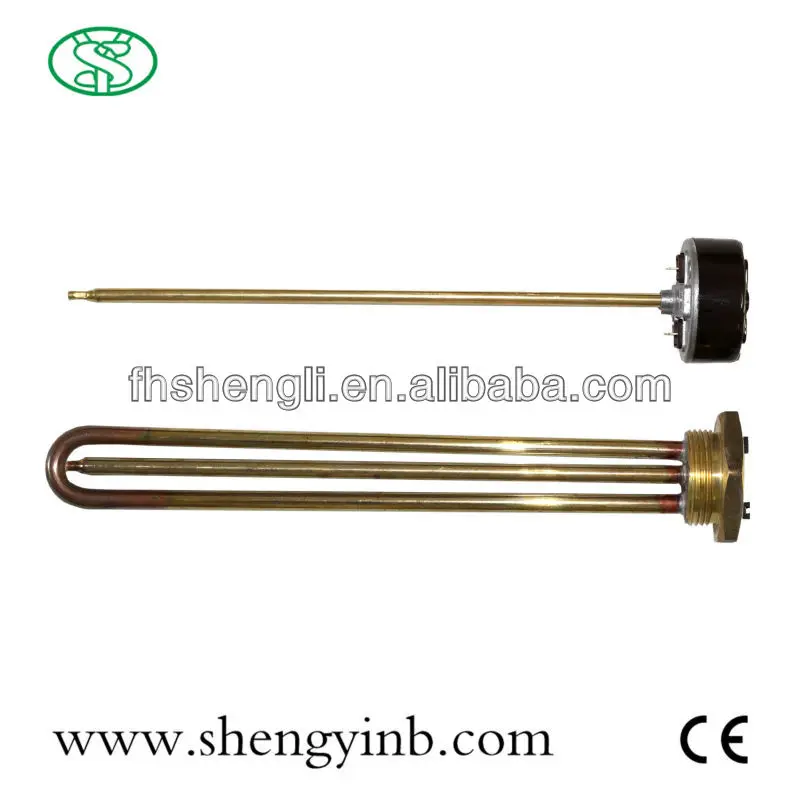

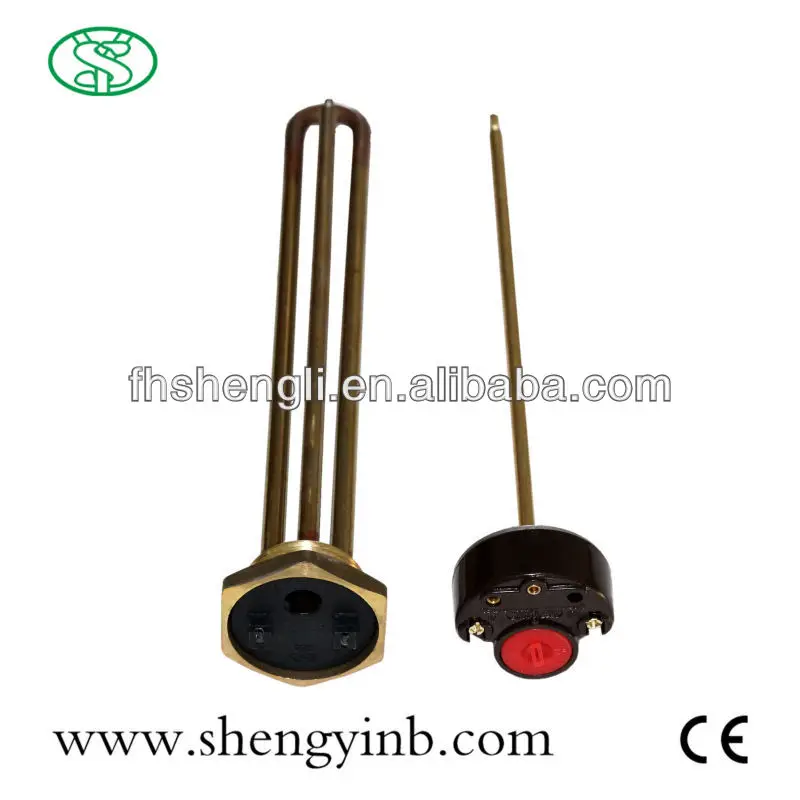

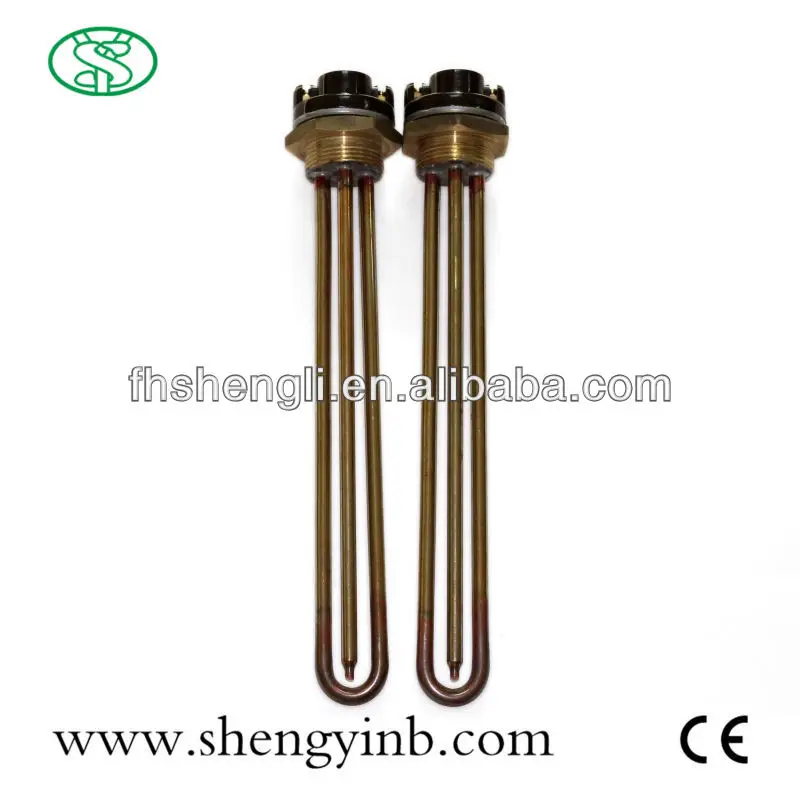

The heating element used for water heater and boiler with high quality&long life
| No. | Main Parameters | |
| 1 | Model No. | SY06-30UT |

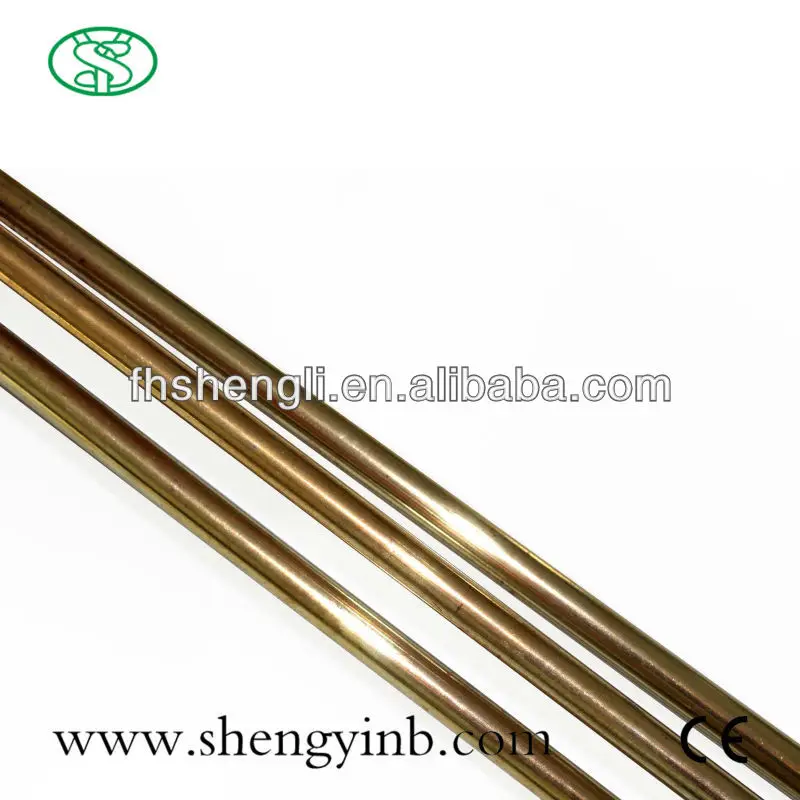

| 2 | Tube Material | Copper(T2) |
| 3 | Output power | 1000W-3000W +5%, -10% |
| 4 | Voltage | 220V-240V/50Hz. 110V/60Hz |
| 5 | Hi-pot test | 1800V/S min cold condition |
| 6 | Leakage Current | 0.75ma max |
| 7 | Insulation | 500MΩ |
| 8 | Heating resistance wire | Ocr25AI5, Cr20NI80 or as custom's requirement |
| 9 | Sheath Diameter | 8mm-8.4mm |
| 10 | Hydraulic testing | 8.0KG |
| 11 | Total Length | 30cm |

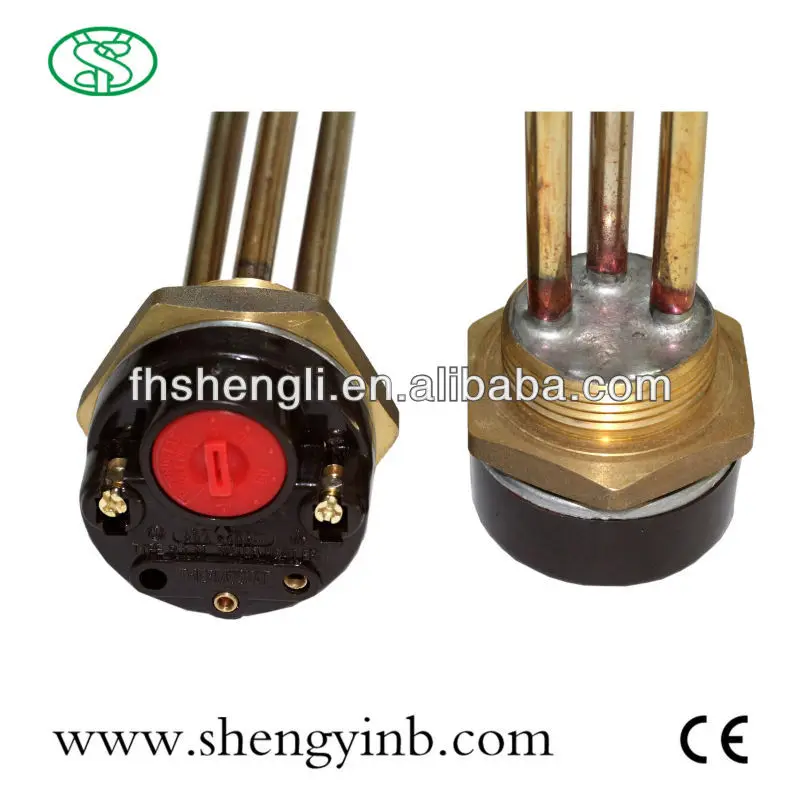

| 12 | Flange | 1 1/4" brass flange with/without Mg anode holding M6/M8 |
| 13 | Thermostat | With 16A 250V. L=275mm. Single safety thermostat. |
| 14 | Temperature Range | 20-80℃ |
We can manufacture every technically possible heaters as your requirement.
